Description
Rifle Scope Product Details

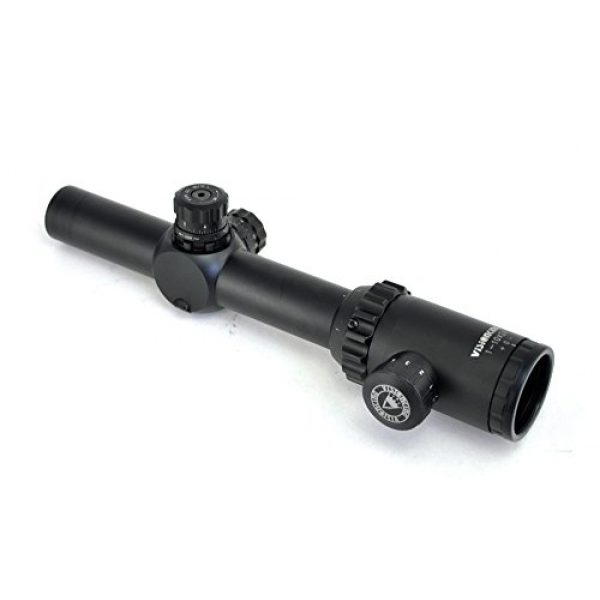

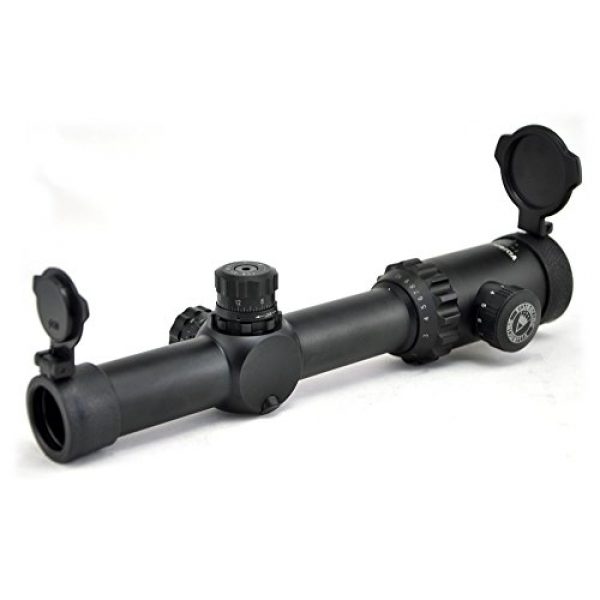

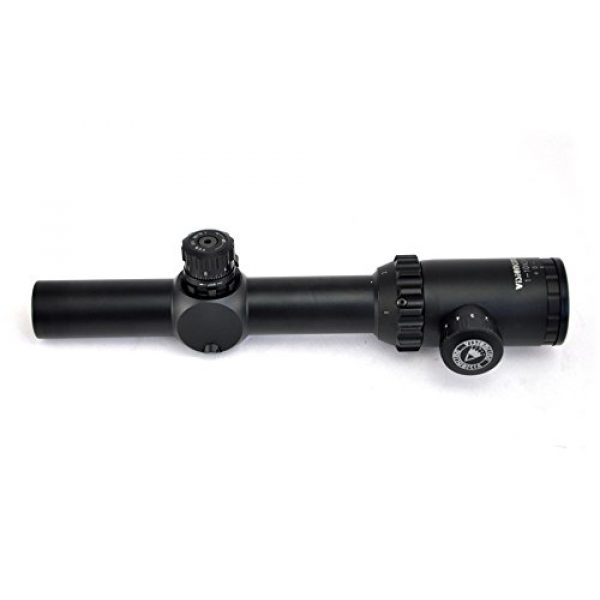

Visionking Rifle Scope 1-10×24 FFP First Focal Plane riflescope Mil-dot Rifle Scope
Item Description:
What zoom power are you need1x-4xor 1x-6xThe newest Visionking 1-10×24 riflescope already with a 1x-10x zoom scope,and it is a first focal plane rifle scope,with super wide zoom 1x-10x zoom! It uses cutting edge glass and lens coatings to ensure that it is the most accurate tactical instrument on the market. Precision multi-coated optics are the distinguishing feature of the Visionking tactical riflescope line; multicoated lenses offer the clearest view for easy target acquisition in both bright and low light situations. Both waterproof and fog proof, the nitrogen filled, elevation and focusing adjustment knobs for easy adjustment in the field Shock proof, Water Proof and Fog Proof (Nitrogen Purged), high-durability aluminum alloy in black matte.
Specification: Magnification: 1x-10x
Objective lens: 24mm
Coating: FMC Green
Field of View: 101FT~ 10.1FT@100YARDS
Exit Pupil (mm): 24-2.4mm
Eye Relief (inch): 5.5-3.8
Resolution: 15″
Finish: Matte black
Waterproof: Yes
Battery: CR2032 3V(No include)
Nitrogen: Full filled Nitrogen
Tube Diameter: 30MM
Click Value: 0.5MOA
Parallax: +0.22SD ~ -0.22SD
Reticle: Glass-etched Mil-dot
Weight: 530g
Length: 269mm
Shockresistant: 1500G
Rifle Scope Product Features
First Focal Plane Reticle for Precision Shooting
High shock resistant(1800g)
Fully multicoated optics offer the clearest view for both bright and low light situations
Precise adjustment turrets 1/2MOA/click
Lightweight and compact construction
About the Visionking Scope Maker
Visionking is a premium supplier for firearm scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They innovate and make their scopes, mounts, and related products by applying building materials which are durable and long lasting. This includes the Visionking Rifle Scope 1-10×24 FFP First Focal Plane riflescope Mil-dot Rifle Scope by Visionking. For additional shooting goods, visit their website.
Information About Rifle Scopes
Rifle scopes enable you to exactly align a rifle at various targets by aligning your eye with the target at range. They do this through magnification using a set of lenses inside the scope. The scope’s positioning can be adapted for the consideration of separate environmental aspects like wind and elevation to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are seeing using the scope as you align the scope’s crosshair or reticle with the intended point of impact. Most modern-day rifle optics have about 11 parts which are arranged internally and outside of the scope. These optic pieces include the rifle scope’s body, lenses, elevation dials or turrets, objective focus rings, and other parts. Learn about the eleven parts of glass.
About Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Selecting the best type of rifle glass is based on what type of shooting you plan to do.
First Focal Plane Scope Facts
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are useful for:
- Quick acquisition, far away types of shooting
- Shooting circumstances where computations are marginal
- Experienced shooters who understand their aim point “hold over” plus “lead” equations for their rifles
- Shooters who don’t mind the reticle is bigger and occupies more visual sight room than a SFP reticle
Second Focal Plane Glass Facts
Second focal plane optics (SFP) include the reticle to the rear of the zoom lens. This triggers the reticle to remain at the very same dimensions in relation to the level of magnification being used. The effect is that the reticle measurements alter based upon the magnification chosen to shoot over lengthier ranges considering the reticle markings represent distinct increments which differ with the zoom level. In the FFP illustration with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular kinds of optics are convenient for:
- Long distance types of shooting where shooters have increased time to make ballistic calculations
- Shooting where most shots occur within shorter ranges and distances
- Shooters who like a clearer optic picture with less room used up by the bigger FFP reticle
Optic Zoom
The quantity of scope magnification you need on your scope depends on the style of shooting you intend to do. Almost every kind of rifle optic provides some degree of magnification. The volume of zoom a scope provides is identified by the diameter, thickness, and curves of the lens glass inside of the rifle scope. The magnifying level of the optic is the “power” of the scope. This denotes what the shooter is observing through the scope is amplified times the power element of what can normally be seen by human eyes.
Fixed Power Lens Scope Info
A single power rifle scope or optic comes with a zoom number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of optic can not fluctuate since it is a fixed power optic.
Adjustable Power Lens Rifle Scope Facts
Variable power rifle scopes use variable power levels. The power change is accomplished using the power ring part of the scope near the back of the scope by the eye bell.
The Power Level and Range Correlation of Optics
Here are some advised scope powers and the distances where they may be successfully used. Bear in mind that high magnification glass will not be as effective as lower powered scope and optics due to the fact that too much magnification can be a bad thing. The same idea applies to longer ranges where the shooter needs enough power to see where to properly aim the rifle.
About Lens Coatings
All modern-day rifle scope and optic lenses are layered. There are different types and qualities of lens finishes. When considering high end rifle optics and scope units, Lens covering can be a critical component of defining the rifle’s capability. The glass lenses are among the most crucial parts of the glass considering they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses shields the lens exterior as well as assists with anti glare from refracted light and color perception.
HD Versus ED Lenses
Some rifle glass companies even use “HD” or high-def lense coatings which use various procedures, chemicals, components, and polarizations to extract various color ranges and viewable target visibility through lenses. This HD finish is normally used with more costly, high density lens glass which reduces light’s capability to refract through the lens glass. Some scope brands use “HD” to describe “ED” signifying extra-low dispersion glass. ED handles how colors are presented on the chroma spectrum and the chromatic aberration which is similarly called color distortion or fringing. Chromatic aberration may be visible around items with well defined shapes as light hits the item from certain angles.
Rifle Optic Lens Single Finish Versus Multi-Coating
Various optic lenses can even have various finishes applied to them. All lenses usually have at least some type of treatment or covering applied to them before they are used in a rifle scope or optic assembly. Because the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It is part of the finely tuned optic. It must have a finishing placed on it so that the lens will be optimally usable in many types of environments, degrees of sunlight (full light VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is usually a protective and improving multi-purpose treatment. This lens treatment can protect the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends upon the scope maker and how much money you spent on it. Both are indications of the lens quality.
Some scope makers also make it a point to specify if their optic lenses are coated or “multi” covered. Being “much better” depends on the producer’s lens treatment technology and the quality of products used in developing the rifle scope.
Scope Lens Hydrophobic Finish
Water on a lens does not support retaining a clear sight picture through an optic in any way. Many top of the line and high-end scope makers will coat their lenses with a hydrophilic or hydrophobic coating. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It deals with the exterior surfaces of the Steiner optic lens so the H2O molecules can not bind to it or create surface tension. The outcome is that the water beads move off of the scope to keep a clear, water free sight picture.
Rifle Optic Installation Alternatives
Installing options for scopes can be found in a couple of options. There are the basic scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These various types of mounts also typically come in quick release versions which use manual levers which enable rifle shooters to quickly mount and remove the optics.
Hex Key Scope Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which are designed for long range accuracy shooting. This type of scope install is great for rifles which need a long lasting, rock solid mounting solution which will not move no matter how much the scope is moved or abused.
Optic Mounting Solutions with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to quickly take off a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be switched out if they all use a similar designed mount. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach nicely to a flat top style Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while maintaining the original sighting settings. These kinds of mounts are useful and convenient for rifles which are hauled around a lot, to remove the scope glass from the rifle for protection, or for aiming systems which are used between multiple rifles. An example of this mount style is the 30mm mount from the Vortex Optics manufacturer. It usually costs around $250 USD
Sealing and Gas Purging for Rifle Optic Tubes
Moisture inside your rifle scope can mess up a day of shooting and your pricey optic by causing fogging and developing residue inside of the scope tube. Many scopes avoid moisture from entering the scope tube with a system of sealing O-rings which are waterproof.
Rifle Optic Gas Purging
Another component of preventing the accumulation of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this area is currently occupied by the gas, the scope is less impacted by temp alterations and pressure variations from the outside environment which may potentially allow water vapor to leak in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
