Description
Rifle Scope Product Details

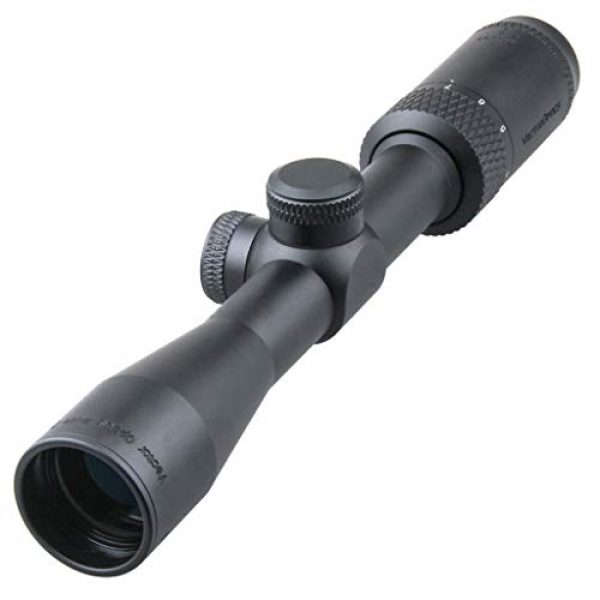

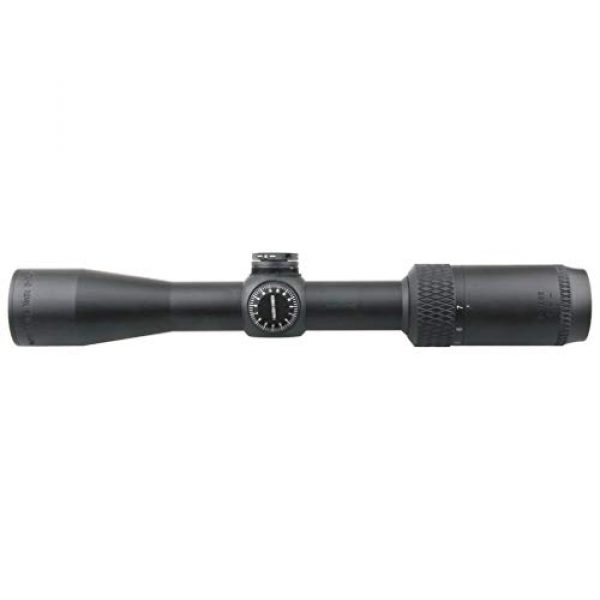

Vector Optics Matiz 2-7x32mm, 25.4mm Tube, 1/4 MOA Per Click, Second Focal Plane (SFP) Tactical Riflescope
Specifitions:
Magnification: 2-7x
Objective Lens Dia.:32mm
Tube Dia.:25.4mm (1 inch)
Adjustment Click Value: 1/4 MOA
Reticle:Duplex
Illumination: None
Ocular Lens Dia: 34mm(1.3 inch)
Ocular Length: 61mm(2.4 inch)
Field of View: 8.0-2.25@100yards
Eye Relief: 108-98mm (4.2-3.9 inch)
Exit Pupil: 16.0-4.6mm
Parallax Setting:100 yards
Elevation Range: 60 MOA
Windage Range: 60 MOA
Lens Coating: Fully multi coated
Length: 280mm (11.0 inch)
Weight: 360g (12.7 ounce)
Finish: Matte
Distance between objective lens part and middle turret: 34mm (1.4 inch)
Length of middle turret part: 33mm (1.3 inch)
Distance between middle turret part to power ring: 47mm (1.8 inch)
Diopter compensation from fast-focus eyepiece (+2.0 to -2.0)
Features:
5 Years Warranty
Edge-to Edge Image
25.4mm Monotube.
Optics hold zero.
4” eye relief.
Wide Field of View.
1/4 MOA windage and elevation adjustments for fine-tuning accuracy.
Fast-focus Eyepiece for quick and easy reticle focusing.
O-ring Sealed and Nitrogen Purged Ensure Water Resistance and Fog Proof performance; Shockproof to 600g.
High quality 6061 T6 aircraft grade aluminum alloy with durable black matte finish.
Package Includes:
– 1 x 2-7×32 Riflescope
– 2 x 25.4mm weaver mount ring (default) or dovetail mount ring (on request only)
– 1 x Lens Cover
– 1 x Cleaning cloth
Note: We offer 5 YEARS WARRANTY. Please feel free to contact us if you have any interests or product issues, we are available 24/7 online.
Rifle Scope Product Features
5 years warranty. Edge-to Edge Image.
1/4 MOA windage and elevation adjustments for fine-tuning accuracy.
Optics hold zero. 4” eye relief. Wide Field of View.
O-ring Sealed and Nitrogen Purged Ensure Water Resistance and Fog Proof performance; Shockproof to 600g.
Fully Multi Coated. Free 25.4mm mount rings, and lens covers.
About the Vector Optics Manufacturer
Vector Optics is a premium company for weapon scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They style and make their mounts and related products by making the most of building materials which are long lasting and durable. This includes the Vector Optics Matiz 2-7x32mm, 25.4mm Tube, 1/4 MOA Per Click, Second Focal Plane (SFP) Tactical Riflescope by Vector Optics. For more shooting items, visit their website.
Optic Details
Rifle scopes enable you to specifically aim a rifle at various targets by aligning your eye with the target over a range. They do this through magnification by utilizing a series of lenses inside the scope. The scope’s positioning can be adjusted to account for numerous environmental things like wind and elevation decreases to make up for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based upon the sight picture you are seeing using the scope as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern-day rifle optics have around 11 parts which are located within and on the exterior of the scope. These scope parts include the rifle scope’s body, lenses, windage turrets, focus rings, and other elements. See all eleven parts of a scope.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The sort of focal plane a scope has establishes where the reticle or crosshair lies in relation to the optic’s zoom. It simply suggests the reticle is situated behind or in front of the magnifying lens of the scope. Picking the most desired kind of rifle optic is dependent on what type of hunting or shooting you plan on undertaking.
Info About First Focal Plane Scopes
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. This induces the reticle to increase in size based on the amount of magnification being used. The outcome is that the reticle measurements are the same at the enhanced distance as they are at the non magnified distance. One tick on a mil-dot reticle at one hundred yards without “zoom” is still the identical tick at one hundred yards with 5x “zoom”. These types of scopes work for:
- Quick acquisition, long distance types of shooting
- Shooting situations where calculations are small
- Experienced shooters who know their target “hold over” and “lead” ratios for their long gun
- Shooters who do not mind the reticle is bigger and takes up more visual eyesight room than a SFP reticle
About Second Focal Plane Optics
Second focal plane optics (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance types of shooting where shooters have additional time to make ballistic computations
- Shooting where most of the shots take place within much shorter ranges and distances
- Shooters who want a clearer optic picture with less space taken up by the bigger FFP reticle
Magnification for Scopes
The extent of scope magnification you need on your scope depends on the kind of shooting you would like to do. Just about every type of rifle optic offers some level of magnification. The volume of zoom a scope gives is identified by the size, density, and curves of the lenses within the rifle optic. The magnification level of the scope is the “power” of the scope. This means what the shooter is aiming at through the scope is amplified times the power aspect of what can normally be seen by human eyes.
Info About Fixed Single Power Lens Rifle Scopes
A single power rifle scope uses a magnification number designator like 4×32. This means the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of scope can not change because it is a fixed power scope.
Info About Adjustable Power Lens Rifle Optics
Variable power rifle scopes can be modified between magnified settings. The power adjustment is accomplished by making use of the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range of Rifle Scopes
Here are some recommended scope power levels and the ranges where they could be successfully used. Remember that high power optics and scopes will not be as practical as lower magnification level scope and optics since increased zoom can be a negative thing in certain situations. The very same idea goes for longer distances where the shooter needs to have sufficient power to see exactly where to properly aim the rifle at the target.
Scope Lens Finish
All present day rifle optic and scope lenses are coated. Lens covering is a significant aspect of a rifle’s setup when looking into high end rifle optics and scope systems.
HD Versus ED Lens Coatings
Some scope manufacturers also use “HD” or high-definition lens finishes which use various methods, components, chemicals, and polarizations to draw out various colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Rifle Scope Lens Single Coating Versus Multi-Coating
Different scope lenses can even have different finishes applied to them. All lenses normally have at least some kind of treatment or covering applied to them prior to being used in a rifle scope or optic. Since the lens isn’t just a raw piece of glass, they require performance enhancing coatings. It is part of the finely tuned optic. It must have a finishing applied to it so that the lens will be efficiently usable in lots of types of environments, degrees of sunshine (full VS shade), and other shooting conditions.
Single covered lenses have a treatment applied to them which is usually a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends on the scope company and just how much you spent on it. Both are indications of the lens quality.
Some scope producers also make it a point to specify if their optic lenses are covered or “multi” covered. Being “better” depends on the producer’s lens treatment innovation and the quality of products used in constructing the rifle scope.
Anti-water Finishing for Glass
Water on a lens does not help with maintaining a clear sight picture through a scope at all. Lots of top of the line and high-end optic makers will coat their lenses with a hydrophilic or hydrophobic finishing.
Alternatives for Installing Rifle Glass on Long Guns
Mounting options for scopes come in a couple of choices. There are the standard scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These different types of mounts also usually can be found in quick release variations which use toss levers which enable rifle shooters to quickly mount and dismount the scope.
Rifle Optic Mounting Solutions with Hex Key Rings
Basic, clamp-on design mounting scope rings use hex head screws to fix to the flattop design Picatinny scope mount rails on the tops of rifles. These kinds of scope mounts use double individual rings to support the scope, and are made from 7075 T6 billet aluminum which are created for far away accuracy shooting. This type of scope mount is excellent for rifle systems which require a durable, rock solid mount which will not change regardless of how much the scope is moved or abuse the rifle takes. These are the type of mounts you should get for a devoted scope setup on a reach out and touch someone hunting or competition rifle which will seldom need to be altered or adjusted. Blue 242 Loctite threadlocker can additionally be used to prevent the hex screws from wiggling out after they are installed tightly in position. An example of these rings are the 30mm type made by the Vortex Optics brand. The set generally costs around $200 USD
Optic Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly connect and remove a scope from a rifle. Multiple scopes can also be swapped out if they all use a complementary designed mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect nicely to a flat top design Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while maintaining precision. These kinds of mounts are useful and practical for shooting platforms which are hauled around a lot, to take off the optic from the rifle for protection, or for scopes which are used in between several rifles. An example of this mount style is the 30mm mount from Vortex Optics. It usually costs around $250 USD
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle optic can destroy a day on the range and your pricey optic by inducing fogging and making residue within the scope tube. Many optics protect against wetness from entering the optical tube with a system of sealing O-rings which are water resistant. Typically, these scopes can be submerged beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be plenty of wetness prevention for standard use rifles for hunting and sporting purposes, unless you anticipate taking your rifle sailing and are concerned about the scope still working if it goes over the side and you can still recover the firearm.
Gas Purged Scope Tubes
Another component of avoiding the buildup of moisture inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this area is already taken up by the gas, the scope is less affected by temperature alterations and pressure variations from the external environment which may possibly permit water vapor to seep in around the seals to fill the void which would otherwise exist. These are good qualities of a good rifle scope to look for.
