Description
Rifle Scope Product Details

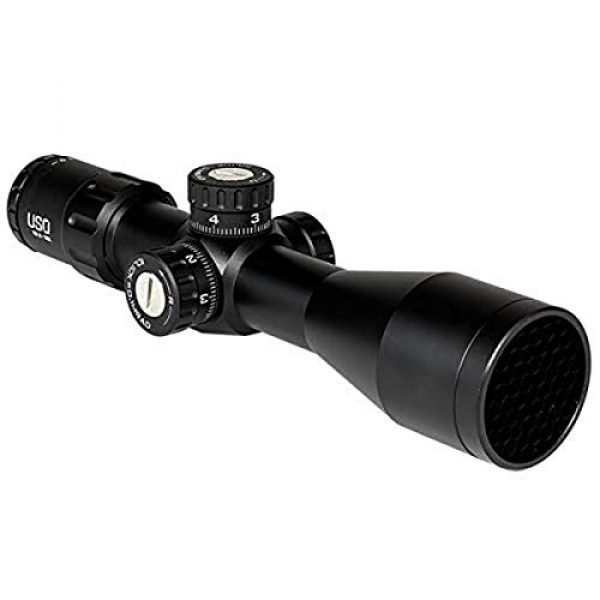

US Optics 3-12x52mm 30mm Tube; Non-Lit FFP Triplex Reticle; Elevation and Windage Zeroing Knob with 1/10 MIL Adjustments TS-12X-TRIPLEX, Black
U.S. Optics TS-12X Riflescope, 3-12x52mm, 30mm Tube, FFP, Triplex Non-Lit Reticle, 1/10 MIL Elevation/ Windage Adjustment, Black, Small, TS-12X TRIPLEX
Rifle Scope Product Features
Package Dimensions: 12.0 L x 4 H x 4.0 W (inches)
Package Weight : 3 pounds
Country of Origin : China
Color: BLACK
About the U.S. Optics Brand
U.S. Optics is a premium company for rifle scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They style and supply their products making the most of building materials which are resilient and long lasting. This includes the US Optics 3-12x52mm 30mm Tube; Non-Lit FFP Triplex Reticle; Elevation and Windage Zeroing Knob with 1/10 MIL Adjustments TS-12X-TRIPLEX, Black by U.S. Optics. For more shooting goods, visit their website.
Rifle Optic Information
Rifle scopes enable you to precisely align a rifle at different targets by lining up your eye with the target at range. They accomplish this through magnifying the target by making use of a series of lenses within the scope. The scope’s positioning can be dialed in to account for numerous natural things like wind speed and elevation decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are viewing via the scope as you align the scope’s crosshair or reticle with the intended target. A lot of contemporary rifle optics have about eleven parts which are found within and outside of the scope body. These parts include the rifle scope’s body, lenses, windage turrets, focus rings, and other components. See all eleven parts of optics.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Choosing the optimal type of rifle glass is based on what type of shooting you plan to do.
First Focal Plane Glass Facts
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These kinds of scopes are useful for:
- Quick acquisition, long distance types of shooting
- Shooting scenarios where calculations are marginal
- Experienced shooters who have an idea for their target “hold over” and “lead” ratios for their rifles
- Shooters who don’t mind the reticle is bigger and uses up more visual sight room than a SFP reticle
About Second Focal Plane Scopes
Second focal plane optics (SFP) come with the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Far away types of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots take place within much shorter spaces and ranges
- Shooters who choose a clearer optic sight picture with less area taken up by the bigger FFP reticle
Rifle Glass Magnification
The measure of scope zoom you require depends on the kind of shooting you want to do. Just about every kind of rifle glass offers some degree of zoom. The amount of magnification a scope delivers is established by the diameter, thickness, and curvatures of the lens glass within the rifle scope. The magnification of the optic is the “power” of the glass. This implies what the shooter is aiming at through the scope is amplified times the power factor of what can generally be seen by human eyes.
Fixed Power Lens Rifle Scopes
A single power rifle scope will have a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of optic can not fluctuate because it is set from the factory.
Variable Power Lens Rifle Optic Facts
Variable power rifle scopes can be tweaked between magnified settings. The power adjustment is accomplished using the power ring part of the scope near the rear of the scope by the eye bell.
Power Levels and Range
Here are some suggested scope power settings and the distances where they may be successfully used. Highly magnified rifle scope glass will not be as effective as lower magnification rifle scope glass due to the fact that too much zoom can be a negative aspect depending on your shooting distance. The very same idea relates to extended ranges where the shooter needs adequate power to see exactly where to properly aim the rifle.
About Rifle Glass Lens Finish
All modern-day rifle optic and scope lenses are covered in special coatings. There are various types and qualities of lens coatings. When thinking about luxury rifle optical devices, Lens covering can be a crucial component of defining the rifle’s capability. The glass lenses are among the most essential pieces of the glass as they are what your eye looks through while sighting a rifle in on the point of impact. The covering on the lenses protects the lens surface and also improves anti glare from excess sunshine and color perception.
HD Versus ED Lenses
Some glass producers also use “HD” or high-definition glass finishes which apply various procedures, components, polarizations, and chemicals to extract a wide range of colors and viewable target visibility through the lens. This high-definition finish is typically used with increased density glass which decreases light’s potential to refract by means of the lens glass. Some scope suppliers use “HD” to describe “ED” suggesting extra-low dispersion glass. ED deals with how colors are represented on the chroma spectrum and the chromatic deviance or aberration which is also called color distortion or fringing. Chromatic aberration can be visible around objects with hard outlines as light hits the item from certain angles.
Single Finish Versus Multi-Coating
Various optic lenses can even have different coverings applied to them. All lenses usually have at least some kind of treatment or covering applied to them before they are used in a rifle scope or optic. Due to the fact that the lens isn’t just a raw piece of glass, they require performance enhancing coatings. It becomes part of the carefully tuned optic. It needs to have a covering placed on it so that it will be optimally usable in lots of types of environments, degrees of sunshine (full VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while reducing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope maker and how much you paid for it.
Some scope makers also make it a point to define if their optic lenses are coated or “multi” covered. Being “much better” depends on the maker’s lens treatment innovation and the quality of products used in constructing the rifle scope.
Scope Lens Anti-water Coating
Water on an optical lens does not assist with preserving a clear sight picture through an optic at all. Lots of top of the line and premium scope manufacturers will coat their lenses with a hydrophilic or hydrophobic finishing. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It deals with the exterior of the Steiner glass lens so the H2O particles can not bind to it or develop surface tension. The result is that the water beads slide off of the scope to preserve a clear, water free sight picture.
Options for Mounting Rifle Glass on Long Guns
Installing options for scopes are available in a few options. There are the standard scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also generally can be found in quick release variations which use manual levers which permit rifle operators to quickly install and remove the scope.
Scope Mounts with Hex Key Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which are developed for long range accuracy shooting. This type of scope install is great for rifles which require a long lasting, sound mounting solution which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Optic Rings
These kinds of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle. Several scopes can also be swapped out if they all use a complementary style mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers fasten solidly to a flat top design Picatinny rail. This permits the scope to be sighted in while on the rifle, removed from the rifle, and remounted while maintaining the original sighting settings. These kinds of mounts come in convenient for rifles which are transported a lot, to remove the scope from the rifle for protection, or for sight systems which are adopted between numerous rifles. An example of this mount type is the 30mm mount from the Vortex Optics manufacturer. It generally costs around $250 USD
Info Around Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle scope can mess up a day of shooting and your pricey optic by inducing fogging and generating residue within the scope tube. Many scopes protect against humidity from entering the optical tube with a system of sealing O-rings which are waterproof. Normally, these scopes can be submerged beneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient wetness prevention for common use rifles, unless you intend on taking your rifle on boats and are concerned about the optic still performing if it falls overboard and you can still recover the firearm.
Gas Purged Glass Tubes
Another element of avoiding the accumulation of wetness inside of the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this space is already taken up by the gas, the glass is less impacted by temperature changes and pressure distinctions from the external environment which might possibly enable water vapor to leak in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
