Rifle Scope Product Details

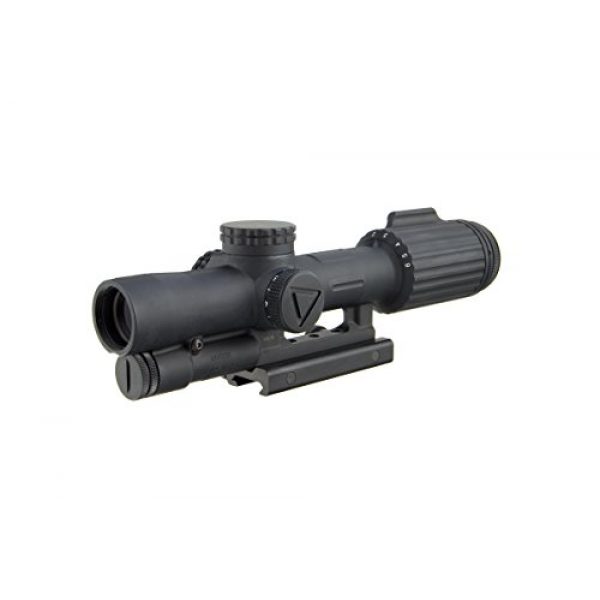

Trijicon VCOG 1-6×24 Rifle Scope with Green Segmented Circle/Crosshair .223/55gr & Thumb Screw Mount
The Trijicon 1-6×24 vcog (variable combat optical gun sight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first Focal plane reticle allows the extensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the vcog is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the vcog utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 700 hours at setting 4 (constant on). an integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.), this vcog VC16-C-1600040 comes standard with a thumb screw mount for any 1913 Picatinny rail.
Rifle Scope Product Features
Green segmented circle reticle with a centered Crosshair matched with 55-grain 223 loads
First focal plane allowing the Ballistic reticle to be used at any magnification
700 continuous hours of runtime at setting 4 or 6 with a lithium AA battery
Waterproof to 66 feet and its illumination electronics are mil spec tough
Full 90 MOA of windage and elevation adjustment available in 1/2 in./click increments at 100M
Trijicon VCOG
Variable Combat Optical Gunsight.
Magnification 1 – 6x
Objective Lens 24mm
Focal Plane First
Adjustments MIL/MOA: .25 MOA / .1 MIL
Adjustment Range 90 MOA Total Travel (35 MOA Per Revolution)
Dimensions (L x W x H) 10.05 x 2.51 x 2.73 in.
Weight 23.3 oz. (w/o Mount or battery)
Illumination Source LED Powered by Single Lithium or Alkaline AA Battery
Battery Life 700 Hours (Red), 1400 Hours (Green) Continuous Use at Brightness Setting 4 of 6 (Lithium Battery)
Brightness Settings 6
CQB and Long-Distance Marksmanship
The Trijicon VCOG (Variable Combat Optical Gunsight) 1-6×24 is a rugged, variable-powered riflescope with an LED-illuminated first focal plane reticle that’s designed to accommodate close quarter battle (CQB) and long-distance marksmanship. It’s a MIL-spec-grade optic that’s robust for any application and features superior glass quality and light gathering capabilities with zero distortion.
Brilliant Aiming Solutions
Trijicon has led the industry in the development of superior any-light aiming systems since the company’s founding in 1981. World-renowned for its innovative applications of tritium and advanced fiber-optics, Trijicon manufactures the most advanced riflescopes and sights for tactical and sporting applications.
Backed by a Limited-Lifetime Warranty, Trijicon’s aiming systems are proven on the range and in the field. As a result, Trijicon has earned the trust of those who are most in need of aiming accuracy and dependability. The company is proud to count as our customers the United States Marine Corps, United States Army, United States Special Operations Forces, United States Government, and state and local Law Enforcement, just to name a few. Trijicon is fast becoming the preferred scope among dedicated hunters for all types of game, as well as shooting enthusiasts worldwide.
Extreme Durability Absolute Precision
About the Trijicon Company
Trijicon is a premium manufacturer for firearm scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They style and manufacture their scopes, mounts, and related products using materials which are resilient and long lasting. This includes the Trijicon VCOG 1-6×24 Rifle Scope with Green Segmented Circle/Crosshair .223/55gr & Thumb Screw Mount by Trijicon. For additional shooting products, visit their site.
Rifle Glass Information
Rifle scopes permit you to exactly aim a rifle at various targets by aligning your eye with the target at range. They accomplish this through magnification by employing a series of lenses within the scope. The scope’s alignment can be adjusted for consideration of numerous environmental aspects like wind and elevation decreases to make up for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will land based on the sight picture you are seeing using the scope as you line up the scope’s crosshair or reticle with the intended point of impact. Many modern rifle scopes and optics have about 11 parts which are arranged internally and outside of the scope. These parts include the rifle scope’s body, lenses, windage turrets, objective focus rings, and other components. Learn about the eleven parts of rifle scopes.
About Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The type of focal plane a scope has identifies where the reticle or crosshair lies in relation to the scopes magnifying adjustments. It literally indicates the reticle is situated behind or before the magnifying lens of the scope. Considering the most desired sort of rifle optic depends upon what type of shooting you anticipate undertaking.
Info on First Focal Plane Scopes
First focal plane optics (FFP) include the reticle in front of the magnification lens. This induces the reticle to increase in size based on the level of magnification being used. The outcome is that the reticle measurements are the same at the amplified range as they are at the non amplified distance. For instance, one tick on a mil-dot reticle at 100 yards without “zoom” is still the exact same tick at one hundred yards using 5x “zoom”. These types of scopes are beneficial for:
- Quick acquisition, far away types of shooting
- Shooting scenarios where computations are low
- Experienced shooters who understand their target “hold over” plus “lead” relationships for their firearm
- Shooters who don’t mind the reticle is bigger and uses up more visual sight space than a SFP reticle
Second Focal Plane Optic Details
Second focal plane glass (SFP) come with the reticle to the rear of the magnifying lens. This causes the reticle to remain at the same scale in relation to the quantity of zoom being used. The final result is that the reticle measurements shift based on the magnification chosen to shoot over longer distances due to the fact that the reticle measurements present various increments which vary with the zoom. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick measurement. These particular varieties of optics work for:
- Long distance kinds of shooting where shooters have increased time to make ballistic computations
- Shooting where most of the shots occur within shorter distances and ranges
- Shooters who like a clearer optic picture with less room taken up by the larger sized FFP reticle
Magnification for Glass
The extent of scope magnification you need is based on the kind of shooting you wish to do. Virtually every style of rifle scope gives some level of zoom. The quantity of magnification a scope supplies is identified by the diameter, density, and curvatures of the lenses inside of the rifle scope. The magnification level of the scope is the “power” of the scope. This implies what the shooter is looking at through the scope is amplified times the power element of what can usually be seen by human eyes.
Fixed Power Lens Rifle Optics
A single power rifle scope and optic will have a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not fluctuate given that it is fixed.
Variable Power Lens Glass
Variable power rifle scopes use variable power levels. The power change is accomplished by making use of the power ring part of the scope near the rear of the scope by the eye bell.
Glass Power and Ranges
Here are some recommended scope powers and the ranges where they can be successfully used. Consider that higher power scopes and optics will not be as practical as lower magnification level optics and scopes since excessive magnification can be a detractor. The same relates to longer distances where the shooter needs increased power to see precisely where to best aim the rifle at the target.
Details on Lens Finishing
All modern rifle scope lenses are layered. Lens finishing is a vital aspect of a shooting system when looking into high end rifle optics and scope equipment.
HD Versus ED Scope Lens Coatings
Some optic suppliers additionally use “HD” or high-def lense coverings which apply various procedures, chemicals, elements, and polarizations to enhance different colors and viewable target definition through the lens. This high-def finish is commonly used with increased density lens glass which brings down light’s ability to refract through the lens glass. Some scope corporations use “HD” to refer to “ED” implying extra-low dispersion glass. ED handles how certain colors are represented on the chroma spectrum and the chromatic aberration or difference which is also called color distortion or fringing. Chromatic aberration is often noticeable around objects with hard edges and outlines as light hits the object from specific angles.
Scope Lens Single Finishing Versus Multi-Coating
Different scope lenses can also have different coatings applied to them. All lenses normally have at least some type of treatment or finish applied to them prior to being used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t simply a raw piece of glass. It is part of the finely tuned optic. It requires a coating to be applied to it so that the lens will be optimally functional in numerous types of environments, degrees of light (full light VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope makers likewise make it a point to specify if their optic lenses are layered or “multi” covered. This implies the lens has several treatments applied to them. If a lens receives several treatments, it can establish that a company is taking several actions to fight various environmental factors like an anti-glare coating, a scratch resistant anti-abrasion coating, followed by a hydrophilic finish. This additionally does not necessarily imply the multi-coated lens will perform much better than a single covered lens. Being “better” depends upon the maker’s lens treatment technology and the quality of materials used in developing the rifle optic.
Details on Anti-water Coating
Water on a lens does not help with keeping a clear sight picture through a scope at all. Numerous top of the line and military grade optic companies will coat their lenses with a hydrophilic or hydrophobic coating.
Rifle Glass Installation Options
Installing solutions for scopes are available in a couple of choices. There are the basic scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also generally come in quick release variations which use toss levers which allow rifle operators to rapidly mount and remove the glass.
Hex Key Scope Ring Mounts
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two separate rings to support the optic, and are made from 7075 T6 billet aluminum which are created for long range accuracy shooting. This type of scope mount is great for rifles which require a durable, sound mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Optic Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly connect and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be switched out if they all use a similar design mount. These types of mounts are handy for rifles which are transported a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used between multiple rifles or are situationally focused.
Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle optic can ruin a day of shooting and your pricey optic by resulting in fogging and producing residue within the scope’s tube. Most scopes prevent humidity from entering the optical tube with a series of sealing O-rings which are waterproof. Generally, these water-resistant scopes can be submerged within 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be more than enough wetness prevention for basic use rifles for hunting and sporting purposes, unless you plan on taking your rifle boating and are concerned about the scope still working if it is submerged in water and you can still rescue the gun.
Details on Scope Tube Gas Purging
Another component of preventing the accumulation of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Given that this space is currently taken up by the gas, the optic is less impacted by temperature level shifts and pressure distinctions from the outdoor environment which might possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
