Description
Rifle Scope Product Details

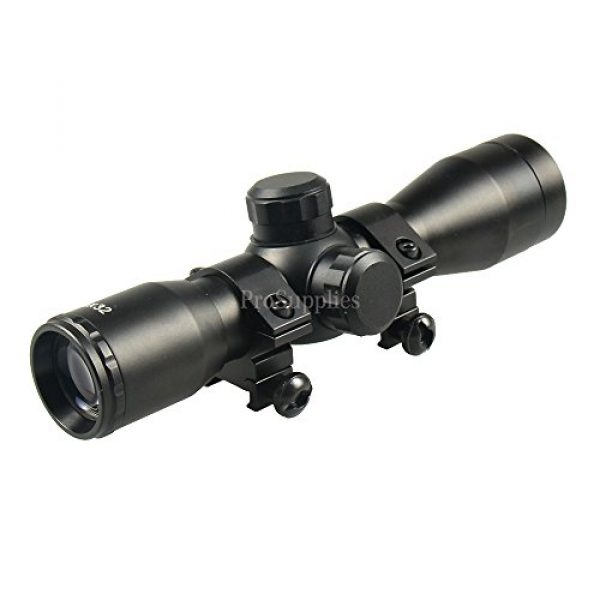

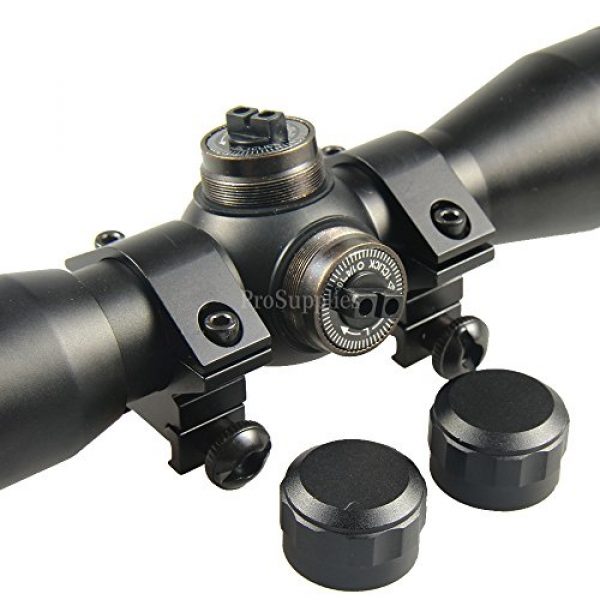

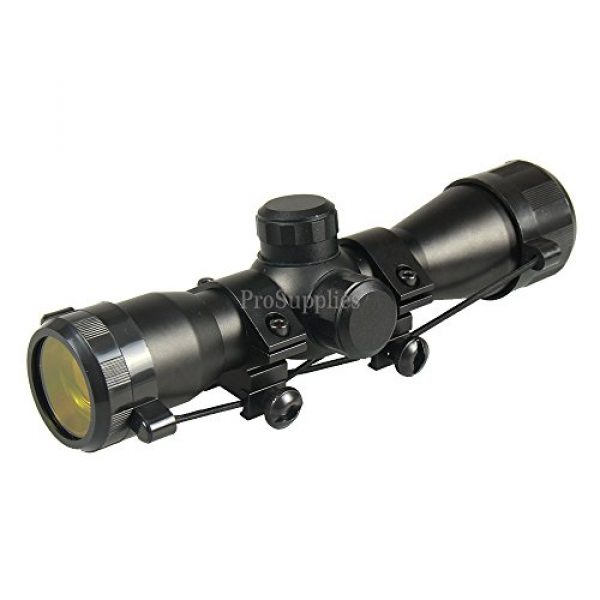

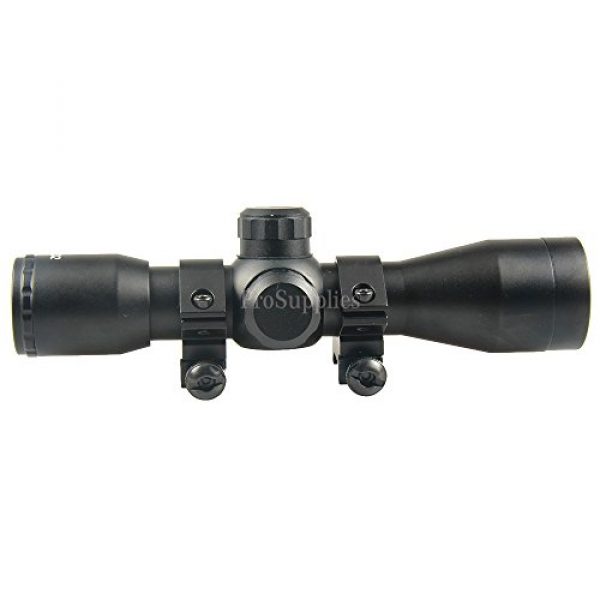

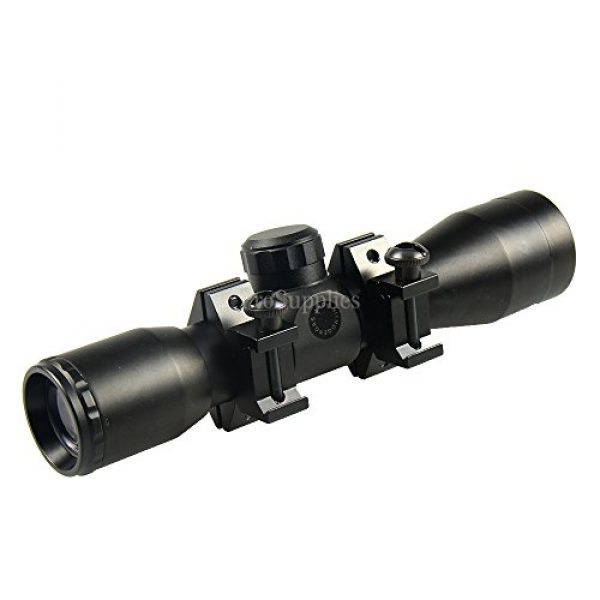

TACFUN Tactical Rangefingder Reticle Compact Scope/w Rings
Magnification:4X Diopter adjustment range:-2.5D/+3D 1 click=1/4″ Objective diameter(mm)=32 Reticle style: Rangefinder reticle Exit pupil(mm)=8 Eye reliefe(inchs)=3″ Field of view@100yds:28 Tube diameter:1″ Length(inchs)=7.7 Weight(oz)=8.5 W/E adjust click value@100yds:40M.O.A Parallex setting(yds):100
Rifle Scope Product Features
High Quality Scope Buit on strong cardon jiont platform

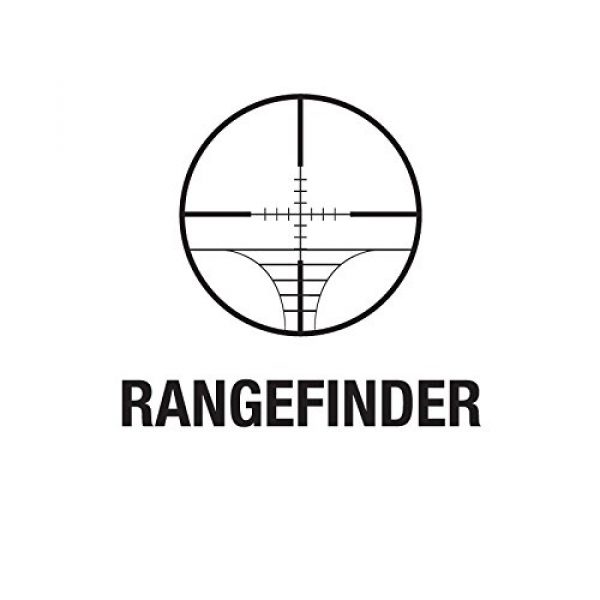

4X32 Rangefinder reticle
With A pair of Scope rings(fit 20mm weaver / picatinny rail) ; Lens Cloth ; Allen tool
Magnification: 4X Tube Diameter: 1 Inch Objective Diameter: 32mm Field of View @ 100 yards: 28′ Eye
Length(inchs)=7.7 ; Weight(oz)=8.5
About the TACFUN Company
TACFUN is a premium supplier for weapon scopes, optics, mounts, and other components used for firearms like rifles and long guns. They create and manufacture their scopes and related products making the most of elements which are long lasting and resilient. This includes the TACFUN Tactical Rangefingder Reticle Compact Scope/w Rings by TACFUN. For more shooting goods, visit their website.
All About Rifle Glass
Rifle scopes permit you to precisely aim a rifle at various targets by lining up your eye with the target at range. They accomplish this through magnification by utilizing a set of lenses inside the scope. The scope’s alignment can be adjusted for the consideration of separate ecological things like wind and elevation decreases to make up for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will hit based upon the sight picture you are seeing via the scope as you align the scope’s crosshair or reticle with the intended target. Many modern-day rifle optics have around 11 parts which are located internally and on the exterior of the scope body. These scope parts include the rifle scope’s body, lenses, windage turrets, focus rings, and other elements. Learn about the eleven parts of rifle scopes.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The style of focal plane a scope has establishes where the reticle or crosshair is located in connection with the optic’s magnification. It literally suggests the reticle is located behind or ahead of the magnifying lens of the scope. Deciding upon the most reliable kind of rifle glass depends on what variety of shooting or hunting you intend on undertaking.
First Focal Plane Optics
Focal plane scopes (FFP) come with the reticle in front of the magnification lens. This causes the reticle to increase in size based upon the level of magnification being used. The result is that the reticle measurements are the same at the magnified distance as they are at the non amplified distance. One tick on a mil-dot reticle at one hundred yards without “zoom” is still the identical tick at 100 yards by using 5x “zoom”. These types of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where estimations are minor
- Experienced shooters who recognize their target “hold over” and “lead” equations for their long guns
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight space than a SFP reticle
Second Focal Plane Glass Info
Second focal plane optics (SFP) come with the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Long distance kinds of shooting where shooters have additional time to make ballistic estimations
- Shooting where most shots take place within shorter ranges and distances
- Shooters who like a clearer optic sight picture with less area taken up by the bigger FFP reticle
Zoom for Rifle Optics
The amount of zoom a scope supplies is identified by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Single Power Lens Glass
A single power rifle scope comes with a zoom number designator like 4×32. This means the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of optic can not fluctuate given that it is a set power scope.
Variable Power Lens Rifle Optic Info
Variable power rifle scopes can be tweaked between magnified settings. The power adjustment is accomplished by making use of the power ring part of the scope near the back of the scope by the eye bell.
The Power Level and Range of Rifle Scopes
Here are some recommended scope powers and the ranges where they could be successfully used. High power glass will not be as useful as lower powered rifle scope glass because too much magnification can be a bad thing. The same goes for extended distances where the shooter needs enough power to see exactly where to best aim the rifle.
Info on Lens Finishing
All modern-day rifle optic lenses are coated. There are various types and qualities of coatings. Lens covering is an essential element of a rifle when thinking about luxury rifle optics and scope equipment. The glass lenses are one of the most vital components of the scope because they are what your eye looks through while sighting a rifle in on the target. The covering on the lenses protects the lens surface area and also improves anti glare capabilities from refracted sunrays and color profiles.
Details on Optic Lens Coatings – HD Versus ED
Some rifle glass companies will also use “HD” or high-definition lens finishings which employ various procedures, aspects, chemical substances, and polarizations to extract numerous colors and viewable target definition through lenses. This HD coating is often used with more costly, high density glass which decreases light’s opportunity to refract through the lens glass. Some scope vendors use “HD” to describe “ED” signifying extra-low dispersion glass. ED handles how colors are presented on the chromatic spectrum and the chromatic aberration which is similarly called color distortion or fringing. Chromatic aberration can be visible around items with hard edges and outlines as light hits the item from particular angles.
Rifle Optic Lens Single Finishing Versus Multi-Coating
Different optic lenses can likewise have various coatings used to them. All lenses normally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
This lens treatment can safeguard the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope maker and how much you paid for it.
Some scope makers similarly make it a point to define if their optic lenses are layered or “multi” covered. Being “much better” depends on the maker’s lens treatment innovation and the quality of materials used in building the rifle scope.
Rifle Glass Lens Hydrophobic Coating
Water on an optical lens does not support maintaining a clear sight picture through a scope in any way. Many top of the line or high-end optic makers will coat their lenses with a hydrophilic or hydrophobic finish. The Steiner Optics Nano-Protection is a good example of this type of treatment. It treats the exterior surfaces of the Steiner optic lens so the H2O particles can not bind to it or create surface tension. The outcome is that the water beads move off of the scope to preserve a clear, water free sight picture.
Rifle Optic Mounting Choices
Installing approaches for scopes are available in a couple of choices. There are the standard scope rings which are separately mounted to the scope and one-piece mounts which cradle the scope. These various kinds of mounts also typically are made in quick release variations which use manual levers which enable rifle operators to quickly install and remove the scopes.
Hex Key Rifle Glass Ring Mounting Solutions
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which are developed for long range precision shooting. This type of scope install is fine for rifles which require a resilient, sound mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Glass Rings
These types of quick-release rifle scope mounts can be used to quickly connect and detach a scope from a rifle. If they all use a comparable design mount, several scopes can also be switched out in the field. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach solidly to a flat top type Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while keeping accuracy. These types of mounts come in handy for shooting platforms which are moved a lot, to remove the optic from the rifle for protection, or for sight systems which are adopted between several rifles. An example of this mount style is the 30mm mount designed by Vortex Optics. It generally costs around $250 USD
Details on Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can ruin a day of shooting and your expensive optic by triggering fogging and developing residue inside of the scope tube. A lot of scopes prevent moisture from getting in the scope tube with a system of sealing O-rings which are waterproof.
Info Around Rifle Glass Tube Gas Purging
Another part of avoiding the accumulation of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this area is currently taken up by the gas, the optic is less influenced by condition changes and pressure distinctions from the outdoor environment which may possibly permit water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to seek out.
