Rifle Scope Product Details

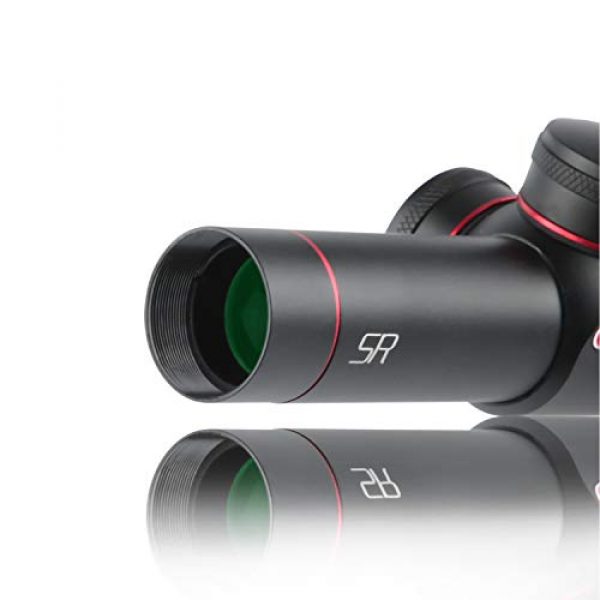

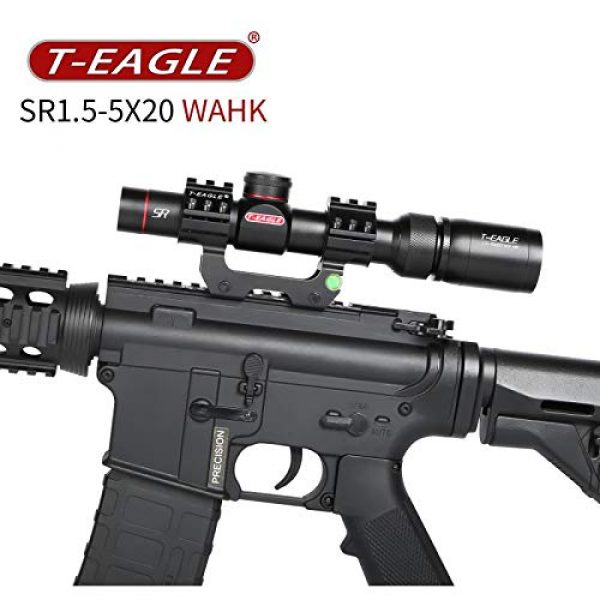

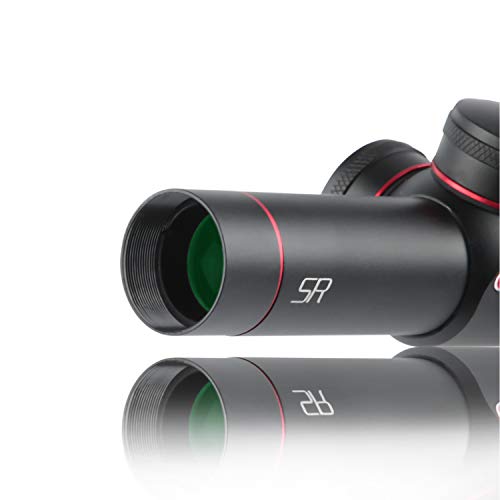

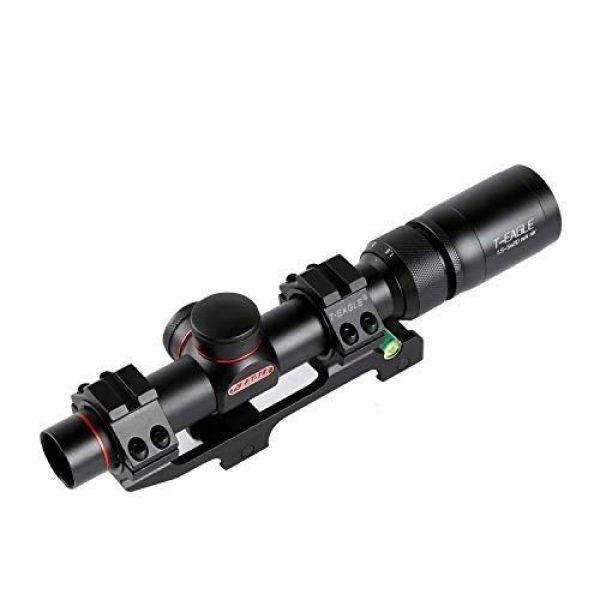

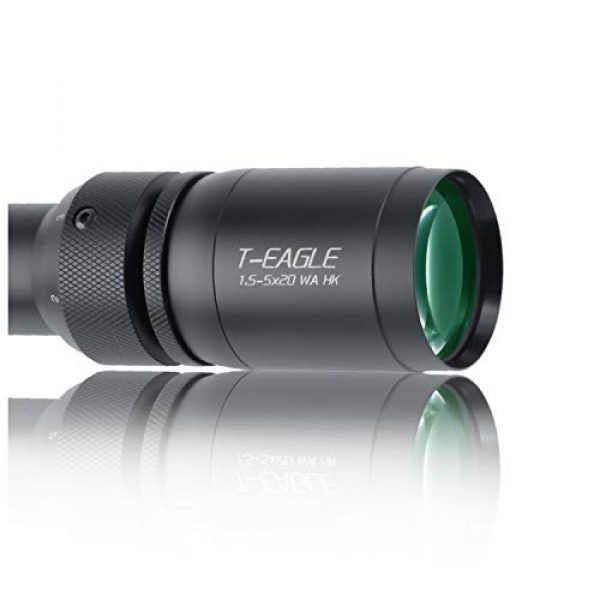

T-EAGLE SR 1.5-5X20WA CQB Rifle Scope Second Focal Plane,Super Big Vision Fast Sight Super Light More Anti “Shock,Mounts Free
Rifle Scope Product Features
DESIGNED FOR YOU – T-Eagle Optics Riflescope featuring 1.5-5x magnification, 20mm objective diameter ,Offers highest levels of performance and reliability.
100% WATERPROOF, FOG PROOF & SHOCKPROOF – Made with T6061 aircraft grade aluminum that is strong, sturdy and shockproof. With the sealed o-ring and purged nitrogen, we’ve tested to make sure it is waterproof and fog proof.
BRIGHT AND CLEAR SIGHT PICTURE – 93% light transmission rate. High Definition HD glass gives you better light transmission and sharper image. Fully multi-coated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image.

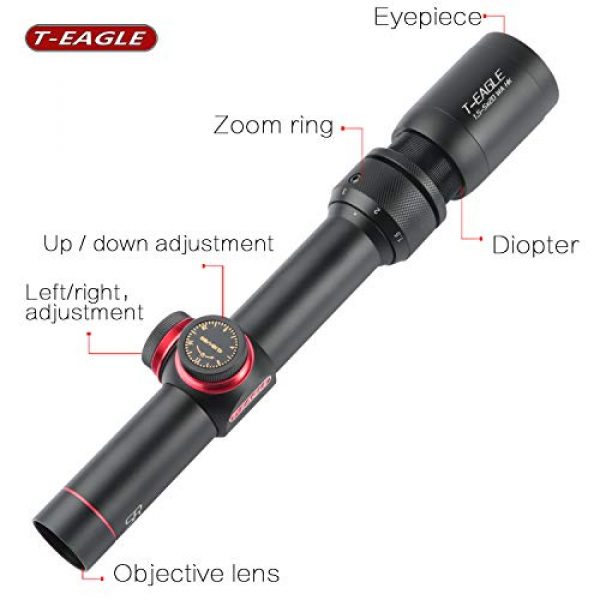

FAST SIGHTING WITH ENHANCED ADJUSTMENT -1/4 MOA windage and elevation adjustments offer precision and durability with audible clicks and tactile feedback. Side parallax for adjustable long range accuracy and fast focus eyepiece allow quick and easy reticle focusing with 2.6″ long eye relief.
LIFETIME REPLACEMENT WARRANTY – We stand behind our scopes and offer a lifetime replacement warranty. In case your scope is defective, fails to perform, or suffers non-cosmetic damage that affects its function, during normal use, we will replace it for you with no questions asked.
The T-EAGLE SR series 1.5-5×20 is ideal for those who wish to use lower magnification, 5x zoom magnification, and parallax adjustment.
Fully Multi-Coated Optics
All lens surfaces are coated multiple times utilizing our proprietary anti- reflective flat broadband coatings for maximum brightness and optical color, sharpness and image contrast while maximizing transmission across the entire visible light spectrum.
Reticle Adjustment
No parallaxAccurate adjustClick=1/4 InchFrom0-300YDS almost nothaveparallaxAccurately shooting
LONG EYE RELIEF

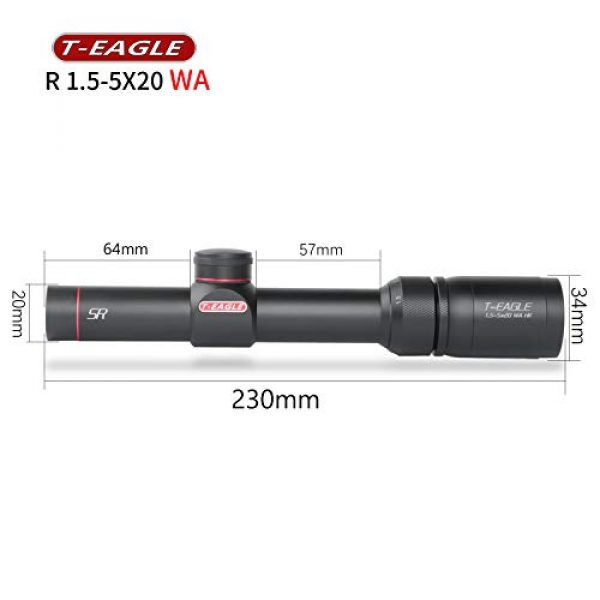

T-EAGLE SR1.5-5×20 Scope uses a 34mm Ocular lens and allows for 4 inches 100mm of Eye Relief for fast target acquisition. It gives you a field of view of 124.5-20.7 Feet @ 100 yards so you won’t miss a thing. Our scope has a long eye relief and ultra-forgiving eye box plus a fast focus eyepiece so you’ll be able to acquire your target quickly even while wearing gloves.
T-EAGLE Crosshair
Unmatched Performance
T-Eagle SR 1.5-5x20WA is the core of our product line. Over the years, reliable optical devices have established our reputation.It use FMC HD broadband coating clear and vivid experience more ultra-high-definition .The structure adopts three-in-one pipe diameter and high-grade optical glass, which belongs to high-grade scope and is durable.Broad field of vision: watch more comfortable brighter colors eyepiece and objective with the best useWaterproof, shockproof, fog proof, suitable for any settings
SUPER BIG VISION!
FAST SIGHT!SUPER LIGHT!
MORE ANTI “SHOCK!
THE BEST T-EAGLE FOR THE BEST SHOOTER!
About the T-EAGLE Manufacturer
T-EAGLE is a premium producer for firearm scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They design and supply their scopes and related products working with building materials which are durable and long lasting. This includes the T-EAGLE SR 1.5-5X20WA CQB Rifle Scope Second Focal Plane,Super Big Vision Fast Sight Super Light More Anti “Shock,Mounts Free by T-EAGLE. For additional shooting items, visit their site.
What You Need to Know About Scopes
Rifle scopes allow you to specifically align a rifle at various targets by lining up your eye with the target at range. They do this through zoom by employing a set of lenses within the scope. The scope’s positioning can be adjusted to account for different natural elements like wind speed and elevation increases to account for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will hit based on the sight picture you are seeing through the optic as you align the scope’s crosshair or reticle with the target. The majority of modern-day rifle optics have about 11 parts which are arranged internally and on the exterior of the scope. These scope parts consist of the rifle scope’s body, lenses, adjustment dials, objective focus rings, and other parts. Learn about the eleven parts of glass.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The form of focal plane an optic has decides where the reticle or crosshair lies in regard to the scopes magnifying adjustments. It literally indicates the reticle is behind or in front of the magnification lens of the scope. Deciding upon the most beneficial sort of rifle optic is based upon what sort of shooting you anticipate doing.
First Focal Plane Glass Details
First focal plane glass (FFP) feature the reticle in front of the zoom lens. This triggers the reticle to increase in size based upon the amount of zoom being used. The result is that the reticle measurements are the same at the amplified distance as they are at the non amplified range. For example, one tick on a mil-dot reticle at one hundred yards without having “zoom” is still the same tick at one hundred yards using 5x “zoom”. These types of scopes are practical for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where estimations are low
- Experienced shooters who have an idea for their aim point “hold over” and “lead” relationships for their long guns
- Shooters who don’t mind the reticle is enlarged and requires more visual sight area than a SFP reticle
Second Focal Plane Scopes
Second focal plane optics (SFP) feature the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick measurement.
- Far away styles of shooting where shooters have additional time to make ballistic estimations
- Shooting where most of the shots happen within much shorter ranges and distances
- Shooters who want a clearer optic sight picture with less space used up by the bigger FFP reticle
Magnification for Scopes
The measure of scope zoom you require depends upon the style of shooting you want to do. Practically every style of rifle optic offers some amount of zoom. The level of zoom a scope provides is established by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnifying level of the scope is the “power” of the scope. This suggests what the shooter is looking at through the scope is magnified times the power factor of what can usually be seen by human eyes.
Fixed Power Lens Optic Details
A single power rifle scope and optic will have a magnification number designator like 4×32. This means the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of scope can not adjust given that it is fixed.
Adjustable Power Lens Rifle Optic Facts
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification degree in a format like 2-10×32. These numbers imply the zoom of the scope could be set between 2x and 10x power. This also includes the powers in-between 2 and 10. The power adaptation is accomplished by employing the power ring component of the scope near the back of the scope by the eye bell.
Glass Power Level and Ranges
Here are some recommended scope power settings and the ranges where they can be effectively used. Highly magnified scopes will not be as beneficial as lower magnification level scopes given that too much zoom can be a negative aspect depending on your shooting distance. The same concept relates to extended ranges where the shooter needs enough power to see exactly where to properly aim the rifle.
Rifle Optic Lens Covering
All modern rifle scope and optic lenses are coated. There are various types and qualities of glass lens coverings. When thinking about luxury rifle optical units, Lens covering can be a critical element of defining the capability of the rifle. The lenses are one of the most vital pieces of the scope as they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses safeguards the lens surface area and improves anti glare from excess sunshine and color visibility.
ED Versus HD Rifle Scopes
Some optic companies will also use “HD” or high-def lense coverings which take advantage of various processes, elements, chemical substances, and polarizations to enhance different colors and viewable definition through lenses. This high-definition finish is frequently used with more costly high density glass which brings down light’s potential to refract through the lens glass. Some scope vendors use “HD” to describe “ED” meaning extra-low dispersion glass. ED handles how colors are presented on the chromatic spectrum and the chromatic aberration or deviance which is similarly called color distortion or fringing. Chromatic aberration can be visible over objects with defined outlines as light hits the object from certain angles.
Single Coating Versus Multi-Coating
Various scope lenses can even have various finishings applied to them. All lenses generally have at least some type of treatment or finishing applied to them before they are used in a rifle scope or optic assembly. This is since the lens isn’t just a raw piece of glass. It becomes part of the carefully tuned optic. It must have a covering put on it so that it will be optimally functional in lots of kinds of environments, degrees of light (full light VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is typically a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while minimizing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends on the scope manufacturer and how much money you spent on it. Both are signs of the lens quality.
Some scope makers also make it a point to specify if their optic lenses are covered or “multi” covered. This means the lens has had multiple treatments applied to the surfaces of the glass. If a lens receives multiple treatments, it can indicate that a producer is taking numerous steps to combat various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finish, followed by a hydrophilic finishing. This additionally does not always mean the multi-coated lens is much better than a single covered lens. Being “better” depends upon the manufacturer’s lens treatment innovation and the quality of materials used in constructing the rifle glass.
Hydrophobic Rifle Scope Lens Coating
Water on a scope’s lens does not improve keeping a clear sight picture through an optic at all. Many top of the line and premium optic manufacturers will coat their lenses with a hydrophilic or hydrophobic finishing. The Steiner Optics Nano-Protection is a good example of this sort of treatment. It treats the exterior surfaces of the Steiner optic lens so the water molecules can not bind to it or produce surface tension. The result is that the water beads roll off of the scope to keep a clear, water free sight picture.
Scope Mounting Options
Installing approaches for scopes come in a couple of choices. There are the basic scope rings which are individually mounted to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also typically are made in quick release variations which use manual levers which enable rifle shooters to quickly mount and dismount the optics.
Hex Key Rifle Glass Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which is developed for long range accuracy shooting. This type of scope mount is great for rifles which require a long lasting, sound mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Glass Ring Mounts
These types of quick-release rifle scope mounts can be used to rapidly connect and remove a scope from a rifle. If they all use a comparable design mount, a number of scopes can also be switched out. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers connect solidly to a flat top style Picatinny rail. This lets the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while keeping accuracy. These kinds of mounts are useful and practical for shooting platforms which are transported a lot, to take off the scope glass from the rifle for protection, or for scopes which are used in between numerous rifles. An example of this mount type is the 30mm mount designed by Vortex Optics. It normally costs around $250 USD
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle scope can mess up a day on the range and your costly optic by causing fogging and making residue within the scope’s tube. The majority of optics prevent humidity from getting in the scope tube with a series of sealing O-rings which are waterproof. Normally, these water-resistant optics can be immersed under 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be sufficient moisture prevention for conventional use rifles, unless you anticipate taking your rifle aboard a watercraft and are worried about the optic still performing if it falls overboard and you can still recover the firearm.
What to Know About Rifle Scope Tube Gas Purging
Another element of preventing the buildup of wetness inside of the rifle scope tube is filling the tube with a gas like nitrogen. Because this space is already taken up by the gas, the glass is less affected by temp alterations and pressure distinctions from the outside environment which could possibly allow water vapor to seep in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
