Rifle Scope Product Details
Sniper ZT 5-27×50 FFP Scope Side Parallax Adjustment Glass Etched Reticle Red Green Illuminated with Scope Mount

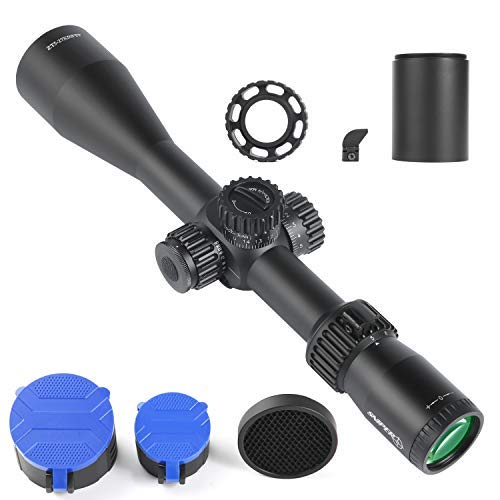

Product contains:
ZT5-27x50FFP Scope and Mount
High Quality Lens Caps
Sunshade
Side Focus Wheel
CR2032 Battery
Cleaning Cloth and Allen Keys
Lifetime Warranty from Texas Precision Optics Inc
Specific parameters
MODEL: ZT5-27x50FFP
MAGNIFICATION: 5X-27X
WEIGHT/OZ: 26.5
LENGTH: 14.2
TUBE SIZE: 30
EYE RELIEF: 3.6~3.7
EXIT PUPIL/MM: 5~1.85
FIELD OF VIEW@100YARDS: 16~4
CLICK IN@100YARDS: 1/4 MOA
ADJUSTMENT RANGE: 25
PARALLAX SETTING: 10 yd.- infinity
Fog PROOF: YES
Shock PROOF: YES
Water PROOF: YES
Rifle Scope Product Features
Hunting rifle scope providing crystal clear targeting at 5-27x magnification, with a 50mm objective diameter
Glass-etched/First focal plane(FFP) reticle. Reticle illumination in both red and green with multiple brightness intensities

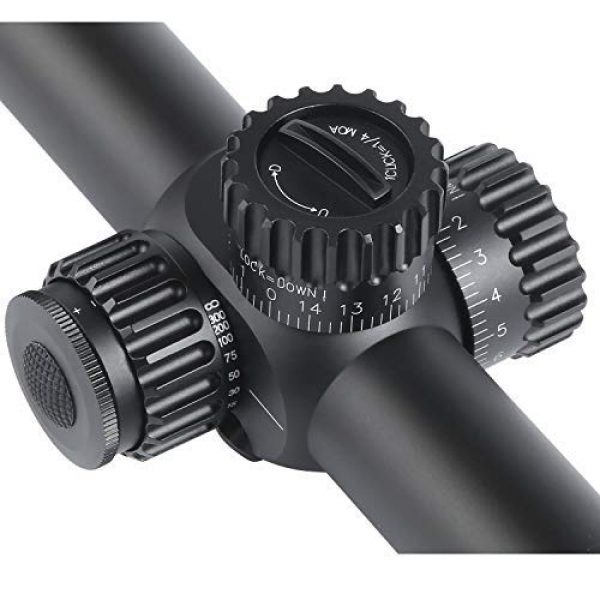

Capped reset turrets are finger adjustable with 1/4 MOA clicks that can be reset to zero after sighting in.
The windage and elevation turrets offer 30 MOA either side of optical center set with our easy to use lift, adjust, press down to lock design that is highly accurate and durable with re-zeroable turrets.
100% Fogproof, waterproof and shockproof
About the Sniper Company
Sniper is a premium company for long gun scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They create and make their mounts, scopes, and related products choosing materials which are durable and long lasting. This includes the Sniper ZT 5-27×50 FFP Scope Side Parallax Adjustment Glass Etched Reticle Red Green Illuminated with Scope Mount by Sniper. For more shooting items, visit their website.
What You Need to Know About Optics
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target at range. They do this through magnifying the target by using a series of lenses within the scope. The scope’s alignment can be dialed in to take into account numerous ecological aspects like wind and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to help the shooter understand precisely where the bullet will hit based upon the sight picture you are viewing through the optic as you align the scope’s crosshair or reticle with the target. The majority of modern-day rifle optics have around eleven parts which are arranged within and on the exterior of the scope. These optic pieces consist of the rifle scope’s body, lenses, windage and elevation turrets, focus rings, and other parts. Learn about the eleven parts of optics.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The type of focal plane a scope has decides where the reticle or crosshair is located in relation to the scopes magnification. It actually indicates the reticle is behind or in front of the magnification lens of the optic. Selecting the most reliable kind of rifle scope is based upon what type of hunting or shooting you plan on doing.
First Focal Plane Glass Info
First focal plane scopes (FFP) include the reticle ahead of the zoom lens. This triggers the reticle to increase in size based upon the amount of magnification being used. The result is that the reticle measurements are the same at the enhanced range as they are at the non amplified distance. For instance, one tick on a mil-dot reticle at 100 yards without having “zoom” is still the very same tick at one hundred yards using 5x “zoom”. These types of scopes are valuable for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where calculations are small
- Experienced shooters who recognize their aim point “hold over” and “lead” relationships for their firearm
- Shooters who do not mind the reticle is enlarged and takes up more visual sight room than a SFP reticle
Second Focal Plane Scopes
Second focal plane optics (SFP) include the reticle to the rear of the magnification lens. This induces the reticle to remain at the exact same dimensions in relation to the volume of zoom being used. The effect is that the reticle measurements shift based upon the zoom chosen to shoot over lengthier ranges due to the fact that the reticle markings represent different increments which differ with the magnification level. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick. These particular sorts of optics are handy for:
- Far away kinds of shooting where shooters have additional time to make ballistic estimations
- Shooting where most of the shots occur within much shorter ranges and spaces
- Shooters who desire a clearer optic sight picture without space taken up by the enlarged FFP reticle
Details on Scope Zoom
The quantity of zoom a scope offers is figured out by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Glass Info
A single power rifle optic or scope uses a magnification number designator like 4×32. This means the zoom power of the scope is 4x power and the objective lens is 32mm. The zoom of this kind of optic can not change since it is a set power scope.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes can be changed between magnification levels. It will note the magnification level in a configuration like 2-10×32. These numbers suggest the magnification of the scope could be set in between 2x and 10x power. This additionally incorporates the power levels in-between 2 and 10. The power manipulation is achieved using the power ring part of the scope near the back of the scope by the eye bell.
Power and Range
Here are some advised scope power settings and the ranges where they may be successfully used. Highly magnified optics will not be as effective as lower powered rifle scope glass because too much zoom can be a bad thing. The same concept goes for longer ranges where the shooter needs enough power to see precisely where to properly aim the rifle at the target.
Lens Finishing for Rifle Optics
All modern-day rifle scope and optic lenses are coated. Lens covering is an essential aspect of a shooting system when looking at high end rifle optics and scope setups.
ED Versus HD Rifle Scopes
Some scope manufacturers likewise use “HD” or high-definition lens finishes which use various methods, polarizations, elements, and chemicals to draw out different colors and viewable definition through the lens. Some scope manufacturers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Rifle Scope Lens Single Finishing Versus Multi-Coating
Various optic lenses can even have different coatings applied to them. All lenses typically have at least some kind of treatment or coating applied to them prior to being used in a rifle scope or optic assembly. Due to the fact that the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It becomes part of the finely tuned optic. It must have a finishing placed on it so that the lens will be optimally usable in numerous types of environments, degrees of sunshine (full VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is typically a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope manufacturer and the amount you spent for it. Both the make and cost are indications of the lens quality.
Some scope producers similarly make it a point to define if their optic lenses are covered or “multi” covered. Being “better” depends on the maker’s lens treatment technology and the quality of materials used in constructing the rifle scope.
Hydrophobic Finish for Optics
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Lots of top of the line and high-end optic makers will coat their lenses with a hydrophobic or hydrophilic finishing.
Optic Installing Choices
Mounting approaches for scopes can be found in a few choices. There are the basic scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also usually are made in quick release versions which use manual levers which allow rifle shooters to quickly mount and dismount the scopes.
Optic Mounts with Hex Key Rings
Basic, clamp style mounting scope rings use hex head screws to position to the flattop design Picatinny scope mount rails on rifles. These varieties of scope mounts use a pair of detached rings to support the scope, and are normally constructed from 7075 T6 billet aluminum or similar materials which are developed for long distance precision shooting. This form of scope mount is excellent for rifle systems which need a resilient, unfailing mount which will not move despite how much the scope is moved or abuse the rifle takes. These are the design of mounts you should have for a dedicated optics system on a reach out and touch someone hunting or tournament firearm which will hardly ever need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the scope mount’s screws to stop the hex screw threads from wiggling out after they are installed tightly in position. An example of these rings are the 30mm type made by the Vortex Optics brand. The set generally costs around $200 USD
Quick-Release Cantilever Rifle Scope Rings
These types of quick-release rifle scope mounts can be used to quickly take off a scope and attach it to a different rifle. Numerous scopes can even be switched out if they all use a compatible design mount. These types of mounts are handy for rifle platforms which are carried a lot, to remove the optic from the rifle for protection, or for optics which are used in between several rifles.
Optic Tube Sealing and Gas Purging
Moisture inside your rifle optic can mess up a day of shooting and your highly-priced optic by causing fogging and making residue inside of the scope tube. Many scopes protect against wetness from going into the optical tube with a system of sealing O-rings which are water resistant. Typically, these water-resistant scopes can be immersed beneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be ample wetness prevention for basic use rifles for hunting and sporting purposes, unless you anticipate taking your rifle boating and are concerned about the optic still working if it is submerged in water and you can still recover the firearm.
About Rifle Glass Tube Gas Purging
Another component of avoiding the buildup of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Since this space is already occupied by the gas, the optic is less influenced by condition changes and pressure distinctions from the external environment which might potentially permit water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
