Description
Rifle Scope Product Details

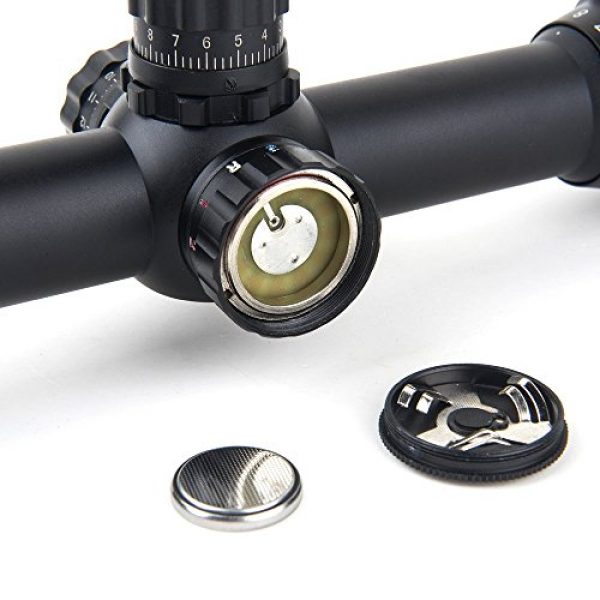

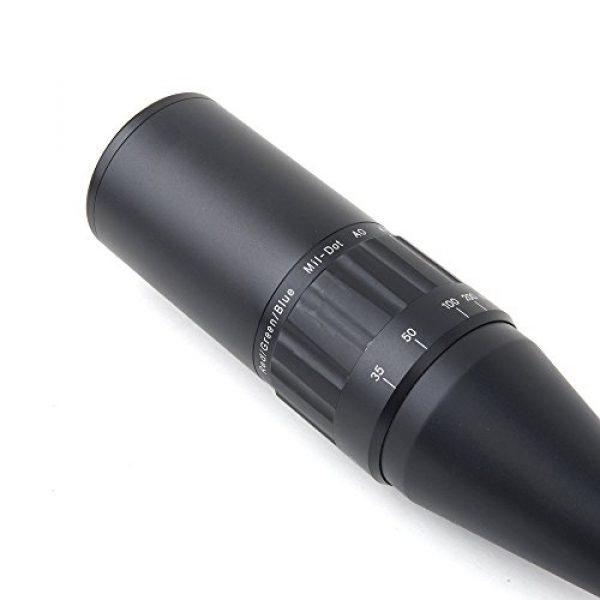

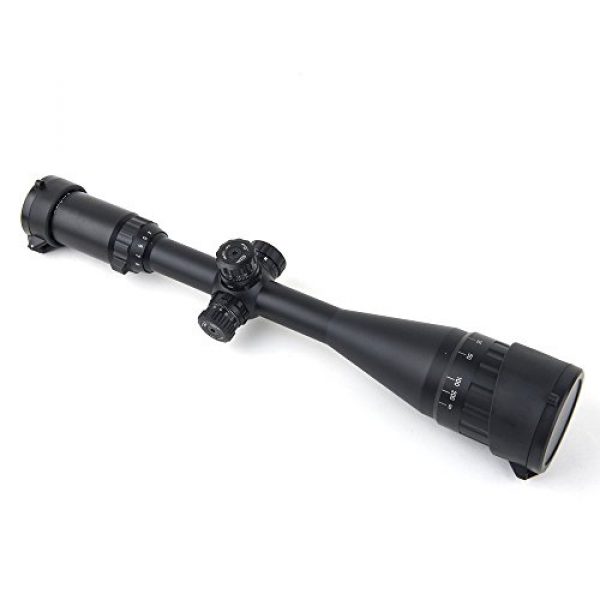

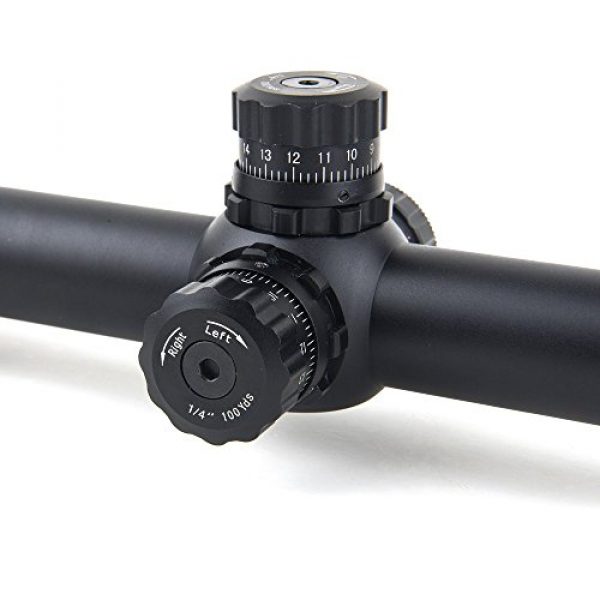

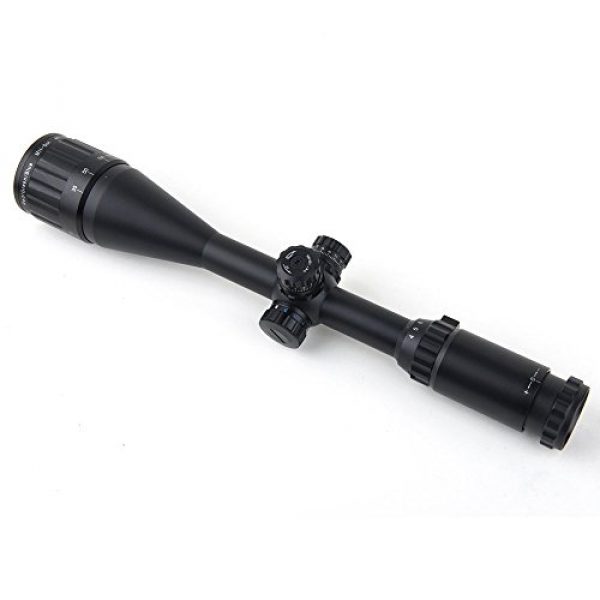

RETICLE 4-16x50AOE MIL-DOT Riflescope
Specifications:
Magnification: 4-16X
Objective diameter: 50mm
Color: Black
Material: Aluminum alloy
Length: 40cm
Weight: 800g

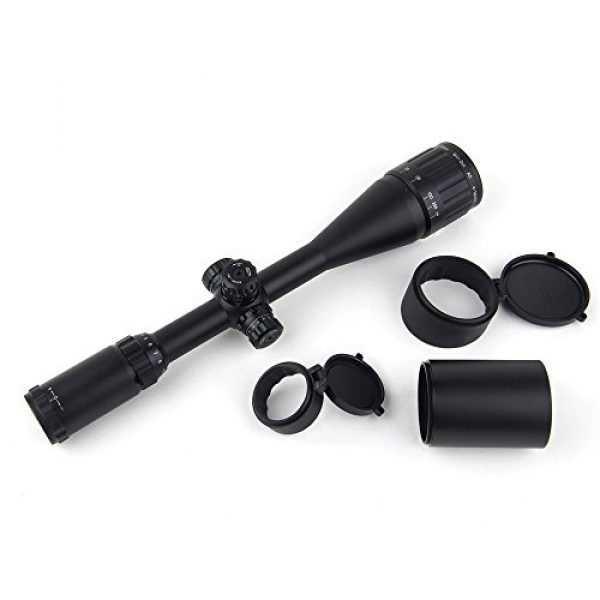

Package List:
1 * Riflescope
1 * Lens Cap
1 * Mount
1 * Wrench
1 * Cleaning Cloth
1 * User Manual (English)
Rifle Scope Product Features
About the RETICLE Scope Maker
RETICLE is a premium producer for weapon scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They innovate and build their scopes, mounts, and related products by using elements which are long lasting and durable. This includes the RETICLE 4-16x50AOE MIL-DOT Riflescope by RETICLE. For more shooting goods, visit their site.
All About Scopes
Rifle scopes enable you to exactly aim a rifle at various targets by aligning your eye with the target over a range. They accomplish this through magnification using a series of lenses inside the scope. The scope’s alignment can be dialed in for consideration of different natural aspects like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to understand precisely where the bullet will hit based upon the sight picture you are viewing with the scope as you align the scope’s crosshair or reticle with the intended point of impact. Many modern rifle optics have around eleven parts which are found inside and externally on the scope body. These scope parts consist of the rifle scope’s body, lenses, modification dials, objective focus rings, and other elements. See all eleven parts of optics.
Rifle Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The style of focal plane a scope has decides where the reticle or crosshair lies in regard to the optic’s zoom. It simply implies the reticle is behind or before the magnifying lens of the scope. Deciding upon the most reliable sort of rifle glass is based upon what variety of shooting you plan on doing.
Info About First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These kinds of scopes are helpful for:
- Quick acquisition, far away types of shooting
- Shooting circumstances where estimations are low
- Experienced shooters who understand their target “hold over” plus “lead” relationships for their rifles
- Shooters who don’t mind the reticle is bigger and uses up more visual eyesight area than a SFP reticle
Second Focal Plane Glass
Second focal plane glass (SFP) come with the reticle behind the zoom lens. This causes the reticle to stay at the very same overall size in relation to the volume of zoom being used. The effect is that the reticle measurements alter based on the zoom employed to shoot over longer distances because the reticle measurements present different increments which can vary with the zoom. In the FFP example with the SFP optic, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick measurement. These particular styles of glass are convenient for:
- Long distance forms of shooting where shooters have additional time to make ballistic estimations
- Shooting where most shots take place within much shorter distances and ranges
- Shooters who choose a clearer optic sight picture without room taken up by the enlarged FFP reticle
About Optic Magnification
The amount of magnification a scope provides is identified by the size, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Single Power Lens Rifle Scope Facts
A single power rifle optic or scope uses a zoom number designator like 4×32. This implies the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of scope can not fluctuate since it is a fixed power optic.
Info on Variable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification amount in a configuration such as 2-10×32. These numbers imply the zoom of the scope can be adjusted between 2x and 10x power. This always includes the powers in-between 2 and 10. The power adaptation is accomplished utilizing the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range Correlations
Here are some suggested scope powers and the ranges where they could be successfully used. Bear in mind that high magnification optics will not be as effective as lower powered scope and optics since excessive zoom can be a detractor. The same idea applies to longer ranges where the shooter needs sufficient power to see exactly where to best aim the rifle at the target.
Details on Rifle Glass Lens Finishing
All state-of-the-art rifle glass lenses are layered. Lens finishing is an essential aspect of a shooting system when looking at high end rifle optics and scope setups.
HD Versus ED Lenses
Some scope producers also use “HD” or high-definition lens finishings which use various processes, polarizations, components, and chemicals to draw out different colors and viewable definition through the lens. Some scope makers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Rifle Scope Lens Single Coating Versus Multi-Coating
Different optic lenses can also have various coatings used to them. All lenses generally have at least some type of treatment or covering used to them prior to being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is normally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends upon the scope maker and how much money you spent for it. The scope’s maker and cost are signs of the lens quality.
Some scope producers also make it a point to specify if their optic lenses are layered or “multi” covered. This implies the lens has numerous treatments applied to the surfaces of the glass. If a lens receives numerous treatments, it can indicate that a manufacturer is taking several actions to fight various environmental aspects like an anti-glare finishing, a scratch resistant anti-abrasion covering, followed by a hydrophilic finish. This additionally does not always imply the multi-coated lens is better than a single layered lens. Being “better” depends upon the producer’s lens treatment solutions and the quality of products used in building the rifle optic.
Anti-water Lens Coverings
Water on a scope’s lens does not improve retaining a clear sight picture through a scope whatsoever. Many top of the line or high-end scope producers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a good example of this type of treatment. It treats the surface area of the Steiner scope lens so the H2O particles can not bind to it or produce surface tension. The outcome is that the water beads move off of the scope to preserve a clear, water free sight picture.
Alternatives for Installing Optics on Firearms
Mounting options for scopes can be found in a couple of options. There are the basic scope rings which are separately mounted to the optic and one-piece mounts which cradle the scope. These different types of mounts also usually come in quick release variations which use toss levers which enable rifle shooters to quickly install and dismount the scope.
Hex Key Optic Ring Mounts
Basic, clamp style mounting scope rings use hex head screws to install to the flattop design Picatinny scope mount rails on the tops of rifles. These styles of scope mounts use double independent rings to support the optic, and are made from 7075 T6 billet aluminum or similar materials which are manufactured for long distance accuracy shooting. This form of scope mount is good for rifle systems which need to have a long lasting, unfailing mount which will not change no matter just how much the scope is moved or abuse the rifle takes. These are the style of mounts you should have for a devoted optics setup on a far away scouting or hard target interdiction rifle that will rarely need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the mount’s screws to keep the hex screw threads from backing out after they are mounted tightly in position. An example of these rings are the 30mm style made by the Vortex Optics brand. The set usually costs around $200 USD
Quick-Release Cantilever Rifle Optic Rings
These types of quick-release rifle scope mounts can be used to quickly attach and take off a scope from a rifle before reattaching it to a different rifle. Multiple scopes can even be swapped out if they all use a compatible design mount. These types of mounts come in handy for rifle platforms which are transported a lot, to swap out the optic from the rifle for protecting the scope, or for scopes which are used between multiple rifles.
Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day on the range and your pricey optic by resulting in fogging and developing residue inside of the scope tube. Many scopes protect against moisture from getting in the optical tube with a series of sealing O-rings which are water resistant. Usually, these water-resistant scopes can be immersed within 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be more than enough wetness avoidance for basic use rifles, unless you anticipate taking your rifle on a boat and are concerned about the optic still performing if it goes over the side and you can still find the firearm.
What to Know About Rifle Optic Tube Gas Purging
Another part of avoiding the accumulation of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this area is currently occupied by the gas, the scope is less altered by climate alterations and pressure variations from the outside environment which could possibly allow water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
