Description
Rifle Scope Product Details

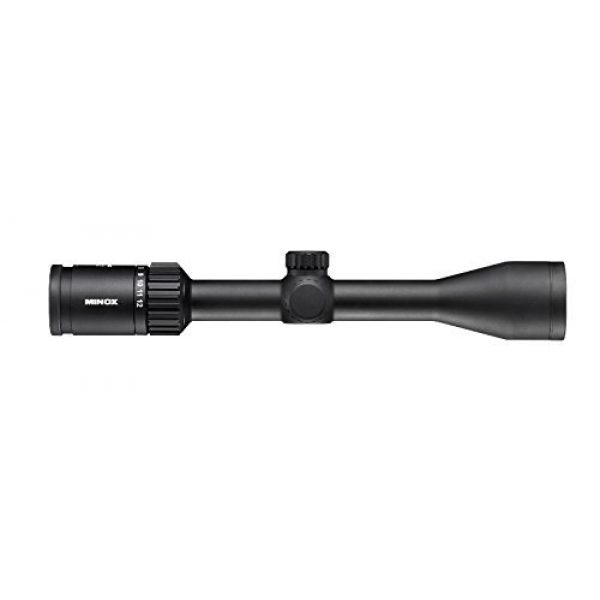

MINOX ZL3 4-12×40 BDC Waterproof Compact Tatical Riflescope – 3X Magnification with Anti-Fog, Multi-Coated Lens and 2nd Focal Plane BDC Reticle
Minox ZL3 4-12×40 1″ BDC Riflescope 66672
Rifle Scope Product Features
About the MINOX Brand
MINOX is a premium manufacturer for weapon scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They style and supply their products by applying building materials which are long lasting and durable. This includes the MINOX ZL3 4-12×40 BDC Waterproof Compact Tatical Riflescope – 3X Magnification with Anti-Fog, Multi-Coated Lens and 2nd Focal Plane BDC Reticle by MINOX. For more shooting items, visit their website.
What You Need to Know About Glass
Rifle scopes enable you to precisely aim a rifle at different targets by lining up your eye with the target over a distance. They do this through zoom by employing a series of lenses within the scope. The scope’s alignment can be adapted to take into account many natural elements like wind speed and elevation to make up for bullet drop.
The scope’s function is to understand precisely where the bullet will land based on the sight picture you are seeing using the optic as you align the scope’s crosshair or reticle with the target. Many modern-day rifle scopes and optics have around 11 parts which are found internally and externally on the optic. These parts include the rifle scope’s body, lenses, windage and elevation turrets, objective focus rings, and other parts. Learn about the eleven parts of optics.
Rifle Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Selecting the best type of rifle scope is based around what type of shooting you plan to do.
First Focal Plane Scope Details
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These styles of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where estimations are minor
- Experienced shooters who recognize their aim point “hold over” and “lead” correlations for their long gun
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight area than a SFP reticle
Second Focal Plane Optics
Second focal plane scopes (SFP) feature the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Far away styles of shooting where shooters have extra time to make ballistic computations
- Shooting where most shots happen within much shorter proximities and ranges
- Shooters who like a clearer optic picture without room taken up by the larger size FFP reticle
Rifle Scope Zoom
The quantity of zoom a scope supplies is identified by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Single Power Lens Rifle Optics
A single power rifle optic or scope will have a magnification number designator like 4×32. This suggests the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not adjust since it is fixed.
Adjustable Power Lens Optic Details
Variable power rifle scopes have adjustable power. It will list the zoom degree in a configuration like 2-10×32. These numbers suggest the zoom of the scope could be adjusted between 2x and 10x power. This additionally includes the powers in-between 2 and 10. The power modification is achieved by applying the power ring component of the scope near the rear of the scope by the eye bell.
Power Levels and Range
Here are some suggested scope power levels and the ranges where they may be effectively used. Highly magnified optics will not be as useful as lower magnification rifle scope glass since too much zoom can be a bad thing. The same concept relates to longer distances where the shooter needs to have enough power to see precisely where to properly aim the rifle.
Lens Finish for Scopes
All top teir rifle scope lenses are layered. Lens finishing is an important element of a rifle when thinking about high end rifle optics and scope setups.
HD Versus ED Rifle Optic Lens Coatings
Some glass suppliers even use “HD” or high-def lens coatings which use different processes, polarizations, components, and chemicals to extract various colors and viewable definition through lenses. This HD finish is frequently used with more costly, high density glass which decreases light’s opportunity to refract by means of the lens glass. Some scope suppliers use “HD” to refer to “ED” indicating extra-low dispersion glass. ED handles how colors are represented on the chroma spectrum and the chromatic difference or aberration which is similarly called color distortion or fringing. Chromatic aberration is often noticeable over items with hard edges and shapes as light hits the object from particular angles.
What to Know About Single Finishing Versus Multi-Coating
Different optic lenses can also have different coatings used to them. All lenses typically have at least some type of treatment or finishing applied to them before being used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is typically a protective and enhancing multi-purpose treatment. This lens treatment can preserve the lens from scratches while lowering glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope maker and just how much you spent for it. The scope’s maker and cost are indicators of the lens quality.
Some scope producers also make it a point to specify if their optic lenses are layered or “multi” coated. Being “much better” depends on the maker’s lens treatment innovation and the quality of products used in developing the rifle scope.
Details on Hydrophobic Covering
Water on an optical lens doesn’t assist with retaining a clear sight picture through an optic at all. Many top of the line and high-end optic producers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a good example of this sort of treatment. It treats the exterior surfaces of the Steiner glass lens so the water particles can not bind to it or produce surface tension. The result is that the water beads slide off of the scope to keep a clear, water free sight picture.
Scope Installing Choices
Mounting options for scopes come in a few options. There are the basic scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also normally are made in quick release variations which use manual levers which permit rifle operators to quickly install and dismount the scope.
Glass Mounts with Hex Key Rings
Standard, clamp-on type mounting scope rings use hex head screws to fix to the flattop style Picatinny scope mounting rails on rifles. These kinds of scope mounts use a pair of separate rings to support the scope, and are made from 7075 T6 billet aluminum which are created for far away accuracy shooting. This kind of scope mount is very good for rifle systems which require a resilient, rock solid mount which will not change regardless of just how much the scope is moved or jarring the rifle takes. These are the type of mounts you should have for a faithful scope system on a reach out and touch someone hunting or hard target interdiction long gun that will hardly ever need to be changed or adjusted. Blue 242 Loctite threadlocker can additionally be used on the scope mount screws to stop the hex screw threads from backing out after they are mounted firmly in position. An example of these rings are the 30mm style made by Vortex Optics. The set usually costs around $200 USD
Quick-Release Cantilever Scope Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly take off a scope and connect it to a different rifle. Several scopes can also be switched out if they all use a compatible design mount. These types of mounts are convenient for long guns which are transferred a lot, to remove the optic from the rifle for protection, or for scopes which are used in between several rifles.
Rifle Glass Tube Sealing and Gas Purging
Moisture inside your rifle glass can ruin a day on the range and your expensive optic by triggering fogging and producing residue within the scope’s tube. The majority of scopes prevent humidity from entering the scope tube with a series of sealing O-rings which are waterproof. Generally, these optics can be submerged within 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient wetness avoidance for common use rifles, unless you intend on taking your rifle sailing and are concerned about the scope still performing if it goes over the side and you can still salvage the gun.
Details on Glass Tube Gas Purging
Another part of avoiding the buildup of wetness inside of the rifle scope tube is filling the tube with a gas like nitrogen. Because this space is already taken up by the gas, the optic is less altered by temperature alterations and pressure variations from the outdoor environment which might possibly enable water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
