Description
Rifle Scope Product Details

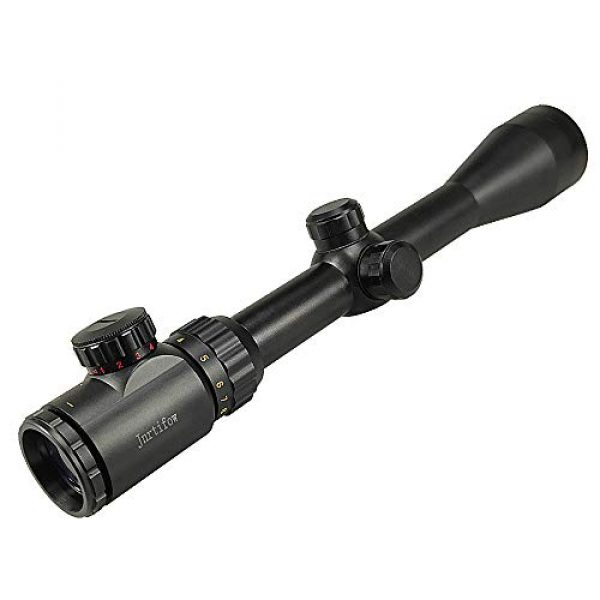

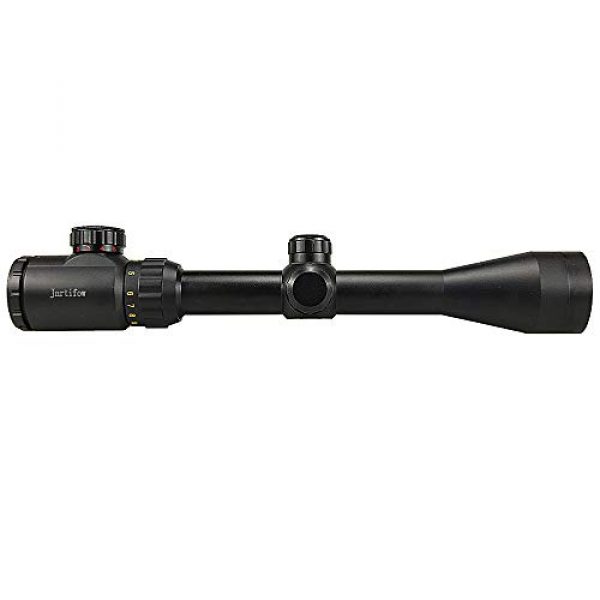

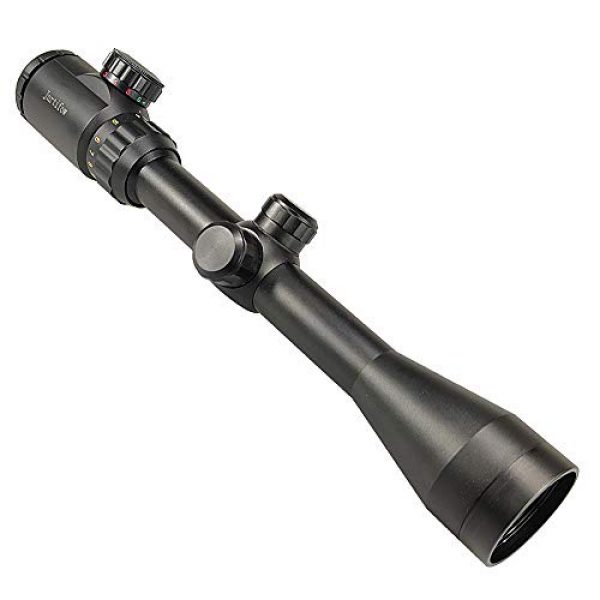

Jnrtifow 3-9×40 Riflescope Red Green llluminate Mil-Dot Reticle Optics Scope with 20mm Mounts
Specifications:
Magnification: 3x-9x
Obj. diameter: 40mm
Reticle type: Mil-Dot
Brightness control: Red 5 levels / Green 5 levels
Lens color: Blue
Field of view: 25′-14’@100yards
Eye relief: 3.3-2.7″
Windage & elevation click value: 1/4 MOA 1/4″@ 100yards
Exit pupil: 13.3mm-4.4mm
Tube diameter: 25.4
Rifle Scope Product Features
Aircraft grade aluminum construction with a 25.4mm sealed, nitrogen charged tube for resistance to water and fog.
Two 1” complementary scope rings to be easily mounted onto any 20mm Picatinny or Weaver mount rails.
Mil-Dot reticle provides fast, simple aiming points for various shot distances.
Field of view: 14′-25′ @100yards; windage & elevation click value: 1/4 MOA 1/4″ @100yards, 2.7″-3.3″ eye relief.
Green and red illuminations, 5-level brightness available, magnifications from 3X up to 9X, ultimate clarity and superior eyepiece guaranteed.
About the CZSM Manufacturer
CZSM is a premium producer for firearm scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They style and make their scopes and related products using elements which are durable and long lasting. This includes the Jnrtifow 3-9×40 Riflescope Red Green llluminate Mil-Dot Reticle Optics Scope with 20mm Mounts by CZSM. For more shooting goods, visit their website.
Rifle Glass Information
Rifle scopes permit you to specifically aim a rifle at various targets by aligning your eye with the target at range. They accomplish this through magnifying the target by employing a set of lenses inside the scope. The scope’s positioning can be adjusted for consideration of different environmental aspects like wind speed and elevation increases to account for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based on the sight picture you are seeing with the optic as you align the scope’s crosshair or reticle with the target. A lot of modern-day rifle optics have around 11 parts which are found inside and on the exterior of the scope. These optic pieces consist of the rifle scope’s body, lenses, windage turrets or dials, objective focus rings, and other components. See all eleven parts of scopes.
About Rifle Optic Types
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Selecting the perfect type of rifle glass is based around what type of shooting you plan on doing.
First Focal Plane Scopes
First focal plane scopes (FFP) come with the reticle before the magnifying lens. This causes the reticle to increase in size based on the extent of magnification being used. The benefit is that the reticle measurements are the same at the amplified distance as they are at the non amplified distance. For example, one tick on a mil-dot reticle at 100 yards without “zoom” is still the exact same tick at 100 yards with 5x “zoom”. These kinds of scopes work for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are marginal
- Experienced shooters who have an idea for their aim point “hold over” and “lead” equations for their rifles
- Shooters who don’t mind the reticle is enlarged and takes up more visual sight area than a SFP reticle
Info About Second Focal Plane Scopes
Second focal plane scopes (SFP) include the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance forms of shooting where shooters have additional time to make ballistic computations
- Shooting where most shots happen within shorter ranges and distances
- Shooters who desire a clearer optic sight picture without area used up by the larger sized FFP reticle
Scope Magnification
The quantity of magnification a scope provides is identified by the size, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Power Lens Optics
A single power rifle scope uses a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of optic can not change given that it is set from the factory.
Variable Power Lens Rifle Scopes
Variable power rifle scopes use variable power levels. The power adjustment is performed by using the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range Correlation of Scopes
Here are some suggested scope power settings and the distances where they may be effectively used. High power optics will not be as effective as lower magnification scopes given that too much zoom can be a negative aspect depending on your shooting distance. The exact same idea relates to extended distances where the shooter needs to have adequate power to see precisely where to properly aim the rifle at the target.
Lens Coating for Rifle Glass
All modern-day rifle scope lenses are layered. There are various types and qualities of glass finishes. Lens finish can be a crucial element of a rifle when considering luxury rifle optics and targeting equipment. The lenses are among the most significant parts of the optic due to the fact that they are what your eye looks through while sighting a rifle in on the point of impact. The finishing on the lenses protects the lens surface area and also assists with anti glare from refracted direct sunlight and color presence.
HD Versus ED Rifle Scope Lens Coatings
Some optic manufacturers even use “HD” or high-definition lens coatings that employ various procedures, aspects, polarizations, and chemical applications to draw out different colors and viewable target definition through lenses. This HD covering is commonly used with higher density lens glass which lowers light’s ability to refract by means of the lens glass. Some scope vendors use “HD” to describe “ED” meaning extra-low dispersion glass. ED handles how colors are represented on the chroma spectrum and the chromatic difference or aberration which is similarly called color distortion or fringing. Chromatic aberration may be visible over objects with defined outlines as light hits the item from specific angles.
About Single Coating Versus Multi-Coating
Different scope lenses can even have various finishings applied to them. All lenses normally have at least some kind of treatment or covering applied to them before they are used in a rifle scope or optic assembly. This is because the lens isn’t just a raw piece of glass. It becomes part of the finely tuned optic. It requires a coating to be applied to it so that the lens will be efficiently functional in numerous kinds of environments, degrees of sunlight (full VS shaded), and other shooting conditions.
Single coated lenses have a treatment applied to them which is typically a protective and enhancing multi-purpose treatment. This lens treatment can protect the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends on the scope company and how much you spent paying for it. Both the manufacturer and amount are indications of the lens quality.
Some scope manufacturers similarly make it a point to define if their optic lenses are coated or “multi” covered. Being “better” depends on the maker’s lens treatment innovation and the quality of materials used in building the rifle scope.
Anti-water Lens Finishes
Water on an optic’s lens doesn’t support retaining a clear sight picture through an optic at all. Numerous top of the line and high-end optic producers will coat their lenses with a hydrophilic or hydrophobic covering. The Steiner Optics Nano-Protection is a fine example of this sort of treatment. It provides protection for the exterior of the Steiner scope lens so the H2O molecules can not bind to it or create surface tension. The result is that the water beads move off of the scope to preserve a clear, water free sight picture.
Optic Installation Alternatives
Installing approaches for scopes come in a few options. There are the basic scope rings which are separately installed to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also usually are made in quick release versions which use toss levers which permit rifle shooters to rapidly mount and dismount the scopes.
Scope Mounting Solutions with Hex Key Rings
Standard, clamp-on style mounting scope rings use hex head screws to install to the flattop style Picatinny scope mounting rails on rifles. These types of scope mounts use a pair of independent rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are made for far away precision shooting. This form of scope mount is exceptional for rifles which are in need of a durable, hard use mount which will not change regardless of how much the scope is moved or abuse the rifle takes. These are the design of mounts you want for a devoted optics setup on a reach out and touch someone hunting or competitors rifle that will pretty much never need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used on screws to keep the hex screws from wiggling out after they are installed firmly in position. An example of these mounting rings are the 30mm style from Vortex Optics. The set generally costs around $200 USD
Glass Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly connect and remove a scope from a rifle before reattaching it to a different rifle. Numerous scopes can also be swapped out if they all use a similar style mount. These types of mounts are convenient for long guns which are transported a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used in between several rifles.
About Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day of shooting and your expensive optic by causing fogging and developing residue inside of the scope tube. Many scopes prevent wetness from going into the scope tube with a system of sealing O-rings which are water resistant.
Scope Gas Purging
Another element of preventing the buildup of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this area is already taken up by the gas, the glass is less altered by temp shifts and pressure differences from the external environment which may possibly allow water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
