Rifle Scope Product Details

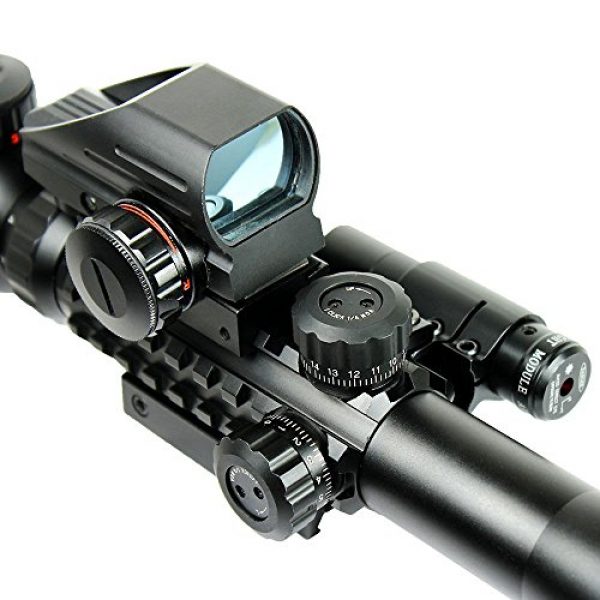

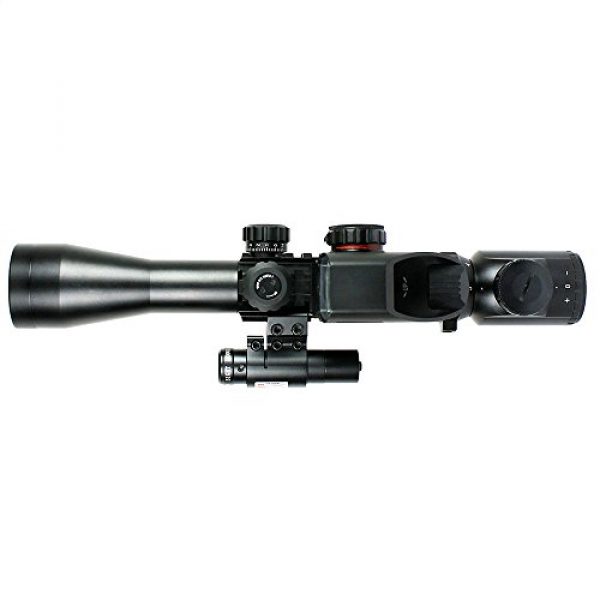

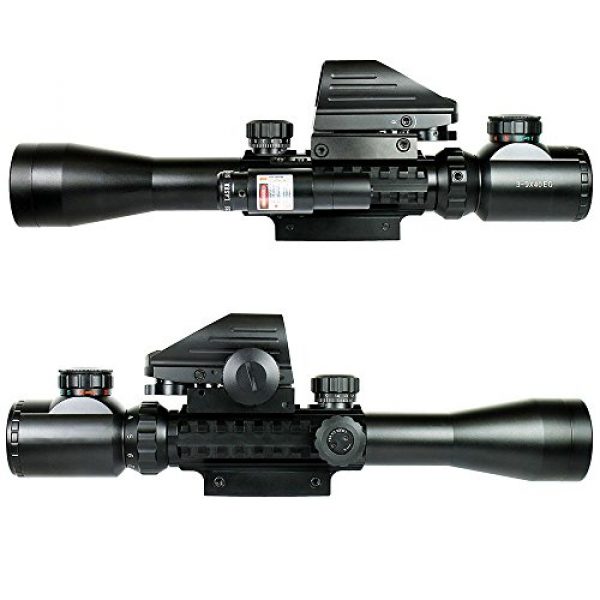

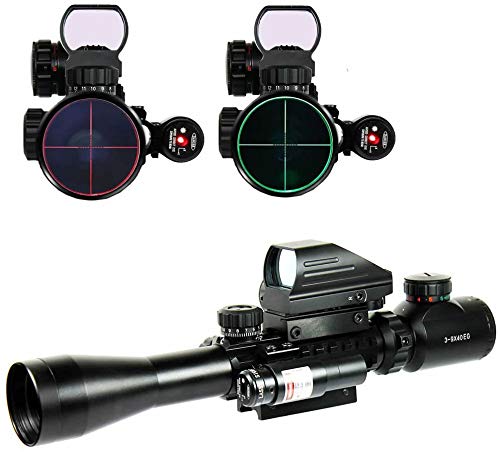

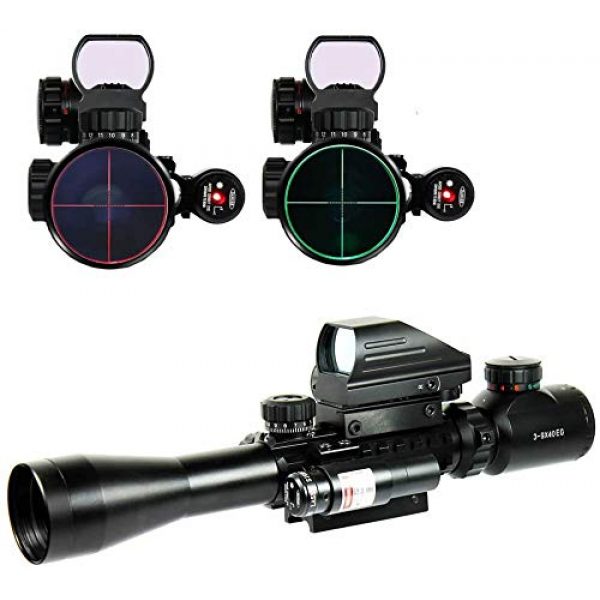

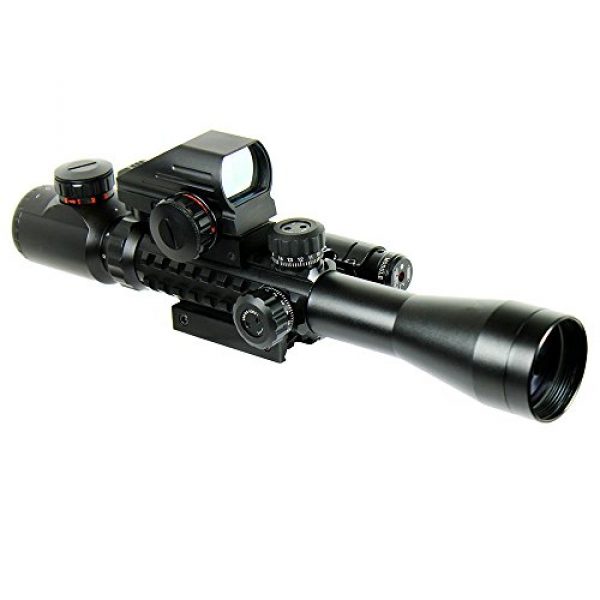

Higoo 3-9X40 Tactical Rifle Scope Tri-Picatinny Rail Green/Red 5 Level Illumination Mil-dot Riflescope with Holographic 4 Reticle Reflex Sight & Red Laser
Laser Features:
Laser ClassClass IIIA
Power5mW
Description:
This tactical rifle scope is well suited for wide range shooting, with high optical clarity at 3-9 times magnification and a 40mm objective diameter. The scope and holographic reticles are illuminated in red or green and in multiple brightness intensities, for a suitable sight picture regardless of lighting or environment. The red laser and holographic sight allow for quick acquisition of close quarter and fast moving targets.
Specifications: (Rifle scope)
Dimensions: 12.5″(length) x 2.5″(width) x 3″(height) Weight: 20 oz
Magnification: 3x-9x
Obj. Diameter: 40mm
Brightness Control: Red: 5 levels / Green: 5 levels
Reticle: Mil Dot
Exit Pupil: 13.3mm @ 3x/4.4mm @ 9x
Field of View: 13.41′ ~ 40.38′ @ 100yards
Eye Relief: 2.75″ ~ 3.5″
Windage & Elevation Click Value: 1/4′ @ 100 yards
Power: 1 x CR2032 (included)
Specifications (Holographic Dot Sight)
Dimensions: 3.35″ (length) x 2.25″ (width) x 2″ (height)
Weight: 165g (6 oz)
Obj. Aperture: 33 mm
Magnification: 1X
Field of View: 15.5m
Eye Relief: Unlimited
Reticle Type: Circle dot, cross, 10 MOA, and 3 MOA
Brightness Control: Red : 5 levels / Green : 5 levels
Power: 1 x CR2032 (included)

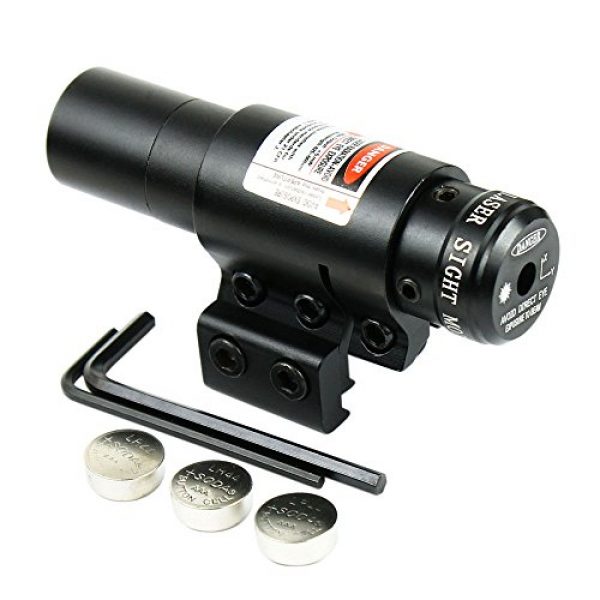

Specifications (Red Laser Sight)
Dimensions: 3″ (Length) x 1″ (width)
Height: 1.6″ with 20mm mount
Weight: 3.0 OZ
Power: 2mw
Wavelength: 650 nm
Color: Black
Power: 3 x AG13 (included)
Rifle Scope Product Features
Durable all metal construction Laser ClassClass IIIA, Output Power: 5mW
High grade fully coated optical lens
Weather, fog, and shock proof

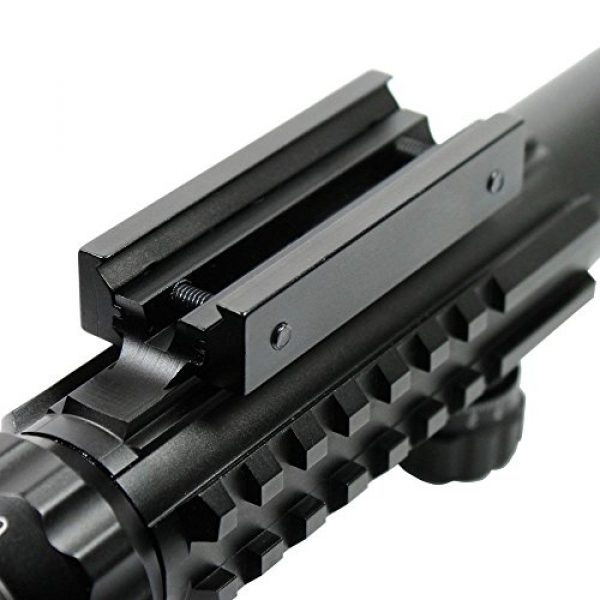

Integrated rails offer ample space for accessories
Mountable to 20mm and rails
About the Higoo Brand
Higoo is a premium producer for firearm scopes, optics, mounts, and other add-ons used for guns like rifles and long guns. They innovate and make their products choosing building materials which are long lasting and resilient. This includes the Higoo 3-9X40 Tactical Rifle Scope Tri-Picatinny Rail Green/Red 5 Level Illumination Mil-dot Riflescope with Holographic 4 Reticle Reflex Sight & Red Laser by Higoo. For more shooting items, visit their site.
Facts About Rifle Optics
Rifle scopes permit you to precisely aim a rifle at different targets by lining up your eye with the target at range. They accomplish this through zoom by making use of a set of lenses inside the scope. The scope’s alignment can be adapted for consideration of different natural factors like wind speed and elevation to account for bullet drop.
The scope’s function is to understand exactly where the bullet will hit based upon the sight picture you are seeing through the optic as you line up the scope’s crosshair or reticle with the intended target. A lot of contemporary rifle scopes and optics have around 11 parts which are arranged within and outside of the scope. These parts consist of the rifle scope’s body, lenses, windage and elevation dials or turrets, focus rings, and other elements. See all eleven parts of a scope.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Deciding on the optimal type of rifle optic is based on what type of shooting you plan on doing.
About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are very little
- Experienced shooters who have an idea for their target “hold over” as well as “lead” correlations for their firearm
- Shooters who do not mind the reticle is enlarged and requires more visual sight room than a SFP reticle
Second Focal Plane Glass Facts
Second focal plane optics (SFP) include the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Long distance types of shooting where shooters have additional time to make ballistic calculations
- Shooting where most of the shots take place within shorter ranges and distances
- Shooters who want a clearer optic sight picture with less area used up by the larger size FFP reticle
Rifle Glass Zoom
The level of scope magnification you need on your optic depends upon the sort of shooting you would like to do. Virtually every type of rifle glass supplies some amount of zoom. The volume of zoom a scope gives is determined by the dimension, density, and curves of the lens glass within the rifle scope. The magnification of the optic is the “power” of the scope. This signifies what the shooter is checking out through the scope is magnified times the power aspect of what can usually be seen by human eyes.
About Fixed Single Power Lens Glass
A single power rifle scope or optic comes with a magnification number designator like 4×32. This suggests the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of scope can not change because it is set from the factory.
About Adjustable Power Lens Rifle Scopes
Variable power rifle scopes have adjustable power. These types of scopes will note the magnification level in a configuration such as 2-10×32. These numbers suggest the magnification of the scope could be set in between 2x and 10x power. This always involves the power levels in-between 2 and 10. The power modification is achieved by applying the power ring component of the scope near the rear of the scope by the eye bell piece.
The Power and Range of Scopes
Here are some recommended scope power settings and the distances where they can be effectively used. Keep in mind that higher magnification optics and scopes will not be as efficient as lower powered scope and optics because excessive zoom can be a detractor. The very same idea applies to extended distances where the shooter needs to have increased power to see exactly where to best aim the rifle.
Optic Lens Covering
All contemporary rifle optic and scope lenses are coated. There are different types and qualities of glass coatings. When shopping for luxury rifle optical systems, Lens finishing can be a vital aspect of defining the rifle’s capability. The lenses are one of the most key parts of the scope since they are what your eye looks through while sighting a rifle in on the target. The covering on the lenses offers protection to the lens exterior and assists with anti glare capabilities from excess light and color discernibility.
HD Versus ED Scope Lens Coatings
Some scope brands likewise use “HD” or high-definition lens finishes which use different procedures, polarizations, elements, and chemicals to draw out a wide range of colors and viewable definition through the lens. Some scope manufacturers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Details on Single Coating Versus Multi-Coating
Various scope lenses can even have various coatings applied to them. All lenses generally have at least some kind of treatment or covering applied to them prior to being used in a rifle scope or optic. This is due to the fact that the lens isn’t simply a raw piece of glass. It is part of the carefully tuned optic. It needs to have a finish applied to it so that it will be efficiently functional in numerous types of environments, degrees of light (full light VS shade), and other shooting conditions.
Single coated lenses have a treatment applied to them which is usually a protective and boosting multi-purpose treatment. This lens treatment can preserve the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope developer and how much you spent for it. Both are indications of the lens quality.
Some scope manufacturers also make it a point to define if their optic lenses are layered or “multi” covered. This means the lens has numerous treatments applied to the surfaces. If a lens gets numerous treatments, it can indicate that a company is taking several actions to combat various natural aspects like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finishing. This also doesn’t always imply the multi-coated lens is much better than a single coated lens. Being “much better” hinges on the producer’s lens treatment technology and the quality of products used in developing the rifle optic.
Glass Lens Anti-water Finishing
Water on a lens does not assist with maintaining a clear sight picture through a scope at all. Lots of top of the line and high-end scope makers will coat their lenses with a hydrophilic or hydrophobic coating.
Alternatives for Mounting Rifle Scopes on Firearms
Mounting solutions for scopes are available in a couple of options. There are the basic scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These different types of mounts also normally come in quick release versions which use toss levers which enable rifle operators to rapidly mount and dismount the scopes.
Hex Key Rifle Scope Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which are created for long range accuracy shooting. This type of scope install is perfect for rifles which need a long lasting, sound mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Scope Ring Mounts
These types of quick-release rifle scope mounts can be used to quickly take off a scope and attach it to a different rifle. Several scopes can also be switched out if they all use a compatible design mount. These types of mounts are handy for long guns which are transferred a lot, to swap out the optic from the rifle for protection, or for optics which are used between several rifles.
Rifle Scope Tube Sealing and Gas Purging
Wetness inside your rifle optic can mess up a day of shooting and your pricey optic by causing fogging and developing residue inside of the scope tube. Most scopes prevent moisture from going into the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Glass Tubes
Another component of avoiding the buildup of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this space is currently occupied by the gas, the scope is less altered by temperature shifts and pressure distinctions from the outdoor environment which could potentially permit water vapor to seep in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
