Description
Rifle Scope Product Details

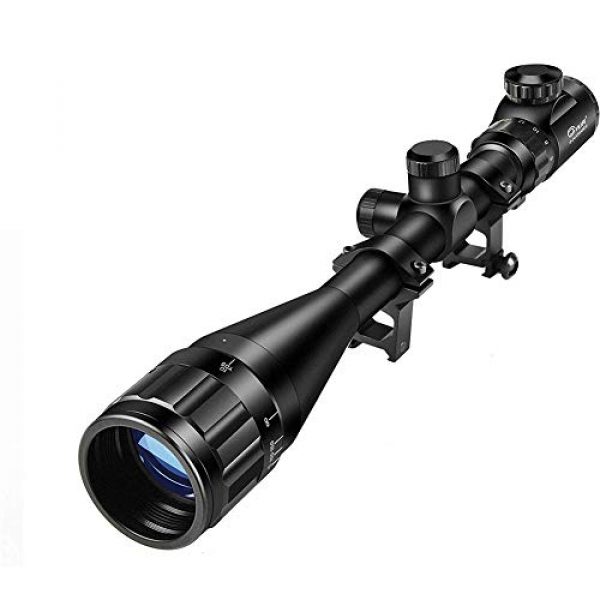

CVLIFE Hunting Rifle Scope 6-24×50 AOE Red and Green Illuminated Gun Scope with Free Mount
Rifle Scope Product Features
About this item
Magnification: 6-24x
Objective Diameter: 50mm
Field Of View: 28 ft @ 100 yards
Click Value: 1/8 inch @ 100 yards
Illuminated Type of the rifle scope: Red and Green

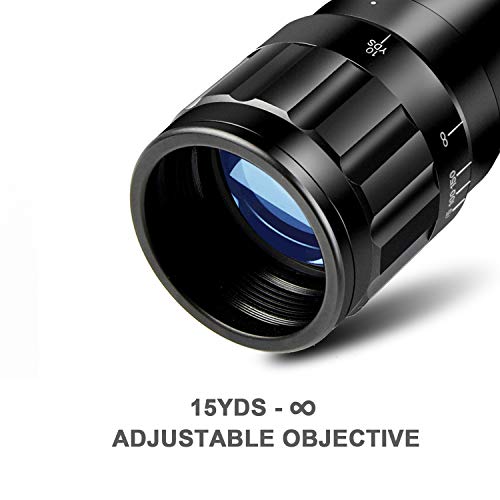

Adjustable Objective (AO) lens
The adjustable objective (AO) lens can be moved by the parallax dial at the end of the scope. This adjustment allows for a sharper target image, elimination of parallax, and range estimation.

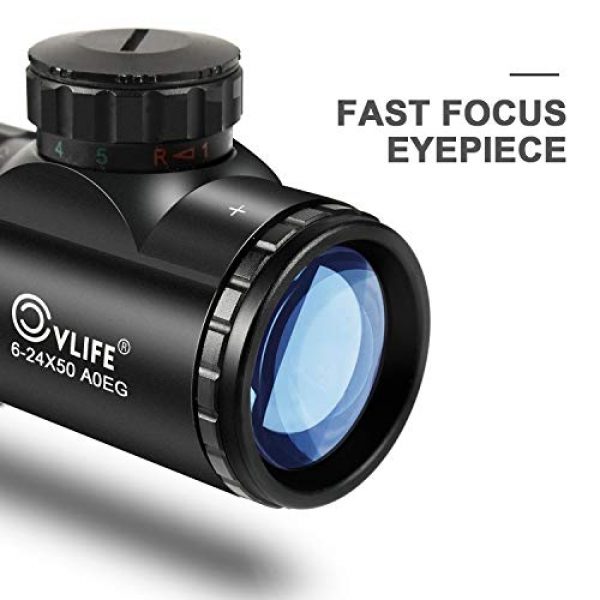

Adjustable Eyepiece
Eyepiece with dioptric adjustment lens eliminate most of image aberrationadjustable ocular provide a clear image for nearsighted or farsighted users without glasses.

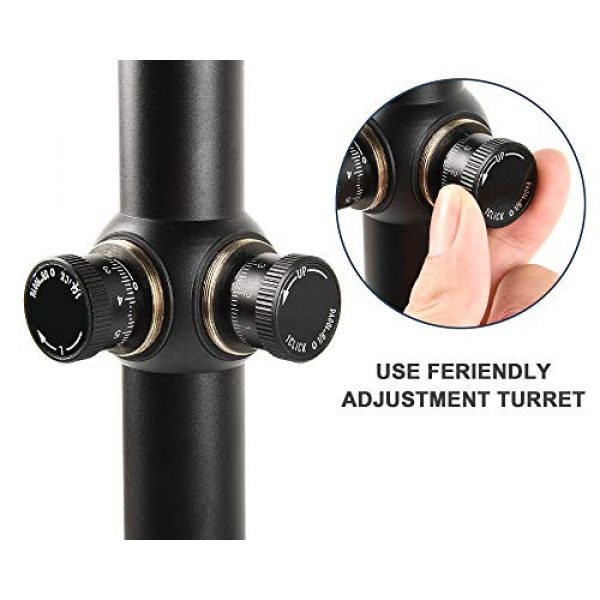

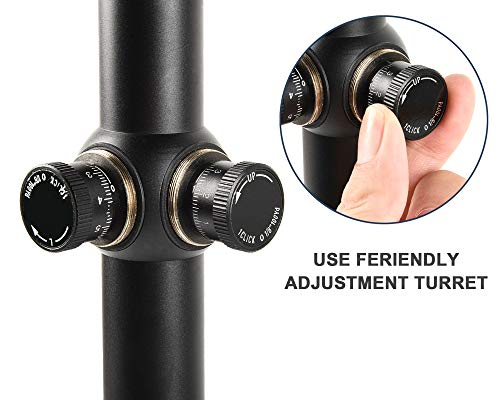

Reliable Windage and Elevation
Well-designed and constructed turrets allow for crisp, consistent and precise windage and elevation adjustments, it can fast to adjust and the caps can be removed to reset the zero. Precise Hand-Turn 1/8-inch @100 Yards Click Adjustments,you can aim perfectly at any time.
Easy to Mount
Fits all standard 20mm Picatinny or Weaver rail
CVLIFE 6-24x50AO rifle scope CVLIFE 4-16x44AO rifle scope CVLIFE 2.5-10×40 Illuminated Scope with Red Laser CVLIFE 4×32 Illuminated Scope with Fiber Optic Sight CVLIFE 3-9×40 rifle scope CVLIFE 3-9x40AO rifle scope
Reticle Rangefinder Mil dot Mondern Range Finding Mil dot Fine Duplex Mil dot
Magnification 6-24x 4-16x 2.5-10x 4x 3-9x 3-9x
Adjustable Objective x x x
Objective Lens Diamete 50mm 44mm 40mm 32mm 40mm 40mm
Illuminated Reticle x x
Reticle Color Red & Green Red & Green Red & Green Red & Green & Blue Black Black
Size 15.75”(40cm) 15.75”(40cm) 8.5”(21.6cm) 2.5”(14cm) 12.20″(31cm) 12.20″(31cm)
About the CVLIFE Manufacturer
CVLIFE is a premium maker for firearm scopes, optics, mounts, and other add-ons used for guns like rifles and long guns. They innovate and manufacture their scopes and related products choosing elements which are durable and long lasting. This includes the CVLIFE Hunting Rifle Scope 6-24×50 AOE Red and Green Illuminated Gun Scope with Free Mount by CVLIFE. For additional shooting goods, visit their website.
Glass Facts
Rifle scopes enable you to specifically align a rifle at different targets by lining up your eye with the target over a range. They do this through magnification by using a series of lenses inside the scope. The scope’s positioning can be dialed in for the consideration of numerous environmental things like wind and elevation to account for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will hit based on the sight picture you are viewing via the optic as you line up the scope’s crosshair or reticle with the intended target. The majority of modern rifle scopes have about 11 parts which are found inside and outside of the scope body. These optic pieces include the rifle scope’s body, lenses, windage and elevation dials or turrets, focus rings, and other components. Learn about the eleven parts of glass.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The type of focal plane an optic has identifies where the reticle or crosshair is located in regard to the scopes magnification. It actually implies the reticle is located behind or before the magnifying lens of the scope. Picking out the most ideal kind of rifle optic is based on what kind of shooting you anticipate doing.
About First Focal Plane Scopes
Focal plane scopes (FFP) come with the reticle in front of the magnification lens. This triggers the reticle to increase in size based upon the level of magnification being used. The outcome is that the reticle measurements are the same at the magnified distance as they are at the non amplified distance. For instance, one tick on a mil-dot reticle at 100 yards without having “zoom” is still the same tick at one hundred yards with 5x “zoom”. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are small
- Experienced shooters who understand their target “hold over” and “lead” ratios for their rifles
- Shooters who don’t mind the reticle is bigger and requires more visual eyesight space than a SFP reticle
Second Focal Plane Optics
Second focal plane glass (SFP) include the reticle to the rear of the zoom lens. This triggers the reticle to stay at the same size in connection with the level of zoom being used. The effect is that the reticle dimensions evolve based upon the magnification chosen to shoot over greater ranges since the reticle markings represent different increments which can vary with the zoom. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick measurement. These particular varieties of glass work for:
- Far away styles of shooting where shooters have extra time to make ballistic computations
- Shooting where most of the shots take place within shorter distances and ranges
- Shooters who desire a clearer optic picture without room used up by the enlarged FFP reticle
Optic Magnification
The level of scope magnification you need on your scope is based on the sort of shooting you wish to do. Nearly every kind of rifle scope supplies some degree of magnification. The volume of zoom a scope gives is established by the size, thickness, and curves of the lens glass inside of the rifle scope. The magnifying level of the scope is the “power” of the glass. This implies what the shooter is looking at through the scope is amplified times the power element of what can generally be seen by human eyes.
Fixed Power Lens Rifle Optics
A single power rifle scope or optic will have a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not adjust given that it is a fixed power optic.
About Adjustable Power Lens Optics
Variable power rifle scopes can be tweaked between magnified levels. The power change is handled by making use of the power ring part of the scope near the back of the scope by the eye bell.
Scope Power and Ranges
Here are some advised scope powers and the ranges where they can be successfully used. High power rifle scope glass will not be as effective as lower magnification rifle scope glass given that too much zoom can be a negative aspect depending on your shooting distance. The very same idea goes for extended distances where the shooter needs enough power to see exactly where to best aim the rifle at the target.
Details on Glass Lens Coverings
All modern-day rifle optic lenses are covered in special coatings. There are various types and qualities of glass coatings. When shopping for high end rifle optics and scope units, Lens finishing can be an important aspect of a rifle. The glass lenses are one of the most key components of the glass because they are what your eye looks through while sighting a rifle in on the point of impact. The coating on the lenses shields the lens surface and improves anti glare capabilities from excess sunlight and color exposure.
HD Versus ED Lens Coatings
Some rifle scope producers additionally use “HD” or high-def lens coverings that use various processes, aspects, polarizations, and chemicals to enhance a wide range of colors and viewable target visibility through lenses. This high-def finishing is typically used with increased density glass which drops light’s ability to refract through the lens glass. Some scope vendors use “HD” to describe “ED” indicating extra-low dispersion glass. ED deals with how certain colors are presented on the chromatic spectrum and the chromatic difference or aberration which is also called color distortion or fringing. Chromatic aberration can be obvious over things with well defined outlines as light hits the item from particular angles.
Single Covering Versus Multi-Coating
Different optic lenses can also have different coverings applied to them. All lenses normally have at least some kind of treatment or coating applied to them prior to being used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t just a raw piece of glass. It is part of the carefully tuned optic. It must have a finish placed on it so that the lens will be efficiently functional in many kinds of environments, degrees of sunshine (full light VS shaded), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope manufacturer and how much you paid for it.
Some scope makers also make it a point to define if their optic lenses are coated or “multi” coated. Being “better” depends on the maker’s lens treatment innovation and the quality of products used in building the rifle scope.
Hydrophobic Lens Covering
Water on a lens does not assist with maintaining a clear sight picture through a scope at all. Lots of top of the line and high-end scope companies will coat their lenses with a hydrophilic or hydrophobic coating which is water repellent.
Glass Installation Alternatives
Mounting approaches for scopes come in a few options. There are the standard scope rings which are separately mounted to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also generally come in quick release versions which use manual levers which allow rifle operators to rapidly install and dismount the glass.
Hex Key Rifle Scope Ring Mounting Solutions
Basic, clamp-on type mounting optic rings use hex head screws to position to the flattop style Picatinny scope mounting rails on rifles. These types of scope mounts use two separate rings to support the optic, and are normally constructed from 7075 T6 billet aluminum which are designed for far away precision shooting. This type of scope mount is very good for rifle systems which require a resilient, unfailing mount which will not move no matter just how much the scope is moved about or jarring the rifle takes. These are the design of mounts you should have for a devoted scope system on a far away scouting or tournament long gun which will hardly ever need to be altered or adjusted. Blue 242 Loctite threadlocker can additionally be used on screws to keep the hex screws from backing out after they are installed safely in place. An example of these rings are the 30mm style from Vortex Optics. The set usually costs around $200 USD
Optic Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly attach and take off a scope from a rifle. If they all use a comparable style mount, multiple scopes can also be switched out. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect firmly to a flat top type Picatinny rail. This lets the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while preserving accuracy. These kinds of mounts are useful and handy for rifles which are transferred between vehicles a lot, to take off the scope glass from the rifle for protection, or for optics which are utilized in between numerous rifles. An example of this mount type is the 30mm mount designed by the Vortex Optics manufacturer. It typically costs around $250 USD
Info on Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle optic can mess up a day of shooting and your pricey optic by bringing about fogging and developing residue inside of the scope tube. Most scopes prevent wetness from getting in the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Glass Tubes
Another component of preventing the buildup of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this space is currently taken up by the gas, the optic is less impacted by temperature level changes and pressure variations from the outdoor environment which could potentially allow water vapor to seep in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
