Description
Rifle Scope Product Details

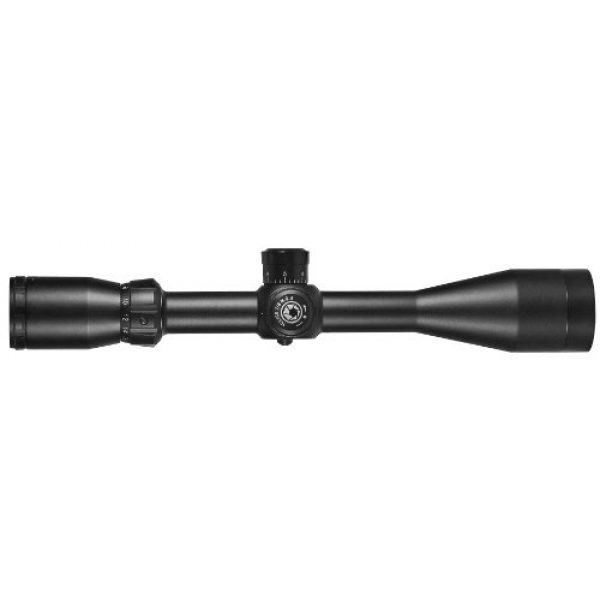

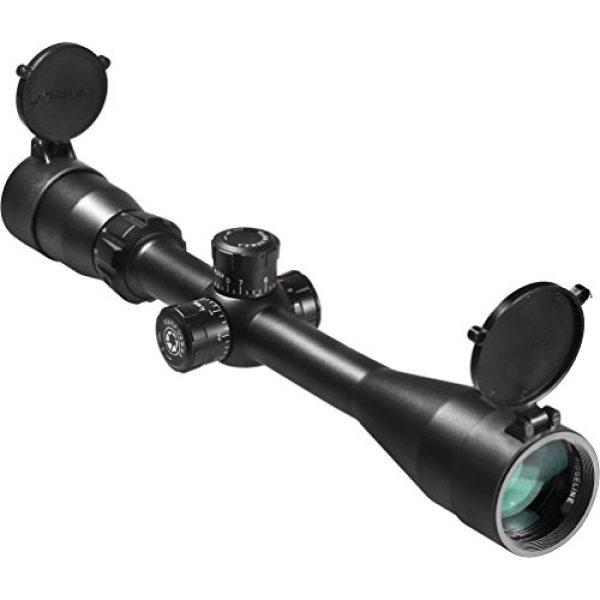

BARSKA Ridgeline Side Parallax Riflescope (Black Matte, 6-24×44)
Product Description
The 6-24×44 Ridgeline Riflescope (Black Matte) from Barska features a black matte finish, a 1″ single-tube construction, is provisioned with a P4 sniper glass-etched reticle and a fast focus eyebell. The click value adjustment of the external locking windage and elevation turrets is 1/8 MOA. Barska’s proprietary Accu-Lock technology locks the inner tube of the scope providing continuous accuracy over time.
Amazon.com
Field-tested to meet the strictest quality standards, the second-generation Barska Ridgeline 6-24×44 riflescope is ideal for serious hunters. The Ridgeline series is equipped with the latest optical technology, such as external locking windage and elevation adjustments and a P4 sniper glass-etched reticle. The scope also employs Barska’s Accu-Lock system, which utilizes a coil spring positioned within the scope to securely lock the inner tube. This allows the scope to stay locked dead-on to the target shot after shot. And hunters can count on the Ridgeline scope to deliver the brightest and sharpest image from edge to edge, with fully multicoated optics providing visibility even in low-light conditions. Other details include a 1-inch main tube with a shockproof, high-impact-rated design to withstand repeated abuse from high-caliber recoil; a 100-percent waterproof and fogproof construction; a fast focus eyebell; and flip-up scope caps. The Ridgeline carries Barska’s limited lifetime warranty.
The Ridgeline riflescope includes a P4 sniper glass-etched reticle.
Specifications:
Magnification: 6 to 24x
Objective lens: 44mm
Waterproof: Yes
Fogproof: Yes
Reticle: P4
Exit pupil: 1.9 to 7.5mm
Optical coating: Fully multicoated
Field of view: 17.86 to 4.5 feet @ 100 yards
Eye relief: 4.01 to 3.54 inches
Click value: 1/8 inch
Adjustment knob: Side parallax adjustment
Tube diameter: 1 inch
Finish: Black matte
Length: 14 inches
Weight: 22.57 ounces
Included accessories: Flip-up scope caps, lens cloth
Warranty: Limited lifetime
About Barska
Barska is a worldwide sport optics company with strong brand recognition within the optics industry, with corporate offices in La Verne, California, and warehouses and distribution centers in La Verne and Shanghai, China. Barska offers an extensive line of precision sport optics products, such as binoculars, riflescopes, spotting scopes, and telescopes. The product range has been designed and built with the latest optical technology, allowing users to enjoy all their favorite leisure time outdoor activities, including bird watching, outdoor observation, hunting, fishing, stargazing, concerts, and sporting events.
Rifle Scope Product Features
Precision Aiming: The 6-24x magnification scope features side adjustable parallax and 1/8 MOA click adjustments to improve accuracy.
Quality Construction: The scope comes with fully multi-coated optics, providing impressive viewing clarity. Tube diameter 1″.
P4 Reticle: The scope is provisioned with a P4 sniper glass-etched reticle and a fast focus eyebell to improve rangefinidng capability.
External Locking Knobs: The external locking windage and elevation prevents the knobs from accidental adjustments and improves targeting.
Robust Design: The scope is built with extra-rigid construction, being waterproof, fogproof, and shockproof.
AC11380
Specs
Item: AC11380
Field of View(ft@100yds): 17.8@ 6x-4.5@24x
Eye Relief: 4.01inch -3.54inch
Exit Pupil: 1.9mm-7.5mm
Click Value: 1/8 MOA
Focal Plane: Second
Length: 14.0″ ; Weight: 22.57 oz ; 1″ Tube Diameter
Included: Scope Caps ; Lens Cloth
6-24x44mm P4 Ridgeline Rifle Scope
by Barska
The 6-24×44 Ridgeline Riflescope (Black Matte) from Barska features a black matte finish, a 1″ single-tube construction, is provisioned with a P4 sniper glass-etched reticle and a fast focus eyebell. The click value adjustment of the external locking windage and elevation turrets is 1/8 MOA. Barska’s proprietary Accu-Lock technology locks the inner tube of the scope providing continuous accuracy over time.
6-24x Magnification
44mm Objective Lens
Fully Multi-Coated Optics
External Locking Windage and Elevation
Side Parallax Adjustment
Waterproof, Fogproof and Shockproof
P4 Reticle
Accu-Lock System
Durable, Light Weight Riflescope
This 6-24×44 riflescope is durable and lightweight, perfect for hunting or target practice.
Turret Adjustment
The scope comes with 1/8 MOA solid external lockable windage and elevation adjustment, which can prevent accidental adjustments; also features side parallax adjustment for adjusting according to different distances.
Zoom Adjustment
6-24x adjustable zoom allows users to get up close to the target, suitable for mid- to long-range targeting.

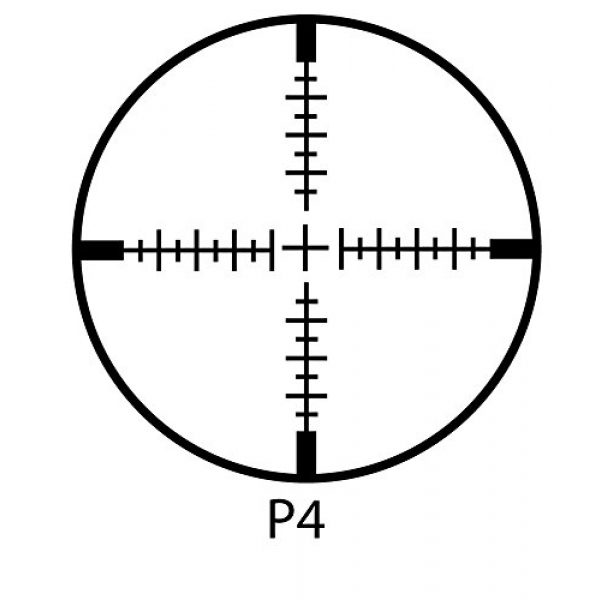

Glass- Etched Reticle
The scope comes with P4 glass-etched reticle, allowing the shooter to estimate range and improve accuracy.
AC11380 AC11382 AC12140 AC10046 AC11392 AC12464
Magnification 6-24x 4-16x 6-36x 6-24x 6-24x 6-24x
Objective Lens 44mm 44mm 52mm 42mm 40mm 50mm
Lens Coating Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated
Click Value 1/8 MOA 1/4 MOA 1/8 MOA 1/8 MOA 1/8 MOA 1/4 MOA
Reticle P4 P4 Illuminated Mil-Dot Mil-Dot Illuminated 3G Illuminated Mil-Dot
Turret External Locking External Locking External Locking Capped External Locking External Locking
Length 14″ 13.25″ 17″ 15.7″ 14.25″ 15.25″
Product Weight 22.57 oz 22.57 oz 35.2 oz 20.46 oz 21.89 oz 20.2 oz
About the BARSKA Scope Maker
BARSKA is a premium maker for weapon scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They style and make their products by making the most of elements which are resilient and long lasting. This includes the BARSKA Ridgeline Side Parallax Riflescope (Black Matte, 6-24×44) by BARSKA. For more shooting products, visit their site.
Rifle Scope Details
Rifle scopes enable you to specifically aim a rifle at different targets by lining up your eye with the target over a range. They accomplish this through zoom by utilizing a series of lenses within the scope. The scope’s positioning can be dialed in to account for numerous environmental factors like wind and elevation increases to make up for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based on the sight picture you are seeing through the scope as you align the scope’s crosshair or reticle with the intended point of impact. Most contemporary rifle scopes and optics have around 11 parts which are located internally and externally on the scope. These scope parts include the rifle scope’s body, lenses, elevation dials or turrets, objective focus rings, and other parts. See all eleven parts of a rifle optical system.
Rifle Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Deciding on the finest type of rifle glass is based around what type of shooting you plan on doing.
First Focal Plane Glass
Focal plane scopes (FFP) come with the reticle in front of the magnification lens. This triggers the reticle to increase in size based upon the extent of zoom being used. The benefit is that the reticle measurements are the same at the amplified range as they are at the non amplified range. One tick on a mil-dot reticle at 100 yards with no “zoom” is still the very same tick at 100 yards with 5x “zoom”. These types of scopes work for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where computations are minor
- Experienced shooters who understand their aim point “hold over” and also “lead” correlations for their firearms
- Shooters who do not mind the reticle is enlarged and takes up more visual eyesight room than a SFP reticle
About Second Focal Plane Glass
Second focal plane optics (SFP) include the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement.
- Long distance types of shooting where shooters have more time to make ballistic computations
- Shooting where most shots happen within much shorter distances and ranges
- Shooters who like a clearer optic sight picture with less space taken up by the larger sized FFP reticle
Ins and Outs of Rifle Optic Zoom
The level of scope magnification you require depends on the form of shooting you desire to do. Pretty much every style of rifle optic offers some level of zoom. The volume of magnification a scope delivers is established by the dimension, thickness, and curves of the lens glass inside of the rifle optic. The magnification of the optic is the “power” of the scope. This means what the shooter is observing through the scope is amplified times the power aspect of what can generally be seen by human eyes.
Fixed Power Lens Scope Details
A single power rifle optic or scope comes with a magnification number designator like 4×32. This suggests the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not fluctuate because it is a fixed power optic.
Variable Power Lens Rifle Scopes
Variable power rifle scopes can be modified between magnified levels. The power adjustment is accomplished by using the power ring part of the scope near the rear of the scope by the eye bell.
Optic Power and Range Correlation
Here are some recommended scope power settings and the ranges where they could be efficiently used. Highly magnified glass will not be as beneficial as lower powered glass considering too much zoom can be a negative aspect depending on your shooting distance. The same concept applies to extended distances where the shooter needs to have adequate power to see precisely where to best aim the rifle.
Rifle Glass Lens Covering
All top teir rifle optic and scope lenses are layered. Lens finish is an essential element of a shooting platform when looking at high end rifle optics and scope equipment.
HD Versus ED Lens Coatings
Some scope makers likewise use “HD” or high-definition lens coverings which use different techniques, chemicals, polarizations, and elements to draw out separate colors and viewable quality through the lens. Some scope producers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Coating Versus Multi-Coating for Rifle Scopes
Different scope lenses can even have different finishes applied to them. All lenses generally have at least some type of treatment or finish applied to them prior to being used in a rifle scope or optic. This is since the lens isn’t simply a raw piece of glass. It becomes part of the carefully tuned optic. It requires a coating to be applied to it so that the lens will be efficiently usable in many kinds of environments, degrees of light (full light VS shade), and other shooting conditions.
This lens treatment can safeguard the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope producer and how much you paid for it.
Some scope manufacturers similarly make it a point to specify if their optic lenses are layered or “multi” covered. Being “better” depends on the maker’s lens treatment innovation and the quality of products used in developing the rifle scope.
Hydrophobic Finishing for Optics
Water on a lens doesn’t help with preserving a clear sight picture through a scope at all. Lots of top of the line and high-end optic companies will coat their lenses with a hydrophilic or hydrophobic anti-water coating.
Options for Mounting Optics on Long Guns
Mounting options for scopes are available in a few choices. There are the standard scope rings which are separately mounted to the scope and one-piece scope mounts which cradle the scope. These various kinds of mounts also usually come in quick release versions which use manual levers which enable rifle operators to rapidly mount and dismount the scopes.
Glass Mounts with Hex Key Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long distance accuracy shooting. This type of scope install is wonderful for rifles which require a long lasting, rock solid mounting solution which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Optic Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope and attach it to a different rifle. Multiple scopes can also be swapped out if they all use a similar style mount. These types of mounts are convenient for rifle platforms which are transported a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used between several rifles.
Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can mess up a day of shooting and your pricey optic by causing fogging and producing residue inside of the scope tube. The majority of scopes prevent moisture from going into the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Rifle Glass Tubes
Another part of preventing the buildup of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Since this area is currently occupied by the gas, the optic is less influenced by temperature level changes and pressure distinctions from the outdoor environment which could potentially allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
