Description
Rifle Scope Product Details

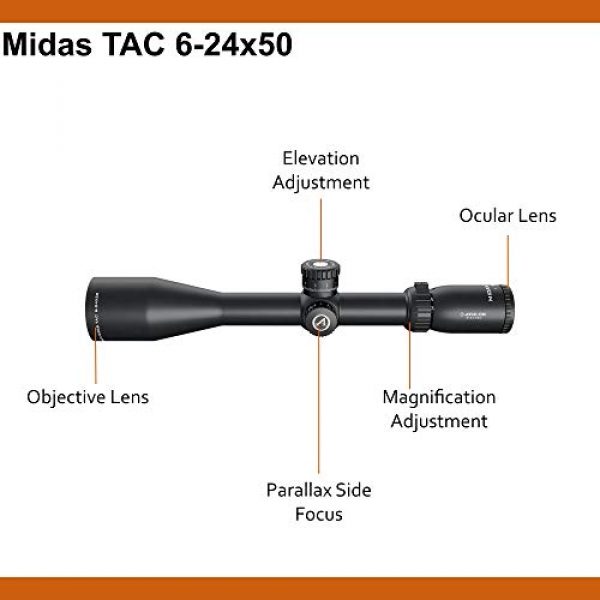

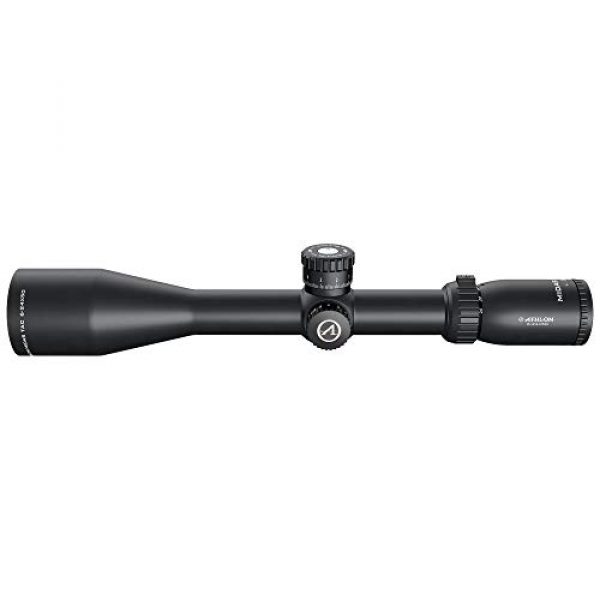

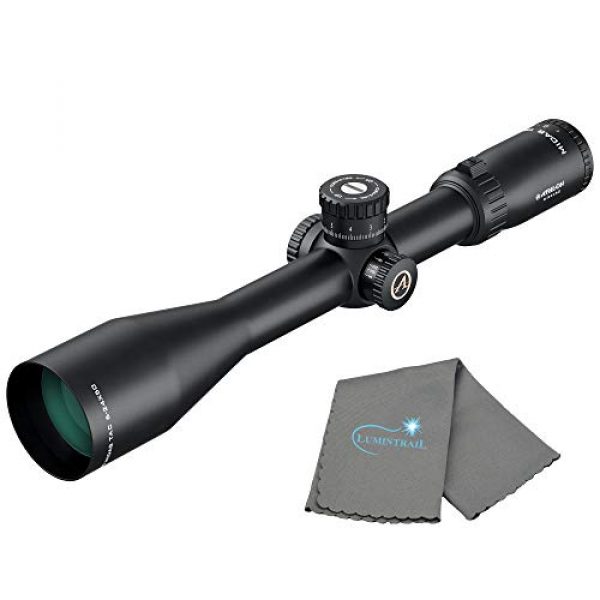

Athlon Optics Midas Tac Rifle Scope 6-24×50 MOA Reticle Bundle with a Lumintrail Cleaning Cloth
Athlon Optics Midas TAC 6-24×50 APLR4 FFP MOA HD
Loaded with features including HD Glass, Fully Multi-Coated lenses to enhance target appearance at all distances, a hard Zero Stop for a repeatable return to zero, and a capped Windage Turret to prevent accidental adjustments.
HD glass gives you better light transmission, brighter, and sharper images
First focal plane reticle stays valid at all settings to fully utilize the Heat Treated One Piece Tube Construction gives the scope extra strength over multi-piece tubes
Precision zero stop system allows you to lock down your zero position
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Nitrogen Purged dramatically reduces the moisture inside the tube and helps maintaining fogproof and waterproof.
Specs:
Magnification: 6-24
Objective Lens Diameter: 50 mm

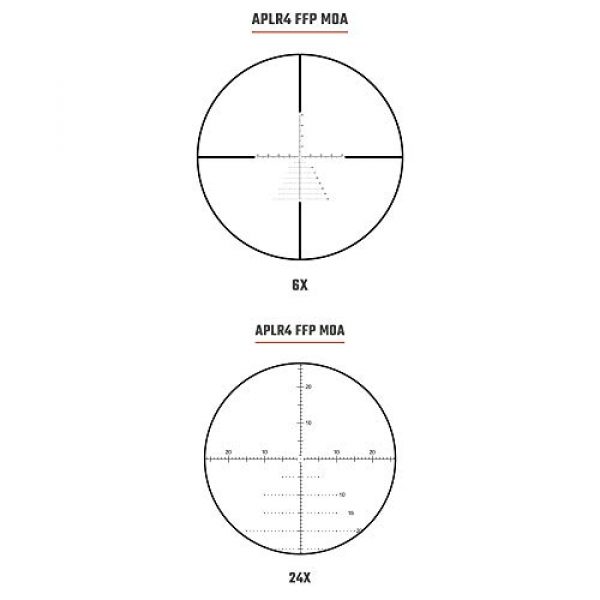

Reticle: APLR4 FFP IR MOA, Glass Etched non-Illuminated
Surface Finish: Matte
Extra Coating: Xtra Protective Coating
Lens Coating: Wide Band Fully Multicoated
Tube Diameter: 30 mm
Exit Pupil: 11.1-1.8 mm
Eye Relief: 3.7 in
Field of View @ 100 yards: 17.8-4.6 feet
Length: 14.6″
Weight: 26.3 oz
Rifle Scope Product Features
0.25 MOA Click Value, 85 MOA Total Elevation Adjustment, 10 Yard to Infinity Parallax Adjustment
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches
Waterproof and Fog Proof to protect the scope in the harshest weather conditions and argon purged for better waterproofing
Exposed Direct Dial Turret for elevation allows you to quickly make adjustment Capped Turret for windage assures you that your zero on the windage is always there and gives you the flexibility to dial as well after taking off the cap
About the Athlon Scope Maker
Athlon is a premium company for long gun scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They style and supply their products by using elements which are long lasting and durable. This includes the Athlon Optics Midas Tac Rifle Scope 6-24×50 MOA Reticle Bundle with a Lumintrail Cleaning Cloth by Athlon. For additional shooting items, visit their website.
Facts About Rifle Scopes
Rifle scopes enable you to exactly aim a rifle at various targets by aligning your eye with the target at range. They do this through magnification by employing a series of lenses inside the scope. The scope’s alignment can be dialed in to take into account numerous ecological aspects like wind and elevation to make up for bullet drop.
The scope’s function is to help shooters understand exactly where the bullet will hit based upon the sight picture you are viewing using the optic as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern rifle scopes and optics have around eleven parts which are located inside and on the exterior of the scope. These parts include the rifle scope’s body, lenses, windage turrets, focus rings, and other components. Learn about the eleven parts of glass.
About Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Selecting the best type of rifle glass is based on what type of shooting you plan to do.
First Focal Plane Optic Info
First focal plane scopes (FFP) include the reticle ahead of the zoom lens. This induces the reticle to increase in size based upon the extent of zoom being used. The outcome is that the reticle measurements are the same at the amplified range as they are at the non magnified range. One tick on a mil-dot reticle at 100 yards with no “zoom” is still the very same tick at one hundred yards with 5x “zoom”. These types of scopes are practical for:
- Quick acquisition, long distance types of shooting
- Shooting situations where calculations are very little
- Experienced shooters who understand their target “hold over” as well as “lead” ratios for their long guns
- Shooters who don’t mind the reticle is enlarged and occupies more visual eyesight area than a SFP reticle
Second Focal Plane Optic Info
Second focal plane optics (SFP) come with the reticle behind the magnifying lens. This causes the reticle to stay at the exact same scale relative to the level of zoom being used. The result is that the reticle dimensions alter based upon the zoom employed to shoot over longer ranges considering the markings present various increments which change with the magnification. In the FFP illustration with the SFP glass, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These styles of optics work for:
- Long distance types of shooting where shooters have increased time to make ballistic calculations
- Shooting where most of the shots occur within shorter proximities and ranges
- Shooters who would like a clearer optic sight picture without space used up by the bigger FFP reticle
About Glass Zoom
The amount of scope zoom you require depends on the form of shooting you wish to do. Pretty much every kind of rifle optic delivers some level of magnification. The amount of magnification a scope provides is determined by the size, density, and curves of the lenses within the rifle scope. The magnifying level of the optic is the “power” of the scope. This denotes what the shooter is looking at through the scope is amplified times the power factor of what can generally be seen by human eyes.
Fixed Power Lens Glass Info
A single power rifle optic or scope comes with a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of scope can not fluctuate because it is set from the factory.
Adjustable Power Lens Scope Details
Variable power rifle scopes use enhanced power. The power adjustment is accomplished by making use of the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range Correlation of Scopes
Here are some advised scope power settings and the ranges where they may be successfully used. High power rifle scope glass will not be as beneficial as lower magnification glass because too much magnification can be a negative aspect depending on your shooting distance. The same relates to extended distances where the shooter needs enough power to see precisely where to properly aim the rifle.
Lens Coating for Rifle Optics
All modern-day rifle optic and scope lenses are coated. There are different types and qualities of lens finishes. When researching luxury rifle optics and scope devices, Lens finishing can be a crucial component of defining the capability of the rifle. The glass lenses are among the most crucial parts of the glass as they are what your eye sees through while sighting a rifle in on the point of impact. The coating on the lenses offers protection to the lens exterior and even improves anti glare from excess light and color visibility.
About Lens Coatings – HD Versus ED
Some scope makers also use “HD” or high-definition lens coverings which use various techniques, polarizations, chemicals, and components to draw out separate colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Details on Single Finishing Versus Multi-Coating
Different optic lenses can likewise have different coatings used to them. All lenses generally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while reducing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope manufacturer and how much you paid for it.
Some scope producers similarly make it a point to define if their optic lenses are coated or “multi” coated. Being “much better” depends on the maker’s lens treatment technology and the quality of materials used in building the rifle scope.
Hydrophobic Finishing for Glass
Water on a lens doesn’t help with keeping a clear sight picture through a scope at all. Many top of the line and high-end optic makers will coat their lenses with a hydrophobic or hydrophilic finish which is water repellent.
Choices for Mounting Rifle Glass on Long Guns
Mounting solutions for scopes come in a few choices. There are the standard scope rings which are separately mounted to the scope and one-piece mounts which cradle the scope. These various kinds of mounts also usually can be found in quick release versions which use manual levers which allow rifle operators to rapidly mount and remove the glass.
Hex Key Rifle Glass Ring Mounting Solutions
Standard, clamp type mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on the tops of rifles. These types of scope mounts use a pair of independent rings to support the optic, and are made from 7075 T6 billet aluminum or similar materials which are made for long distance precision shooting. This form of scope mount is excellent for rifle systems which require a long lasting, hard use mount which will not change despite just how much the scope is moved about or abuse the rifle takes. These are the style of mounts you should have for a specialized scope system on a reach out and touch someone scouting or hard target interdiction long gun which will hardly ever need to be changed or adjusted. Blue 242 Loctite threadlocker can additionally be used on the scope mount’s screws to keep the hex screw threads from backing out after they are installed safely in place. An example of these rings are the 30mm type from the Vortex Optics company. The set normally costs around $200 USD
Quick-Release Cantilever Optic Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly take off a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a complementary style mount. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach tightly to a flat top style Picatinny rail. This allows the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while maintaining precision. These kinds of mounts come in convenient for rifles which are hauled around a lot, to take off the optic from the rifle for protection, or for aiming systems which are used between multiple rifles. An example of this mount type is the 30mm mount designed by Vortex Optics. It generally costs around $250 USD
Rifle Scope Tube Sealing and Gas Purging
Moisture inside your rifle scope can ruin a day of shooting and your costly optic by triggering fogging and developing residue inside of the scope tube. Most scopes avoid wetness from getting in the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Glass Tubes
Another part of preventing the accumulation of wetness within the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this space is already taken up by the gas, the scope is less affected by temp alterations and pressure variations from the outside environment which may possibly permit water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
