Description
Rifle Scope Product Details
Athlon Optics Midas Tac Rifle Scope 6-24×50 MIL HD Reticle Bundle with a Lumintrail Cleaning Cloth

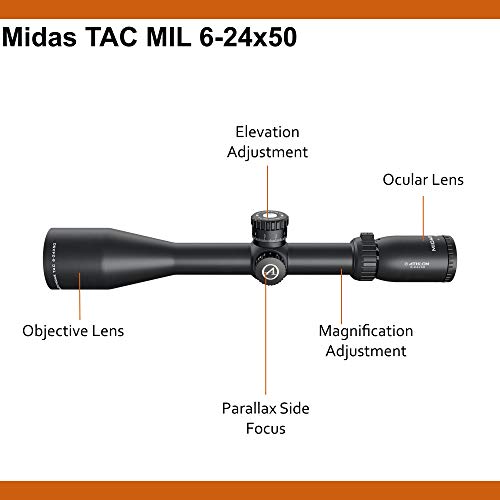

Athlon Optics Midas TAC 6-24×50 APRS2 FFP MIL HD
Loaded with features including HD Glass, Fully Multi-Coated lenses to enhance target appearance at all distances, a hard Zero Stop for a repeatable return to zero, and a capped Windage Turret to prevent accidental adjustments.
HD glass gives you better light transmission, brighter, and sharper images
First focal plane reticle stays valid at all settings to fully utilize the Heat Treated One Piece Tube Construction gives the scope extra strength over multi-piece tubes
Precision zero stop system allows you to lock down your zero position
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Nitrogen Purged dramatically reduces the moisture inside the tube and helps maintaining fogproof and waterproof.
Specs:
Magnification: 6-24
Objective Lens Diameter: 50 mm
Reticle: APLR2 FFP IR MIL, Glass Etched non-Illuminated
Surface Finish: Matte
Extra Coating: Xtra Protective Coating
Lens Coating: Wide Band Fully Multicoated
Tube Diameter: 30 mm
Exit Pupil: 11.1-1.8 mm
Eye Relief: 3.7 in
Field of View @ 100 yards: 17.8-4.6 feet
Purging Material: Argon
Length: 14.6″
Weight: 26.3 oz
Rifle Scope Product Features
0.1 MIL Click Value, 25 MIL Total Elevation Adjustment, 10 Yard to Infinity Parallax Adjustment
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches
Waterproof and Fog Proof to protect the scope in the harshest weather conditions and argon purged for better waterproofing
Exposed Direct Dial Turret for elevation allows you to quickly make adjustment Capped Turret for windage assures you that your zero on the windage is always there and gives you the flexibility to dial as well after taking off the cap
About the Athlon Company
Athlon is a premium supplier for firearm scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They innovate and make their scopes and related products working with building materials which are durable and long lasting. This includes the Athlon Optics Midas Tac Rifle Scope 6-24×50 MIL HD Reticle Bundle with a Lumintrail Cleaning Cloth by Athlon. For additional shooting items, visit their site.
Optic Details
Rifle scopes allow you to specifically aim a rifle at different targets by lining up your eye with the target over a range. They do this through zoom by employing a set of lenses inside the scope. The scope’s positioning can be adapted to account for different natural things like wind speed and elevation to account for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will land based on the sight picture you are seeing through the optic as you align the scope’s crosshair or reticle with the intended point of impact. Most modern-day rifle scopes have about 11 parts which are arranged internally and outside of the scope. These optic pieces include the rifle scope’s body, lenses, windage turrets or dials, focus rings, and other parts. Learn about the eleven parts of optics.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Picking the optimal type of rifle scope is based around what type of shooting you plan on doing.
First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are minor
- Experienced shooters who know their target “hold over” as well as “lead” relationships for their weapon
- Shooters who do not mind the reticle is bigger and occupies more visual eyesight area than a SFP reticle
Info About Second Focal Plane Optics
Second focal plane scopes (SFP) include the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Long distance kinds of shooting where shooters have additional time to make ballistic estimations
- Shooting where most of the shots happen within much shorter ranges and spaces
- Shooters who select a clearer optic sight picture without space used up by the larger size FFP reticle
Zoom for Rifle Scopes
The amount of scope magnification you require depends upon the form of shooting you would like to do. Nearly every kind of rifle optic provides some degree of magnification. The volume of zoom a scope offers is determined by the dimension, density, and curves of the lenses inside of the rifle scope. The magnification level of the optic is the “power” of the opic. This means what the shooter is checking out through the scope is magnified times the power element of what can usually be seen by human eyes.
Single Power Lens Rifle Optic Facts
A single power rifle optic and scope uses a zoom number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not fluctuate considering that it is a fixed power scope.
Variable Power Lens Rifle Optics
Variable power rifle scopes can be adjusted between magnification levels. It will note the zoom level in a format such as 2-10×32. These numbers mean the zoom of the scope can be changed in between 2x and 10x power. This also involves the powers in-between 2 and 10. The power adaptation is achieved by employing the power ring component of the scope near the back of the scope by the eye bell piece.
Power Levels and Range
Here are some suggested scope power levels and the distances where they can be efficiently used. Consider that higher power optics will not be as effective as lower powered scope and optics since too much magnification can be a negative thing in certain situations. The same goes for extended ranges where the shooter needs adequate power to see where to properly aim the rifle at the target.
Rifle Scope Lens Coating
All contemporary rifle optic lenses are layered. There are different types and qualities of glass coatings. Lens coating can be an important element of a rifle’s setup when thinking of luxury rifle optics and targeting systems. The lenses are among the most vital parts of the scope since they are what your eye sees through while sighting a rifle in on the target. The finishing on the lenses protects the lens exterior and also helps with anti glare capabilities from excess direct sunlight and color exposure.
Info on Scope Lens Coatings – HD Versus ED
Some scope producers also use “HD” or high-definition lens coatings which use various techniques, polarizations, chemicals, and components to draw out separate colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Scope Lens Single Finishing Versus Multi-Coating
Various optic lenses can also have various coverings used to them. All lenses typically have at least some type of treatment or coating used to them before being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while reducing glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope manufacturers similarly make it a point to specify if their optic lenses are covered or “multi” covered. Being “better” depends on the manufacturer’s lens treatment technology and the quality of products used in building the rifle scope.
Hydrophobic Lens Coating
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Numerous top of the line and high-end optic companies will coat their lenses with a hydrophilic or hydrophobic covering.
Choices for Installing Rifle Scopes on Firearms
Mounting approaches for scopes come in a few options. There are the basic scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also typically are made in quick release versions which use toss levers which permit rifle operators to quickly mount and remove the scopes.
Hex Key Rifle Optic Ring Mounting Solutions
Basic, clamp style mounting scope rings use hex head screws to fix to the flattop design Picatinny scope mount rails on rifles. These varieties of scope mounts use double detached rings to support the scope, and are normally constructed from 7075 T6 billet aluminum or similar materials which are developed for far away accuracy shooting. This form of scope mount is good for rifles which are in need of a durable, rock solid mount which will not change no matter just how much the scope is moved about or abuse the rifle takes. These are the type of mounts you want for a devoted optics system on a reach out and touch someone scouting or competitors rifle that will seldom need to be changed or adjusted. Blue 242 Loctite threadlocker can additionally be used on the screws to prevent the hex screw threads from wiggling out after they are mounted tightly in position. An example of these mounting rings are the 30mm style made by Vortex Optics. The set normally costs around $200 USD
Scope Mounts with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to rapidly take off a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a complementary designed mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect solidly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while keeping precision. These types of mounts are useful and practical for rifles which are transported a lot, to remove the scope glass from the rifle for protection, or for optics which are employed in between multiple rifles. An example of this mount style is the 30mm mount from Vortex Optics. It generally costs around $250 USD
Sealing and Gas Purging for Rifle Optic Tubes
Moisture inside your rifle scope can mess up a day of shooting and your expensive optic by triggering fogging and developing residue inside of the scope tube. The majority of scopes prevent wetness from getting in the scope tube with a system of sealing O-rings which are waterproof.
Info Around Glass Tube Gas Purging
Another part of avoiding the accumulation of wetness inside of the rifle scope tube is filling the tube with a gas like nitrogen. Because this space is currently taken up by the gas, the optic is less affected by condition changes and pressure distinctions from the outdoor environment which might potentially permit water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
