Description
Rifle Scope Product Details

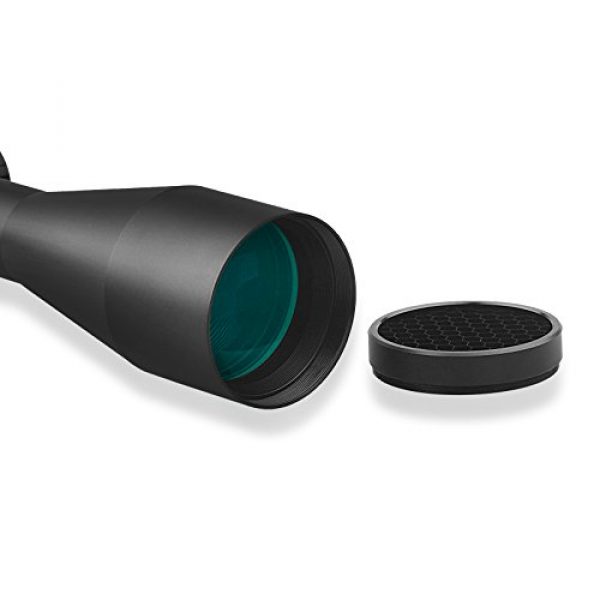

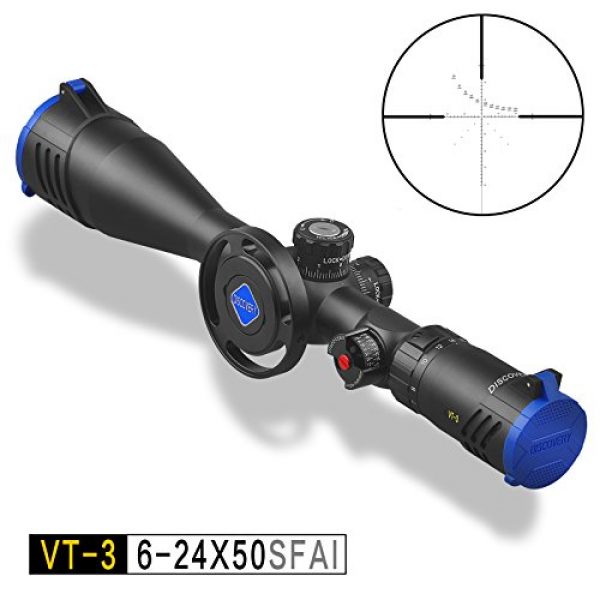

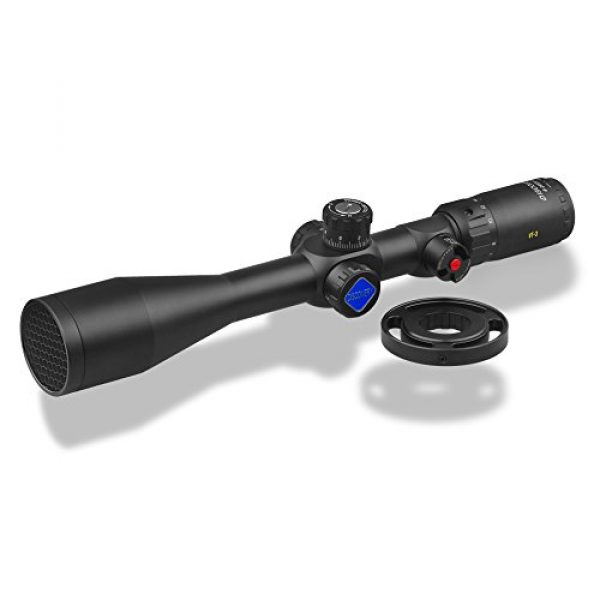

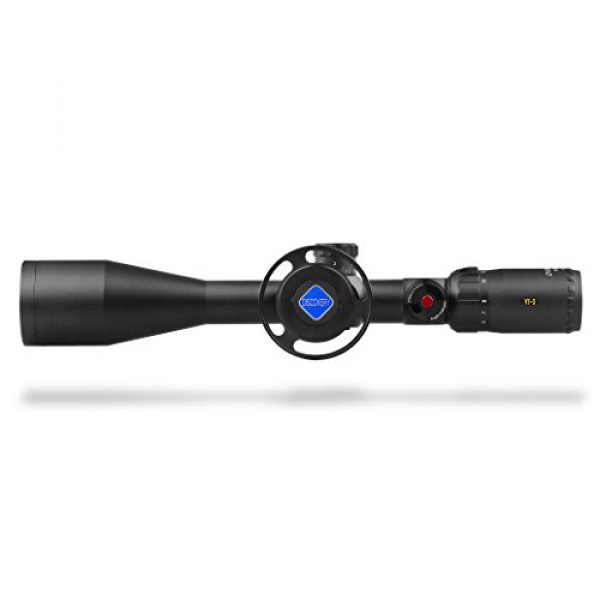

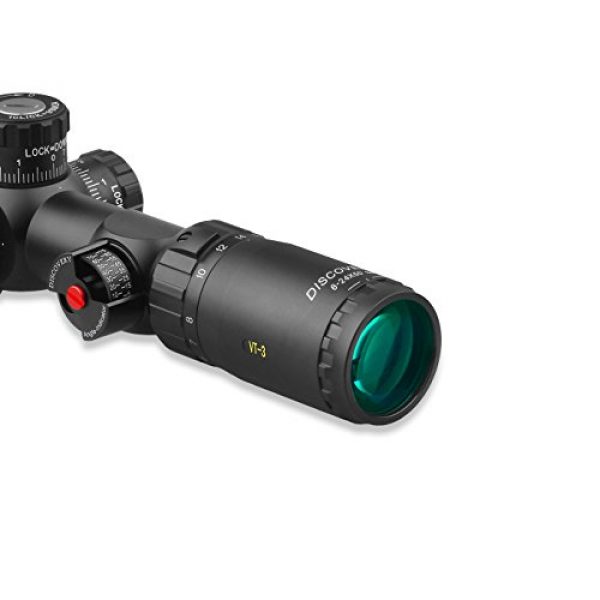

ApexHorizon VT-3 6-24X50 SFAI Rifle Scope,Sniper Hunting Optics Crosshair Gun Scopes

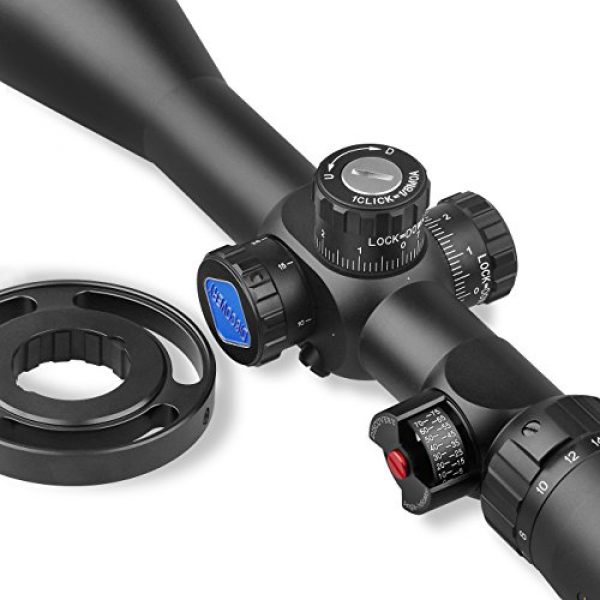

DISCOVERY VT-3 line is specially designed with RFT FFP MOA reticle, 1/4MOA and 1/8MOA Push-zero Lock turret is just a perfect match with the MOA reticle. It is also equipped with angle indicator and side wheel.
Specifications:
BatteryNo
Magnification:6x-24x
obj. lens dia.: 50mm
First Focal Plane
Illumination:NO
Side Focus(10yds- )
Tube Dia.:1.1in(30mm)
Reticle:RF reticle
1CLIK=1/8MOA(lock=down)
Length:360mm(14.17in)
Weight:719g/25.40oz
EAR:40MOA WAR:40MOA
Product Size:46*10.8*9.5cm
Weight:1.170kg/41.20oz
Packaging:iflescope x1pconeycomb Kill flash x1pcnti-dust lens cover x1pairill flash x1pcsree scope rings x1pair (High Profile Picatinny)
Why choose ApexHorizon(DISCOVERY)
We are the most professional company to sell rifle scope all over the world in China. we are designed& produced riflescope for more than 10 years so we know the product well.
We will provide free quality control for our product before shipment.
I am not just a business man but a hunter, an air pressure enthusiast, so I know what type of product you usually need.
Because of our professional work, you always get far from the juck fake product …So, choose us and give me a chance to be satisfied. Thanks for reading, if you like hunting or shooting, it will be my pleasure to chat with you about our hobby
Rifle Scope Product Features

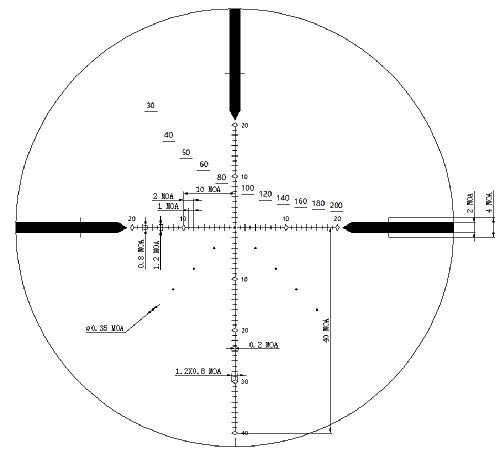

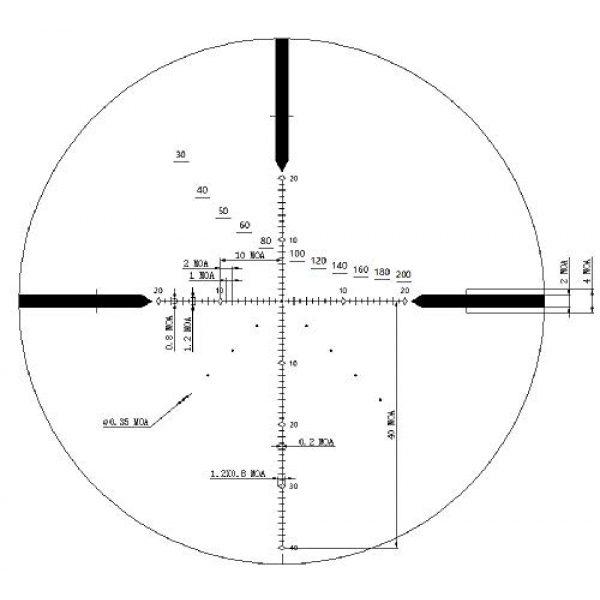

RFT FFP MOA reticle is our new design specially for airgunners, you won’t understand how good it works until you get one on your rifle and starting the first shoot with it.
Solid machined torus erector support make it high recoil proof and very stable for years using ,high quality sealed provide a 100% full water proof and fog proof performance.
FMC coated optics make the optical quality of the VT-T unbeatable in this price range.Side focus from 10 yards let you be able to shoot from very close distance to a long distance.
Side wheel helps you using the side focus more convenient and easier, and also more accurate on focusing your scope.
Angle indicator helps you shoot a long range target in different shooting angle,you should understand the big difference cased by the shooting angle.
About the ApexHorizon Company
ApexHorizon is a premium manufacturer for firearm scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They style and make their scopes, mounts, and related products by choosing building materials which are durable and long lasting. This includes the ApexHorizon VT-3 6-24X50 SFAI Rifle Scope,Sniper Hunting Optics Crosshair Gun Scopes by ApexHorizon. For more shooting items, visit their site.
What You Need to Know About Glass
Rifle scopes permit you to precisely aim a rifle at various targets by lining up your eye with the target at range. They accomplish this through magnifying the target using a set of lenses within the scope. The scope’s alignment can be dialed in to take into account many ecological aspects like wind speed and elevation decreases to make up for bullet drop.
The scope’s function is to help shooters understand exactly where the bullet will land based upon the sight picture you are viewing through the optic as you align the scope’s crosshair or reticle with the intended point of impact. Many modern rifle scopes have around 11 parts which are located internally and outside of the scope body. These parts consist of the rifle scope’s body, lenses, elevation dials, focus rings, and other components. Learn about the eleven parts of rifle scopes.
Rifle Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Considering the optimal type of rifle glass depends on what type of shooting you plan on doing.
First Focal Plane Glass Details
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These kinds of scopes are helpful for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are small
- Experienced shooters who know their target “hold over” and “lead” correlations for their long guns
- Shooters who don’t mind the reticle is enlarged and uses up more visual sight room than a SFP reticle
Second Focal Plane Scope Details
Second focal plane optics (SFP) feature the reticle to the rear of the magnifying lens. This causes the reticle to remain at the very same overall size in connection with the volume of magnification being used. The end result is that the reticle dimensions evolve based upon the zoom applied to shoot over lengthier ranges considering that the reticle markings present distinct increments which change with the zoom. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick. These particular styles of glass are beneficial for:
- Far away styles of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots happen within shorter ranges and distances
- Shooters who desire a clearer optic sight picture with less area used up by the bigger FFP reticle
Details on Glass Zoom
The quantity of scope magnification you require is based on the style of shooting you like to do. Just about every style of rifle glass delivers some level of zoom. The level of magnification a scope provides is determined by the size, density, and curves of the lens glass inside of the rifle scope. The magnification of the optic is the “power” of the opic. This signifies what the shooter is checking out through the scope is magnified times the power element of what can usually be seen by human eyes.
About Fixed Single Power Lens Rifle Optics
A single power rifle optic comes with a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not fluctuate because it is a fixed power scope.
Adjustable Power Lens Optics
Variable power rifle scopes have adjustable power. It will note the magnification amount in a format like 2-10×32. These numbers indicate the magnification of the scope could be set between 2x and 10x power. This always includes the power levels in-between 2 and 10. The power adaptation is accomplished by working with the power ring component of the scope near the rear of the scope by the eye bell.
The Power and Range of Scopes
Here are some suggested scope power settings and the ranges where they may be successfully used. High power glass will not be as efficient as lower magnification level scopes because too much magnification can be a bad thing. The exact same concept relates to extended ranges where the shooter needs enough power to see exactly where to best aim the rifle at the target.
Rifle Optic Lens Coating
All modern-day rifle scope lenses are covered in special coatings. There are different types and qualities of coatings. Lens finishing is a crucial element of a rifle when looking into high end rifle optics and targeting systems. The lenses are among the most crucial parts of the glass due to the fact that they are what your eye sees through while sighting a rifle in on the target. The coating on the lenses protects the lens surface and also improves anti glare capabilities from refracted daylight and color perception.
About Lens Coatings – HD Versus ED
Some scope manufacturers also use “HD” or high-definition lens coverings which use different methods, elements, chemicals, and polarizations to draw out various colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” implying extra-low dispersion glass.
Single Coating Versus Multi-Coating
Various optic lenses can likewise have different coatings used to them. All lenses generally have at least some type of treatment or covering used to them prior to being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while reducing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope producers also make it a point to specify if their optic lenses are layered or “multi” coated. This suggests the lens has had numerous treatments applied to them. If a lens receives numerous treatments, it can show that a company is taking several actions to combat different natural factors like an anti-glare finishing, a scratch resistant anti-abrasion covering, followed by a hydrophilic finishing. This also doesn’t necessarily suggest the multi-coated lens will perform better than a single layered lens. Being “much better” is dependent on the maker’s lens treatment technology and the quality of materials used in creating the rifle glass.
Rifle Scope Lens Anti-water Finish
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Lots of top of the line and high-end scope companies will coat their lenses with a hydrophobic or hydrophilic coating.
Options for Mounting Scopes on Long Guns
Mounting solutions for scopes come in a few options. There are the basic scope rings which are separately mounted to the optic and one-piece mounts which cradle the scope. These various types of mounts also generally come in quick release versions which use manual levers which allow rifle operators to quickly install and dismount the glass.
Hex Key Rifle Optic Rings
Basic, clamp type mounting optic rings use hex head screws to position to the flattop design Picatinny scope mounting rails on rifles. These styles of scope mounts use two detached rings to support the scope, and are made from 7075 T6 billet aluminum or similar materials which are made for long distance accuracy shooting. This kind of scope mount is ideal for rifles which require a resilient, hard use mount which will not shift despite how much the scope is moved about or jarring the rifle takes. These are the style of mounts you should have for a specialized scope setup on a reach out and touch someone hunting or interdiction long gun that will seldom need to be modified or adjusted. Blue 242 Loctite threadlocker can also be used on screws to prevent the hex screw threads from backing out after they are installed firmly in position. An example of these rings are the 30mm type made by the Vortex Optics brand. The set usually costs around $200 USD
Quick-Release Cantilever Rifle Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a similar designed mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect firmly to a flat top type Picatinny rail. This permits the scope to be sighted in while on the rifle, removed from the rifle, and remounted while keeping the original sighting settings. These kinds of mounts are useful and handy for shooting platforms which are shipped a lot, to remove the scope from the rifle for protection, or for scopes which are chosen for use between numerous rifles. An example of this mount type is the 30mm mount from Vortex Optics. It usually costs around $250 USD
Rifle Scope Tube Sealing and Gas Purging
Moisture inside your rifle optic can destroy a day of shooting and your expensive optic by triggering fogging and creating residue inside of the scope tube. Many scopes avoid moisture from entering the scope tube with a system of sealing O-rings which are water resistant.
Scope Gas Purging
Another component of preventing the accumulation of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this space is currently occupied by the gas, the scope is less altered by climate shifts and pressure differences from the outdoor environment which could possibly enable water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to seek out.
