Rifle Scope Product Details

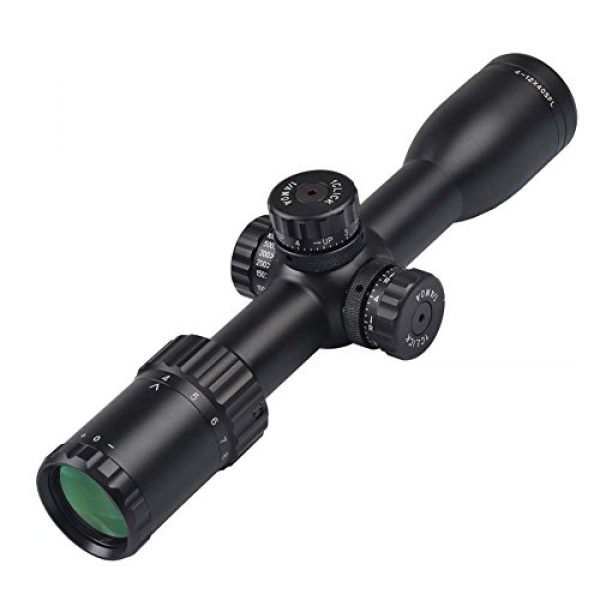

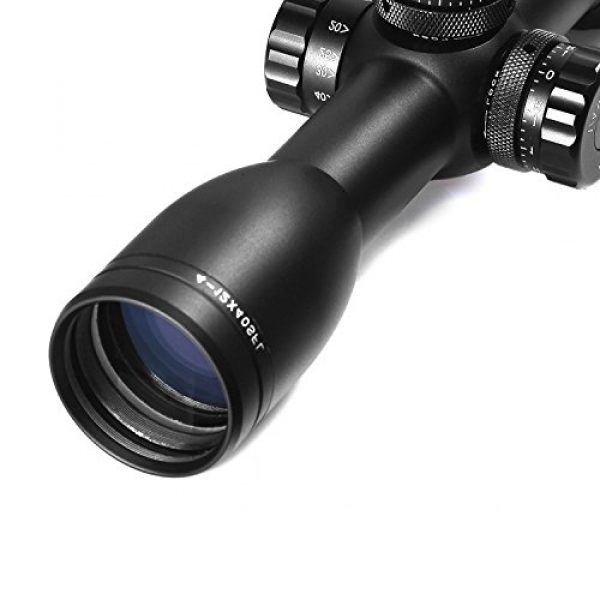

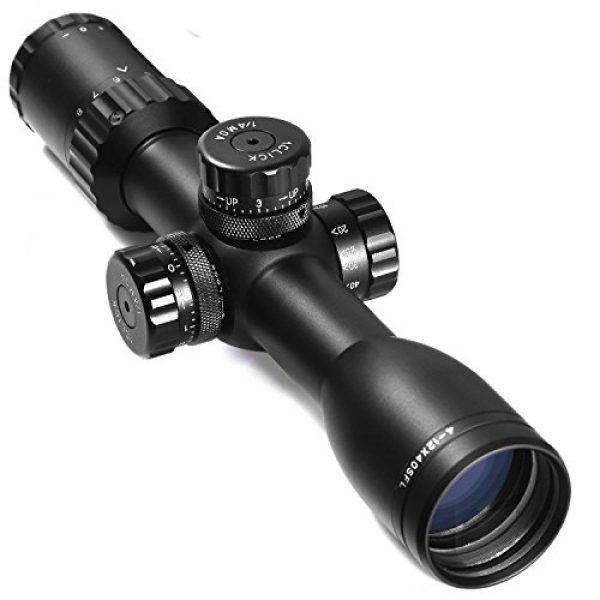

Ade Advanced Optics 4-12x40SFL Anthem Side Parallax Adjustment Hunting Rifle Scopes with Lockable Button
Feature: 1 Outstanding optics performance and mechanics 2 Light weight aluminum body 3 Fast focus eyeball Adjust: Side Focus lockable windage & elevation 4 One-piece 25.4mm diameter tube 5 Fully Multi-Coated Optics for clear image, wide field of view 6 Standard rings with 22mm scope mount Specifications: Net Weight (g):26.7oz Gross Weight(g):35.17oz Magnification:4X-12X Obj. Lens Diameter (mm):40MM Tube Diameter(mm):25.4MM Ring Mounts Click Adjustment Value:1/4″(Lockable) Exit Pupil:13.3mm-4.4mm Parallax Adjustment Range:0-2000yds Adjust the focus: Side Focusing Adjustment method: Manually One-piece tube: YES Diopter adjustment: YES Coating: Fully Multi-green Coated Optics Shock -Proof Water-Proof and Fog-Proof: YES Packing: 14-12X40 SFL rifle scope 2Allen keys for rail mounting and sight adjustment 1Lens caps 1Cleaning cloth 1Manual.
Rifle Scope Product Features
Coming from contract factory name brands purchases from and rebrand for 3x more retail price

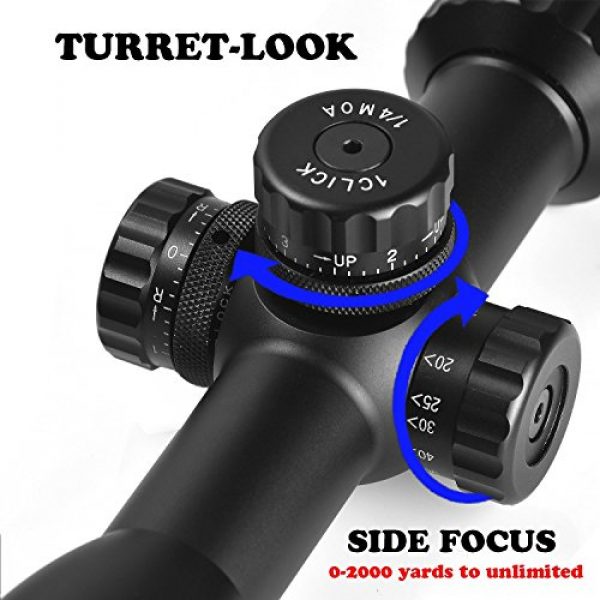

Side Parallax Adjustment 0-1000 -unlimited yards target ,Coil spring provides the shooting accuracy and keep a point of impact securely a against the heavy recoil
True Zero lockable windage and elevation adjustment system stays locked tight to zero Fast Eyepiece: Finger-adjustable dials (1 Click=1/4-MOA)

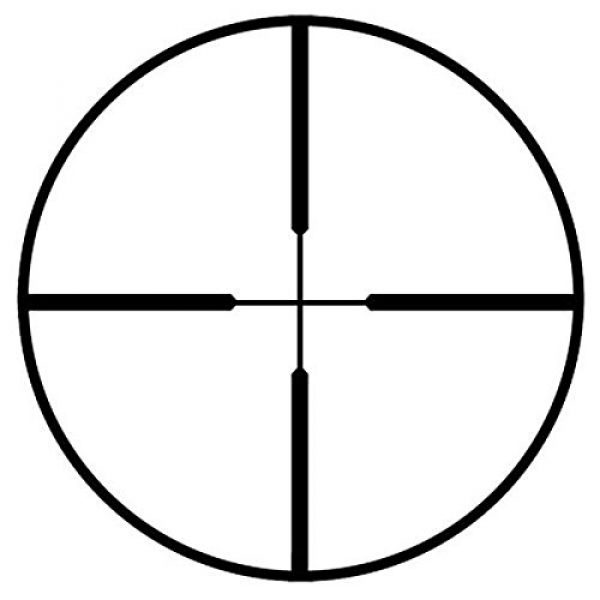

Wide field of view: Crosshair reticle black matte finish, 1200g shockproof, 100% Fog proof and shockproof construction with enhance performance in all weather conditions
Fully-multi-coated HD green lens: provide over 95% light transmission for clear image
About the Ade Advanced Optics Brand
Ade Advanced Optics is a premium supplier for long gun scopes, optics, mounting solutions, and other components used for guns like rifles and long guns. They innovate and manufacture their mounts and related products by choosing materials which are long lasting and durable. This includes the Ade Advanced Optics 4-12x40SFL Anthem Side Parallax Adjustment Hunting Rifle Scopes with Lockable Button by Ade Advanced Optics. For additional shooting items, visit their site.
Facts About Glass
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target over a distance. They accomplish this through magnification by employing a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of different ecological considerations like wind speed and elevation increases to make up for bullet drop.
The scope’s function is to understand exactly where the bullet will hit based upon the sight picture you are seeing using the optic as you align the scope’s crosshair or reticle with the target. Many modern-day rifle optics have about eleven parts which are found within and on the exterior of the optic. These parts include the rifle scope’s body, lenses, adjustment dials or turrets, focus rings, and other parts. Learn about the eleven parts of rifle optics.
Rifle Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The sort of focal plane an optic has determines where the reticle or crosshair lies in relation to the scopes magnification. It simply suggests the reticle is situated behind or in front of the magnifying lens of the optic. Picking out the most reliable style of rifle scope depends on what kind of shooting you anticipate undertaking.
Info About First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These types of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where computations are marginal
- Experienced shooters who have an idea for their target “hold over” as well as “lead” equations for their firearm
- Shooters who don’t mind the reticle is enlarged and takes up more visual sight room than a SFP reticle
Info About Second Focal Plane Optics
Second focal plane optics (SFP) include the reticle behind the magnifying lens. This causes the reticle to stay at the same size relative to the volume of magnification being used. The final result is that the reticle measurements adapt based upon the zoom chosen to shoot over longer ranges considering the reticle markings represent distinct increments which change with the magnification. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These particular styles of scopes are handy for:
- Far away forms of shooting where shooters have increased time to make ballistic calculations
- Shooting where most of the shots take place within much shorter ranges and proximities
- Shooters who like a clearer optic sight picture without area used up by the bigger FFP reticle
Details on Rifle Glass Magnification
The amount of magnification a scope provides is identified by the diameter, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Optic Details
A single power rifle scope uses a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of optic can not change given that it is a set power scope.
About Variable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification degree in a format such as 2-10×32. These numbers mean the magnification of the scope could be adjusted between 2x and 10x power. This always incorporates the power levels in-between 2 and 10. The power manipulation is accomplished by operating the power ring part of the scope near the rear of the scope by the eye bell.
Rifle Scope Power Level and Range Correlation
Here are some advised scope power levels and the ranges where they may be effectively used. High power rifle scope glass will not be as efficient as lower magnification glass since too much zoom can be a bad thing. The same idea relates to extended ranges where the shooter needs to have enough power to see where to best aim the rifle at the target.
Glass Lens Covering
All current rifle optic and scope lenses are covered. Lens coating can be a crucial element of a shooting platform when buying high end rifle optics and scope systems.
About Lens Coatings – HD Versus ED
Some scope manufacturers also use “HD” or high-definition lens coverings that take advantage of different procedures, polarizations, elements, and chemicals to extract numerous colors and viewable target definition through the lens. This high-def finish is frequently used with increased density glass which brings down light’s capability to refract through the lens glass. Some scope manufacturers use “HD” to describe “ED” suggesting extra-low dispersion glass. ED deals with how certain colors are presented on the chroma spectrum and the chromatic aberration or deviance which is similarly called color distortion or fringing. Chromatic aberration is often visible over things with well defined outlines as light hits the item from particular angles.
Single Coating Versus Multi-Coating for Rifle Scopes
Various optic lenses can also have different coverings applied to them. All lenses typically have at least some type of treatment or finishing applied to them prior to being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is normally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends upon the scope company and the amount you spent for it. Both are indications of the lens quality.
Some scope makers similarly make it a point to define if their optic lenses are coated or “multi” coated. Being “better” depends on the maker’s lens treatment innovation and the quality of materials used in constructing the rifle scope.
What to Know About Anti-water Finishing
Water on a lens doesn’t assist with maintaining a clear sight picture through a scope at all. Many top of the line and military grade optic companies will coat their lenses with a hydrophilic or hydrophobic finishing.
Rifle Glass Mounting Options
Installing solutions for scopes come in a few options. There are the basic scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also typically can be found in quick release variations which use throw levers which permit rifle operators to quickly mount and remove the scopes.
Hex Key Rifle Scope Ring Mounting Solutions
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which is created for long range accuracy shooting. This type of scope mount is great for rifles which require a resilient, sound mounting solution which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Optic Rings
These kinds of quick-release rifle scope mounts can be used to rapidly attach and detach a scope from a rifle. Several scopes can also be swapped out if they all use a similar style mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers connect firmly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted while preserving precision. These kinds of mounts come in practical for shooting platforms which are shipped a lot, to take off the optic from the rifle for protection, or for scopes which are chosen for use between several rifles. An example of this mount type is the 30mm mount designed by Vortex Optics. It usually costs around $250 USD
Sealing and Gas Purging for Rifle Scope Tubes
Moisture inside your rifle optic can wreck a day of shooting and your pricey optic by causing fogging and producing residue within the scope tube. A lot of scopes protect against humidity from going into the optical tube with a series of sealing O-rings which are waterproof. Normally, these water resistant scopes can be immersed within 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be more than enough wetness avoidance for standard use rifles, unless you intend on taking your rifle sailing and are concerned about the scope still functioning if it goes over the side and you can still rescue the firearm.
Rifle Scope Gas Purging
Another part of preventing the buildup of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Considering that this space is already occupied by the gas, the scope is less altered by condition alterations and pressure distinctions from the outdoor environment which could potentially permit water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
