Rifle Scope Product Details

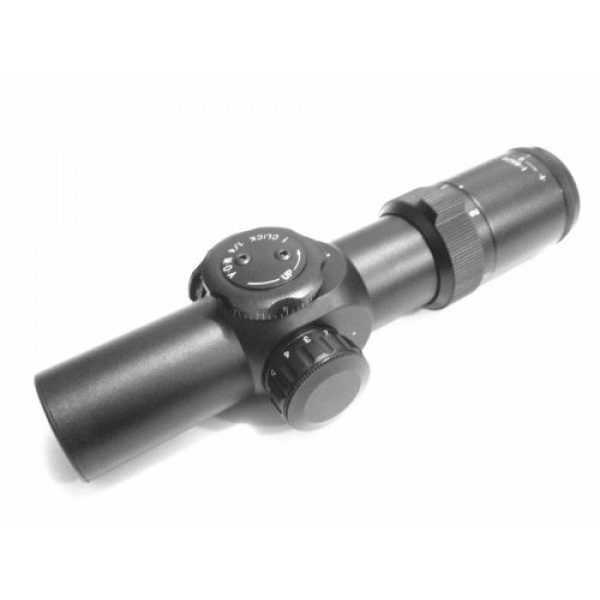

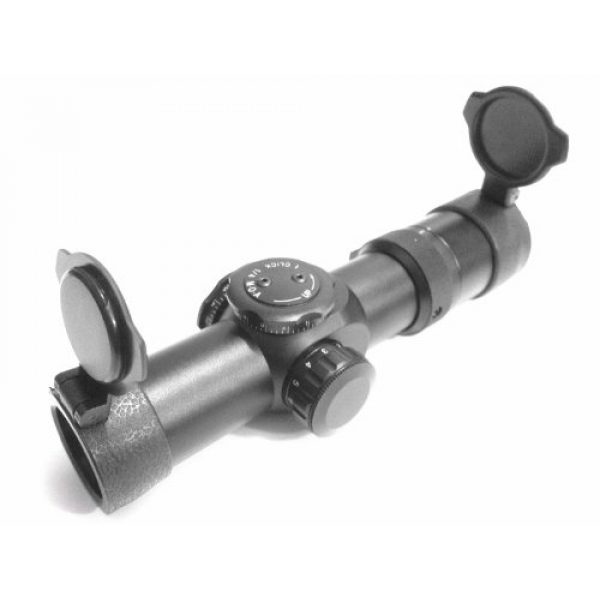

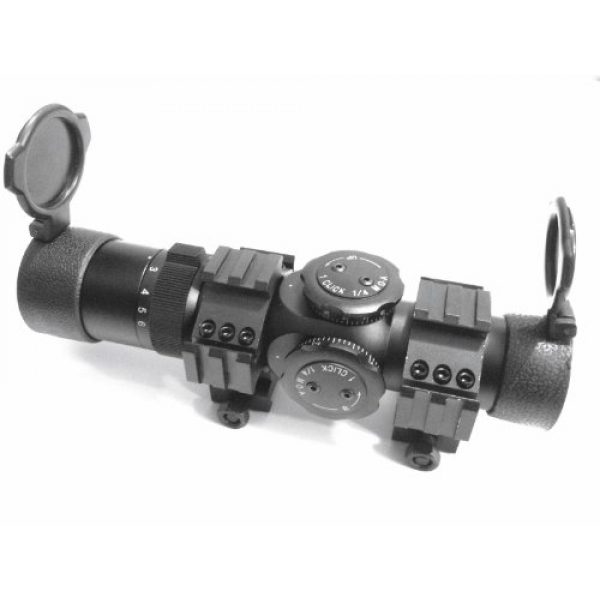

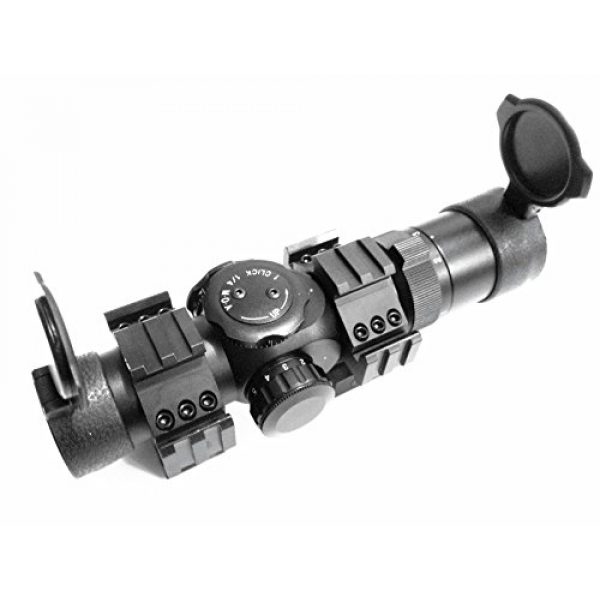

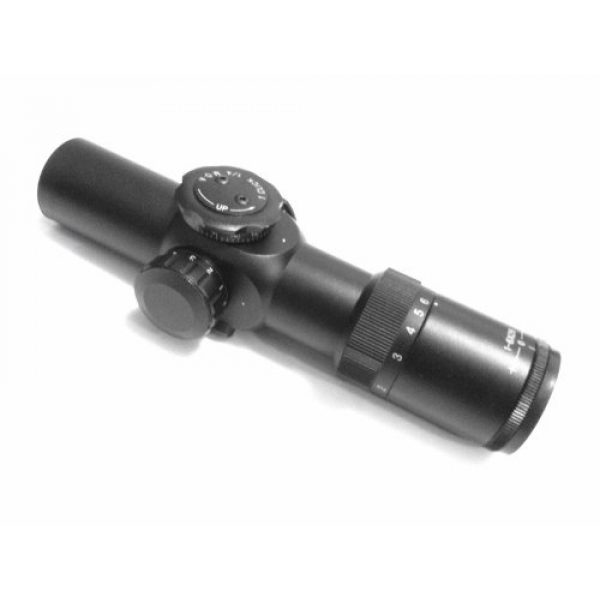

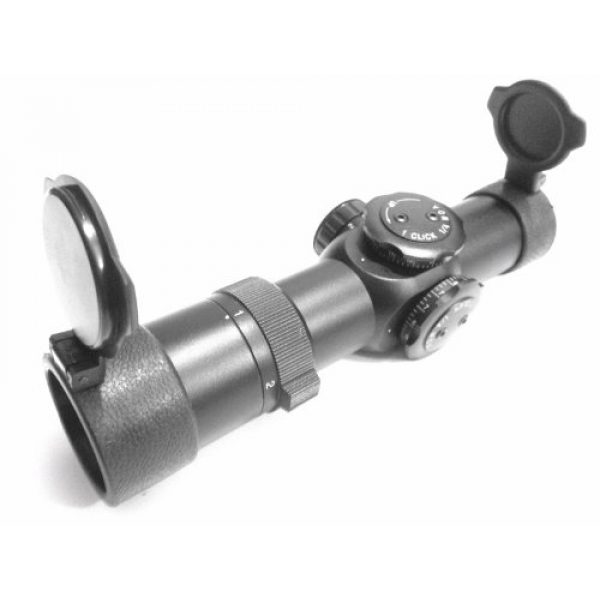

Ade Advanced Optics 1-6×28 First Focal Plane FFP CQB Rifle Scope 35mm Tube M4-62 Reticle, Mounts Included.
Ade Advanced Optics 1-6×28 FFP scope is our finest made from the highest quality materials available. It is recoil rated to 1000g that far exceeds the recoil of a 50 BMG. Scope uses a first focal plane configuration where the range finding reticule stays true even with power change this scope is made to milspec tolerances and can handle the harshest environments Using the finest lenses for the clearest wide range view available anywhere on the market. Hammer-forged Monotube made of 7075 T7 Aircraft Aluminum. WaterProof, Fog Proof, Recoil rated to a 50 Bmg Standard. scope comes with 2 rings and 2 flip up scope caps. The scope retails for $399 so this is a great price for such a high quality optic. First Focal Plane Etched Glass Reticle, 35mm Monotube, Super Compact Only in 196mm 7.7 inch, M4-62 Eteched Glass Reticle, Long Eye Relief, Two Eyes Open at 1x Magnification, Advantage in Military and Law Enforcement. w/ Tactical Triple Rails Weaver Mount Rings, Flip-up Caps, Green and Red Side Illumination and Can be Used as Magnifier for Red Dot Scope. Magnification: 1-6x Objective Lens Dia: 28mm Ocular Lens Dia: 32mm Ocular Length: 49.6mm Exit Pupil: 4.6-15.0 mm Length: 196mm (7.7 inch), Super Compact Weight (net): 510g (18.0 ounce) Eye Relief: 89-140 mm (3.5-4.5 Inch), long eye relief Field of View (ft@100yds): 17.6-105.8 Field of View (M@ 100M): 5.9-35.3 Field of View (@100yds):3.4-20° Optics Coating: Fully-multi coated crystal shapr clear Parallax: 0.25 Num of Lens: 14 Elevation Range: 200 MOA Windage Range: 200 MOA 5 levels green and red brightness illumination system 35mm Hammer-forged Monotube High-durability aluminum alloy in black matte and beautiful complement Shock proof (1000g), Water Proof (at 300mm and 54 degree) and Fog Proof (Nitrogen Purged) Feature 1/2 M.O.A direct finger windage and elevation turrets adjustments with audible clicks for greater precision. Fast focus eyepiece at olucar lens adjustment (diopter from -3 to 2)
Rifle Scope Product Features
First (Front) Focal Plan M4-62 Range Etched Tactical Glass Reticle
Super Compact Only 7.7 inch. Weight 18oz. Num of lens:14
35mm Hammer-forged Monotube. Mounts included.
Magnification: 1-6x. Feature 1/2 M.O.A direct finger windage and elevation turrets adjustments with audible clicks for greater precision.
Life Time warranty.
About the Ade Advanced Optics Scope Maker
Ade Advanced Optics is a premium producer for rifle scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They design and manufacture their mounts and related products making the most of elements which are durable and long lasting. This includes the Ade Advanced Optics 1-6×28 First Focal Plane FFP CQB Rifle Scope 35mm Tube M4-62 Reticle, Mounts Included. by Ade Advanced Optics. For more shooting items, visit their site.
What You Need to Know About Scopes
Rifle scopes permit you to precisely align a rifle at various targets by aligning your eye with the target over a range. They accomplish this through magnification using a set of lenses inside the scope. The scope’s positioning can be adapted for consideration of separate natural elements like wind speed and elevation to account for bullet drop.
The scope’s function is to help shooters understand exactly where the bullet will hit based on the sight picture you are seeing using the optic as you line up the scope’s crosshair or reticle with the intended point of impact. Many contemporary rifle scopes have around eleven parts which are arranged inside and externally on the optic. These optic pieces consist of the rifle scope’s body, lenses, windage dials, focus rings, and other parts. Learn about the eleven parts of optics.
Rifle Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Selecting the best type of rifle scope is based on what type of shooting you plan to do.
First Focal Plane Optic Facts
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These styles of scopes are useful for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are very little
- Experienced shooters who recognize their aim point “hold over” plus “lead” relationships for their long guns
- Shooters who do not mind the reticle is enlarged and takes up more visual eyesight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane optics (SFP) include the reticle behind the magnification lens. This causes the reticle to stay at the very same dimensions relative to the quantity of zoom being used. The outcome is that the reticle dimensions change based upon the zoom employed to shoot over longer distances given that the reticle markings represent distinct increments which differ with the magnification. In the FFP example with the SFP optic, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick measurement. These kinds of scopes work for:
- Long distance styles of shooting where shooters have additional time to make ballistic estimations
- Shooting where most of the shots take place within shorter ranges and proximities
- Shooters who want a clearer optic sight picture without space used up by the bigger FFP reticle
Magnification for Scopes
The amount of zoom a scope supplies is figured out by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
About Fixed Power Lens Rifle Scopes
A single power rifle scope and optic uses a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not adjust given that it is a fixed power optic.
Variable Power Lens Rifle Optics
Variable power rifle scopes can be adjusted between magnification levels. These types of scopes will note the magnification degree in a format like 2-10×32. These numbers indicate the magnification of the scope could be changed between 2x and 10x power. This also involves the power levels in-between 2 and 10. The power adaptation is accomplished utilizing the power ring component of the scope near the back of the scope by the eye bell piece.
Optic Power and Range Correlation
Here are some suggested scope power settings and the ranges where they may be effectively used. Keep in mind that higher power optics and scopes will not be as practical as lower magnification level optics due to the fact that too much zoom can be a negative thing in certain situations. The same idea relates to extended distances where the shooter needs to have enough power to see exactly where to best aim the rifle.
Lens Finish for Rifle Glass
All modern rifle scope lenses are covered in special coatings. There are different types and qualities of glass lens coverings. When looking at high end rifle optical units, Lens finishing can be a vital element of defining the capability of the rifle. The lenses are among the most crucial pieces of the glass as they are what your eye sees through while sighting a rifle in on the target. The finishing on the lenses safeguards the lens exterior and even assists with anti glare from excess sunrays and color discernibility.
Details on Rifle Optic Lens Coatings – HD Versus ED
Some glass makers will also use “HD” or high-definition lense coverings which employ different processes, rare earth compounds, polarizations, and aspects to extract different color ranges and viewable definition through lenses. This high-definition finishing is normally used with increased density glass which drops light’s capability to refract through the lens glass. Some scope producers use “HD” to refer to “ED” indicating extra-low dispersion glass. ED handles how colors are presented on the chromatic spectrum and the chromatic difference or aberration which is similarly called color distortion or fringing. Chromatic aberration may be noticeable over items with well defined shapes as light hits the object from particular angles.
Optic Lens Single Finish Versus Multi-Coating
Various optic lenses can likewise have different coverings used to them. All lenses generally have at least some type of treatment or covering used to them prior to being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while reducing glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends upon the scope designer and how much money you paid for it. The scope’s maker and cost are signs of the lens quality.
Some scope manufacturers likewise make it a point to define if their optic lenses are layered or “multi” coated. This indicates the lens has had multiple treatments applied to the surfaces of the glass. If a lens gets multiple treatments, it can establish that a manufacturer is taking multiple steps to combat different natural elements like an anti-glare finishing, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finishing. This also doesn’t necessarily suggest the multi-coated lens will perform much better than a single coated lens. Being “much better” depends on the manufacturer’s lens treatment techniques and the quality of glass used in developing the rifle optic.
Hydrophobic Rifle Scope Lens Finish
Water on a lens doesn’t help with maintaining a clear sight picture through a scope at all. Numerous top of the line and high-end scope makers will coat their lenses with a hydrophilic or hydrophobic covering.
Choices for Installing Scopes on Firearms
Mounting options for scopes are available in a couple of choices. There are the standard scope rings which are individually installed to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also typically can be found in quick release variations which use throw levers which permit rifle shooters to rapidly install and dismount the scope.
Hex Key Scope Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use a couple of separate rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long distance accuracy shooting. This type of scope mount is wonderful for rifles which require a resilient, rock solid mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Scope Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and take off a scope from a rifle before reattaching it to a different rifle. Multiple scopes can even be switched out if they all use a compatible design mount. These types of mounts are convenient for long guns which are transported a lot, to remove the optic from the rifle for protecting the scope, or for scopes which are used between multiple rifles or are situationally focused.
Rifle Glass Tube Sealing and Gas Purging
Wetness inside your rifle scope can destroy a day of shooting and your pricey optic by resulting in fogging and generating residue within the scope’s tube. Most optics prevent moisture from getting in the scope tube with a series of sealing O-rings which are waterproof. Typically, these water resistant scopes can be submerged under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be plenty of wetness avoidance for conventional use rifles, unless you anticipate taking your rifle on boats and are worried about the scope still working if it goes over the side and you can still recover the rifle.
About Scope Tube Gas Purging
Another component of preventing the buildup of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Considering that this space is currently occupied by the gas, the scope is less influenced by temperature level shifts and pressure variations from the external environment which might possibly allow water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
