Description
Rifle Scope Product Details

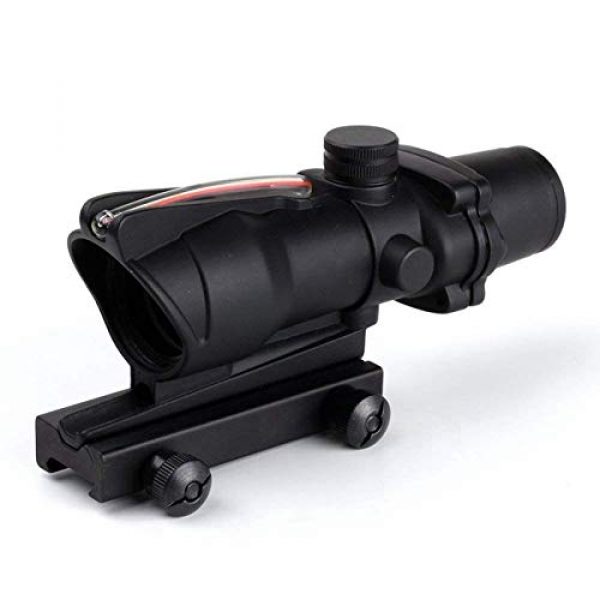

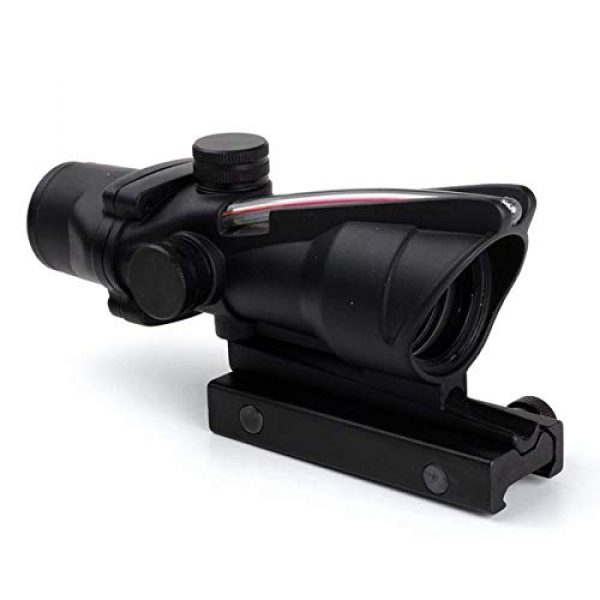

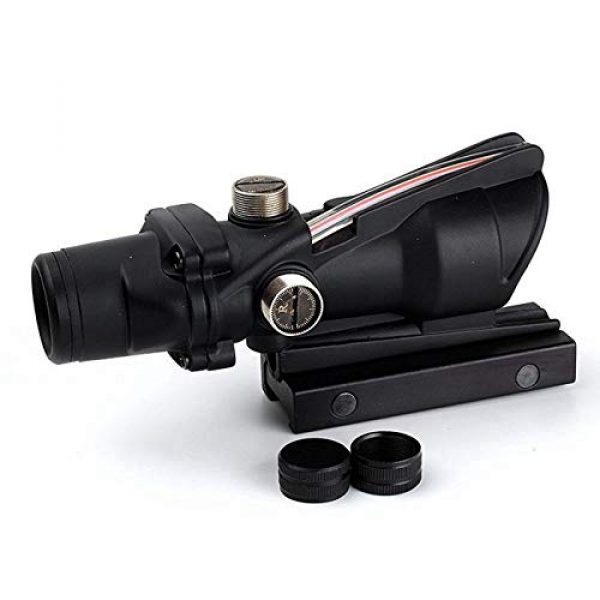

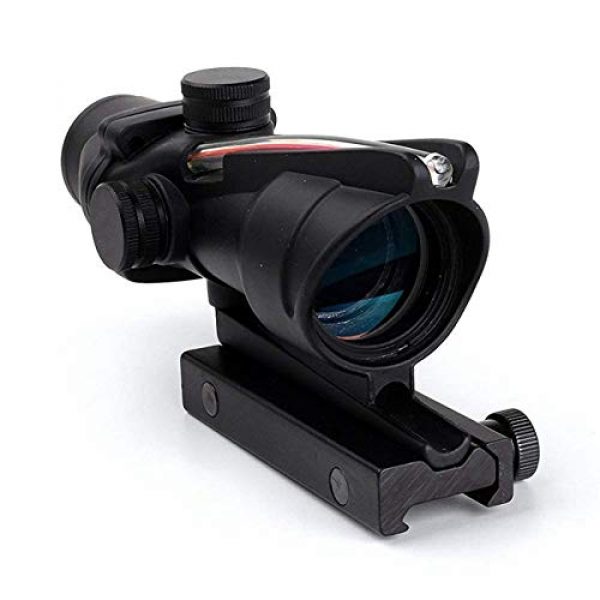

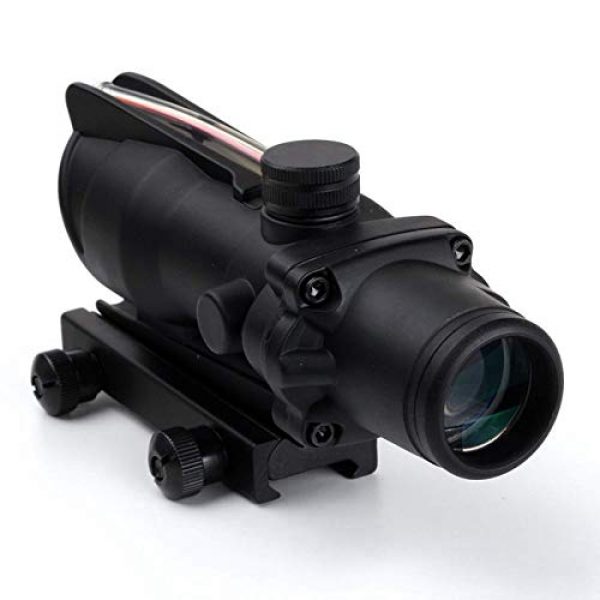

wipboten Rifle Scope 4×32 Scope True Fiber Crosshair Reticle Riflescope Optical Sights Black
Magnification: 4X
Objective Diameter: 32 mm
Eye Relief: 38mm
Field of view:15′
Field of view@100yds:33.0ft
Windage & Elevation adjusters: 1/2 in
Disply Resolution: 5.7
Exit pupil: 6mm
Lens Coating:Multi-Coated
fogproof / shockproof:Yes
Net Weight: 450g
Please use it in the daytime and in the outdoors. Because the fiber optic power source need enough light, it can not be used in dark environment, because the indoor light is not strong enough for this fiber optic.
Rifle Scope Product Features
Made of aircraft-grade lightweight aluminum alloy.
Suitable for any 20mm RIS weaver standard rail.
Adjustable windage and elevation, multi-coated front lens, parallax free
Powered by fiber source, providing more bright environment and reticle illumination at day
4×32 magnification red fiber optical sight scope.up to 600 meter 5.56/.223 red illuminated (at day light )
About the wipboten Brand
wipboten is a premium company for firearm scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They innovate and supply their mounts and related products choosing materials which are long lasting and resilient. This includes the wipboten Rifle Scope 4×32 Scope True Fiber Crosshair Reticle Riflescope Optical Sights Black by wipboten. For additional shooting products, visit their site.
What You Need to Know About Rifle Optics
Rifle scopes enable you to precisely align a rifle at various targets by aligning your eye with the target over a distance. They accomplish this through zoom by employing a set of lenses within the scope. The scope’s alignment can be adapted to account for various natural considerations like wind speed and elevation to make up for bullet drop.
The scope’s function is to understand exactly where the bullet will hit based upon the sight picture you are viewing with the optic as you line up the scope’s crosshair or reticle with the intended target. Most modern-day rifle scopes and optics have around 11 parts which are arranged internally and on the exterior of the scope. These parts include the rifle scope’s body, lenses, windage and elevation turrets, objective focus rings, and other components. See all eleven parts of a rifle scope.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The sort of focal plane a scope has identifies where the reticle or crosshair is located in connection with the scopes magnifying adjustments. It literally implies the reticle is behind or before the magnifying lens of the scope. Deciding on the most beneficial type of rifle optic depends upon what kind of hunting or shooting you plan on undertaking.
First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting circumstances where estimations are minimal
- Experienced shooters who understand their aim point “hold over” plus “lead” relationships for their weapon
- Shooters who do not mind the reticle is bigger and requires more visual eyesight room than a SFP reticle
Second Focal Plane Optics
Second focal plane scopes (SFP) feature the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance types of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots take place within shorter ranges and proximities
- Shooters who like a clearer optic sight picture without area used up by the larger sized FFP reticle
Scope Zoom
The amount of zoom a scope offers is figured out by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Info About Fixed Single Power Lens Glass
A single power rifle scope comes with a zoom number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not fluctuate since it is a set power scope.
Adjustable Power Lens Rifle Optic Facts
Variable power rifle scopes have adjustable power. It will list the zoom degree in a format like 2-10×32. These numbers imply the zoom of the scope can be changed between 2x and 10x power. This additionally incorporates the powers in-between 2 and 10. The power modification is accomplished by employing the power ring component of the scope near the back of the scope by the eye bell piece.
Power and Range Correlations
Here are some recommended scope power settings and the distances where they could be efficiently used. Bear in mind that higher power scopes will not be as efficient as lower magnification level optics due to the fact that increased zoom can be a detractor. The very same idea relates to extended distances where the shooter needs enough power to see where to properly aim the rifle.
Details on Rifle Scope Lens Finishes
All modern rifle scope and optic lenses are layered. There are different types and qualities of lens finishings. When considering high end rifle optical units, Lens finishing can be a vital aspect of a rifle. The lenses are among the most crucial parts of the optic due to the fact that they are what your eye sees through while sighting a rifle in on the target. The finishing on the lenses protects the lens surface and assists with anti glare from refracted sunshine and color presence.
HD Versus ED Rifle Glass Lens Coatings
Some scope makers also use “HD” or high-definition lens coverings which use various procedures, polarizations, aspects, and chemicals to draw out separate colors and viewable quality through the lens. Some scope producers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Single Coating Versus Multi-Coating for Rifle Optics
Various scope lenses can even have different coverings applied to them. All lenses usually have at least some kind of treatment or covering applied to them prior to being used in a rifle scope or optic assembly. This is because the lens isn’t just a raw piece of glass. It is part of the carefully tuned optic. It needs to have a finishing applied to it so that the lens will be efficiently usable in many types of environments, degrees of sunshine (full light VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while lowering glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope producers likewise make it a point to define if their optic lenses are coated or “multi” covered. This suggests the lens has multiple treatments applied to the surfaces. If a lens receives multiple treatments, it can prove that a producer is taking several actions to combat various natural aspects like an anti-glare finishing, a scratch resistant anti-abrasion coating, followed by a hydrophilic finish. This additionally does not necessarily imply the multi-coated lens is better than a single coated lens. Being “much better” is dependent on the maker’s lens treatment innovation and the quality of materials used in creating the rifle glass.
Anti-water Finishing for Optics
Water on a lens does not help with keeping a clear sight picture through a scope at all. Numerous top of the line and high-end optic companies will coat their lenses with a hydrophilic or hydrophobic finish.
Rifle Scope Installing Alternatives
Installing approaches for scopes can be found in a few choices. There are the basic scope rings which are individually installed to the optic and one-piece mounts which cradle the scope. These different kinds of mounts also normally can be found in quick release variations which use manual levers which allow rifle operators to rapidly install and dismount the scope.
Hex Key Scope Ring Mounts
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which are created for long distance accuracy shooting. This type of scope mount is great for rifles which require a long lasting, rock solid mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Glass Rings
These types of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle before reattaching it to a different rifle. Multiple scopes can even be swapped out if they all use a compatible design mount. These types of mounts come in handy for rifles which are carried a lot, to swap out the optic from the rifle for protecting the scope, or for scopes which are used between several rifles.
Scope Tube Sealing and Gas Purging
Moisture inside your rifle scope can destroy a day of shooting and your costly optic by bringing about fogging and developing residue inside of the scope tube. A lot of scopes avoid moisture from entering the scope tube with a system of sealing O-rings which are water resistant.
What to Know About Glass Tube Gas Purging
Another part of avoiding the buildup of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this area is currently taken up by the gas, the optic is less impacted by temperature level changes and pressure distinctions from the outdoor environment which may possibly allow water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
