Rifle Scope Product Details

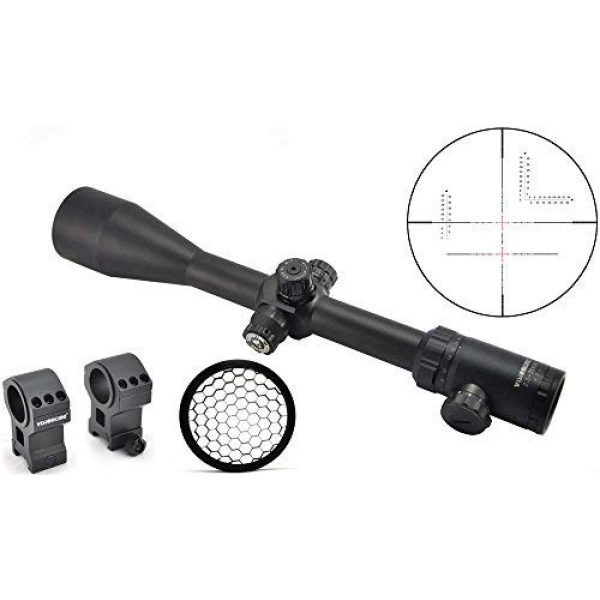

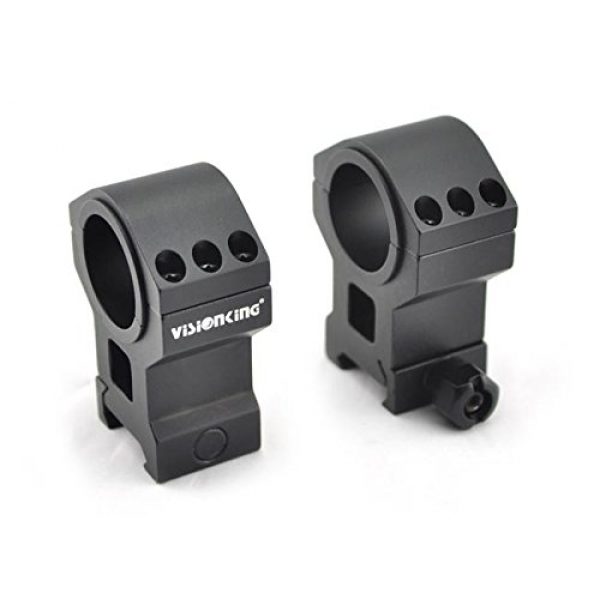

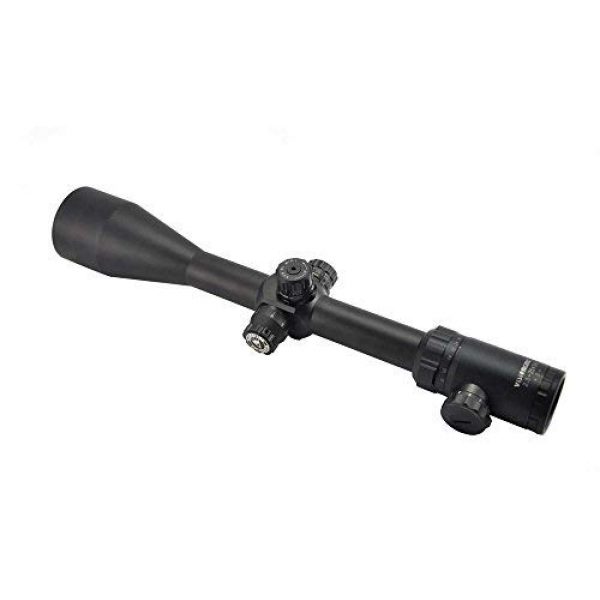

Visionking Rifle Scope 2.5-35×56 Trajectory Lock Tactical with a Honeycomb Sunshade Killflash and mounting Rings
Descriptions:
This visionking 2.5-35×56 rifle scope with revolutionary super 14 times ratio magnification.It is the ultimate Magnification Ratio in the world.It also features the most accurate range finder reticle in the world.and has high shock resistance ,and camera grade glass offer super good optical system that provide extreme good performance in all kinds of conditions. It is very perfect for military or tactical or hunting usage.
Specifications:
Magnification: 2.5X-35X
Objective lens: 56mm
Coating: FMC Green
Field of View:(ft@100yds) 38-2.8
Exit Pupil (mm): 22.4-3.5
Eye Relief (inch): 4.4-3.5
Ocular Lens: 37mm
Finish: Matte black
Waterproof: Yes
Nitrogen: Full filled Nitrogen
Tube Diameter: 30MM
Click Value: 0.125 MOA
Parallax: +0.22SD ~ -0.22SD
Reticle: Glass-etched Dual Illuminated Accurate Range Finder
Battery: CR2032 3V(No include)
Weight: 880g
Shock Resistance: 1800g
Rifle Scope Product Features
Magnification: 2.5X-35X
Objective lens: 56mm
Field of View:(ft@100yds) 38-2.8
Eye Relief (inch): 4.4-3.5
This rifle scope is also features the most accurate range finder reticle in the world.and has high shock resistance
About the Visionking Company
Visionking is a premium company for weapon scopes, optics, mounts, and other add-ons used for guns like rifles and long guns. They create and supply their mounts and related products by using elements which are resilient and long lasting. This includes the Visionking Rifle Scope 2.5-35×56 Trajectory Lock Tactical with a Honeycomb Sunshade Killflash and mounting Rings by Visionking. For additional shooting items, visit their site.
Rifle Glass Details
Rifle scopes permit you to exactly align a rifle at various targets by aligning your eye with the target over a range. They accomplish this through magnifying the target by employing a series of lenses inside the scope. The scope’s positioning can be adapted to account for various natural aspects like wind and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to understand exactly where the bullet will hit based upon the sight picture you are viewing via the optic as you align the scope’s crosshair or reticle with the intended target. The majority of contemporary rifle optics have around eleven parts which are found within and externally on the scope. These parts consist of the rifle scope’s body, lenses, adjustment dials or turrets, objective focus rings, and other parts. Learn about the eleven parts of rifle scopes.
Rifle Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Considering the best type of rifle scope is based on what type of shooting you plan to do.
Info on First Focal Plane Optics
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These styles of scopes are useful for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are small
- Experienced shooters who understand their aim point “hold over” and also “lead” equations for their long gun
- Shooters who do not mind the reticle is enlarged and takes up more visual sight room than a SFP reticle
Second Focal Plane Glass
Second focal plane glass (SFP) come with the reticle behind the zoom lens. This triggers the reticle to remain at the exact same size in relation to the quantity of magnification being used. The result is that the reticle measurements adjust based on the zoom used to shoot over lengthier ranges considering that the reticle measurements present distinct increments which differ with the zoom. In the FFP example with the SFP optic, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These particular sorts of scopes are convenient for:
- Long distance styles of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots take place within much shorter spaces and ranges
- Shooters who select a clearer optic sight picture without room taken up by the larger sized FFP reticle
About Rifle Glass Zoom
The extent of scope zoom you require depends on the style of shooting you choose to do. Pretty much every type of rifle scope provides some amount of magnification. The amount of magnification a scope offers is established by the dimension, thickness, and curves of the lenses inside of the rifle optic. The magnification level of the optic is the “power” of the opic. This suggests what the shooter is looking at through the scope is magnified times the power factor of what can generally be seen by human eyes.
Fixed Power Lens Rifle Scope Info
A single power rifle scope will have a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of optic can not fluctuate because it is set from the factory.
Info on Variable Power Lens Scopes
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification amount in a format such as 2-10×32. These numbers suggest the zoom of the scope could be adjusted between 2x and 10x power. This always utilizes the powers in-between 2 and 10. The power modification is achieved using the power ring part of the scope near the back of the scope by the eye bell piece.
Scope Power and Ranges
Here are some advised scope power settings and the distances where they can be efficiently used. Consider that high power glass will not be as efficient as lower magnification level scopes due to the fact that too much zoom can be a negative thing in certain situations. The same idea goes for longer distances where the shooter needs increased power to see exactly where to best aim the rifle.
About Lens Coatings
All cutting-edge rifle optic lenses are coated. Lens finishing is a significant element of a rifle when buying high end rifle optics and scope systems.
HD Versus ED Lens Coatings
Some scope brands also use “HD” or high-definition lens finishes which use different procedures, chemicals, polarizations, and elements to draw out various colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Covering Versus Multi-Coating for Rifle Glass
Various optic lenses can likewise have various coverings used to them. All lenses typically have at least some type of treatment or covering applied to them before being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while lowering glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope manufacturer and how much you paid for it.
Some scope producers likewise make it a point to define if their optic lenses are covered or “multi” covered. This indicates the lens has had numerous treatments applied to the surfaces. If a lens receives numerous treatments, it can show that a maker is taking multiple actions to fight various natural elements like an anti-glare coating, a scratch resistant anti-abrasion finishing, followed by a hydrophilic coating. This also doesn’t always suggest the multi-coated lens is better than a single covered lens. Being “much better” depends upon the producer’s lens treatment innovation and the quality of components used in constructing the rifle optic.
Anti-water Lens Coatings
Water on an optical lens does not help with maintaining a clear sight picture through a scope at all. Lots of top of the line and premium optic makers will coat their lenses with a hydrophilic or hydrophobic coating. The Steiner Optics Nano-Protection is a fine example of this kind of treatment. It provides protection for the exterior surfaces of the Steiner optic lens so the H2O particles can not bind to it or develop surface tension. The result is that the water beads roll off of the scope to preserve a clear, water free sight picture.
Alternatives for Mounting Rifle Scopes on Firearms
Installing options for scopes can be found in a couple of options. There are the standard scope rings which are separately mounted to the optic and one-piece mounts which cradle the scope. These various types of mounts also typically are made in quick release variations which use toss levers which permit rifle shooters to rapidly install and remove the scopes.
Glass Mounting Solutions with Hex Key Rings
Basic, clamp-on type mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on the tops of rifles. These forms of scope mounts use double individual rings to support the scope, and are normally constructed from 7075 T6 billet aluminum or similar materials which are made for far away precision shooting. This form of scope mount is effective for rifles which need to have a durable, hard use mount which will not change despite just how much the scope is moved about or abuse the rifle takes. These are the type of mounts you should have for a dedicated optics system on a far away hunting or competitors long gun which will rarely need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the screws to stop the hex screw threads from wiggling out after they are installed safely in position. An example of these rings are the 30mm type made by the Vortex Optics brand. The set typically costs around $200 USD
Rifle Scope Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope and connect it to a different rifle. Several scopes can even be swapped out if they all use a compatible style mount. These types of mounts are handy for rifles which are carried a lot, to remove the optic from the rifle for protection, or for scopes which are used in between multiple rifles.
Sealing and Gas Purging for Optic Tubes
Moisture inside your rifle scope can ruin a day on the range and your costly optic by causing fogging and making residue within the scope’s tube. Many scopes protect against wetness from entering the scope tube with a series of sealing O-rings which are waterproof. Typically, these water resistant scopes can be submerged under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be ample moisture content avoidance for common use rifles for hunting and sporting purposes, unless you plan on taking your rifle sailing and are concerned about the optic still working if it goes over the side and you can still retrieve the gun.
Gas Purged Glass Tubes
Another element of avoiding the accumulation of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Since this area is already occupied by the gas, the glass is less impacted by temperature shifts and pressure distinctions from the external environment which might possibly allow water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
