Rifle Scope Product Details

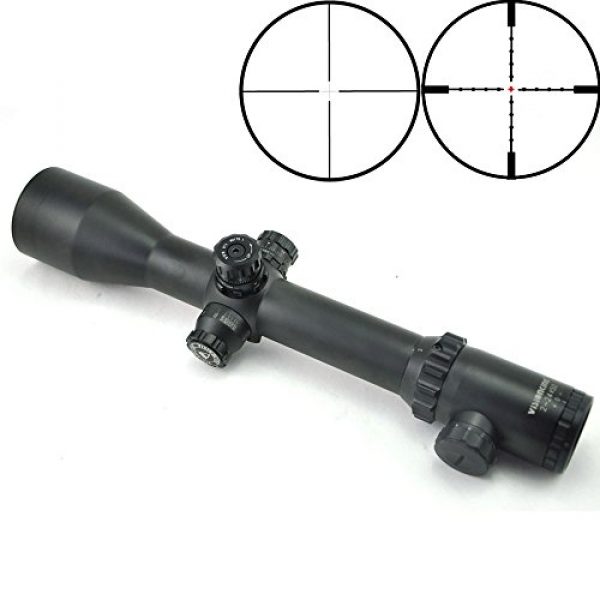

Visionking Rifle Scope 2-24x50QZ Riflescope for First Focal Plane FFP Mildot for Hunting Tactical
Specifications:
Magnification: 2-24
Objective lens: 50mm
Coating: FMC Green
Field of View(ft@100yds): 48.3~ 4
Finish: Matte black
Eyerelief: 4.7-3.5 in
Waterproof: Yes
fogproof: Yes
Shockproof: 2800g
Battery: CR2032 3V(No include)
Elevation Range:120MOA
Nitrogen: Full filled Nitrogen
Focal Plane: Second
Tube Diameter: 35MM
Click Value: 0.25MOA
Diopter: +2 ~ -3
Side Focus: 20 ~infinity
Reticle: Glass-etched Mil-dot
Features:
Super Accurancy rangefinder reticle and easiest to use for shooting
Reticle design by laser,it is the thinnest reticle on the world,best reticle for shooting
2x-24x magnification, can be used in all kinds of hunting/target shooting. Both short distance and long distance can be used.
Rifle Scope Product Features
Specific differentiation
Magnification: 2-24,Objective Diameter: 50mm
Field Of View: 28 ft @ 100 yards
Click Value: 1/8 inch @ 100 yards
Illuminated Type of the rifle scope: Red and Green
About the Visionking Company
Visionking is a premium producer for rifle scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They style and make their scopes, mounts, and related products by applying materials which are durable and long lasting. This includes the Visionking Rifle Scope 2-24x50QZ Riflescope for First Focal Plane FFP Mildot for Hunting Tactical by Visionking. For additional shooting items, visit their site.
Optic Details
Rifle scopes permit you to specifically align a rifle at different targets by lining up your eye with the target over a range. They do this through zoom by employing a set of lenses inside the scope. The scope’s alignment can be adapted for consideration of separate environmental elements like wind speed and elevation to make up for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will land based upon the sight picture you are viewing through the scope as you line up the scope’s crosshair or reticle with the target. Most modern rifle scopes have around eleven parts which are arranged inside and outside of the optic. These scope parts include the rifle scope’s body, lenses, elevation dials, focus rings, and other parts. See all eleven parts of optics.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The kind of focal plane a scope has establishes where the reticle or crosshair is located relative to the optic’s zoom. It simply means the reticle is situated behind or in front of the magnification lens of the scope. Selecting the best form of rifle glass is based on what kind of hunting or shooting you plan on undertaking.
First Focal Plane Optic Info
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This triggers the reticle to increase in size based on the level of zoom being used. The outcome is that the reticle measurements are the same at the magnified distance as they are at the non magnified range. As an example, one tick on a mil-dot reticle at one hundred yards without “zoom” is still the same tick at 100 yards with 5x “zoom”. These kinds of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where estimations are small
- Experienced shooters who have an idea for their aim point “hold over” as well as “lead” correlations for their rifles
- Shooters who do not mind the reticle is bigger and requires more visual sight area than a SFP reticle
Second Focal Plane Optics
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. This triggers the reticle to remain at the very same size in relation to the level of magnification being used. The effect is that the reticle dimensions change based upon the magnification applied to shoot over lengthier ranges considering that the reticle markings present distinct increments which vary with the magnification. In the FFP illustration with the SFP glass, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick. These types of scopes are useful for:
- Far away types of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots occur within shorter ranges and proximities
- Shooters who like a clearer optic picture with less room taken up by the bigger FFP reticle
Magnification for Optics
The quantity of scope zoom you need on your scope depends on the kind of shooting you want to do. Nearly every kind of rifle scope gives some degree of magnification. The quantity of magnification a scope offers is determined by the size, thickness, and curvatures of the lenses within the rifle scope. The zoom of the optic is the “power” of the opic. This signifies what the shooter is looking at through the scope is amplified times the power element of what can generally be seen by human eyes.
Fixed Single Power Lens Rifle Glass Info
A single power rifle optic comes with a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not adjust because it is a set power scope.
Variable Power Lens Glass
Variable power rifle scopes can be adjusted between magnification levels. These types of scopes will list the magnification degree in a format such as 2-10×32. These numbers suggest the magnification of the scope can be changed in between 2x and 10x power. This always includes the power levels in-between 2 and 10. The power modification is achieved by working with the power ring part of the scope near the back of the scope by the eye bell.
Rifle Glass Power and Range Correlation
Here are some suggested scope power settings and the ranges where they can be efficiently used. Bear in mind that higher magnification scopes and optics will not be as efficient as lower powered optics since excessive zoom can be a negative thing in certain situations. The very same idea goes for extended ranges where the shooter needs to have enough power to see where to best aim the rifle at the target.
Lens Coating for Scopes
All modern rifle scope lenses are covered in special coatings. There are various types and qualities of lens finishings. When thinking about high end rifle optical units, Lens finish can be a critical aspect of defining the capability of the rifle. The glass lenses are among the most significant parts of the optic considering that they are what your eye sees through while sighting a rifle in on the target. The covering on the lenses shields the lens exterior and even improves anti glare from refracted sunlight and color visibility.
ED Versus HD Scopes
Some scope makers even use “HD” or high-def lense coatings which take advantage of various procedures, rare earth compounds, aspects, and polarizations to extract separate color ranges and viewable target visibility through lenses. This high-def finish is often used with higher density glass which brings down light’s ability to refract by means of the lens glass. Some scope manufacturers use “HD” to describe “ED” meaning extra-low dispersion glass. ED deals with how certain colors are presented on the chromatic spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration is often visible over items with defined outlines as light hits the item from various angles.
Scope Lens Single Finishing Versus Multi-Coating
Different optic lenses can also have different finishes used to them. All lenses generally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is usually a protective and improving multi-purpose treatment. This lens treatment can protect the lens from scratches while decreasing glare and other less advantageous things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends on the scope maker and the amount you paid for it. Both are indications of the lens quality.
Some scope makers likewise make it a point to define if their optic lenses are layered or “multi” coated. This implies the lens has several treatments applied to them. If a lens receives several treatments, it can show that a producer is taking numerous actions to combat different environmental factors like an anti-glare finish, a scratch resistant anti-abrasion coating, followed by a hydrophilic covering. This also doesn’t necessarily indicate the multi-coated lens will perform better than a single coated lens. Being “much better” depends on the manufacturer’s lens treatment solutions and the quality of products used in creating the rifle optic.
Anti-water Finishing for Rifle Scopes
Water on a lens doesn’t help with keeping a clear sight picture through a scope at all. Lots of top of the line and military grade optic companies will coat their lenses with a hydrophobic or hydrophilic covering.
Alternatives for Mounting Optics on Long Guns
Mounting options for scopes can be found in a few choices. There are the standard scope rings which are individually installed to the scope and one-piece mounts which cradle the scope. These various types of mounts also normally are made in quick release versions which use throw levers which allow rifle shooters to rapidly mount and dismount the scopes.
Hex Key Scope Ring Mounting Solutions
Standard, clamp-on type mounting optic rings use hex head screws to fix to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use a pair of individual rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are manufactured for far away accuracy shooting. This form of scope mount is excellent for rifles which are in need of a long lasting, rock solid mount which will not change regardless of how much the scope is moved about or jarring the rifle takes. These are the type of mounts you should get for a specialized scope setup on a reach out and touch someone hunting or competition long gun that will pretty much never need to be altered or adjusted. Blue 242 Loctite threadlocker can additionally be used on the mount screws to stop the hex screws from backing out after they are installed safely in position. An example of these rings are the 30mm style from Vortex Optics. The set typically costs around $200 USD
Quick-Release Cantilever Glass Rings
These kinds of quick-release rifle scope mounts can be used to quickly take off a scope from a rifle and reattach it to a different rifle. If they all use a comparable design mount, a number of scopes can also be swapped on the range. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers fasten nicely to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while preserving the original sighting settings. These kinds of mounts come in handy for shooting platforms which are carried a lot, to take off the scope from the rifle for protection, or for aiming systems which are employed between several rifles. An example of this mount type is the 30mm mount from the Vortex Optics brand. It generally costs around $250 USD
Sealing and Gas Purging for Optic Tubes
Moisture inside your rifle glass can mess up a day of shooting and your costly optic by resulting in fogging and making residue within the scope’s tube. Most optics protect against moisture from getting in the optical tube with a series of sealing O-rings which are waterproof. Generally, these optics can be immersed beneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be more than enough humidity avoidance for basic use rifles for hunting and sporting purposes, unless you intend on taking your rifle aboard a watercraft and are worried about the optic still functioning if it falls overboard and you can still salvage the firearm.
Gas Purged Rifle Glass Tubes
Another element of avoiding the accumulation of wetness within the rifle optic tube is filling the tube with a gas like nitrogen. Since this area is currently taken up by the gas, the glass is less influenced by temperature level changes and pressure distinctions from the external environment which might possibly permit water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
