Rifle Scope Product Details

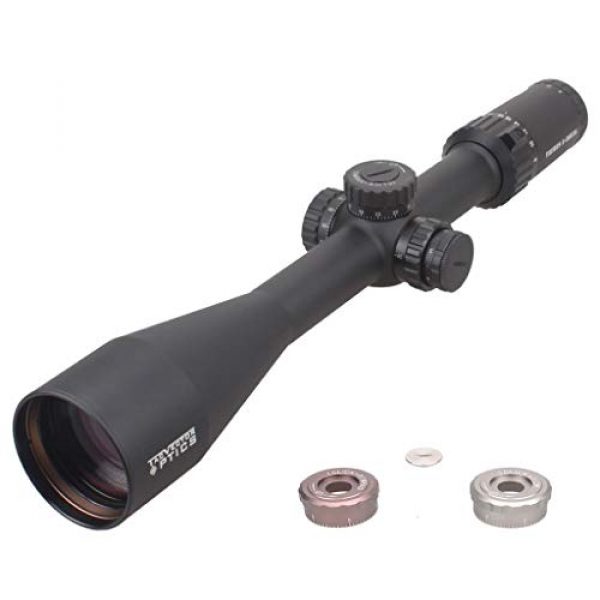

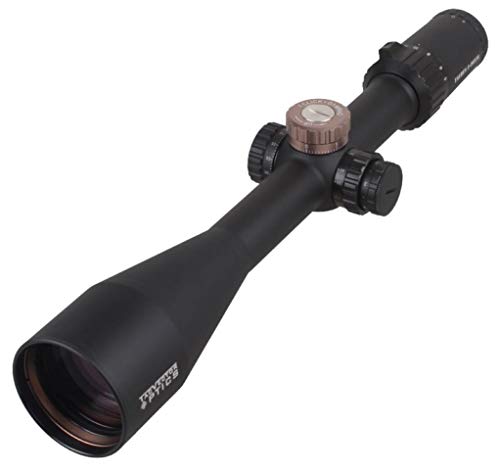

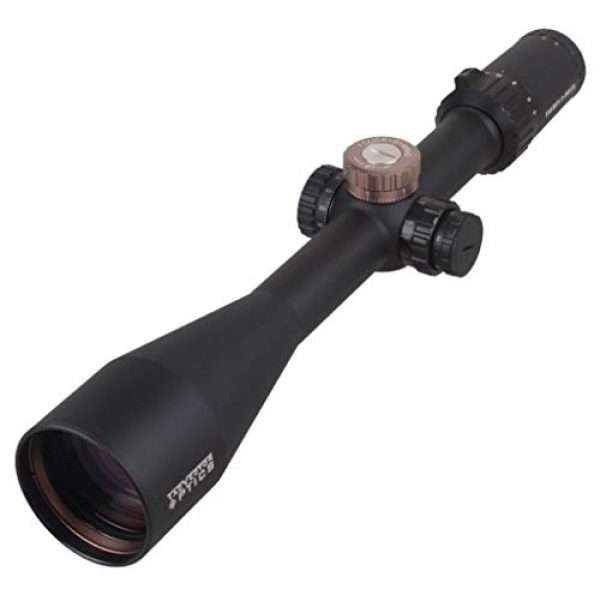

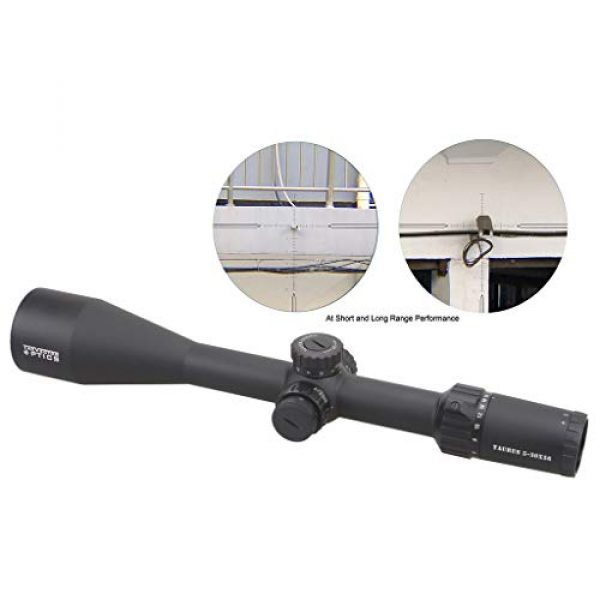

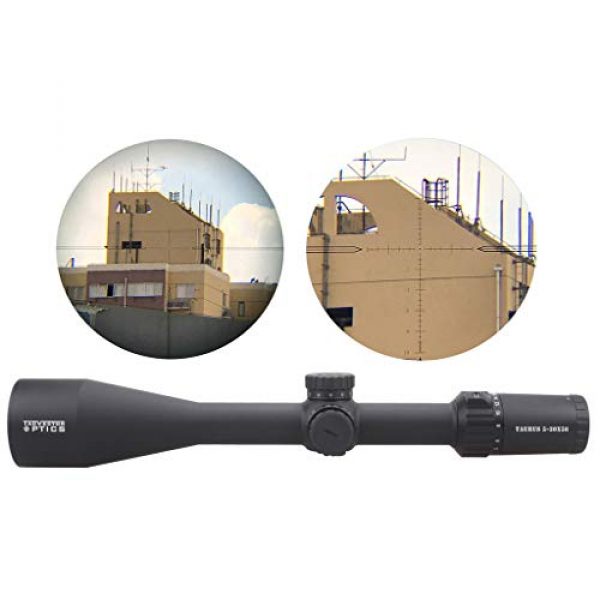

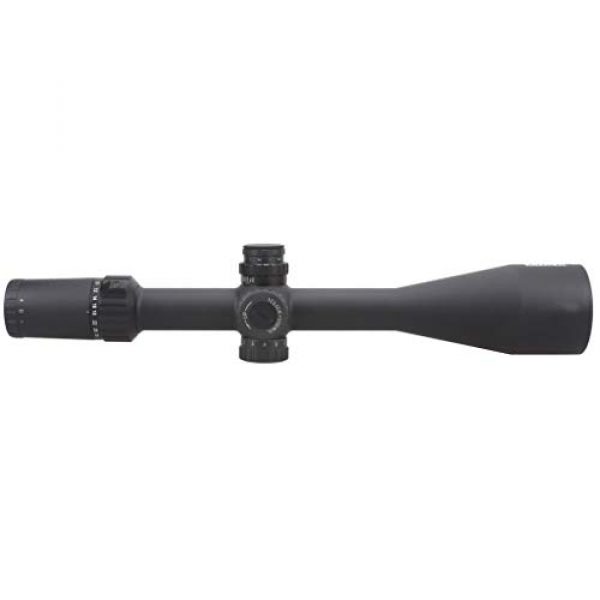

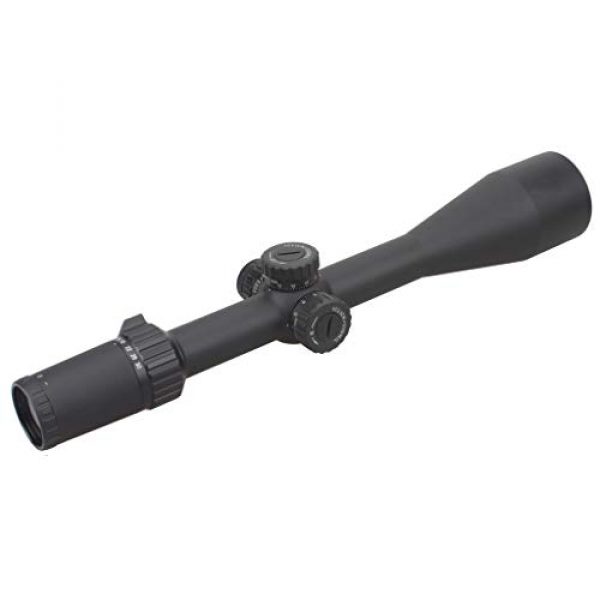

Vector Optics Taurus 5-30x56mm First Focal Plane (FFP) 1/10 MIL Tactical Riflescope with Red Illuminated Reticle, 30mm Mount Rings, Lens Covers and KillFlash
First Focus Plane(FFP): FFP scopes place the reticle in front of the erector. They are more specifically designed for tactical shooters and hunters where the distance to target changes and is often unknown. With an FFP reticle, the size of the reticle will appear to change as the scope’s magnification is changed. And it helps with calculating bullet drop and wind calls.
Specifications
Magnification: 5-30x
Objective Lens Dia: 56mm
Ocular Lens Dia: 36mm
Ocular Length: 60mm
Reticle: FFP glass reticle
Click Value: 1/10 MIL
Elevation Range: 12 MIL (40 MOA)
Windage Range: 12 MIL (40 MOA)
Illumination: 6 levels red
Exit Pupil: 11.0mm @ 5x/ 1.8mm @ 30x
Field of View: 20.43 feet @ 100 yards (5x), 3.51 feet @ 100 yards (30x)
Eye Relief: 100mm (4.0 inch)
Battery: CR2032(EXCLUDED)
Side Focus Range: 20, 25, 30, 40, 50, 75, 100, 200, 300, 500 and 900 yards to infinity
Length: 398mm (15.6 inch)
Weight: 813g (28.7 oz)
Optics Coating: Fully-multi coated
Featured Description
Lifetime warranty
Long eye relief.
1/10 MIL windage and elevation adjustments for fine-tuning accuracy.
Completely seeled and nitrogen filled for waterproof, fogproof and shockproof performance.Shock tested to 1000g.
High quality 6061 T6 aircraft grade aluminum alloy with durable black matte finish.
Fast focus eyepiece at olucar lens adjustment (diopter compensation from -2 to +1.5).
Package List:
– 1 x Riflescope

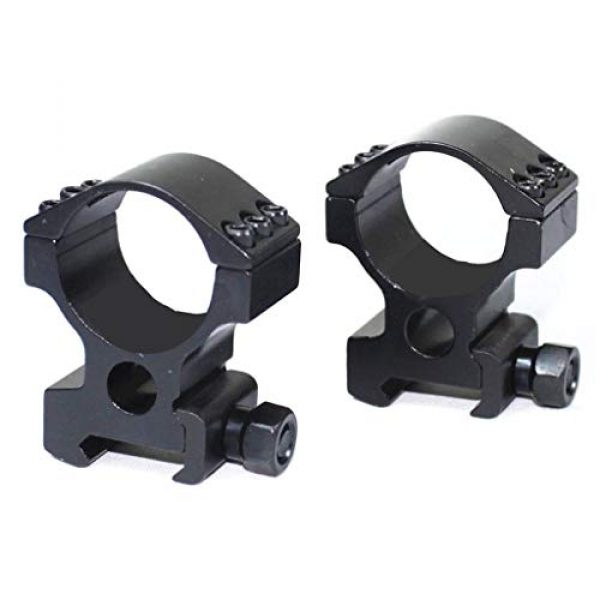

– 2 x 30mm weaver mount ring (default) or dovetail mount ring (on request only)
– 2 x lens cap
– 1 x 0.1 MRAD silver colored elevation turret
– 1 x 0.1 MRAD gold colored elevation turret
– 1 x honeycomb sunshade
– 1 x cleaning cloth
Rifle Scope Product Features
Lifetime warranty. Crystal Clear Edge-to-Edge Image.
30mm Monotube. 1/10 MIL windage and elevation adjustments for fine-tuning accuracy.
The reticle is red illuminated along the first focal plane. The illunimation has 6 levels brightness. Turret lock sytem. Pull to adjust, press to lock.
Completely sealed and nitrogen filled for waterproof, fogproof and shockproof performance. Shock tested to 1000g.
Free 30mm mount rings, each one spare silver and gold colored elevation turret, honeycomb sunshade and lens covers.
About the Vector Optics Scope Maker
Vector Optics is a premium maker for long gun scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They create and manufacture their mounts and related products by using elements which are long lasting and durable. This includes the Vector Optics Taurus 5-30x56mm First Focal Plane (FFP) 1/10 MIL Tactical Riflescope with Red Illuminated Reticle, 30mm Mount Rings, Lens Covers and KillFlash by Vector Optics. For more shooting goods, visit their site.
Rifle Glass Facts
Rifle scopes permit you to precisely align a rifle at various targets by aligning your eye with the target at range. They accomplish this through zoom by employing a set of lenses within the scope. The scope’s alignment can be adjusted for consideration of separate ecological aspects like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will land based upon the sight picture you are seeing using the optic as you align the scope’s crosshair or reticle with the intended target. A lot of modern rifle optics have about eleven parts which are found internally and on the exterior of the scope. These scope parts include the rifle scope’s body, lenses, windage dials or turrets, objective focus rings, and other elements. Learn about the eleven parts of scopes.
About Scope Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The type of focal plane a scope has determines where the reticle or crosshair lies relative to the scopes magnifying adjustments. It simply implies the reticle is located behind or before the magnifying lens of the scope. Choosing the most effective style of rifle glass is based upon what style of shooting or hunting you plan on undertaking.
First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These styles of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are very little
- Experienced shooters who understand their target “hold over” as well as “lead” relationships for their long guns
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight space than a SFP reticle
Info About Second Focal Plane Scopes
Second focal plane optics (SFP) come with the reticle behind the zoom lens. This triggers the reticle to stay at the exact same overall size relative to the amount of magnification being used. The end result is that the reticle dimensions change based on the magnification employed to shoot over greater ranges given that the reticle markings present distinct increments which change with the zoom. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick. These particular styles of glass work for:
- Far away styles of shooting where shooters have increased time to make ballistic estimations
- Shooting where most shots occur within shorter ranges and distances
- Shooters who would like a clearer optic picture with less area taken up by the enlarged FFP reticle
Ins and Outs of Rifle Glass Magnification
The amount of zoom a scope supplies is identified by the size, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Info About Single Power Lens Rifle Optics
A single power rifle optic or scope uses a zoom number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not fluctuate since it is a set power scope.
Info About Variable Power Lens Glass
Variable power rifle scopes have adjustable power. It will list the magnification degree in a configuration such as 2-10×32. These numbers mean the zoom of the scope can be adjusted between 2x and 10x power. This also utilizes the powers in-between 2 and 10. The power adjustment is accomplished by operating the power ring part of the scope near the back of the scope by the eye bell piece.
Power Levels and Range Correlations
Here are some suggested scope powers and the ranges where they could be effectively used. Bear in mind that high power optics and scopes will not be as efficient as lower magnification level optics since excessive zoom can be a negative thing in certain situations. The exact same concept applies to longer distances where the shooter needs to have sufficient power to see precisely where to properly aim the rifle at the target.
Lens Covering for Rifle Optics
All modern-day rifle optic lenses are coated. There are different types and qualities of glass coatings. When shopping for luxury rifle targeting units, Lens covering can be a crucial aspect of defining the capability of the rifle. The lenses are one of the most essential parts of the glass given that they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses protects the lens surface area as well as helps with anti glare from refracted light and color perception.
HD Versus ED Lenses
Some scope companies additionally use “HD” or high-definition glass finishes that make the most of various processes, aspects, rare earth compounds, and polarizations to extract numerous color ranges and viewable target definition through lenses. This high-definition covering is normally used with higher density lens glass which brings down light’s ability to refract by means of the lens glass. Some scope brands use “HD” to refer to “ED” suggesting extra-low dispersion glass. ED handles how certain colors are presented on the chroma spectrum and the chromatic deviance or aberration which is similarly called color distortion or fringing. Chromatic aberration can be visible around items with hard shapes as light hits the item from specific angles.
Single Finishing Versus Multi-Coating for Rifle Glass
Different optic lenses can likewise have various finishings used to them. All lenses normally have at least some type of treatment or finish used to them before they are used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is typically a protective and improving multi-purpose treatment. This lens treatment can protect the lens from scratches while lowering glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope designer and just how much you spent for it. Both are indications of the lens quality.
Some scope producers similarly make it a point to define if their optic lenses are coated or “multi” coated. Being “better” depends on the maker’s lens treatment technology and the quality of materials used in developing the rifle scope.
Hydrophobic Finish for Optics
Water on a lens doesn’t help with preserving a clear sight picture through a scope at all. Numerous top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic coating which is water repellent.
Rifle Optic Installation Alternatives
Mounting options for scopes can be found in a few choices. There are the basic scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also usually are made in quick release variations which use throw levers which permit rifle shooters to quickly install and dismount the optics.
Hex Key Rifle Glass Ring Mounting Solutions
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which are developed for long distance accuracy shooting. This type of scope mount is great for rifles which need a resilient, sound mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Optic Rings
These types of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle before reattaching it to a different rifle. Multiple scopes can also be switched out if they all use a compatible style mount. These types of mounts come in handy for long guns which are transferred a lot, to remove the optic from the rifle for protection, or for scopes which are used between numerous rifles.
Optic Tube Sealing and Gas Purging
Moisture inside your rifle scope can ruin a day of shooting and your costly optic by causing fogging and producing residue inside of the scope tube. Many scopes prevent wetness from going into the scope tube with a system of sealing O-rings which are waterproof.
Scope Gas Purging
Another component of avoiding the accumulation of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Considering that this area is already occupied by the gas, the glass is less influenced by temperature level alterations and pressure variations from the external environment which might possibly enable water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
