Description
Rifle Scope Product Details

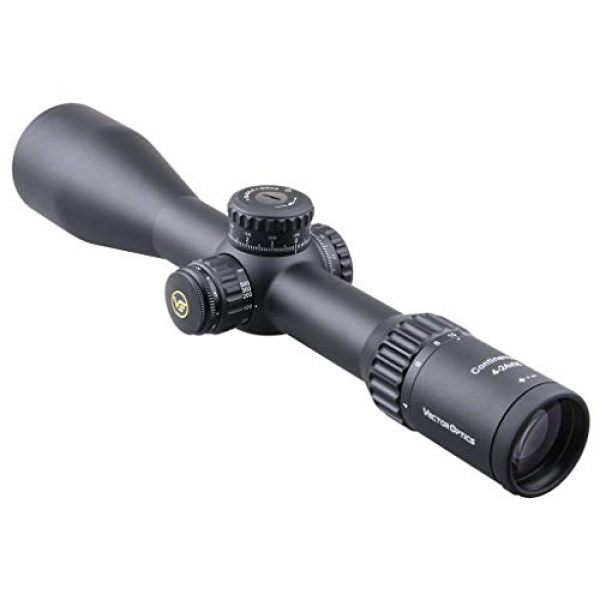

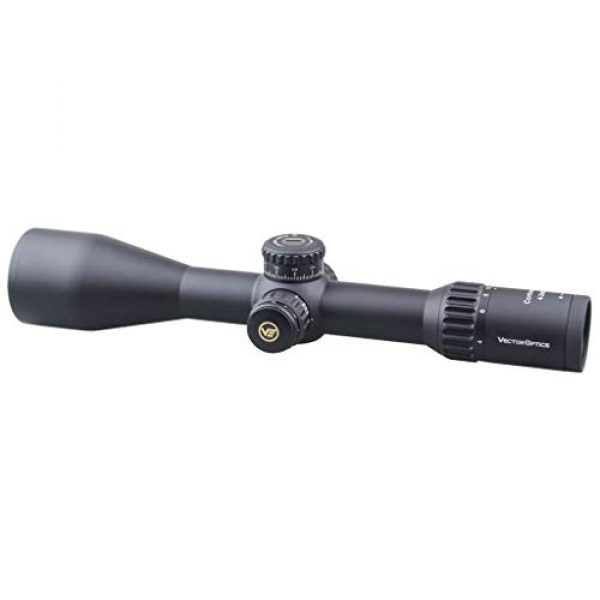

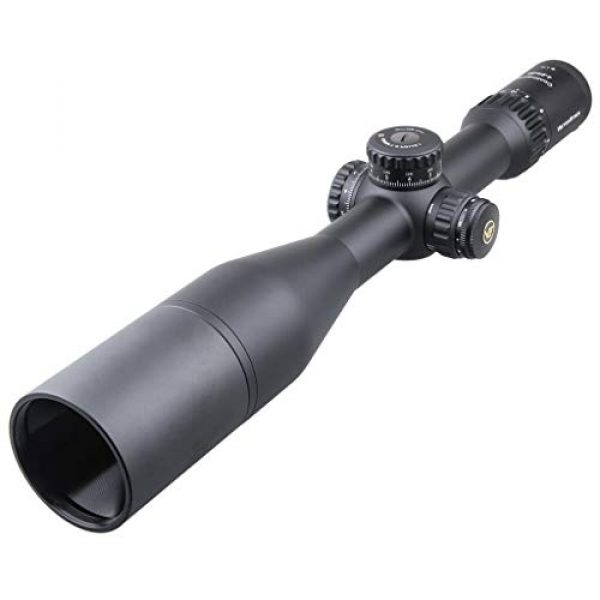

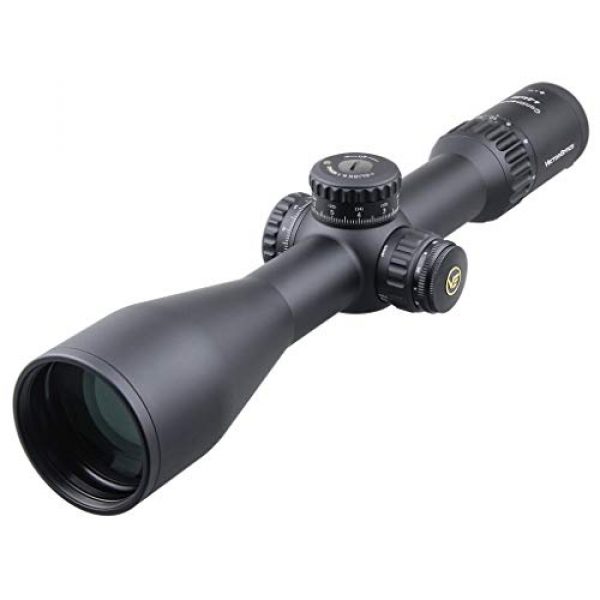

Vector Optics Continental 4-24×56 First Focal Plane (FFP) Rifle Scope, 34mm Tube, 1/10 MIL Per Click Adjustment, Turret Lock System, Free Picatinny/Weaver Mount Rings, Matte Black
First Focus Plane(FFP): FFP scopes place the reticle in front of the erector. They are more specifically designed for tactical shooters and hunters where the distance to target changes and is often unknown. With an FFP reticle, the size of the reticle will appear to change as the scope’s magnification is changed. And it helps with calculating bullet drop and wind calls.
Specifications:
Magnification: 4-24x
Objective Lens Dia.:56mm
Tube Dia.:34mm
Adjustment Click Value: 1/10 MIL

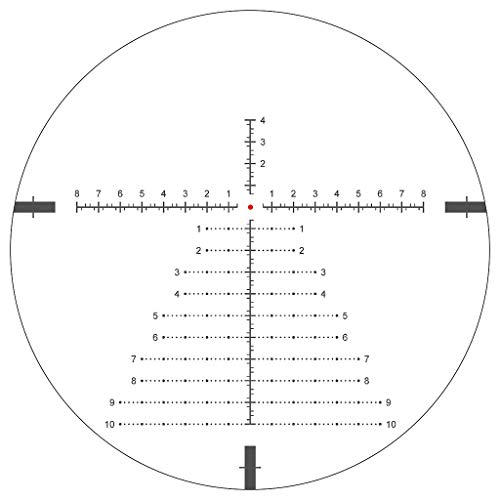

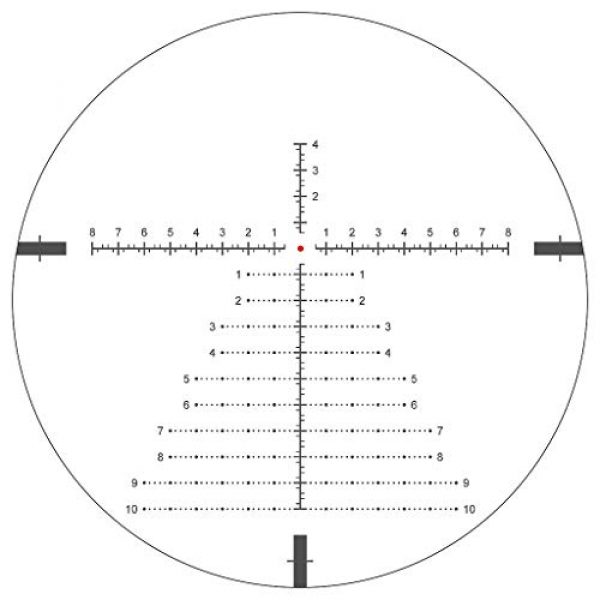

Reticle: Etched glass VCT-34FFP
Illumination: 6 gear
Field of View: 30.6-5.1 Feet @ 100 yards
Eye Relief: 100mm (4.0 inch)
Exit Pupil: 8-2.3mm
Parallax Setting: 100 yards
Side Focus:10 Yds to infinite
Elevation Range: 34 MIL
Windage Range: 34 MIL
Lens Coating: Fully multicoated
Length: 362mm (14.3 inch)
Weight: 780g (27.5ounce)
Finish: Matte
Battery: CR2032(EXCLUDED)
Features:
Lifetime Warranty; The Continental 4-24×56 is One of Vector Optics Top Line Scopes Which Can Compete Worldwide Famous Brand Optics
34mm Tube with Fully Multi-coated Lens Increase Light Commission up to 90% for Low-Light Conditions;
Fast-focus Eyepiece for quick and easy reticle focusing
O-ring Sealed and Nitrogen Purged Ensure Waterproof at 1m and Fog Proof performance; Shockproof to 750g
Turret Lock Feature: Press Down to Lock Without Click Movement
Focus mark: 10,15, 20, 30, 50, 75, 100, 200, 300, 500 and infinite

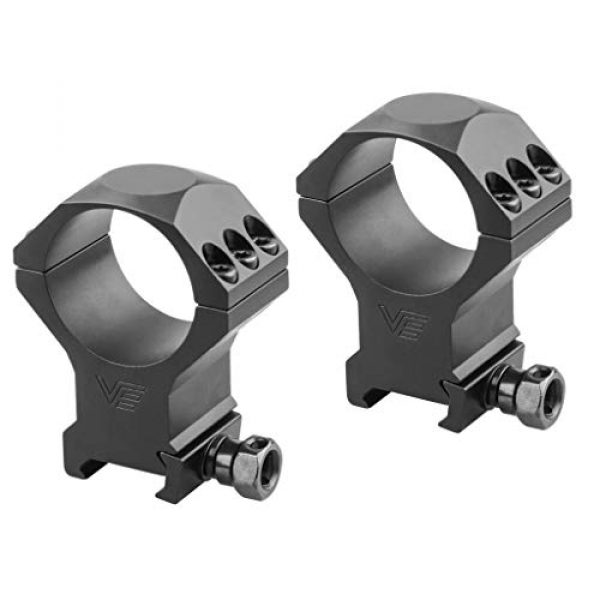

Two 34mm Scope Mount Rings Can Be Easily Mounted Onto Any 20mm Picatinny or Weaver Mount Rails
Package Includes:
– 1 x 4-24×56 FFP Riflescope
– 2 x 34mm Mount Rings
– 1 x Allen Wrench
– 1 x Lens Cover
– 1 x Instruction
– 1 x Cleaning cloth
Rifle Scope Product Features
Lifetime Warranty; The Continental 4-24×56 is One of Vector Optics Top Line Scopes Which Can Compete Worldwide Famous Brand Optics
34mm Tube with Fully Multi-coated Lens Increase Light Commissionup to 90% for Low-Light Conditions; Fast-focus Eyepiece for quick and easy reticle focusing
O-ring Sealed and Nitrogen Purged Ensure Waterproof at 1m and Fog Proof performance; Shockproof to 750g
Turret Lock Feature: Press Down to Lock Without Click Movement
Two 34mm Scope Mount Rings Can Be Easily Mounted Onto Any 20mm Picatinny or Weaver Mount Rails
About the Vector Optics Brand
Vector Optics is a premium maker for weapon scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They style and make their products by applying materials which are resilient and long lasting. This includes the Vector Optics Continental 4-24×56 First Focal Plane (FFP) Rifle Scope, 34mm Tube, 1/10 MIL Per Click Adjustment, Turret Lock System, Free Picatinny/Weaver Mount Rings, Matte Black by Vector Optics. For more shooting goods, visit their website.
Information Optics
Rifle scopes enable you to specifically align a rifle at different targets by lining up your eye with the target over a distance. They accomplish this through magnifying the target by using a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of separate environmental things like wind speed and elevation increases to account for bullet drop.
The scope’s purpose is to help the shooter understand exactly where the bullet will land based upon the sight picture you are seeing through the optic as you line up the scope’s crosshair or reticle with the intended target. Most modern-day rifle optics have about 11 parts which are arranged internally and externally on the scope body. These parts include the rifle scope’s body, lenses, elevation dials or turrets, focus rings, and other elements. See all eleven parts of a rifle optical system.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Finding the finest type of rifle scope is based around what type of shooting you plan on doing.
About First Focal Plane Scopes
First focal plane glass (FFP) feature the reticle in front of the magnifying lens. This causes the reticle to increase in size based upon the level of zoom being used. The benefit is that the reticle measurements are the same at the magnified distance as they are at the non magnified distance. One tick on a mil-dot reticle at one hundred yards without “zoom” is still the exact same tick at one hundred yards by using 5x “zoom”. These types of scopes are practical for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where computations are very little
- Experienced shooters who understand their target “hold over” as well as “lead” correlations for their weapon
- Shooters who don’t mind the reticle is bigger and uses up more visual eyesight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane glass (SFP) feature the reticle to the rear of the magnifying lens. This causes the reticle to stay at the exact same overall size in connection with the quantity of zoom being used. The outcome is that the reticle measurements alter based upon the magnification used to shoot over lengthier ranges since the reticle measurements present distinct increments which change with the zoom. In the FFP example with the SFP glass, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement. These varieties of glass work for:
- Far away types of shooting where shooters have extra time to make ballistic computations
- Shooting where most of the shots happen within much shorter proximities and ranges
- Shooters who would like a clearer optic picture without room used up by the bigger FFP reticle
Magnification for Rifle Optics
The quantity of zoom a scope supplies is figured out by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Single Power Lens Optic Details
A single power rifle optic uses a magnification number designator like 4×32. This means the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of scope can not change given that it is a fixed power optic.
Info About Adjustable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification degree in a configuration such as 2-10×32. These numbers mean the magnification of the scope could be changed between 2x and 10x power. This also includes the power levels in-between 2 and 10. The power modification is accomplished by operating the power ring component of the scope near the back of the scope by the eye bell.
Power and Range Correlations
Here are some suggested scope power levels and the distances where they could be effectively used. High power glass will not be as beneficial as lower magnification glass since too much zoom can be a bad thing. The same concept goes for longer distances where the shooter needs adequate power to see exactly where to best aim the rifle.
Lens Covering for Rifle Glass
All contemporary rifle scope lenses are coated. There are different types and qualities of glass lens finishings. When researching luxury rifle optics and scope devices, Lens covering can be a vital aspect of defining the capability of the rifle. The glass lenses are one of the most vital pieces of the scope considering that they are what your eye looks through while sighting a rifle in on the target. The coating on the lenses shields the lens surface as well as improves anti glare from refracted sunrays and color recognition.
About Rifle Optic Lens Coatings – HD Versus ED
Some scope manufacturers will also use “HD” or high-definition lense finishes that take advantage of various processes, chemicals, polarizations, and components to draw out numerous colors and viewable target definition through lenses. This high-def coating is typically used with more costly, high density lens glass which reduces light’s capability to refract through the lens glass. Some scope vendors use “HD” to refer to “ED” signifying extra-low dispersion glass. ED handles how colors are presented on the chroma spectrum and the chromatic aberration or difference which is also called color distortion or fringing. Chromatic aberration can be visible around objects with hard shapes as light hits the item from specific angles.
Single Coating Versus Multi-Coating for Optics
Different optic lenses can likewise have various coatings applied to them. All lenses usually have at least some type of treatment or coating used to them prior to being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope manufacturer and how much you paid for it.
Some scope makers also make it a point to specify if their optic lenses are coated or “multi” covered. This indicates the lens has had numerous treatments applied to the surfaces. If a lens gets multiple treatments, it can establish that a company is taking multiple actions to combat various environmental factors like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finish. This additionally does not necessarily suggest the multi-coated lens is much better than a single covered lens. Being “much better” is dependent on the producer’s lens treatment technology and the quality of glass used in creating the rifle glass.
Hydrophobic Covering for Optics
Water on a lens doesn’t assist with keeping a clear sight picture through a scope at all. Numerous top of the line and military grade optic makers will coat their lenses with a hydrophilic or hydrophobic finish which is water repellent.
Scope Mounting Choices
Mounting solutions for scopes are available in a couple of options. There are the basic scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These different kinds of mounts also generally are made in quick release versions which use toss levers which permit rifle operators to quickly mount and dismount the scope.
Hex Key Glass Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which is developed for long distance accuracy shooting. This type of scope mount is great for rifles which need a durable, rock solid mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Optic Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a complementary designed mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach securely to a flat top design Picatinny rail. This permits the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while keeping precision. These kinds of mounts come in practical for rifles which are moved a lot, to take off the scope glass from the rifle for protection, or for aiming systems which are utilized between multiple rifles. An example of this mount style is the 30mm mount from Vortex Optics. It usually costs around $250 USD
Glass Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day of shooting and your expensive optic by triggering fogging and creating residue inside of the scope tube. A lot of scopes avoid moisture from getting in the scope tube with a system of sealing O-rings which are waterproof.
Rifle Optic Gas Purging
Another component of preventing the accumulation of moisture within the rifle optic tube is filling the tube with a gas like nitrogen. Since this space is currently occupied by the gas, the optic is less influenced by temp changes and pressure distinctions from the outside environment which could potentially enable water vapor to permeate in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to look for.
