Description
Rifle Scope Product Details

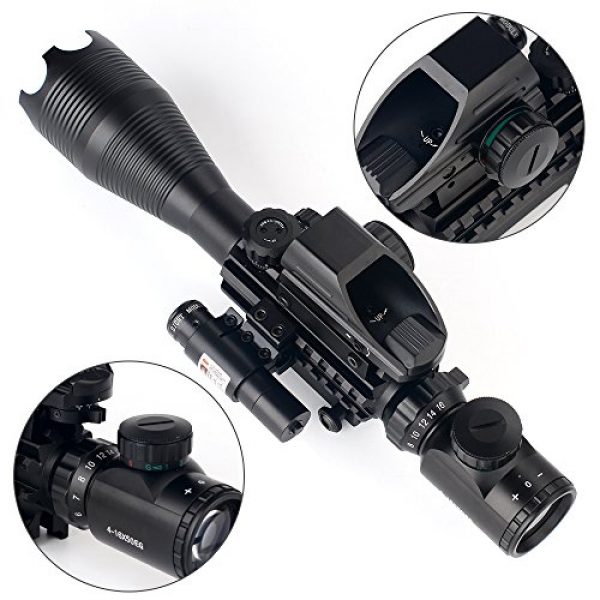

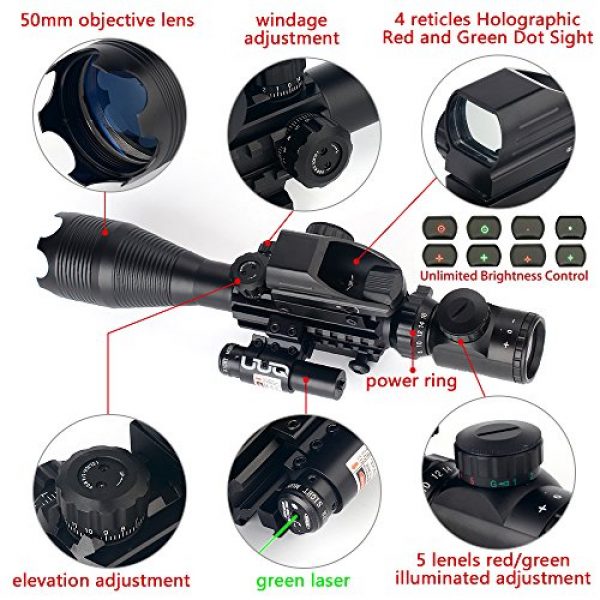

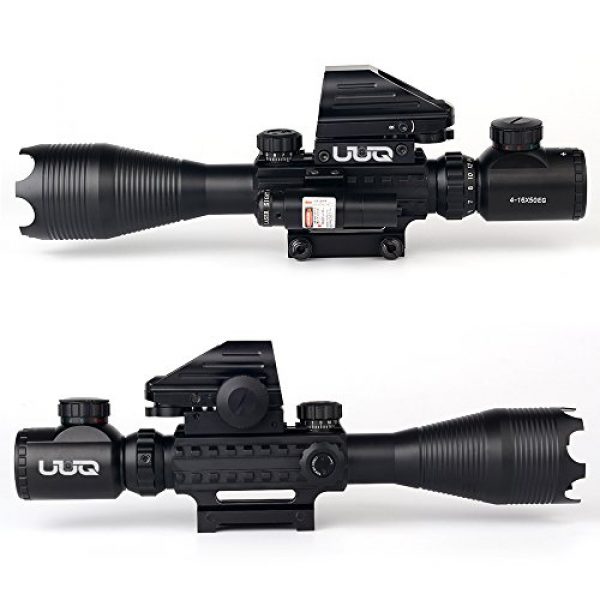

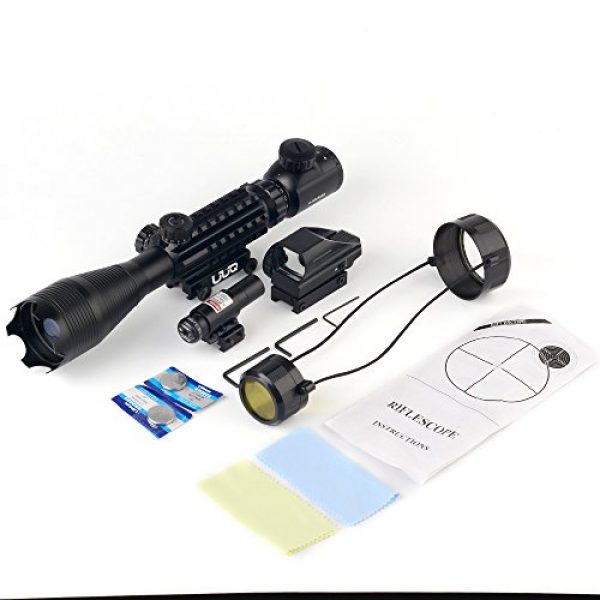

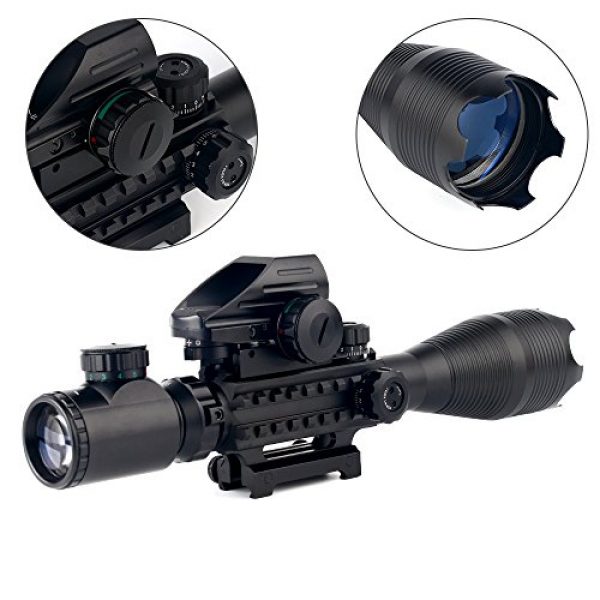

UUQ 4-16x50EG Tactical Rifle Scope Red/Green Illuminated Range Finder Reticle with Green Laser and Multi Optical Coated Holographic Dot Sight
UUQ tactical rifle scope is well suited for wide range shooting, with high optical clarity at 4-16 times magnification and a 50mm objective diameter, allowing for quick acquisition of close quarter and fast moving targets.
4-16x50EG RIFLE SCOPE
Magnification:4x-16x
Objective lens diameter (mm/in): 50/1.97
Exit pupil, diameter (mm/in): 12.5-4.2/0.49-0.17
Field of view, real (m/100 m ; ft/1000 yds): 9.7-3.3 ; 29.1-9.9
Apparent (degree): 22.7
Diopter compensation (dpt): 2.5
Transmission (%): 90
Impact point correction per click (mm/100 m): 7 ; (in/100 yds): 0.25
Max. elevation/windage adjustment range (m/100 m): 1.2 ; (ft/100 yd): 3.6
Objective filter thread: M 52 x 0.75
Length:323mm
Weight:750g

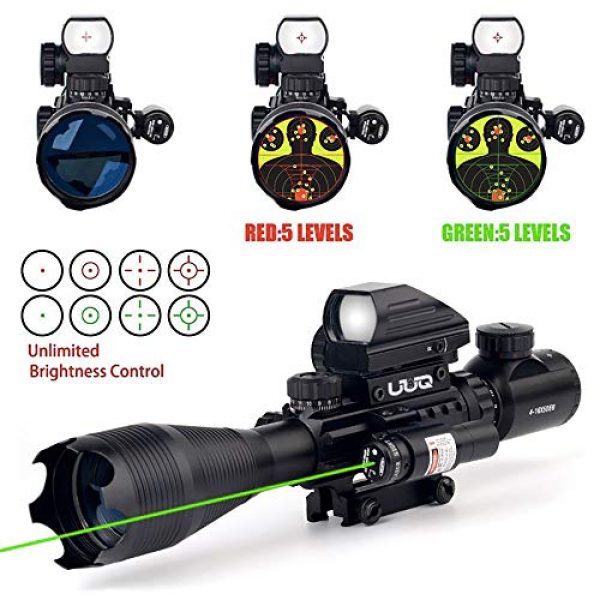

HD103/HD104 – Holographic Red Dot Sight
Dot Color: red & green
Magnification: 1x
Objective Diameter: 0.9in/22mm
Length: 3.2in/82mm
Rail Size: 11 or 22 mm
Brightness Control:5 levels unlimited brightness control
Reticle Pattern: 4
Green Laser sight
Laser Class: 3R(IIIa)
Standard 22 mm mount rail
Length: 29mm
Maximum Output Power: 5 mw
Wavelength: 520~550nm
Tube Diameter: 26mm
Aluminum Construction Windage and elevation adjustable
Laser Distance:300-500m
UUQ is registered brand in US, We provide 7X24 timely online customer service. Please feel free to contact seller for any inquiry or product issue.
Rifle Scope Product Features
About this item
NEVER MISS YOUR TARGET: The tubeless design with 33mm reflex lens aperture provides you a wide field of view (15.8 @ 100m). Great for normal shooting, rapid-firing or shooting of moving targets. With easily adjustable 4-16 magnifications and distance, you can target successfully up to 100 yards.
ADJUSTABLE TO YOUR EYES FOR GREAT ACCURACY: With dual illuminated 5 brightness level Range Finding reticle, 4 different sizes of dots, and detachable GREEN laser sight reaching over 300m, make sure you can target your kills with the highest accuracy and with great results every time.
HASSLE FREE MOUNTING TO ANY GUN: Thanks to its built-in rail (22mm), this scope easily mountable to any 22 &11mm rails (Picatinny or Weaver). Windage and elevation adjustments with 1/4 MOA audible-click stops and fingertip turrerts.

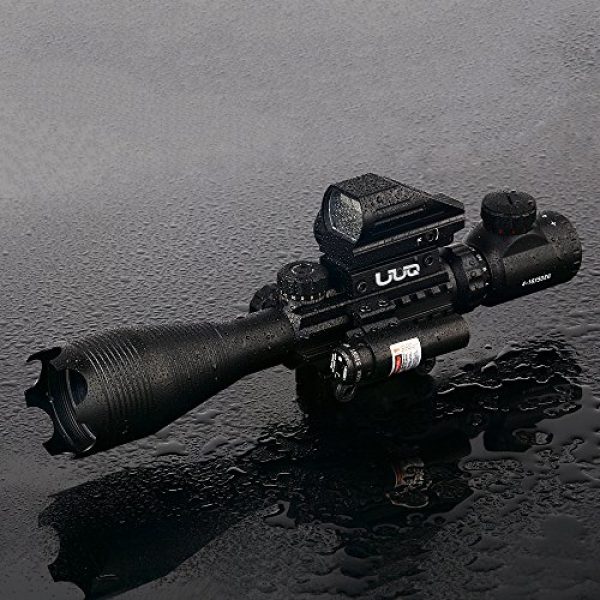

TOP NOTCH QUALITY: High quality matte black finish, 100% waterproof and shockproof ensuring this is the best choice you can make.
GET IT WITH CONFIDENCE- TRUST THE EXPERTS: Being so sure about the great quality and performance of this amazing Tactical Rifle Scope, UUQ offer you great customer service. With nothing to worry about, order for you or for your hunting aficionados friends today!
About the UUQ Scope Maker
UUQ is a premium manufacturer for firearm scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They innovate and make their mounts, scopes, and related products by using elements which are durable and long lasting. This includes the UUQ 4-16x50EG Tactical Rifle Scope Red/Green Illuminated Range Finder Reticle with Green Laser and Multi Optical Coated Holographic Dot Sight by UUQ. For more shooting products, visit their site.
Glass Facts
Rifle scopes allow you to specifically align a rifle at different targets by lining up your eye with the target over a distance. They do this through magnifying the target by utilizing a set of lenses inside the scope. The scope’s alignment can be adjusted for consideration of many environmental factors like wind and elevation decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will land based on the sight picture you are viewing using the scope as you line up the scope’s crosshair or reticle with the target. A lot of modern-day rifle scopes and optics have around 11 parts which are found inside and externally on the optic. These parts consist of the rifle scope’s body, lenses, modification turrets, objective focus rings, and other parts. See all eleven parts of a rifle scope.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The type of focal plane a scope has determines where the reticle or crosshair lies in connection with the scopes magnifying adjustments. It simply indicates the reticle is situated behind or in front of the magnifying lens of the scope. Looking for the very best sort of rifle glass is based upon what kind of hunting or shooting you intend on undertaking.
Info on First Focal Plane Scopes
First focal plane optics (FFP) feature the reticle in front of the magnifying lens. This causes the reticle to increase in size based on the level of magnification being used. The result is that the reticle measurements are the same at the magnified range as they are at the non amplified range. One tick on a mil-dot reticle at one hundred yards with no “zoom” is still the identical tick at 100 yards with 5x “zoom”. These types of scopes work for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where calculations are minor
- Experienced shooters who understand their target “hold over” and “lead” correlations for their rifles
- Shooters who do not mind the reticle is enlarged and takes up more visual sight area than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement.
- Far away styles of shooting where shooters have extra time to make ballistic calculations
- Shooting where most of the shots happen within much shorter ranges and spaces
- Shooters who want a clearer optic sight picture with less room used up by the larger sized FFP reticle
Zoom for Glass
The amount of magnification a scope supplies is figured out by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Scope Facts
A single power rifle optic uses a magnification number designator like 4×32. This suggests the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of optic can not change given that it is fixed.
Variable Power Lens Rifle Scope Facts
Variable power rifle scopes can be adjusted between magnification levels. These types of scopes will note the magnification amount in a format like 2-10×32. These numbers imply the magnification of the scope can be changed between 2x and 10x power. This always incorporates the powers in-between 2 and 10. The power shift is achieved by operating the power ring component of the scope near the rear of the scope by the eye bell piece.
The Power Level and Range of Rifle Scopes
Here are some recommended scope powers and the ranges where they can be effectively used. Bear in mind that higher power glass will not be as effective as lower magnification level scopes because increased magnification can be a detractor. The exact same concept goes for extended ranges where the shooter needs to have adequate power to see exactly where to properly aim the rifle.
Rifle Glass Lens Finish
All modern rifle scope and optic lenses are layered. There are various types and qualities of glass lens finishes. When thinking about luxury rifle optical setups, Lens covering can be a crucial aspect of defining the capability of the rifle. The glass lenses are among the most significant pieces of the optic considering that they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses offers protection to the lens surface area as well as helps with anti glare capabilities from excess light and color presence.
Details on Lens Coatings – HD Versus ED
Some scope producers also use “HD” or high-definition lens coverings which use various procedures, aspects, chemicals, and polarizations to draw out different colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
What to Know About Single Coating Versus Multi-Coating
Various optic lenses can also have various finishings applied to them. All lenses generally have at least some type of treatment or finishing applied to them before being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope producers also make it a point to specify if their optic lenses are layered or “multi” covered. Being “much better” depends on the producer’s lens treatment technology and the quality of products used in building the rifle scope.
Hydrophobic Lens Finish
Water on an optic’s lens does not assist with retaining a clear sight picture through a scope at all. Lots of top of the line or premium scope makers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a good example of this type of treatment. It provides protection for the surface of the Steiner glass lens so the water particles can not bind to it or create surface tension. The result is that the water beads sheet off of the scope to preserve a clear, water free sight picture.
Rifle Optic Installing Alternatives
Mounting solutions for scopes come in a couple of options. There are the basic scope rings which are separately installed to the scope and one-piece scope mounts which cradle the scope. These various kinds of mounts also generally come in quick release variations which use toss levers which enable rifle operators to quickly install and dismount the optics.
Rifle Optic Mounts with Hex Key Rings
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use two separate rings to support the optic, and are often made from 7075 T6 billet aluminum which are developed for long distance precision shooting. This type of scope install is fine for rifles which need a long lasting, rock solid mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly attach and take off a scope from a rifle before reattaching it to a different rifle. Multiple scopes can even be swapped out if they all use a compatible style mount. These types of mounts are convenient for rifles which are carried a lot, to remove the optic from the rifle for protecting the scope, or for optics which are used in between several rifles.
Sealing and Gas Purging for Optic Tubes
Wetness inside your rifle scope can ruin a day on the range and your expensive optic by causing fogging and producing residue within the scope’s tube. Most scopes prevent wetness from entering the optical tube with a system of sealing O-rings which are waterproof. Typically, these water resistant optics can be submerged underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be more than enough humidity prevention for standard use rifles, unless you plan on taking your rifle on your motorboat and are concerned about the scope still working if it goes over the side and you can still retrieve the firearm.
Optic Gas Purging
Another component of avoiding the accumulation of moisture inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Since this space is currently taken up by the gas, the scope is less affected by climate changes and pressure differences from the outdoor environment which might possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
