Description
Rifle Scope Product Details

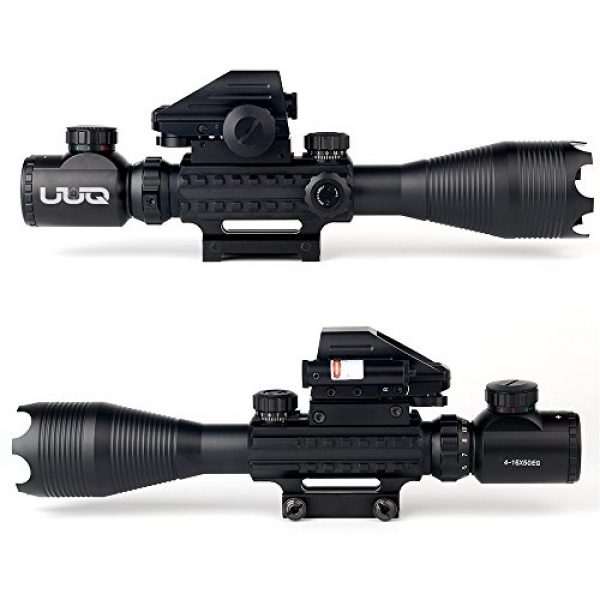

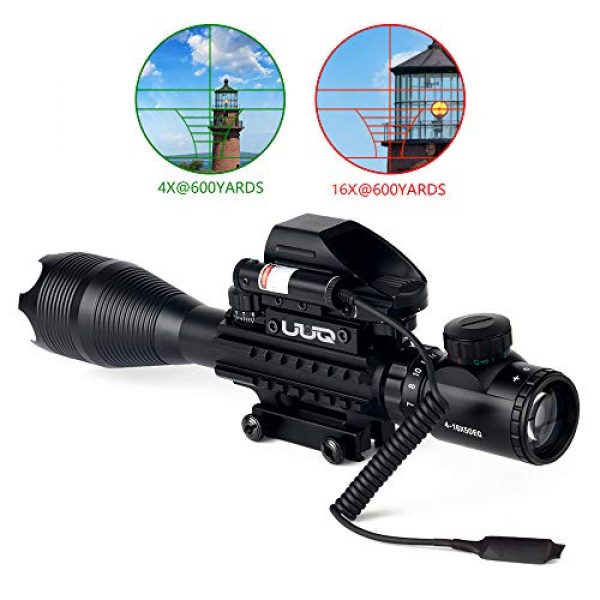

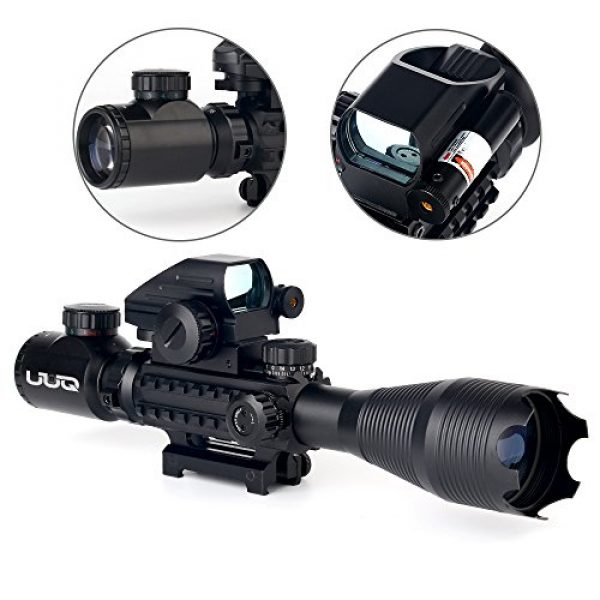

UUQ 4-16×50 Tactical Rifle Scope Red/Green Illuminated Range Finder Reticle W/ RED Laser Sight and Holographic Reflex Dot Sight
UUQ tactical rifle scope is well suited for wide range shooting, with high optical clarity at 4-16 times magnification and a 50mm objective diameter, allowing for quick acquisition of close quarter and fast moving targets.
4-16x50EG RIFLE SCOPE
Magnification:4x-16x
Objective lens diameter (mm/in): 50/1.97
Exit pupil, diameter (mm/in): 12.5-4.2/0.49-0.17
Field of view, real (m/100 m ; ft/1000 yds): 9.7-3.3 ; 29.1-9.9
Apparent (degree): 22.7
Diopter compensation (dpt): 2.5
Transmission (%): 90
Impact point correction per click (mm/100 m): 7 ; (in/100 yds): 0.25
Max. elevation/windage adjustment range (m/100 m): 1.2 ; (ft/100 yd): 3.6
Objective filter thread: M 52 x 0.75
Length:323mm
Weight:750g
HD103/HD104 – Holographic Red Dot Sight
Dot Color: red & green
Magnification: 1x
Objective Diameter: 0.9in/22mm
Length: 3.2in/82mm
Rail Size: 11 or 22 mm
Brightness Control:5 levels unlimited brightness control
Reticle Pattern: 4
Red Laser Sight
Red Laser Class: 3R(IIIa)
Length: 29mm
Maximum Output Power: 5 mw
Wavelength: 625~660nm
Tube Diameter: 16mm
Laser Distance:50-300m
UUQ is registered brand in US, We provide 7X24 timely online customer service. Please feel free to contact seller for any inquiry or product issue.
Rifle Scope Product Features

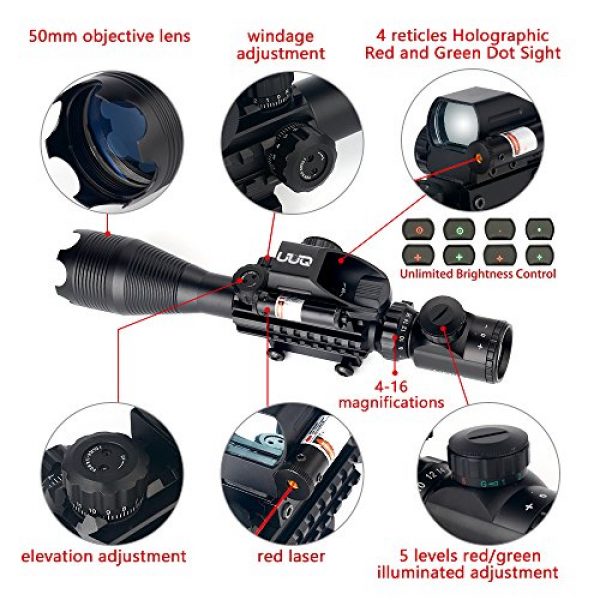

C4-16X50EG+HD103B Rifle Scope kits fully coated optics are well suited for wide range shooting, with high optical clarity at 4-16 times magnification and a 50mm objective diameter. Dual Illuminated (Green/Red) Range Finding Graph reticle with 5 levels unlimited brightness control.

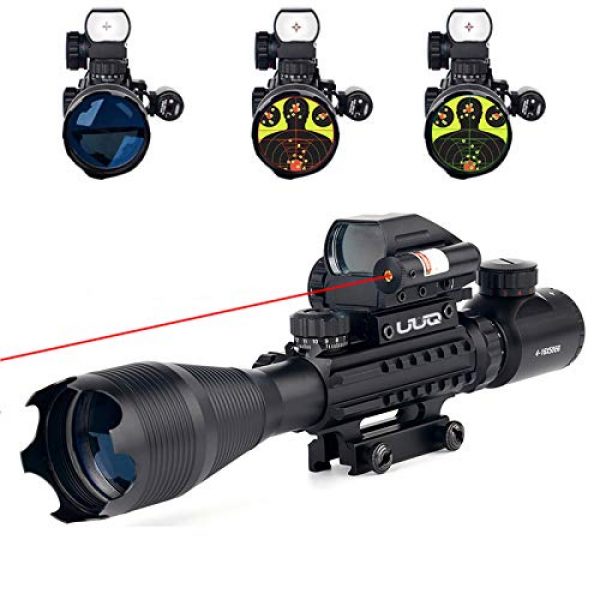

Multi Optical Coated Sight with 33mm reflex lens aperture provides a wide field of view, suitable for normal and rapid-firing shooting of moving targets. INTEGRATED RED LASER with rattail independent switch can reach about 200 Yards distance.
Picatinny mount easily mountable to any 22 &11mm rails (Picatinny or Weaver). Windage and elevation adjustments with 1/4 MOA audible-click stops and fingertip turrerts.

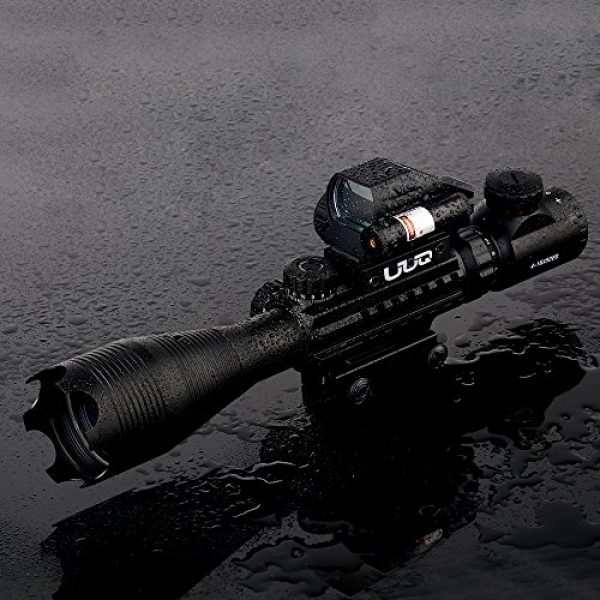

Finish in High quality matte black, Filled Dry Nitrogen. 100% Waterproof & Fogproof and Shockproof.
Provide 7X24 timely response customer service. Ideal choice as Gift.
About the UUQ Scope Maker
UUQ is a premium manufacturer for rifle scopes, optics, mounting solutions, and other components used for guns like rifles and long guns. They style and supply their scopes, mounts, and related products using materials which are durable and long lasting. This includes the UUQ 4-16×50 Tactical Rifle Scope Red/Green Illuminated Range Finder Reticle W/ RED Laser Sight and Holographic Reflex Dot Sight by UUQ. For more shooting items, visit their site.
What You Need to Know About Glass
Rifle scopes allow you to exactly aim a rifle at various targets by lining up your eye with the target at range. They accomplish this through magnifying the target by using a series of lenses inside the scope. The scope’s positioning can be adjusted to take into account different environmental elements like wind and elevation decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will land based on the sight picture you are seeing through the scope as you align the scope’s crosshair or reticle with the intended target. Most modern rifle scopes have about eleven parts which are found internally and externally on the scope body. These scope parts consist of the rifle scope’s body, lenses, adjustment turrets or dials, focus rings, and other components. See all eleven parts of a rifle scope.
About Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Opting for the perfect type of rifle scope is based on what type of shooting you plan to do.
About First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These styles of scopes are useful for:
- Quick acquisition, long distance types of shooting
- Shooting circumstances where calculations are minor
- Experienced shooters who know their target “hold over” and also “lead” correlations for their long gun
- Shooters who do not mind the reticle is bigger and uses up more visual eyesight space than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane scopes (SFP) feature the reticle to the rear of the magnification lens. This causes the reticle to remain at the very same overall size in connection with the level of zoom being used. The end result is that the reticle dimensions adjust based upon the zoom chosen to shoot over longer distances since the reticle measurements represent different increments which fluctuate with the zoom level. In the FFP example with the SFP glass, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick. These particular styles of optics are convenient for:
- Far away kinds of shooting where shooters have increased time to make ballistic computations
- Shooting where most of the shots take place within much shorter distances and ranges
- Shooters who choose a clearer optic picture with less space taken up by the bigger FFP reticle
Magnification for Scopes
The level of scope magnification you require is based on the kind of shooting you intend to do. Just about every kind of rifle optic gives some degree of magnification. The quantity of zoom a scope delivers is established by the size, density, and curves of the lenses within the rifle optic. The magnification of the optic is the “power” of the scope. This means what the shooter is checking out through the scope is magnified times the power element of what can generally be seen by human eyes.
Fixed Single Power Lens Rifle Scope Info
A single power rifle scope and optic comes with a magnification number designator like 4×32. This suggests the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not adjust because it is fixed.
Adjustable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the zoom amount in a format such as 2-10×32. These numbers mean the magnification of the scope can be changed in between 2x and 10x power. This always incorporates the power levels in-between 2 and 10. The power shift is achieved by employing the power ring component of the scope near the back of the scope by the eye bell piece.
Power and Range Correlations
Here are some advised scope power levels and the distances where they may be efficiently used. Always remember that higher power optics and scopes will not be as efficient as lower magnification level optics due to the fact that too much magnification can be a negative thing in certain situations. The same goes for longer distances where the shooter needs adequate power to see exactly where to properly aim the rifle.
Lens Finishing for Glass
All modern-day rifle optic lenses are covered in special coatings. There are different types and qualities of glass lens finishings. When shopping for high end rifle optical devices, Lens finish can be a significant element of a rifle. The glass lenses are one of the most crucial parts of the optic due to the fact that they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses safeguards the lens surface area as well as helps with anti glare capabilities from refracted sunrays and color perception.
ED Versus HD Glass
Some scope suppliers also use “HD” or high-def lens coatings which make the most of various procedures, rare earth compounds, elements, and polarizations to extract different colors and viewable definition through the lens. This high-def finishing is typically used with more costly, high density lens glass which drops light’s potential to refract through the lens glass. Some scope manufacturers use “HD” to refer to “ED” meaning extra-low dispersion glass. ED handles how colors are represented on the chroma spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration is often visible over items with hard outlines as light hits the item from specific angles.
Scope Lens Single Covering Versus Multi-Coating
Different optic lenses can likewise have various coatings used to them. All lenses usually have at least some type of treatment or finishing used to them prior to being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while reducing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope maker and how much money you spent paying for it. Both are indications of the lens quality.
Some scope manufacturers also make it a point to specify if their optic lenses are coated or “multi” covered. This indicates the lens has had multiple treatments applied to them. If a lens gets multiple treatments, it can show that a maker is taking numerous steps to combat different environmental elements like an anti-glare covering, a scratch resistant anti-abrasion finish, followed by a hydrophilic finish. This also does not necessarily suggest the multi-coated lens will perform better than a single covered lens. Being “better” is dependent on the producer’s lens treatment technology and the quality of glass used in building the rifle glass.
Info on Anti-water Covering
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Many top of the line and military grade optic makers will coat their lenses with a hydrophilic or hydrophobic covering.
Rifle Glass Mounting Choices
Installing solutions for scopes can be found in a few options. There are the basic scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also normally come in quick release versions which use toss levers which allow rifle shooters to rapidly mount and dismount the scope.
Hex Key Optic Ring Mounting Solutions
Basic, clamp style mounting scope rings use hex head screws to install to the flattop design Picatinny scope mount rails on rifles. These forms of scope mounts use a pair of detached rings to support the scope, and are usually constructed from 7075 T6 billet aluminum which are developed for far away accuracy shooting. This type of scope mount is good for rifles which require a long lasting, unfailing mount which will not change despite how much the scope is moved about or jarring the rifle takes. These are the style of mounts you really want to have for a devoted scope system on a far away scouting or hard target interdiction long gun that will almost never need to be altered or adjusted. Blue 242 Loctite threadlocker can also be used on the scope mount’s screws to stop the hex screws from backing out after they are installed securely in place. An example of these mounting rings are the 30mm type made by Vortex Optics. The set generally costs around $200 USD
Quick-Release Cantilever Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly connect and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be swapped out if they all use a similar style mount. These types of mounts come in handy for rifles which are carried a lot, to remove the optic from the rifle for protection, or for scopes which are used between multiple rifles or are situationally focused.
Sealing and Gas Purging for Optic Tubes
Wetness inside your rifle scope can wreck a day on the range and your pricey optic by inducing fogging and developing residue inside of the scope tube. Many scopes protect against wetness from entering the optical tube with a system of sealing O-rings which are waterproof. Normally, these water-resistant optics can be immersed within 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be ample humidity prevention for basic use rifles, unless you anticipate taking your rifle on your motorboat and are concerned about the scope still performing if it is submerged in water and you can still retrieve the firearm.
Details on Rifle Optic Tube Gas Purging
Another component of avoiding the accumulation of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Since this area is currently taken up by the gas, the glass is less altered by condition changes and pressure differences from the external environment which might potentially permit water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
