Rifle Scope Product Details

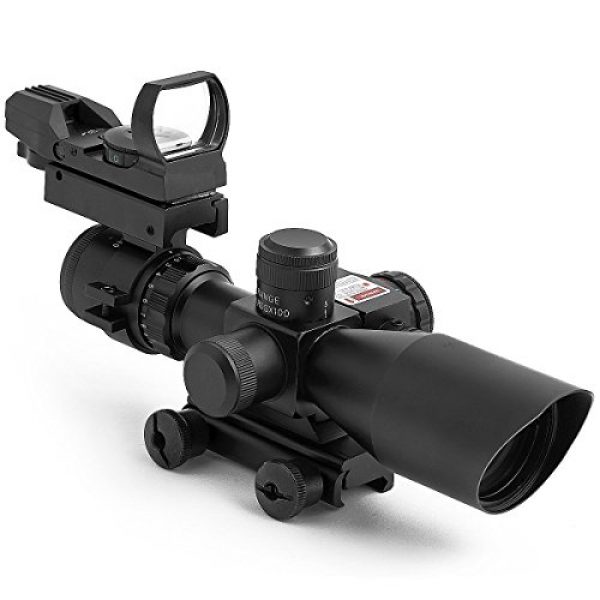

UUQ 2.5-10×40 Tactical Rifle Scope Dual Illuminated Mil-dot W/RED Laser Sight, Rail Mount and 4 Reticle Red/Green Dot Reflex Sight
UUQ 2.5-10X40 Rifle Scope with Integrated Red Laser and Red Dot Reflex Sight
This compact combo tactical rifle scope is well suited for close to mid-range shooting, with high optical clarity at 2.5-10X times magnification and a 40mm objective diameter. The reticle is illuminated in red or green and in multiple brightness intensities, for a suitable sight picture regardless of lighting or dark environment. The integrated powerful red(green) light sight and the detachable micro reflex dot sight allow for quick acquisition of close quarter and fast-moving targets.
Specifications:
2.5-10×40 rifle scope:
Dimensions:8.5″(length)x3″(width)x3″(height)
Weight:20.5 oz
Magnification:2.5x-10x
Obj. Diameter: 40mm
Brightness Control: Red-5 levels / Green-5 levels
Reticle: Mil-dot
Exit Pupil: 16mm @ 2.5x ; 4mm @10x
Field of View:100 yards of 32.5′ @ 2.5x – 8.9′ @10x
Eye Relief :101.6mm @ 2.5x ; 76.2mm @ 10x
Power:1 x CR2032 (included)
Red Laser Sight:
Laser Class: 3R(IIIa)
Maximum Output Power: 5 mw
Wave Frequency:650nm
Reaching Distance: 200 yard
Power: 3 X AG10 (included)
Tactical Red Dot Sight:
1X magnification
24-by-34-millimeter objective diameter
Four unique reticles
Three MOA dot size
One MOA click value
Ruby lens coating
4.2-ounce weight
Integrated weaver-style mount
UUQ is registered brand in US, we provide 12 months warranty and 7X24 online customer service. Please feel free to contact us for any inquiries or product issues.
Rifle Scope Product Features
About this item
UUQ 2.5-10 Magnification Rifle Scope with Red/Green illuminated Mil-dot Reticle and 40mm object lens.
Tubeless design with 33mm reflex lens aperture provides a wide field of view, suitable for normal and rapid-firing shooting of moving targets.
Tactical 4 Reticle Red/Green Dot Open Reflex Sight with Weaver-Picatinny Rail Mount for 20 mm Rails.
Integrated red laser sight, fully adjustable and independently controlled.
Multi-protection: Shockproof, Waterproof and Fogproof.
About the UUQ Scope Maker
UUQ is a premium supplier for firearm scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They create and supply their scopes, mounts, and related products by making the most of elements which are durable and long lasting. This includes the UUQ 2.5-10×40 Tactical Rifle Scope Dual Illuminated Mil-dot W/RED Laser Sight, Rail Mount and 4 Reticle Red/Green Dot Reflex Sight by UUQ. For additional shooting products, visit their site.
All About Rifle Optics
Rifle scopes allow you to specifically align a rifle at various targets by lining up your eye with the target at range. They do this through zoom by making use of a set of lenses within the scope. The scope’s positioning can be adjusted to account for separate natural things like wind and elevation to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are seeing via the optic as you align the scope’s crosshair or reticle with the target. The majority of contemporary rifle optics have about eleven parts which are found within and outside of the optic. These scope parts include the rifle scope’s body, lenses, windage dials or turrets, objective focus rings, and other elements. Learn about the eleven parts of rifle glass.
About Rifle Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The style of focal plane a scope has determines where the reticle or crosshair lies in relation to the scopes magnifying adjustments. It actually indicates the reticle is behind or before the magnification lens of the optic. Selecting the best type of rifle optic depends on what kind of shooting or hunting you intend on undertaking.
Info on First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These types of scopes are helpful for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where computations are small
- Experienced shooters who understand their target “hold over” plus “lead” ratios for their firearms
- Shooters who don’t mind the reticle is bigger and occupies more visual sight space than a SFP reticle
Second Focal Plane Scopes
Second focal plane scopes (SFP) include the reticle to the rear of the zoom lens. This triggers the reticle to stay at the very same overall size in connection with the amount of zoom being used. The effect is that the reticle measurements alter based upon the zoom applied to shoot over lengthier distances due to the fact that the reticle measurements present various increments which fluctuate with the zoom. In the FFP illustration with the SFP glass, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement. These styles of glass work for:
- Far away forms of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots take place within shorter spaces and ranges
- Shooters who select a clearer optic sight picture with less room used up by the bigger FFP reticle
About Rifle Scope Zoom
The quantity of scope zoom you need on your scope is based on the form of shooting you intend to do. Virtually every kind of rifle scope offers some level of magnification. The quantity of magnification a scope supplies is determined by the dimension, thickness, and curvatures of the lens glass inside of the rifle scope. The magnification of the scope is the “power” of the opic. This means what the shooter is observing through the scope is magnified times the power aspect of what can generally be seen by human eyes.
About Single Power Lens Rifle Scopes
A single power rifle scope uses a zoom number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not change given that it is a set power scope.
Adjustable Power Lens Glass
Variable power rifle scopes use variable power levels. The power modification is achieved by making use of the power ring part of the scope near the rear of the scope by the eye bell.
Scope Power and Range Correlation
Here are some advised scope powers and the distances where they can be successfully used. Highly magnified scopes will not be as useful as lower powered glass considering too much magnification can be a bad thing. The same applies to longer ranges where the shooter needs increased power to see precisely where to best aim the rifle.
Lens Finish for Scopes
All contemporary rifle optic lenses are covered in special coatings. There are different types and qualities of glass finishings. Lens coating can be a crucial aspect of a rifle’s setup when contemplating high-end rifle optics and targeting systems. The glass lenses are one of the most significant components of the glass considering that they are what your eye looks through while sighting a rifle in on the point of impact. The finishing on the lenses safeguards the lens surface area and helps with anti glare capabilities from excess sunlight and color presence.
ED Versus HD Rifle Glass
Some scope makers likewise use “HD” or high-definition lens finishings which use various procedures, components, polarizations, and chemicals to draw out separate colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Rifle Optic Lens Single Finishing Versus Multi-Coating
Various scope lenses can even have different finishings applied to them. All lenses generally have at least some type of treatment or coating applied to them prior to being used in a rifle scope or optic. This is since the lens isn’t just a raw piece of glass. It becomes part of the carefully tuned optic. It must have a covering placed on it so that the lens will be optimally functional in numerous types of environments, degrees of light (full VS shaded), and other shooting conditions.
This lens treatment can protect the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope manufacturer and how much you paid for it.
Some scope manufacturers also make it a point to define if their optic lenses are layered or “multi” coated. This means the lens has had multiple treatments applied to the surfaces. If a lens receives multiple treatments, it can prove that a maker is taking numerous actions to fight different natural elements like an anti-glare finishing, a scratch resistant anti-abrasion covering, followed by a hydrophilic finishing. This also doesn’t necessarily mean the multi-coated lens is much better than a single layered lens. Being “better” hinges on the maker’s lens treatment technology and the quality of materials used in building the rifle glass.
Anti-water Lens Finish
Water on a lens doesn’t help with maintaining a clear sight picture through a scope at all. Many top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic covering.
Options for Mounting Optics on Long Guns
Installing solutions for scopes come in a couple of options. There are the basic scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also usually come in quick release variations which use toss levers which permit rifle operators to rapidly mount and remove the scope.
Hex Key Rifle Optic Rings
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which are developed for long distance accuracy shooting. This type of scope install is excellent for rifles which require a resilient, sound mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Rifle Scope Mounts with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to rapidly attach and take off a scope from a rifle. If they all use a comparable design mount, multiple scopes can often be switched out. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach firmly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted while maintaining the original sighting settings. These kinds of mounts come in practical for shooting platforms which are hauled around a lot, to remove the optic from the rifle for protection, or for aiming systems which are utilized between numerous rifles. An example of this mount style is the 30mm mount designed by Vortex Optics. It typically costs around $250 USD
Sealing and Gas Purging for Rifle Glass Tubes
Wetness inside your rifle optic can mess up a day of shooting and your expensive optic by causing fogging and developing residue inside of the scope tube. The majority of scopes avoid wetness from going into the scope tube with a system of sealing O-rings which are water resistant.
Rifle Glass Gas Purging
Another element of avoiding the buildup of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Given that this space is already occupied by the gas, the scope is less affected by temp alterations and pressure variations from the external environment which might possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
