Rifle Scope Product Details

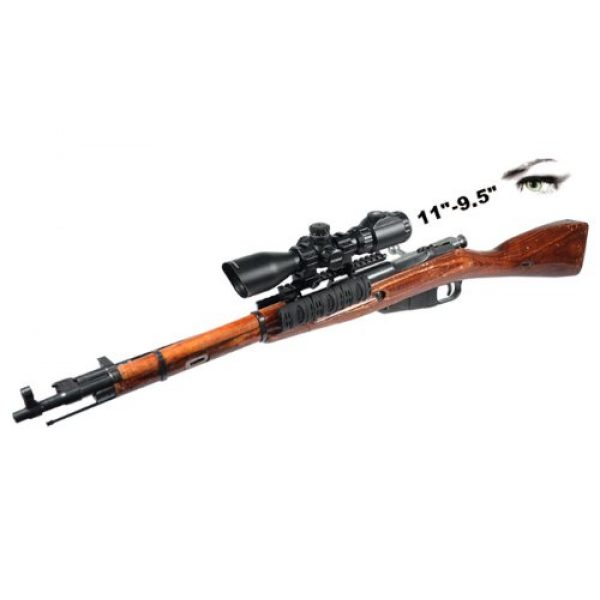

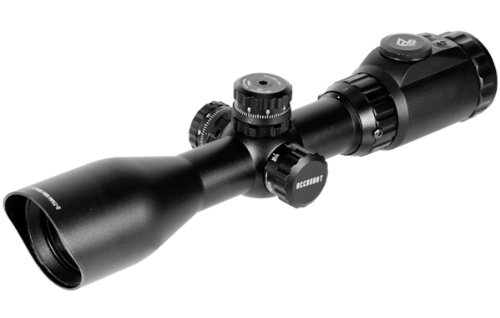

UTG 2-7X44 11″ – 9.5″ Long Eye Relief 30mm Scout Scope Glass Reticle
– Provides Amazing, True and Consistent Extended Eye Relief for Shooters to Effectively Use on Anything Where the Optics Cannot be Mounted Directly Above the Action
– Innovative EZ-TAP Illumination Enhancing (IE) System with RGB in Dual-Color Mode and 36
Rifle Scope Product Features
Eye Relief: 11″ – 9.5″
30mm 1 Piece Tube for Maximum Light Transmission
Built on True Strength Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
6 Mil-dot Tactical Range Estimating(TRE) Etched Glass Reticle for the Ultimate Performance

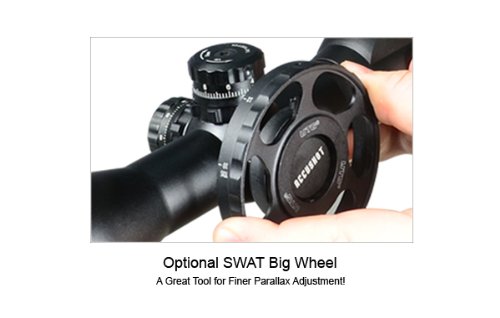

Side Wheel Adjustable Turret(SWAT) for Parallax Adjustment from “True 10 Yards” Up, and Ready to Accept Optional Big Wheel to Achieve Finer Parallax Adjustment
About the UTG Scope Maker
UTG is a premium company for rifle scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They create and build their mounts, scopes, and related products using elements which are resilient and long lasting. This includes the UTG 2-7X44 11″ – 9.5″ Long Eye Relief 30mm Scout Scope Glass Reticle by UTG. For more shooting items, visit their website.
All About Rifle Optics
Rifle scopes allow you to exactly align a rifle at various targets by lining up your eye with the target over a distance. They accomplish this through magnifying the target by employing a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of many ecological factors like wind speed and elevation increases to make up for bullet drop.
The scope’s function is to help shooters understand exactly where the bullet will hit based upon the sight picture you are viewing with the optic as you align the scope’s crosshair or reticle with the target. A lot of contemporary rifle scopes and optics have around 11 parts which are arranged internally and on the exterior of the scope. These scope parts include the rifle scope’s body, lenses, windage and elevation dials or turrets, objective focus rings, and other elements. See all eleven parts of optics.
About Scope Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The type of focal plane an optic has establishes where the reticle or crosshair is located in regard to the scopes zoom. It literally indicates the reticle is located behind or before the magnifying lens of the optic. Picking the most suitable type of rifle scope is dependent on what variety of hunting or shooting you intend on doing.
About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This causes the reticle to increase in size based upon the extent of zoom being used. The benefit is that the reticle measurements are the same at the amplified range as they are at the non magnified range. One tick on a mil-dot reticle at one hundred yards with no “zoom” is still the same tick at one hundred yards by using 5x “zoom”. These types of scopes work for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where computations are very little
- Experienced shooters who have an idea for their aim point “hold over” and also “lead” relationships for their weapon
- Shooters who do not mind the reticle is bigger and requires more visual eyesight space than a SFP reticle
Second Focal Plane Optic Details
Second focal plane optics (SFP) feature the reticle to the rear of the zoom lens. This triggers the reticle to stay at the exact same dimensions relative to the quantity of magnification being used. The end result is that the reticle measurements change based on the zoom chosen to shoot over greater ranges since the markings present various increments which fluctuate with the zoom level. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick measurement. These particular varieties of optics work for:
- Long distance types of shooting where shooters have increased time to make ballistic computations
- Shooting where most shots happen within much shorter ranges and spaces
- Shooters who desire a clearer optic sight picture without area taken up by the bigger FFP reticle
About Optic Magnification
The extent of scope zoom you need is based on the style of shooting you like to do. Practically every style of rifle glass provides some level of zoom. The quantity of magnification a scope offers is identified by the diameter, thickness, and curves of the lenses inside of the rifle optic. The zoom of the optic is the “power” of the scope. This means what the shooter is looking at through the scope is amplified times the power aspect of what can normally be seen by human eyes.
Fixed Power Lens Glass
A single power rifle scope will have a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not adjust considering that it is fixed.
About Adjustable Power Lens Scopes
Variable power rifle scopes have adjustable power. It will list the zoom degree in a configuration like 2-10×32. These numbers mean the magnification of the scope can be adjusted in between 2x and 10x power. This always utilizes the powers in-between 2 and 10. The power adaptation is accomplished by employing the power ring component of the scope near the back of the scope by the eye bell.
Rifle Scope Power and Range Correlation
Here are some advised scope powers and the distances where they can be successfully used. Bear in mind that high power glass will not be as practical as lower powered scope and optics due to the fact that increased magnification can be a detractor. The very same idea applies to extended ranges where the shooter needs enough power to see exactly where to best aim the rifle.
About Lens Coatings
All present day rifle glass lenses are coated. Lens covering can be an important element of a rifle when looking into high end rifle optics and scope equipment.
Details on Rifle Scope Lens Coatings – HD Versus ED
Some glass companies even use “HD” or high-def glass coverings which employ various procedures, chemicals, polarizations, and aspects to draw out a wide range of color ranges and viewable target definition through lenses. This high-definition finish is often used with higher density lens glass which decreases light’s chance to refract through the lens glass. Some scope vendors use “HD” to describe “ED” signifying extra-low dispersion glass. ED deals with how certain colors are presented on the chromatic spectrum and the chromatic aberration which is similarly called color distortion or fringing. Chromatic aberration is often obvious around items with defined shapes as light hits the object from various angles.
Single Covering Versus Multi-Coating
Various optic lenses can also have different finishings applied to them. All lenses generally have at least some type of treatment or coating applied to them before being used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope makers similarly make it a point to specify if their optic lenses are covered or “multi” coated. Being “better” depends on the producer’s lens treatment innovation and the quality of products used in building the rifle scope.
Hydrophobic Lens Finishes
Water on a lens does not help with keeping a clear sight picture through a scope at all. Lots of top of the line and military grade scope makers will coat their lenses with a hydrophobic or hydrophilic covering.
Optic Installing Options
Mounting approaches for scopes come in a few options. There are the standard scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These different types of mounts also normally come in quick release variations which use toss levers which allow rifle shooters to quickly mount and remove the scopes.
Hex Key Rifle Optic Ring Mounts
Basic, clamp-on type mounting scope rings use hex head screws to install to the flattop style Picatinny scope mounting rails on the tops of rifles. These types of scope mounts use double separate rings to support the optic, and are usually constructed from 7075 T6 billet aluminum or similar materials which are developed for long distance accuracy shooting. This type of scope mount is great for rifles which are in need of a long lasting, rock solid mount which will not shift no matter how much the scope is moved about or abuse the rifle takes. These are the design of mounts you should have for a faithful scope setup on a long distance hunting or hard target interdiction long gun which will rarely need to be changed or adjusted. Blue 242 Loctite threadlocker can additionally be used on the scope mount’s screws to keep the hex screw threads from wiggling out after they are installed firmly in position. An example of these mounting rings are the 30mm style from Vortex Optics. The set typically costs around $200 USD
Quick-Release Cantilever Rifle Scope Ring Mounting Solutions
These kinds of quick-release rifle scope mounts can be used to rapidly connect and remove a scope from a rifle. Several scopes can also be swapped out if they all use a similar designed mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten securely to a flat top style Picatinny rail. This lets the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while maintaining accuracy. These types of mounts are useful and handy for rifles which are transferred between vehicles a lot, to remove the optic from the rifle for protection, or for optics which are adopted in between a number of rifles. An example of this mount style is the 30mm mount from the Vortex Optics manufacturer. It typically costs around $250 USD
Optic Tube Sealing and Gas Purging
Moisture inside your rifle scope can destroy a day of shooting and your pricey optic by bringing about fogging and producing residue inside of the scope tube. Most scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are water resistant.
Info Around Optic Tube Gas Purging
Another part of preventing the buildup of moisture within the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this area is currently taken up by the gas, the glass is less influenced by condition shifts and pressure distinctions from the outside environment which might potentially enable water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
