Description
Rifle Scope Product Details

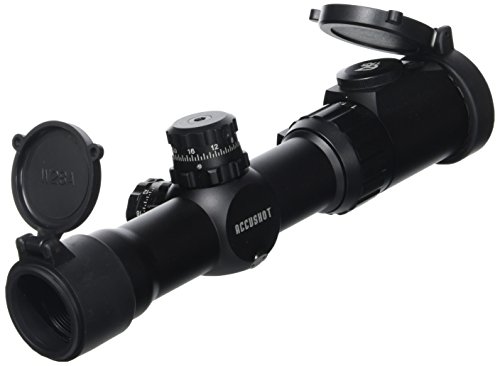

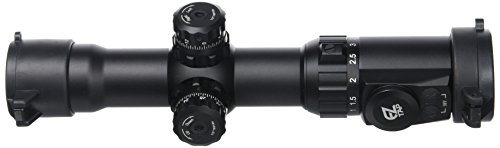

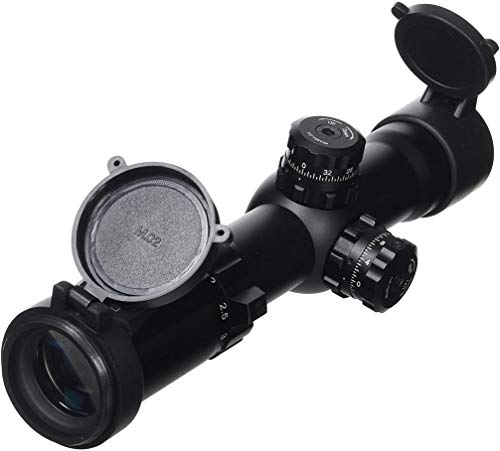

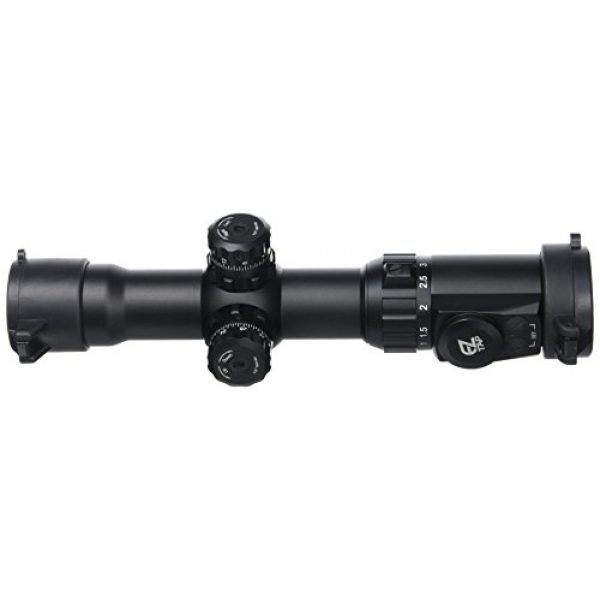

UTG 1-4.5X28 30mm CQB Scope, 36-color Glass Mil-dot,QD Rings
AccuShot 1-4.5X28 30mm CQB Scope, TS Platform, Angled Obj., No AO, Etched Glass Mil-dot reticle, EZ-TAP Illumination Enhancing 36 Colors, Multi Emerald Lens Coating, Zero Lock/Reset W/E, Pre-adj@100Yds, RQ2W3104 Lever Lock QD Rings & Flip-open Lens Cover.
Rifle Scope Product Features
TS Platform with Shockproof, Fogproof and Rainproof; Tact Edge Angled Integral Sunshade; Include QD Low Profile Rings and Flip-open Lens Caps
Emerald Coated Lenses, Etched Glass Mil-dot Reticle; Ideal for Both Quick CQB Field Action and Precision Aiming; Parallax Preset at 100Yds

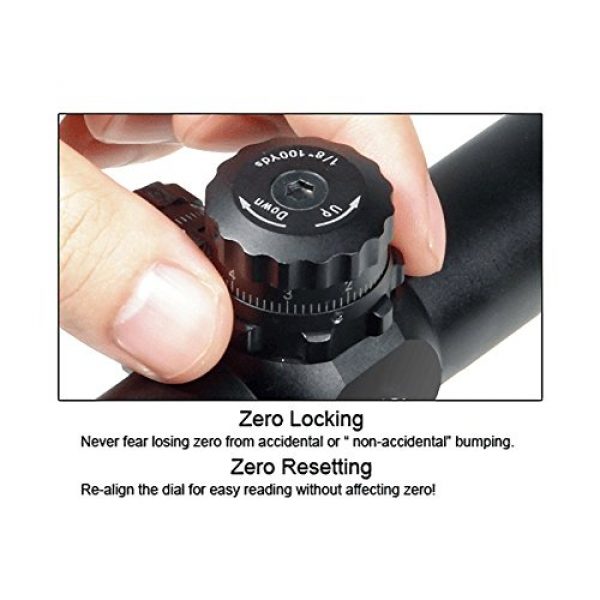

Premium Zero Locking and Resetting Target Turrets with Most Consistent and Precise 1/2 MOA per Click Windage/Elevation Adjustment
Patented Illumination Enhancing (IE) System with Dual-Color Mode and 36-Color Mode to Accommodate All Weather/Light Conditions
1-Click Illumination Memory Gets You Right Back to the Color and Brightness Setting Last Used
About the Accu-Shot Company
Accu-Shot is a premium company for long gun scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They create and make their mounts, scopes, and related products choosing materials which are durable and long lasting. This includes the UTG 1-4.5X28 30mm CQB Scope, 36-color Glass Mil-dot,QD Rings by Accu-Shot. For additional shooting items, visit their site.
Info About Rifle Optics
Rifle scopes permit you to specifically aim a rifle at different targets by aligning your eye with the target over a distance. They accomplish this through magnification by making use of a set of lenses inside the scope. The scope’s alignment can be adjusted for consideration of numerous environmental factors like wind and elevation decreases to make up for bullet drop.
The scope’s purpose is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are seeing with the scope as you line up the scope’s crosshair or reticle with the target. The majority of modern rifle scopes have around 11 parts which are found internally and outside of the scope. These optic pieces consist of the rifle scope’s body, lenses, windage and elevation turrets, focus rings, and other components. Learn about the eleven parts of glass.
About Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The type of focal plane a scope has identifies where the reticle or crosshair lies in relation to the scopes magnifying adjustments. It actually indicates the reticle is located behind or in front of the magnification lens of the scope. Considering the best style of rifle glass depends on what sort of shooting or hunting you anticipate undertaking.
First Focal Plane Scope Info
First focal plane optics (FFP) include the reticle in front of the magnifying lens. This triggers the reticle to increase in size based upon the amount of zoom being used. The benefit is that the reticle measurements are the same at the magnified range as they are at the non amplified distance. As an example, one tick on a mil-dot reticle at one hundred yards without having “zoom” is still the exact same tick at one hundred yards with 5x “zoom”. These kinds of scopes work for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are very little
- Experienced shooters who have an idea for their aim point “hold over” as well as “lead” ratios for their rifles
- Shooters who don’t mind the reticle is enlarged and takes up more visual sight room than a SFP reticle
Second Focal Plane Scopes
Second focal plane scopes (SFP) come with the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick.
- Far away forms of shooting where shooters have increased time to make ballistic computations
- Shooting where most of the shots take place within shorter ranges and spaces
- Shooters who would like a clearer optic picture without room taken up by the enlarged FFP reticle
Magnification for Rifle Scopes
The quantity of scope magnification you need on your glass depends on the type of shooting you wish to do. Virtually every style of rifle glass provides some amount of zoom. The volume of zoom a scope gives is determined by the diameter, density, and curves of the lenses inside of the rifle optic. The magnification level of the optic is the “power” of the glass. This signifies what the shooter is aiming at through the scope is amplified times the power aspect of what can typically be seen by human eyes.
Single Power Lens Optics
A single power rifle optic will have a magnification number designator like 4×32. This implies the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of optic can not change because it is fixed.
Adjustable Power Lens Rifle Glass
Variable power rifle scopes can be tweaked between magnified levels. The power change is performed by the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range Correlations
Here are some recommended scope power levels and the ranges where they could be successfully used. High power optics will not be as effective as lower magnification glass considering too much zoom can be a bad thing. The very same idea relates to extended distances where the shooter needs increased power to see precisely where to best aim the rifle.
Info on Glass Lens Coatings
All state-of-the-art rifle scope and optic lenses are coated. Lens covering is a crucial aspect of a shooting system when looking into high end rifle optics and scope setups.
HD Versus ED Rifle Scope Lens Coatings
Some scope makers also use “HD” or high-definition lens finishings which use different procedures, polarizations, aspects, and chemicals to draw out different colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Covering Versus Multi-Coating for Rifle Glass
Different optic lenses can likewise have different finishings applied to them. All lenses normally have at least some type of treatment or finish applied to them before they are used in a rifle scope or optic.
This lens treatment can safeguard the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope producer and how much you paid for it.
Some scope producers similarly make it a point to define if their optic lenses are layered or “multi” coated. Being “much better” depends on the producer’s lens treatment innovation and the quality of materials used in constructing the rifle scope.
Details on Hydrophobic Coating
Water on a lens does not help with preserving a clear sight picture through a scope at all. Many top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic finishing.
Rifle Glass Installing Choices

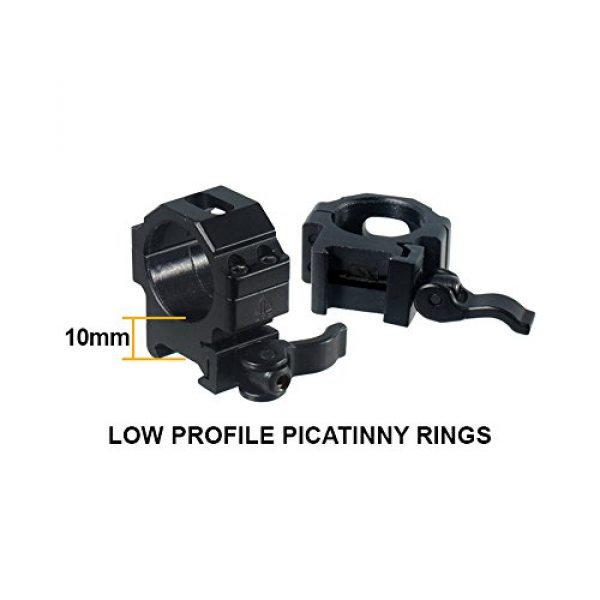

Mounting options for scopes can be found in a few choices. There are the basic scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These different types of mounts also normally can be found in quick release variations which use manual levers which permit rifle operators to quickly mount and remove the optics.
Optic Mounting Solutions with Hex Key Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which are designed for long distance accuracy shooting. This type of scope install is excellent for rifles which need a long lasting, sound mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Glass Rings
These kinds of quick-release rifle scope mounts can be used to quickly take off a scope from a rifle and reattach it to a different rifle. Several scopes can also be swapped out if they all use a similar designed mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach firmly to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while retaining accuracy. These kinds of mounts are useful and beneficial for rifles which are transported a lot, to remove the optic from the rifle for protection, or for sight systems which are used between a number of rifles. An example of this mount type is the 30mm mount from the Vortex Optics manufacturer. It normally costs around $250 USD
Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle optic can destroy a day on the range and your highly-priced optic by resulting in fogging and developing residue inside of the scope tube. Many scopes prevent wetness from getting in the scope tube with a series of sealing O-rings which are waterproof. Typically, these water-resistant optics can be submerged underneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be sufficient moisture content prevention for conventional use rifles, unless you anticipate taking your rifle sailing and are worried about the optic still performing if it goes overboard and you can still recover the rifle.
Info on Rifle Glass Tube Gas Purging
Another part of avoiding the accumulation of moisture inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this area is currently occupied by the gas, the glass is less altered by condition alterations and pressure distinctions from the external environment which could possibly allow water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
