Rifle Scope Product Details

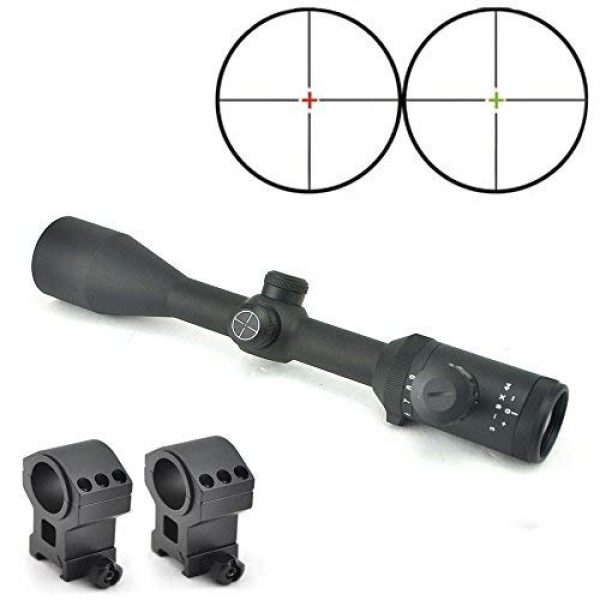

TOTEN Rifle Scope 3-9X44L Gun Scope with Picatinny 21mm Mounting Rings Hunting Scope for Viewing
Descriptions:
The Toten 3-9×44 L riflescope is one piece with black matte finish.
And it features illuminated Crosshair reticle, multi-coated optics.
With full filled Nitrogen, this 3-9×44 L riflescope is totally waterproof, frogproof and shockproof.
It is ideal for faster target acquisition in low light conditions and all kinds of weather.
Specifications:
Magnification: 3-9X
Objective Lens Diameter (mm): 44mm
Ocular Lens Diameter (mm): 34mm
Field of View at 100yads: 40.3ft-13.8ft
Exit Pupil (mm): 14.7-4.9mm
Eye Relief (inch): 4.75-5.50
Reticle: Glass-etched Illuminated Crosshair
Parallax: 0.25
Click Value (inch): 0.25MOA
Tube Diameter (inch):1 inch(25.4mm)
Weight (g): 650g
Length (mm): 320mm
Waterproof: Yes
Fogproof: Yes
Battery:CR2032 3V(No include)
Shockproof: 1000G
Coated: FMC
Finish: Black matte
Nitrogen: Full filled Nitrogen
Features:
Illuminated Red/Green offer the clearest view for easy target acquisition in both bright and low light situations.
Nitrogen filling to prevent fogging on the inner lens surfaces.
One piece high grade aluminum tube body for superior ruggedness.
Finger touch adjustments for windage & elevation
Excellent image quality.
Anti-reflection baffles.
Fast focus eyepiece.
Superior coil spring system.
Rifle Scope Product Features
Magnification: 3-9X
Eye Relief (inch): 4.75-5.50
Ocular Lens Diameter (mm): 34mm
Field of View at 100yads: 40.3ft-13.8ft
Objective Lens Diameter (mm): 44mm
About the TOTEN Company
TOTEN is a premium producer for weapon scopes, optics, mounting solutions, and other add-ons used for guns like rifles and long guns. They style and supply their mounts, scopes, and related products by choosing materials which are long lasting and durable. This includes the TOTEN Rifle Scope 3-9X44L Gun Scope with Picatinny 21mm Mounting Rings Hunting Scope for Viewing by TOTEN. For additional shooting items, visit their site.
Information About Glass
Rifle scopes allow you to exactly align a rifle at various targets by lining up your eye with the target over a distance. They do this through magnifying the target using a set of lenses inside the scope. The scope’s positioning can be adapted to take into account different ecological factors like wind speed and elevation to account for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based on the sight picture you are seeing through the optic as you line up the scope’s crosshair or reticle with the intended point of impact. Most modern rifle scopes and optics have about 11 parts which are located inside and externally on the optic. These parts include the rifle scope’s body, lenses, elevation dials or turrets, focus rings, and other components. See all eleven parts of scopes.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Picking the best type of rifle scope depends on what type of shooting you plan to do.
About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This induces the reticle to increase in size based upon the level of zoom being used. The outcome is that the reticle measurements are the same at the enhanced distance as they are at the non amplified range. For example, one tick on a mil-dot reticle at one hundred yards with no “zoom” is still the same tick at one hundred yards using 5x “zoom”. These types of scopes work for:
- Quick acquisition, far away types of shooting
- Shooting situations where calculations are very little
- Experienced shooters who understand their aim point “hold over” as well as “lead” equations for their weapon
- Shooters who do not mind the reticle is bigger and uses up more visual eyesight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick.
- Far away kinds of shooting where shooters have extra time to make ballistic computations
- Shooting where most shots take place within shorter ranges and proximities
- Shooters who like a clearer optic picture with less room taken up by the larger sized FFP reticle
Magnification for Rifle Optics
The level of scope magnification you need on your glass depends on the kind of shooting you wish to do. Almost every kind of rifle optic provides some level of magnification. The volume of zoom a scope provides is identified by the dimension, thickness, and curvatures of the lens glass within the rifle optic. The magnification of the scope is the “power” of the scope. This indicates what the shooter is aiming at through the scope is magnified times the power element of what can typically be seen by human eyes.
About Fixed Power Lens Glass
A single power rifle optic uses a zoom number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of optic can not fluctuate considering that it is a set power scope.
Variable Power Lens Scopes
Variable power rifle scopes can be tweaked between magnified levels. The power adjustment is achieved by the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range of Rifle Glass
Here are some suggested scope power levels and the distances where they could be effectively used. Always remember that higher magnification scopes and optics will not be as practical as lower powered scope and optics because too much zoom can be a bad thing. The same applies to longer ranges where the shooter needs to have sufficient power to see where to best aim the rifle.
Info on Lens Finishes
All modern rifle scope lenses are covered in special coatings. There are different types and qualities of glass finishes. When thinking about luxury rifle scope units, Lens finishing can be a vital aspect of defining the rifle’s capability. The glass lenses are one of the most essential parts of the scope given that they are what your eye sees through while sighting a rifle in on the target. The finish on the lenses safeguards the lens surface and even assists with anti glare from refracted sunrays and color perception.
HD Versus ED Lens Coatings
Some glass makers also use “HD” or high-def glass finishings which make the most of different processes, polarizations, components, and chemicals to enhance numerous color ranges and viewable definition through the lens. This high-definition covering is typically used with increased density glass which decreases light’s potential to refract through the lens glass. Some scope makers use “HD” to refer to “ED” signifying extra-low dispersion glass. ED handles how colors are represented on the chromatic spectrum and the chromatic aberration which is similarly called color distortion or fringing. Chromatic aberration can be noticeable over objects with defined outlines as light hits the item from particular angles.
Single Finishing Versus Multi-Coating
Different optic lenses can also have different coverings used to them. All lenses usually have at least some type of treatment or covering used to them before they are used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends upon the scope company and how much you spent on it. Both the make and cost are signs of the lens quality.
Some scope manufacturers also make it a point to specify if their optic lenses are covered or “multi” covered. This suggests the lens has several treatments applied to the surfaces of the glass. If a lens receives several treatments, it can establish that a company is taking numerous actions to combat various environmental elements like an anti-glare covering, a scratch resistant anti-abrasion finish, followed by a hydrophilic covering. This additionally does not necessarily imply the multi-coated lens will perform much better than a single covered lens. Being “better” is dependent on the producer’s lens treatment solutions and the quality of glass used in building the rifle optic.
What to Know About Anti-water Coating
Water on a scope’s lens does not help with preserving a clear sight picture through an optic at all. Numerous top of the line or premium scope producers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a fine example of this type of treatment. It deals with the exterior of the Steiner optic lens so the H2O particles can not bind to it or create surface tension. The result is that the water beads move off of the scope to preserve a clear, water free sight picture.
Glass Installation Alternatives
Mounting solutions for scopes are available in a few options. There are the standard scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These various types of mounts also typically are made in quick release versions which use throw levers which enable rifle shooters to rapidly mount and remove the scopes.
Glass Mounting Solutions with Hex Key Rings
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use a couple of separate rings to support the optic, and are made from 7075 T6 billet aluminum which is developed for long range accuracy shooting. This type of scope mount is excellent for rifles which require a long lasting, sound mounting solution which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Scope Ring Mounts
These kinds of quick-release rifle scope mounts can be used to rapidly take off a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a complementary designed mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach securely to a flat top type Picatinny rail. This lets the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while maintaining accuracy. These kinds of mounts come in convenient for rifles which are shipped a lot, to take off the optic from the rifle for protection, or for sight systems which are utilized between multiple rifles. An example of this mount style is the 30mm mount designed by Vortex Optics. It generally costs around $250 USD
Sealing and Gas Purging for Scope Tubes
Wetness inside your rifle optic can ruin a day of shooting and your costly optic by bringing about fogging and producing residue inside of the scope tube. Many scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are water resistant.
Glass Gas Purging
Another part of avoiding the accumulation of moisture within the rifle optic tube is filling the tube with a gas like nitrogen. Because this area is already occupied by the gas, the scope is less influenced by climate shifts and pressure variations from the outdoor environment which might possibly enable water vapor to seep in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
