Rifle Scope Product Details

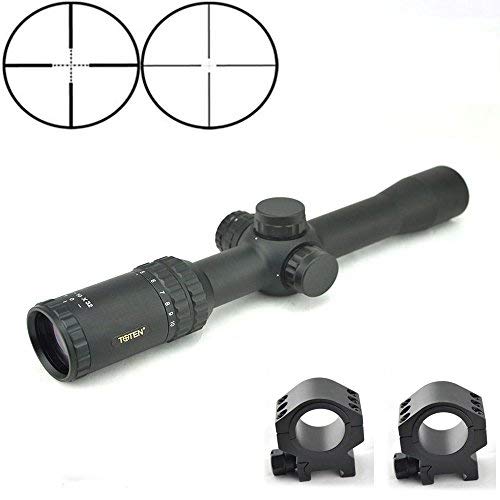

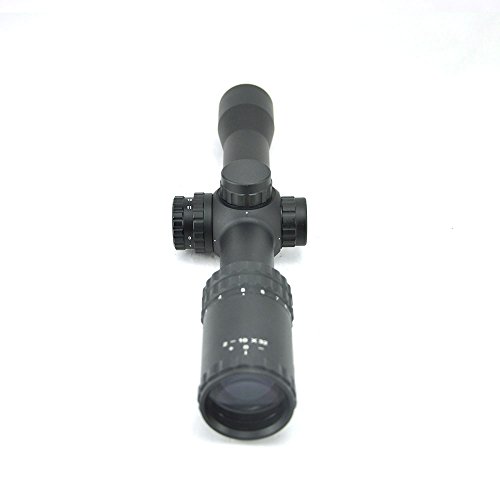

TOTEN Rifle Scope 2-10x32QZ +VDK Hunting Scope with Mount Ring Gun Scope for Hunting
Item Description:
The TOTEN 2-10×32 riflescope is a first focal plane rifle scope
It uses cutting edge glass and lens coatings to ensure that it is the most accurate tactical instrument on the market.
Precision multi-coated optics are the distinguishing feature of the TOTEN tactical riflescope line
Multicoated lenses offer the clearest view for easy target acquisition in both bright and low light situations
Both waterproof and fog proof, the nitrogen filled,
Elevation and focusing adjustment knobs for easy adjustment in the field Shock proof
Water Proof and Fog Proof (Nitrogen Purged), high-durability aluminum alloy in black matte.
Specification:
Magnification: 2X-10X
Objective lens: 32mm
Coating: FMC Green
Field of View: 42FT~ 10.2FT@100YARDS
Exit Pupil (mm): 16-3.2mm
Eye Relief (inch): 4.4-3.75
Resolution: 15″
Finish: Matte black
Waterproof: Yes
Battery: CR2032 3V(No include)
Nitrogen: Full filled Nitrogen
Tube Diameter: 30MM
Click Value: 0.25″
Parallax: +0.22SD ~ -0.22SD
Reticle: Glass-etched Mil-dot
Weight: 860g
Length: 300mm
Shockresistant: 1500G
Features:
–Unprecedented Precision accuracy
–First Focal Plane reticle
–Extra Wide field of view
–Fully multicoated optics offer the clearest view for both bright and low light situations
–1/4″/click Turret
–one-piece 30mm high grade aluminum tube for superior ruggedness
–Lightweight and compact construction
–Waterproof/fogproof/O-ring sealed and full nitrogen filled
Rifle Scope Product Features
Magnification: 2X-10X
Objective lens: 32mm
Eye Relief (inch): 4.4-3.75
Exit Pupil (mm): 16-3.2mm
Field of View: 42FT~ 10.2FT@100YARDS
About the TOTEN Manufacturer
TOTEN is a premium maker for firearm scopes, optics, mounting solutions, and other add-ons used for guns like rifles and long guns. They create and make their scopes and related products choosing elements which are long lasting and durable. This includes the TOTEN Rifle Scope 2-10x32QZ +VDK Hunting Scope with Mount Ring Gun Scope for Hunting by TOTEN. For additional shooting products, visit their website.
Scope Facts
Rifle scopes enable you to precisely align a rifle at various targets by aligning your eye with the target at range. They accomplish this through magnification by employing a series of lenses inside the scope. The scope’s alignment can be adapted to account for varied natural elements like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to understand precisely where the bullet will land based on the sight picture you are viewing through the optic as you line up the scope’s crosshair or reticle with the target. The majority of modern-day rifle scopes and optics have around eleven parts which are located inside and outside of the scope. These parts consist of the rifle scope’s body, lenses, windage and elevation turrets or dials, focus rings, and other elements. Learn about the eleven parts of rifle scopes.
Rifle Scope Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The style of focal plane an optic has identifies where the reticle or crosshair is located in regard to the optic’s magnification. It actually implies the reticle is situated behind or in front of the magnification lens of the scope. Deciding upon the best kind of rifle optic is dependent on what form of shooting or hunting you anticipate doing.
About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These kinds of scopes are helpful for:
- Quick acquisition, long distance types of shooting
- Shooting scenarios where computations are low
- Experienced shooters who have an idea for their target “hold over” plus “lead” equations for their weapon
- Shooters who do not mind the reticle is enlarged and uses up more visual eyesight area than a SFP reticle
Second Focal Plane Scope Facts
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. This induces the reticle to remain at the same scale relative to the level of zoom being used. The final result is that the reticle measurements change based upon the magnification used to shoot over greater distances because the reticle measurements present different increments which differ with the magnification. In the FFP example with the SFP optic, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick measurement. These particular sorts of optics work for:
- Long distance forms of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots occur within much shorter spaces and ranges
- Shooters who want a clearer optic picture with less room used up by the larger sized FFP reticle
Details on Rifle Glass Zoom
The quantity of zoom a scope supplies is determined by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Power Lens Rifle Optics
A single power rifle scope will have a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of scope can not adjust considering that it is a set power scope.
About Adjustable Power Lens Scopes
Variable power rifle scopes can be adjusted between magnification increments. These types of scopes will note the zoom degree in a format such as 2-10×32. These numbers indicate the zoom of the scope can be changed in between 2x and 10x power. This always incorporates the powers in-between 2 and 10. The power manipulation is accomplished by applying the power ring part of the scope near the back of the scope by the eye bell.
Power Levels and Range Correlations
Here are some suggested scope power settings and the distances where they may be effectively used. High power optics will not be as efficient as lower powered glass because too much zoom can be a bad thing. The exact same concept goes for longer distances where the shooter needs to have increased power to see exactly where to best aim the rifle.
Rifle Glass Lens Covering
All cutting-edge rifle glass lenses are coated. Lens covering can be an essential aspect of a shooting system when purchasing high end rifle optics and scope setups.
Details on Lens Coatings – HD Versus ED
Some rifle scope producers even use “HD” or high-def glass finishings that apply different processes, components, compounds, and polarizations to draw out numerous color ranges and viewable target visibility through lenses. This high-def covering is commonly used with increased density lens glass which brings down light’s chance to refract through the lens glass. Some scope makers use “HD” to refer to “ED” indicating extra-low dispersion glass. ED deals with how colors are represented on the chromatic spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration is often noticeable around items with defined outlines as light hits the object from specific angles.
Single Finishing Versus Multi-Coating for Optics
Different scope lenses can even have various finishes applied to them. All lenses usually have at least some kind of treatment or finish applied to them before they are used in a rifle scope or optic assembly. This is because the lens isn’t simply a raw piece of glass. It becomes part of the carefully tuned optic. It requires a coating to be applied to it so that it will be efficiently functional in lots of types of environments, degrees of sunshine (full VS shade), and other shooting conditions.
Single layered lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends upon the scope maker and just how much you paid for it. Both are indications of the lens quality.
Some scope producers similarly make it a point to define if their optic lenses are covered or “multi” covered. Being “much better” depends on the producer’s lens treatment technology and the quality of products used in constructing the rifle scope.
About Anti-water Covering
Water on a lens doesn’t help with keeping a clear sight picture through a scope at all. Lots of top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic finishing.
Rifle Glass Mounting Options
Mounting approaches for scopes come in a few choices. There are the standard scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also typically are made in quick release versions which use throw levers which permit rifle shooters to rapidly install and dismount the scope.
Rifle Scope Mounting Solutions with Hex Key Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long range precision shooting. This type of scope install is great for rifles which need a durable, sound mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly connect and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be switched out if they all use a similar style mount. These types of mounts are handy for rifles which are transferred a lot, to swap out the optic from the rifle for protecting the scope, or for scopes which are used in between numerous rifles.
Info Around Optic Tube Sealing and Gas Purging
Wetness inside your rifle scope can wreck a day on the range and your expensive optic by triggering fogging and generating residue within the scope’s tube. Most scopes protect against moisture from getting in the scope tube with a series of sealing O-rings which are water resistant. Typically, these optics can be immersed underneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be plenty of moisture content prevention for basic use rifles for hunting and sporting purposes, unless you anticipate taking your rifle boating and are worried about the optic still performing if it is submerged in water and you can still salvage the gun.
Info Around Optic Tube Gas Purging
Another component of avoiding the accumulation of moisture inside of the rifle optic tube is filling the tube with a gas like nitrogen. Since this space is already occupied by the gas, the optic is less affected by climate alterations and pressure differences from the outside environment which could possibly allow water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
