Rifle Scope Product Details

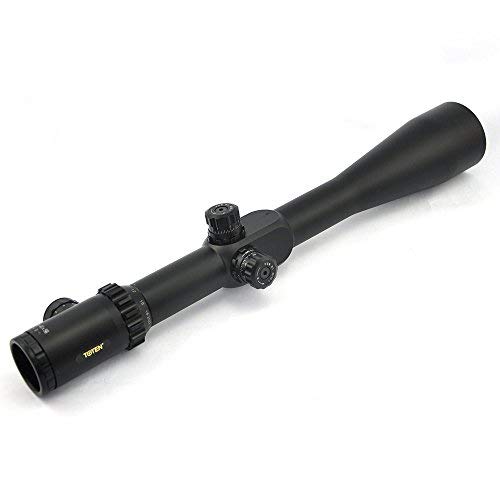

TOTEN Rifle Scope 10-40X56T Gun Scope with 11 mm Dovetail Mounting Rings for Viewing
Descriptions:
When most of other scopes are 25.4mm or 30 mm tube
Toten makes revolutionary 35mm maintube for extreme distance target.
It is 10x-40×56,Features 35mm body, 56mm Primary Objective, Side Focus,full multi-multicoated optics
Locking windage and elevation turrets with 1/8″ MOA clicks
Optimizes the transmission of low-light wavelengths
So you see the details of low-light scenes in brighter detail than any other riflescope.
The illuminated reticle of Toten 10-40×56 has a good brightness range
So you can use it in low light and also can see it on a bright day.
Toten 10-40×56 35mm Rifle scope was exhibited in 2011 IWA & Outdoorclassic.
It is 100% Waterproof and Fogproof.
Specifications:
Magnification: 10-40X
Objective lens: 56mm
Coating: FMC Green
Field of View(ft@100yds): 10~ 2.5
Finish: Matte black
Waterproof: Yes
fogproof: Yes
Shockproof: 3000g
Battery: CR2032 3V(No include)
Nitrogen: Full filled Nitrogen
Tube Diameter: 35MM
Click Value: 1/8 MOA
Parallax: +0.125SD ~ -0.125SD
Side Focus: 12 ~infinity
Reticle: Glass-etched Illuminatied Military Reticle
Features:
Nitrogen filling to prevent fogging on the inner lens surfaces.
Super high shock resistant(3000g),can be used to shot 12.7mm(.50) bullet
Durable Scope Cover included to protect rifle scope in transport or when not in use.
Rugged and absolutely waterproof in all conditions.
Covered by the Toten 5 year Guarantee.
Rifle Scope Product Features
Magnification: 10-40X
Objective lens: 56mm
Click Value: 1/8 MOA
Tube Diameter: 35MM
Field of View(ft@100yds): 10~ 2.5
About the TOTEN Brand
TOTEN is a premium supplier for rifle scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They design and manufacture their mounts and related products by applying materials which are long lasting and resilient. This includes the TOTEN Rifle Scope 10-40X56T Gun Scope with 11 mm Dovetail Mounting Rings for Viewing by TOTEN. For additional shooting items, visit their site.
Rifle Glass Info
Rifle scopes allow you to specifically aim a rifle at different targets by lining up your eye with the target at range. They accomplish this through magnifying the target using a series of lenses within the scope. The scope’s alignment can be dialed in to take into account many ecological factors like wind and elevation to account for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will land based on the sight picture you are seeing through the optic as you align the scope’s crosshair or reticle with the intended point of impact. Most contemporary rifle optics have about eleven parts which are arranged internally and on the exterior of the scope body. These parts include the rifle scope’s body, lenses, elevation turrets or dials, focus rings, and other elements. See all eleven parts of a rifle optical system.
Rifle Glass Types
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The kind of focal plane an optic has establishes where the reticle or crosshair is located in regard to the optic’s zoom. It literally indicates the reticle is located behind or before the magnification lens of the scope. Considering the best type of rifle scope is based upon what variety of hunting or shooting you plan on doing.
First Focal Plane Optics
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are useful for:
- Quick acquisition, far away types of shooting
- Shooting situations where estimations are very little
- Experienced shooters who recognize their target “hold over” plus “lead” ratios for their long gun
- Shooters who do not mind the reticle is bigger and takes up more visual sight room than a SFP reticle
About Second Focal Plane Scopes
Second focal plane glass (SFP) feature the reticle to the rear of the zoom lens. This induces the reticle to stay at the exact same dimensions in relation to the volume of zoom being used. The end result is that the reticle measurements adjust based on the magnification chosen to shoot over greater ranges considering that the markings represent different increments which vary with the magnification. In the FFP illustration with the SFP glass, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These varieties of optics work for:
- Far away types of shooting where shooters have more time to make ballistic estimations
- Shooting where most shots take place within much shorter distances and ranges
- Shooters who want a clearer optic sight picture without room taken up by the larger sized FFP reticle
About Glass Magnification
The level of scope magnification you need on your scope is based on the type of shooting you intend to do. Almost every kind of rifle glass gives some level of zoom. The level of magnification a scope supplies is determined by the size, thickness, and curves of the lenses inside of the rifle optic. The magnification of the optic is the “power” of the scope. This signifies what the shooter is aiming at through the scope is amplified times the power element of what can usually be seen by human eyes.
Info on Fixed Single Power Lens Rifle Scopes
A single power rifle scope uses a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of optic can not change considering that it is a set power scope.
Variable Power Lens Glass
Variable power rifle scopes can be changed between magnification levels. These types of scopes will list the magnification degree in a format like 2-10×32. These numbers indicate the magnification of the scope can be changed between 2x and 10x power. This always includes the power levels in-between 2 and 10. The power adjustment is accomplished by operating the power ring component of the scope near the back of the scope by the eye bell piece.
The Power Level and Range Correlation of Optics
Here are some recommended scope power settings and the distances where they could be effectively used. Bear in mind that higher power scopes and optics will not be as efficient as lower powered optics and scopes since too much zoom can be a detractor. The exact same concept relates to extended distances where the shooter needs to have increased power to see exactly where to best aim the rifle at the target.
Info on Rifle Optic Lens Finishes
All modern rifle optic lenses are coated. There are various types and qualities of glass coverings. When shopping for high end rifle targeting systems, Lens finishing can be a significant element of defining the capability of the rifle. The lenses are among the most crucial parts of the scope due to the fact that they are what your eye looks through while sighting a rifle in on the target. The finishing on the lenses safeguards the lens surface area and even assists with anti glare from excess sunlight and color recognition.
HD Versus ED Rifle Optic Lens Coatings
Some scope producers likewise use “HD” or high-definition lens coatings which use different processes, elements, chemicals, and polarizations to draw out separate colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
About Single Coating Versus Multi-Coating
Different optic lenses can likewise have various coatings applied to them. All lenses generally have at least some type of treatment or finishing applied to them prior to being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is typically a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends on the scope manufacturer and how much you spent on it. Both the make and cost are signs of the lens quality.
Some scope producers also make it a point to define if their optic lenses are covered or “multi” covered. This means the lens has several treatments applied to them. If a lens gets several treatments, it can show that a producer is taking multiple actions to fight various environmental factors like an anti-glare finishing, a scratch resistant anti-abrasion covering, followed by a hydrophilic coating. This also doesn’t necessarily imply the multi-coated lens will perform much better than a single coated lens. Being “better” hinges on the maker’s lens treatment solutions and the quality of materials used in building the rifle optic.
What to Know About Hydrophobic Coating
Water on a lens doesn’t help with keeping a clear sight picture through a scope at all. Many top of the line and high-end scope companies will coat their lenses with a hydrophobic or hydrophilic anti-water finishing.
Choices for Mounting Rifle Glass on Firearms
Installing options for scopes can be found in a few options. There are the standard scope rings which are individually installed to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also generally can be found in quick release variations which use throw levers which enable rifle operators to rapidly install and remove the glass.
Glass Mounts with Hex Key Rings
Standard, clamp-on design mounting optic rings use hex head screws to install to the flattop design Picatinny scope mount rails on the tops of rifles. These styles of scope mounts use two independent rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are designed for long distance accuracy shooting. This kind of scope mount is good for rifle systems which need to have a resilient, rock solid mount which will not move despite just how much the scope is moved or abuse the rifle takes. These are the style of mounts you really want to have for a dedicated scope setup on a long distance scouting or interdiction rifle that will seldom need to be modified or adjusted. Blue 242 Loctite threadlocker can also be used on the scope mount screws to prevent the hex screws from wiggling out after they are mounted tightly in place. An example of these mounting rings are the 30mm type from Vortex Optics. The set normally costs around $200 USD
Rifle Scope Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and remove a scope from a rifle. If they all use a comparable style mount, a number of scopes can also be switched in the field. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten tightly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while keeping precision. These types of mounts are useful and practical for shooting platforms which are moved around a lot, to remove the glass from the rifle for protection, or for scopes which are chosen for use in between several rifles. An example of this mount style is the 30mm mount from Vortex Optics. It typically costs around $250 USD
Rifle Scope Tube Sealing and Gas Purging
Moisture inside your rifle glass can wreck a day of shooting and your pricey optic by resulting in fogging and making residue inside of the scope’s tube. Many optics prevent wetness from going into the optical tube with a series of sealing O-rings which are water resistant. Generally, these water-resistant optics can be immersed within 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient wetness avoidance for standard use rifles, unless you plan on taking your rifle boating and are concerned about the scope still functioning if it goes over the side and you can still salvage the rifle.
Info Around Optic Tube Gas Purging
Another element of preventing the accumulation of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this area is currently taken up by the gas, the scope is less affected by temperature level shifts and pressure distinctions from the external environment which might potentially allow water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
