Description
Rifle Scope Product Details
SVBONY SV173 4-16x50AO Rifle Scope Red Green Blue Illuminated Mil Dot with 20mm Free Mount and Parallax Adjustment
Rifle Scope Product Features
SV173 rifle scope has 4x -16x magnification and 50mm objective lens; a Pair of Ring Mounts and Sunshade included; 1/4 MOA Elevation and Windage Adjustments; 2.64-3.07in ample eye relief gets you on target quickly and easily
6PCS and FMC Green film lens design; Fully multi-coated for excellent transmission and to eliminate unwanted reflections and increase contrast

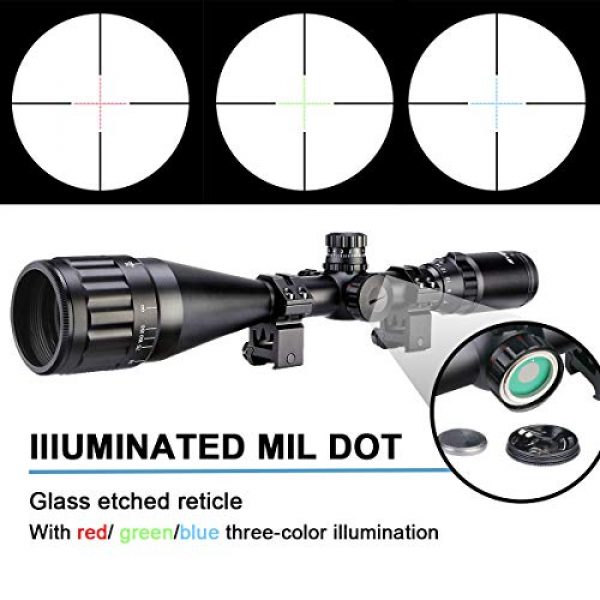

The Mil-dot cross dense locations can help you find the precise location; the target distance can be adjusted from 10 yards to infinity; the most consistent and precise 1/4 MOA for wind resistance and elevation adjustment with each click
Picatinny and weaver 20mm stand; A pair of 20mm high profile scope rings will give your precision sport optics a stable mounting platform
Well built and sturdy; The 1-inch lens body is made of high-quality aluminum alloy; With its one-piece tube design; it has an excellent field of view and is more portable and durable
SV173 rifle scope is your better choice for hunting.
Do you need a high power rifle scope
Looking forward to hunt this autumn
Take SV173 4-16 times illuminated rifle scope with you on your next hunting trip!

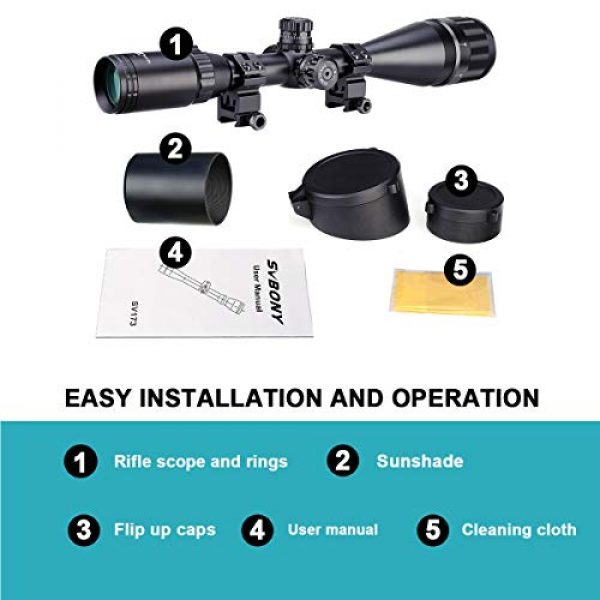

Package Includes:
SV173 4-16x50AO Riflescope*1
Pair of Lens Cap*1
Pair of Ring Mounts*1
77mm Extinction tube*1
CR2032*1
Mirror cloth*1
Other features:
Operating Temperature Range: 40–60Degree
Click Value 1 Click: 1/4MOA
Diopter Compensation: 2D
Shock Proof: 650g

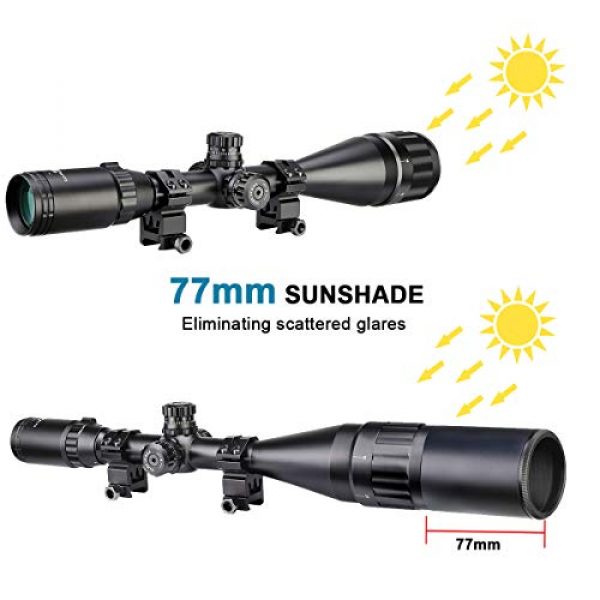

Adjustable extinction tube
The SV173 rifle scope’s extinction tube can be telescoping,the field of view can be handled calmly in any light conditions.
Instant zero reset turrets
Avoid touching the adjusting screw during the prey to prevent the ballistic deviation,SV173 rifle scope is a great choice for hunting and shooting.
FMC Green film coating
High-quality green coated optical glass will give you a bright, high-contrast image.
Adjustable Objective(AO)
Adjustable Objective(AO)
Objective parallax adjustable
Distance can be usded from the 10m to Infinity
Diopter compensation
Diopter compensation
2D diopter compensation design perfect for those people who are hyperopia and myopia

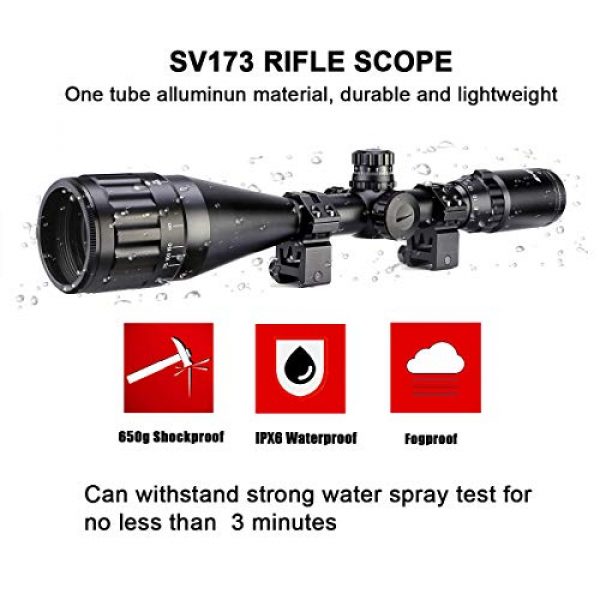

Shockproof waterproof fogproof
Shockproof waterproof fogproof
650g shockproof
IPX6 nitrogen waterproof
One tube fogproof
SVBONY SV120 Rifle Scope 3-9x40mm Compact Hunting Scope SVBONY SV168 Rifle Scope, 4×32 Compact Scope SVBONY SV169 Rifle Scope, 3-9x32AO, Hunting Scope, Mil Dot Reticle,
Magnification: 3-9x 4x 3x – 9x
Reticle: Cross differentiation Mil Dot
Eye Relief: 2.75-3.34 inch 3.38 inch Ample eye relief
Shock, Water, and Fog Proof:
Tube Diameter: 25.4mm / 1in 25.4mm / 1in 25.4mm / 1in
Specification:

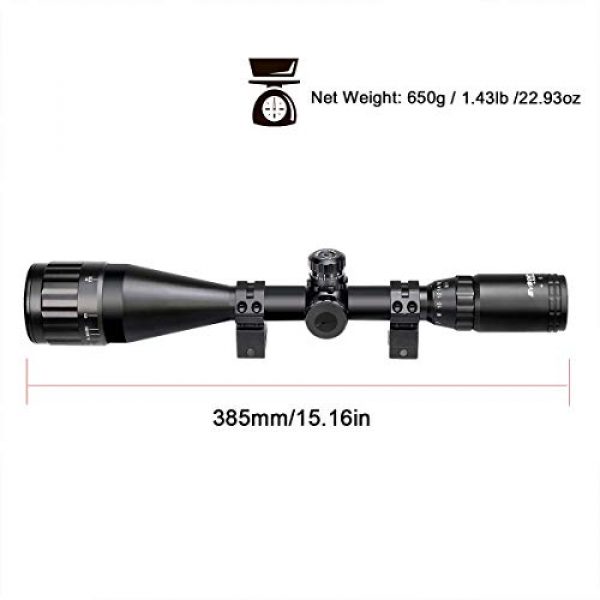

Length: 385mm / 15.16in
Eye Relief: 67-78mm / 2.64-3.07in
Exit Pupil Dia: 2.7-11mm / 0.11-0.43in
Field Of View (Feet): 26.2-7.85 ft@100YDS
Windage Elevation (Up Down): 30MOA
Windage Elevation (Right Left) 30MOA
Parallax Setting: 10YDS —
Nearest Focusing Distance: 10YDS
Coating: FMC Green film
Number of Lenses: 6PCS
Tube Diameter: 1″One-piece
Type of Reticle: Mil Dot
Objective Lens: 50mm / 1.97in
Eyepiece Lens: 32mm / 1.26in
Water Proof: IPX6
Net Weight: 650g / 1.43lb /22.93oz
About the SVBONY Brand
SVBONY is a premium company for long gun scopes, optics, mounting solutions, and other components used for guns like rifles and long guns. They style and build their products by choosing building materials which are resilient and long lasting. This includes the SVBONY SV173 4-16x50AO Rifle Scope Red Green Blue Illuminated Mil Dot with 20mm Free Mount and Parallax Adjustment by SVBONY. For more shooting goods, visit their site.
What You Need to Know About Rifle Glass
Rifle scopes enable you to specifically aim a rifle at different targets by aligning your eye with the target over a range. They do this through magnification by using a series of lenses inside the scope. The scope’s positioning can be adapted to take into account many ecological factors like wind and elevation increases to account for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will land based on the sight picture you are viewing using the scope as you line up the scope’s crosshair or reticle with the target. The majority of modern-day rifle optics have around eleven parts which are arranged inside and externally on the optic. These optic pieces consist of the rifle scope’s body, lenses, elevation dials or turrets, objective focus rings, and other components. See all eleven parts of an optic.
Rifle Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Deciding upon the best type of rifle scope depends on what type of shooting you plan on doing.
About First Focal Plane Scopes
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These types of scopes are helpful for:
- Quick acquisition, far away kinds of shooting
- Shooting scenarios where estimations are minimal
- Experienced shooters who have an idea for their aim point “hold over” and also “lead” equations for their long gun
- Shooters who do not mind the reticle is bigger and takes up more visual eyesight room than a SFP reticle
Info on Second Focal Plane Optics
Second focal plane optics (SFP) include the reticle behind the magnification lens. This induces the reticle to remain at the same size in connection with the quantity of zoom being used. The outcome is that the reticle dimensions shift based on the magnification used to shoot over greater distances considering the reticle markings represent different increments which fluctuate with the magnification level. In the FFP illustration with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick. These particular styles of optics work for:
- Far away types of shooting where shooters have more time to make ballistic computations
- Shooting where most of the shots happen within shorter ranges and distances
- Shooters who like a clearer optic sight picture with less room used up by the larger size FFP reticle
Details on Glass Zoom
The quantity of zoom a scope provides is determined by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Single Power Lens Optic Facts
A single power rifle optic comes with a zoom number designator like 4×32. This means the zoom power of the scope is 4x power and the objective lens is 32mm. The zoom of this kind of optic can not change given that it is a fixed power optic.
About Adjustable Power Lens Rifle Glass
Variable power rifle scopes can be adjusted between magnification increments. These types of scopes will list the magnification amount in a configuration like 2-10×32. These numbers indicate the magnification of the scope can be set in between 2x and 10x power. This always includes the power levels in-between 2 and 10. The power adjustment is accomplished by employing the power ring component of the scope near the rear of the scope by the eye bell piece.
The Power and Range Correlation of Optics
Here are some advised scope power settings and the ranges where they could be efficiently used. Keep in mind that high magnification optics will not be as efficient as lower powered scopes because excessive magnification can be a bad thing. The very same idea goes for extended ranges where the shooter needs to have increased power to see exactly where to best aim the rifle.
Lens Finish for Optics
All contemporary rifle scope and optic lenses are coated. There are various types and qualities of glass finishes. Lens finishing is an important aspect of a rifle when looking at high end rifle optics and targeting equipment. The lenses are among the most key parts of the scope given that they are what your eye looks through while sighting a rifle in on the point of impact. The coating on the lenses safeguards the lens exterior and improves anti glare capabilities from excess sunshine and color discernibility.
HD Versus ED Lenses
Some rifle glass producers will also use “HD” or high-definition glass finishings which employ various processes, elements, compounds, and polarizations to extract numerous colors and viewable target visibility through lenses. This high-def covering is often used with greater density lens glass which decreases light’s chance to refract through the lens glass. Some scope makers use “HD” to refer to “ED” suggesting extra-low dispersion glass. ED handles how colors are represented on the chromatic spectrum and the chromatic aberration or deviance which is also called color distortion or fringing. Chromatic aberration can be obvious around things with defined outlines as light hits the item from various angles.
Scope Lens Single Finishing Versus Multi-Coating
Different optic lenses can even have various finishings applied to them. All lenses typically have at least some type of treatment or finishing applied to them before being used in a rifle scope or optic. This is since the lens isn’t simply a raw piece of glass. It is part of the finely tuned optic. It must have a covering applied to it so that the lens will be efficiently functional in many kinds of environments, degrees of sunshine (full light VS shade), and other shooting conditions.
Single layered lenses have a treatment applied to them which is normally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while minimizing glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends upon the scope maker and how much you spent for it. Both are indications of the lens quality.
Some scope manufacturers similarly make it a point to define if their optic lenses are layered or “multi” coated. Being “better” depends on the manufacturer’s lens treatment technology and the quality of materials used in building the rifle scope.
Hydrophobic Lens Finishing
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Lots of top of the line and military grade scope makers will coat their lenses with a hydrophilic or hydrophobic coating.
Scope Installing Options
Mounting approaches for scopes can be found in a couple of options. There are the basic scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These various types of mounts also normally can be found in quick release versions which use manual levers which permit rifle operators to quickly install and dismount the scope.
Hex Key Scope Rings
Basic, clamp-on design mounting optic rings use hex head screws to mount to the flattop design Picatinny scope mounting rails on the tops of rifles. These forms of scope mounts use two separate rings to support the optic, and are usually constructed from 7075 T6 billet aluminum which are designed for long distance precision shooting. This kind of scope mount is good for rifle systems which are in need of a resilient, unfailing mount which will not change despite how much the scope is moved about or jarring the rifle takes. These are the style of mounts you should have for a specialized scope system on a reach out and touch someone scouting or tournament firearm that will seldom need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the mount’s screws to protect against the hex screw threads from backing out after they are installed firmly in place. An example of these rings are the 30mm type from Vortex Optics. The set typically costs around $200 USD
Glass Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope and connect it to a different rifle. Several scopes can also be switched out if they all use a similar style mount. These types of mounts are handy for rifles which are transferred a lot, to remove the optic from the rifle for protection, or for optics which are used between several rifles.
Sealing and Gas Purging for Rifle Scope Tubes
Moisture inside your rifle glass can destroy a day of shooting and your pricey optic by triggering fogging and making residue inside of the scope tube. A lot of optics protect against wetness from going into the scope tube with a system of sealing O-rings which are waterproof. Usually, these water-resistant optics can be immersed beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be more than enough humidity avoidance for basic use rifles for hunting and sporting purposes, unless you intend on taking your rifle aboard watercrafts and are worried about the optic still working if it is submerged in water and you can still salvage the firearm.
About Glass Tube Gas Purging
Another component of preventing the buildup of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Given that this area is already taken up by the gas, the optic is less impacted by temp changes and pressure differences from the outside environment which may possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
