Rifle Scope Product Details

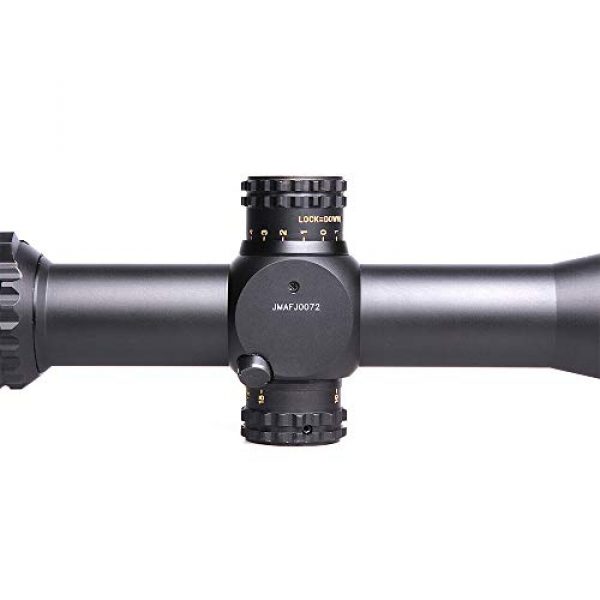

SNIPER Scope WKP 4-16×50 W Side adjustment. Red/Green Illumination reticle. Comes with extended sunshade and Heavy Duty Ring Mount and lens cover
Sniper 4-16X50 Long Distance Hunting Rifle Scope
Scope Features:
Red, Green illumination Mil-Dot reticle
Crystal clear multi-coated lens for excellent glare reflection and maximum light transmission
Parallax adjustment feature allows for fine-tuning of target image
Parallax adjustable from 10 yds to infinity ” excellent for long range hunting and shooting
zero locking/resetting target turrets for windage and elevation adjustment at 1/4 moa per click
6061 T6 aircraft grade body with strong Cardan Joint
Ball and bearing windage/elevation adjustment
Shockproof, waterproof, fogproof
Attachable stackable 3″ sunshade, high profile Picatinny scope rings, batteries and flip open lens caps included
Rifle Scope Product Features
Superior Multi-Coated lenses for reduction of glare and reflection, while maximizing light transmission for ultimate brightness and clarity of edge to edge, image
Red, Green illuminated color Mil-Dot reticle with quick-reaching button operations and last active color memory function, along with auto off to save battery life Key Product Features
QTA (Quick Adjustment) turrets with precise 1/4″ MOA click value for Ball Bearing wind and elevation adjustment
Constructed with single piece of premium Aircraft-grade aluminum with 30mm tube diameter body, Cardan joint design, hardened anodized black matte finish for its durability
Nitrogen filled scope body, completely sealed with o-ring, making scope shockproof, waterproof, and fog proof
About the Sniper Company
Sniper is a premium supplier for rifle scopes, optics, mounting solutions, and other add-ons used for guns like rifles and long guns. They create and manufacture their mounts, scopes, and related products using building materials which are resilient and long lasting. This includes the SNIPER Scope WKP 4-16×50 W Side adjustment. Red/Green Illumination reticle. Comes with extended sunshade and Heavy Duty Ring Mount and lens cover by Sniper. For additional shooting goods, visit their website.
What You Need to Know About Rifle Optics
Rifle scopes permit you to precisely align a rifle at different targets by aligning your eye with the target at range. They do this through magnification by employing a series of lenses inside the scope. The scope’s positioning can be dialed in for consideration of numerous natural things like wind speed and elevation to make up for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based upon the sight picture you are viewing via the scope as you align the scope’s crosshair or reticle with the intended point of impact. Most contemporary rifle optics have about 11 parts which are located internally and externally on the scope. These optic pieces include the rifle scope’s body, lenses, modification dials or turrets, focus rings, and other elements. See all eleven parts of optics.
Rifle Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Opting for the finest type of rifle glass is based on what type of shooting you plan to do.
First Focal Plane Optics
First focal plane scopes (FFP) feature the reticle before the zoom lens. This triggers the reticle to increase in size based on the amount of zoom being used. The result is that the reticle measurements are the same at the magnified distance as they are at the non magnified distance. For example, one tick on a mil-dot reticle at one hundred yards without having “zoom” is still the same tick at 100 yards with 5x “zoom”. These kinds of scopes are valuable for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are minimal
- Experienced shooters who have an idea for their target “hold over” and also “lead” ratios for their firearms
- Shooters who don’t mind the reticle is bigger and occupies more visual sight room than a SFP reticle
Second Focal Plane Scopes
Second focal plane scopes (SFP) come with the reticle behind the magnifying lens. This triggers the reticle to stay at the same size in relation to the level of zoom being used. The final result is that the reticle measurements alter based upon the magnification applied to shoot over lengthier ranges due to the fact that the reticle markings present distinct increments which fluctuate with the magnification. In the FFP illustration with the SFP optic, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular types of optics are convenient for:
- Far away types of shooting where shooters have extra time to make ballistic calculations
- Shooting where most shots take place within shorter ranges and spaces
- Shooters who desire a clearer optic sight picture with less space used up by the larger sized FFP reticle
Ins and Outs of Rifle Scope Magnification
The quantity of zoom a scope supplies is determined by the diameter, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Power Lens Optics
A single power rifle optic uses a zoom number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of optic can not fluctuate because it is a set power scope.
Variable Power Lens Optic Facts
Variable power rifle scopes have adjustable power. It will note the zoom degree in a format such as 2-10×32. These numbers suggest the zoom of the scope can be adjusted between 2x and 10x power. This also involves the power levels in-between 2 and 10. The power modification is accomplished using the power ring part of the scope near the back of the scope by the eye bell piece.
Power Levels and Range
Here are some suggested scope power levels and the distances where they may be effectively used. Always remember that higher power scopes and optics will not be as efficient as lower magnification level optics due to the fact that too much zoom can be a bad thing. The exact same concept relates to extended ranges where the shooter needs sufficient power to see exactly where to best aim the rifle at the target.
Info on Rifle Glass Lens Coatings
All modern-day rifle scope lenses are covered in special coatings. There are different types and qualities of coatings. When shopping for luxury rifle optical setups, Lens coating can be a very important element of defining the capability of the rifle. The glass lenses are among the most key components of the scope as they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses protects the lens surface area and assists with anti glare capabilities from refracted light and color presence.
HD Versus ED Lens Coatings
Some scope producers likewise use “HD” or high-definition lens finishes which use various processes, chemicals, polarizations, and elements to draw out separate colors and viewable definition through the lens. Some scope manufacturers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Single Finish Versus Multi-Coating
Different optic lenses can also have various finishes applied to them. All lenses usually have at least some kind of treatment or coating applied to them before they are used in a rifle scope or optic assembly. Because the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It is part of the finely tuned optic. It requires a coating to be applied to it so that it will be efficiently usable in many types of environments, degrees of sunlight (full light VS shade), and other shooting conditions.
Single coated lenses have a treatment applied to them which is usually a protective and enhancing multi-purpose treatment. This lens treatment can shield the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope producer and just how much you spent paying for it. The scope’s maker and cost are indicators of the lens quality.
Some scope manufacturers similarly make it a point to define if their optic lenses are coated or “multi” covered. Being “much better” depends on the manufacturer’s lens treatment innovation and the quality of products used in developing the rifle scope.
Rifle Glass Lens Anti-water Finishing
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Lots of top of the line and high-end scope makers will coat their lenses with a hydrophobic or hydrophilic covering.
Rifle Optic Installation Choices
Mounting solutions for scopes can be found in a couple of options. There are the standard scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also normally come in quick release variations which use manual levers which permit rifle operators to quickly install and remove the scope.
Hex Key Optic Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two separate rings to support the optic, and are made from 7075 T6 billet aluminum which are designed for long distance accuracy shooting. This type of scope install is excellent for rifles which require a long lasting, rock solid mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Glass Ring Mounts
These types of quick-release rifle scope mounts can be used to rapidly detach a scope and connect it to a different rifle. Several scopes can also be swapped out if they all use a similar design mount. These types of mounts are handy for long guns which are transferred a lot, to remove the optic from the rifle for protection, or for optics which are used between several rifles.
What to Know About Scope Tube Sealing and Gas Purging
Wetness inside your rifle glass can spoil a day on the range and your expensive optic by causing fogging and making residue within the scope’s tube. Many scopes prevent humidity from entering the scope tube with a system of sealing O-rings which are water resistant. Generally, these water resistant scopes can be immersed beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be plenty of humidity prevention for standard use rifles, unless you anticipate taking your rifle aboard a watercraft and are concerned about the optic still performing if it goes over the side and you can still recover the rifle.
Details on Rifle Optic Tube Gas Purging
Another part of preventing the buildup of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Since this space is already occupied by the gas, the glass is less influenced by temperature level alterations and pressure variations from the outside environment which may possibly allow water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
