Rifle Scope Product Details

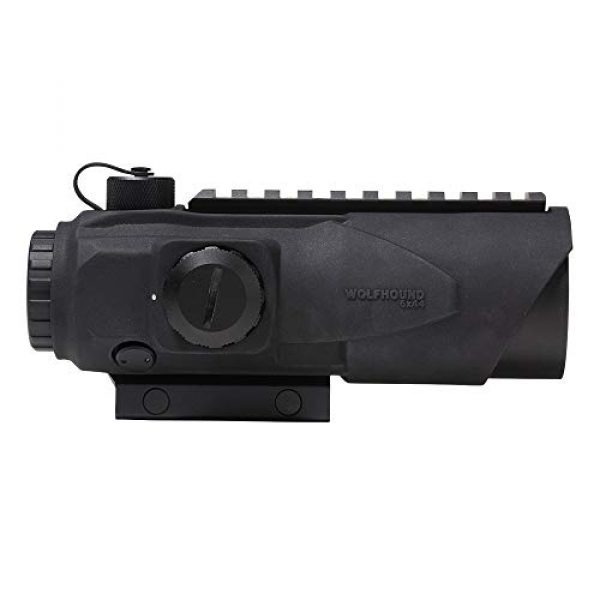

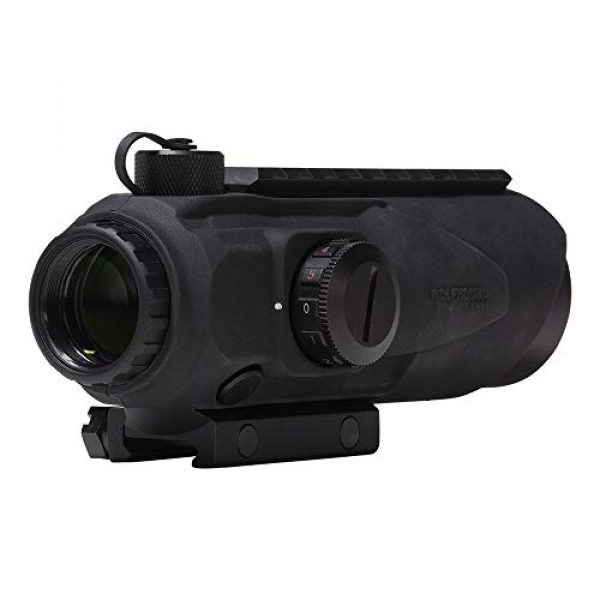

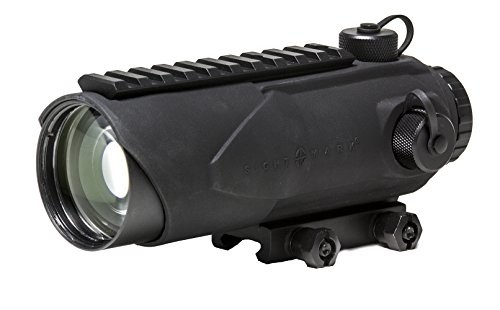

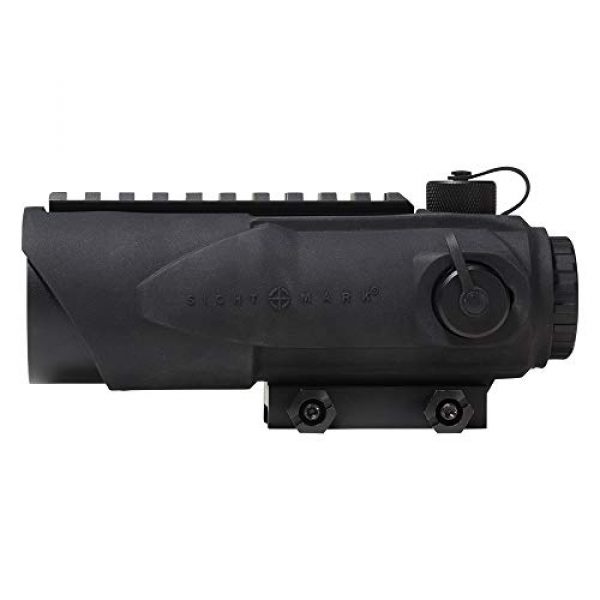

Sightmark Wolfhound 3×24 HS-223 Prismatic Weapon Sight
Rifle Scope Product Features
About this item
Fully multi-coated optics
Prismatic optical System
Scratch-resistant lenses
Ballistically matched to 223 55 and 62 grain
Red/green reticle Illumination
Sightmark Wolfhound Prismatic Sight
Features
Fully multi-coated optics
Prismatic optical system
Scratch resistant lenses
Red/Green reticle illumination
Rubber armored, single piece 6061-T6 aluminum housing
IP68 waterproof rating – submergible to 3m/10ft
Fogproof, nitrogen purged
Shockproof
What is in the box
– Sightmark Prismatic Sight
– Rubber lens cover.
– Honeycomb filter.
– CR2032 battery.
Wolfhound Prismatic Sight
Engineered to accomplish holdovers from 100-800 yards, the military-inspired Sightmark Wolfhound HS-300 features a prismatic optical system with an advanced Horse-Shoe reticle designed for subsonic and supersonic 300 Blackout. The outer circle is utilized for quick target acquisition at close ranges, while the .5 MOA central aiming dot provides exceptional accuracy at long ranges.
A secondary .5 MOA aiming point lies at the base of the outer circle, providing a 200-yard holdover reference for 125 grain cartridge and 75-yard holdover for the 220 grain cartridge. Compact enough to not weigh down the rifle, but durable enough to shield from impact, the weapon sight is ideal for a variety of challenging shooting situations including 3-gun competitions and hunting applications.
Fully Multicoated
Lens coatings make a significant difference in how bright and sharp the image will be. Without Anti-Reflective coatings, glass reflects four to five percent of light. With ten or more glass surfaces in riflescopes, it is possible fifty percent of light would be lost as it passes through all lenses in a riflescope. Anti-Reflective coatings reduce reflected light to about one to two percent per glass surface. Anti-Reflective coatings greatly increase light transmission, resolution, contrast, color fidelity, reduce reflections, and reduce light scattering and glare.
HS-223
The Sightmark Wolfhound is equipped with the HS-223 horseshoe reticle. The HS-223 is designed for close and long range shooting with the addition of ballistic holdovers designed for the .223 Remington 55 and 62 grain cartridge. The outer circle is utilized for quick target aquisition at close ranges. The 5 MOA central aiming dot provides exceptional accuracy at the 100 yards and beyond. A secondary .5 MOA aiming point lies at the base of the outer circle, providing a 300 yard holdover reference. The remaining horizontal lines below provide holdover references from 400 to 900 yards and rangefinding capability.
Rubber Armored
Durable enough to shield from impact, the Wolfhound yields scratch-resistant lenses and is made from anodized, high-grade aluminum with a rubber armor finish.
Sightmark Wolfhound HS-223 Prismatic Weapon Sight Sightmark Wolfhound 3×24 HS-300 Prismatic Weapon Sight Sightmark Wolfhound 6×44 HS-223 Prismatic Weapon Sight Sightmark Wolfhound 6×44 LR-308 Prismatic Weapon Sight
Reticle type HS-223 HS-223 HS-223 LR-308
Magnification 3x 3x 6x 6x
Objective lens diameter 24mm 24mm 44mm 44mm
Eye relief 72mm 72mm 72mm 72mm
Field of view (m@100m) 10.48 10.48 15.77 5.24
Windage/elevation max 180 MOA 180 MOA 80 MOA 70 MOA
MOA adjustment (1 click) 1/2 1/2 1/4 1/4
Dimensions, in 5.90×2.83×3.03 5.90×2.83×3.03 6.7×2.8×3 6.69×2.83×3.03
Weight 17.2 oz 17.2 oz 23.5 oz 23.5 oz
About the Sightmark Brand
Sightmark is a premium manufacturer for rifle scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They innovate and build their scopes and related products making the most of elements which are long lasting and resilient. This includes the Sightmark Wolfhound 3×24 HS-223 Prismatic Weapon Sight by Sightmark. For more shooting goods, visit their website.
Info Optics
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target at range. They do this through magnification by employing a set of lenses within the scope. The scope’s positioning can be adjusted for consideration of varied natural aspects like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are viewing via the scope as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern rifle scopes have about eleven parts which are found within and externally on the optic. These optic pieces include the rifle scope’s body, lenses, modification turrets, objective focus rings, and other components. Learn about the eleven parts of glass.
About Scope Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Considering the perfect type of rifle optic is based around what type of shooting you plan on doing.
About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These kinds of scopes are useful for:
- Quick acquisition, long distance types of shooting
- Shooting situations where computations are marginal
- Experienced shooters who have an idea for their target “hold over” plus “lead” correlations for their long gun
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight space than a SFP reticle
About Second Focal Plane Optics
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement.
- Far away styles of shooting where shooters have extra time to make ballistic calculations
- Shooting where most of the shots occur within shorter distances and ranges
- Shooters who select a clearer optic sight picture with less space taken up by the larger size FFP reticle
Optic Zoom
The measure of scope zoom you need on your glass is based on the sort of shooting you plan to do. Virtually every style of rifle scope gives some degree of zoom. The amount of magnification a scope provides is determined by the size, density, and curvatures of the lens glass within the rifle optic. The magnification of the optic is the “power” of the glass. This indicates what the shooter is checking out through the scope is amplified times the power aspect of what can normally be seen by human eyes.
Info on Single Power Lens Optics
A single power rifle scope and optic comes with a magnification number designator like 4×32. This suggests the zoom power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not adjust since it is a fixed power optic.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes can be adjusted between magnification levels. These types of scopes will list the magnification degree in a configuration such as 2-10×32. These numbers mean the magnification of the scope can be set between 2x and 10x power. This additionally includes the powers in-between 2 and 10. The power adaptation is accomplished by applying the power ring part of the scope near the back of the scope by the eye bell.
Power Levels and Range Correlations
Here are some recommended scope power settings and the ranges where they can be successfully used. Keep in mind that higher magnification scopes will not be as effective as lower powered optics because too much magnification can be a bad thing. The exact same concept applies to extended distances where the shooter needs to have increased power to see exactly where to properly aim the rifle at the target.
Info on Scope Lens Coatings
All modern-day rifle optic and scope lenses are layered. There are various types and qualities of lens coverings. When shopping for luxury rifle scope devices, Lens finish can be a significant component of defining the capability of the rifle. The lenses are one of the most crucial pieces of the optic given that they are what your eye looks through while sighting a rifle in on the target. The covering on the lenses offers protection to the lens surface area and even improves anti glare from excess sunlight and color profiles.
HD Versus ED Lens Coatings
Some rifle scope manufacturers even use “HD” or high-definition glass finishes which apply different procedures, polarizations, components, and chemicals to extract numerous colors and viewable definition through the lens. This high-def covering is often used with higher density glass which drops light’s ability to refract through the lens glass. Some scope brands use “HD” to refer to “ED” indicating extra-low dispersion glass. ED handles how colors are presented on the chromatic spectrum and the chromatic difference or aberration which is also called color distortion or fringing. Chromatic aberration can be visible over things with defined shapes as light hits the item from particular angles.
What to Know About Single Coating Versus Multi-Coating
Various optic lenses can likewise have various finishes applied to them. All lenses usually have at least some type of treatment or finishing used to them prior to being used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is normally a protective and enhancing multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends on the scope manufacturer and the amount you spent on it. Both the manufacturer and amount are indicators of the lens quality.
Some scope manufacturers also make it a point to specify if their optic lenses are layered or “multi” coated. This suggests the lens has had several treatments applied to the surfaces of the glass. If a lens receives several treatments, it can prove that a manufacturer is taking multiple steps to fight different environmental elements like an anti-glare finish, a scratch resistant anti-abrasion covering, followed by a hydrophilic finish. This additionally doesn’t necessarily mean the multi-coated lens will perform much better than a single layered lens. Being “better” hinges on the maker’s lens treatment solutions and the quality of glass used in developing the rifle optic.
Rifle Scope Lens Hydrophobic Coating
Water on a scope lens does not help with preserving a clear sight picture through an optic at all. Lots of top of the line or high-end scope producers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a fine example of this kind of treatment. It provides protection for the exterior of the Steiner scope lens so the water molecules can not bind to it or produce surface tension. The result is that the water beads sheet off of the scope to preserve a clear, water free sight picture.
Optic Installing Options
Installing options for scopes can be found in a couple of choices. There are the basic scope rings which are separately mounted to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also generally can be found in quick release versions which use throw levers which enable rifle operators to rapidly mount and remove the glass.
Hex Key Optic Ring Mounting Solutions
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two separate rings to support the optic, and are often made from 7075 T6 billet aluminum which are created for long distance accuracy shooting. This type of scope mount is fine for rifles which require a resilient, rock solid mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Scope Ring Mounting Solutions
These kinds of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. If they all use a comparable design mount, multiple scopes can often be swapped in the field. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers fasten solidly to a flat top design Picatinny rail. This allows the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while maintaining accuracy. These types of mounts are useful and handy for rifles which are carried a lot, to remove the optic from the rifle for protection, or for aiming systems which are utilized between a number of rifles. An example of this mount style is the 30mm mount designed by the Vortex Optics brand. It typically costs around $250 USD
Optic Tube Sealing and Gas Purging
Moisture inside your rifle scope can wreck a day on the range and your pricey optic by resulting in fogging and generating residue within the scope tube. Most optics prevent wetness from getting in the scope tube with a system of sealing O-rings which are water resistant. Typically, these optics can be immersed within 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient moisture avoidance for standard use rifles, unless you intend on taking your rifle boating and are concerned about the scope still functioning if it goes overboard and you can still rescue the gun.
Gas Purged Rifle Scope Tubes
Another element of avoiding the buildup of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Given that this space is already occupied by the gas, the scope is less affected by temp alterations and pressure distinctions from the external environment which could potentially allow water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
