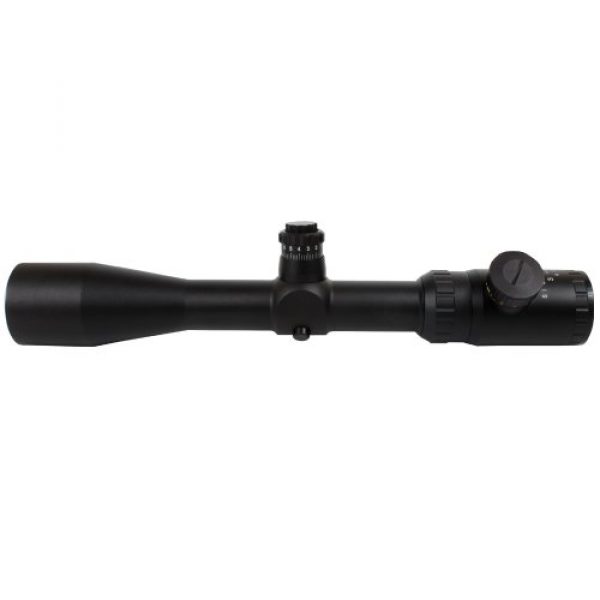

Sightmark Triple Duty MDD Riflescope
Equipped with an illuminated red/green Mil-Dot Dot reticle, the Sightmark Triple Duty 4-16×44 MDD Riflescope aids in range estimation and shooting in low-light conditions. Its cutting-edge glass and fully multi-coated optics transmit a bright, crisp image that makes tracking and shooting targets almost effortless. The Triple Duty 4-16×44 MDD Riflescope features a one-piece 30mm tube that delivers exceptional light transmission and a wide field-of-view. O-ring sealed and nitrogen-purged, the precision scope is both fog proof and water resistant. The included oversized, locking windage and elevation turrets with 1/8-inch MOA clicks provide an additional level of accuracy and ensures that the scope stays zeroed. The Triple Duty series of riflescopes are complimentary to any shooter’s arsenal.
Rifle Scope Product Features:
Adjustment lock with 1/4″ MOA locking turrets
Wide field of view
Precision multicoated optics
Internal lit red/green Mil-Dot Dot reticle
Lightweight, Waterproof, and Shockproof
Sightmark Triple Duty Riflescope
The Sightmark Triple Duty Series of riflescopes use cutting edge glass and lens coatings to ensure that it is the most accurate riflescope in its class. Precision multicoated optics are a distinguishing feature of the Sightmark Triple Duty riflescope line; multicoated lenses offer a clear view for easy target acquisition in both bright and low light situations. Both waterproof and fog proof, the nitrogen filled Sightmark Triple Duty Series features oversized windage, elevation and parallax adjustment knobs for easy adjustment in the field. Locking mechanisms on the windage and elevation adjustments ensure that the scope stays zeroed. Internal lit Mil-Dot reticles help shooters successfully make accurate shots over a wide range of distances and lighting conditions.
Wide field of view
Precision multicoated optics
Phase corrected coating
Front diopter adjustment
Lightweight, Waterproof, Shockproof, and Fog proof
Windage and Elevation Adjustment
Use a 1.5mm metric hex wrench to loosen the three set screws located along the scalloped edge of the elevation turret. Next, lock down the locking thumb screw on top of the knob. Then rotate the knob and set the MOA hash marks back to zero. Once the knob is zeroed, retighten the three set screws making sure not to over-torque and strip them. After all three set screws are sufficiently tightened, the mechanism will re-engage.
The US Army Mil Dot reticle (MD and MDD) comes in two illumination versions. The MD reticle, initially Sightmark’s standard reticle, illuminates the entire Mil-Dot crosshair. This is intended to provide the shooter a keen aiming point for assistance in accurate shooting. In order to use the Mil-Dot reticle accurately, please read the following: Mil stands for millradian, 1/1623.2th of a circle or 3.438 MOA. The millradian represents 1 unit at 1000 yds. To simplify, a target that is one yard tall at 1000 yds would measure 1 millradian.
Sightmark’s higher magnification riflescopes do come equipped with a parallax adjustment knob. Parallax is the change of angular position of two stationary points relative to each other as seen by an observer. In other words, it’s how the image lines up in the riflescope and how the eye perceives it. Be sure to adjust the parallax knob to the correct shooting range. It is very important to keep this in mind when zeroing the rifle. If this is not taken into consideration at the time of sighting in the riflescope, accuracy will diminish.
Other Triple Duty Reticles
The Circle Dot reticle (CD) features a circle dot with illumination capability. Provided only on the 1-6×24, the circle dot provides accurate shooting results at any magnification level. Perfect for tactical shooting, the circle dot rovides quick taget acquisition at 1x magnification and supreme accuracy at 6x magnification ideal for when conflicts advance to medium range shooting.
The Circle Dot Duplex reticle (CDX) features a circle dot with illumination capability with broad exterior subtensions. The central circle dot provides accurate shooting results at any magnification level; and with illumination capability it provides reticle contrast against backgrounds in low light conditions. The shortened exterior subtensions create an unobstructed view of the target allowing for quick target acquisition at any range.
The Dot Duplex reticle (DX) features a fine central crosshair with a center illumination aiming point. This provides the shooter a keen aiming point for added accuracy while shooting. The broad exterior subtensions create contrast between the target allowing for quick reticle recognition. The Dot Duplex reticle creates an unobstructed view of the target, perfect for making precision shots while hunting.
The US Army Mil Dot reticle (MD and MDD) comes in two illumination versions.The MDD version illuminates the center point of the Mil-Dot cross hair only. This is intended to provide the shooter a keen aiming point for assistance in accurate shooting. In order to use the Mil-Dot reticle accurately, please read the following:
Mil stands for millradian, 1/1623.2th of a circle or 3.438 MOA. The millradian represents 1 unit at 1000 yds. To simplify, a target that is one yard tall at 1000 yds would measure 1 millradian.
Triple Duty 8.5-25×50 Riflescope Triple Duty M4 1-6×24 CDX Riflescope Triple Duty 2.5-10×32 MDD Riflescope Triple Duty 3-9×42 DX Riflescope
Reticle type MD, CDX, DX, MDD CD, CDX, DX MD, CDX, DX, MDD CDX, DX, MDD
Objective lens diameter 50 24 12 32
Field of view (m @ 100m) 4.89-1.66 33.47-5.53 13.99-4.64 14.69-3.67
Parallax 12- 100 100 100
Windage / Elevation 60 90 60 100
MOA 1/8″ 1/2″ 1/4″ 1/4″
Windage / Elevation lock yes yes no yes
