Description
Rifle Scope Product Details

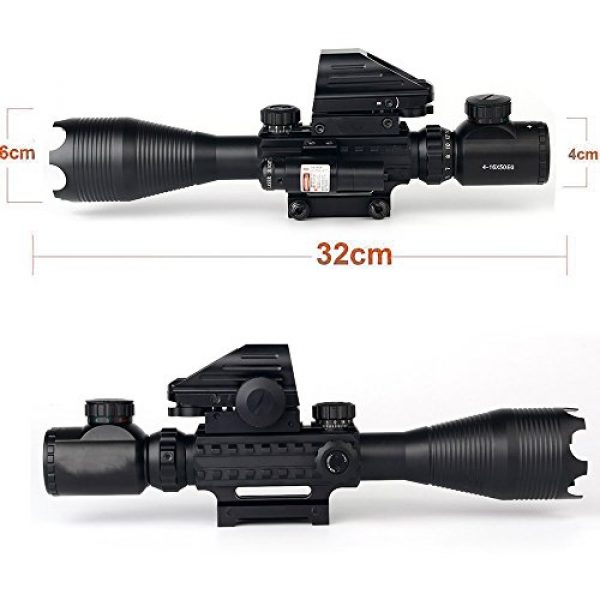

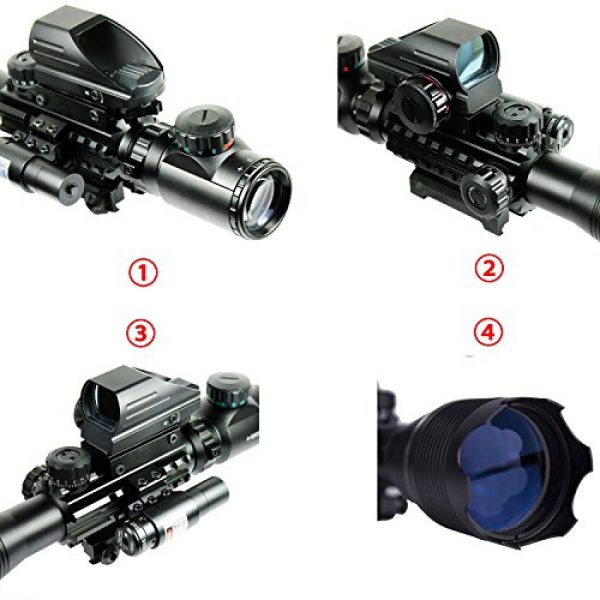

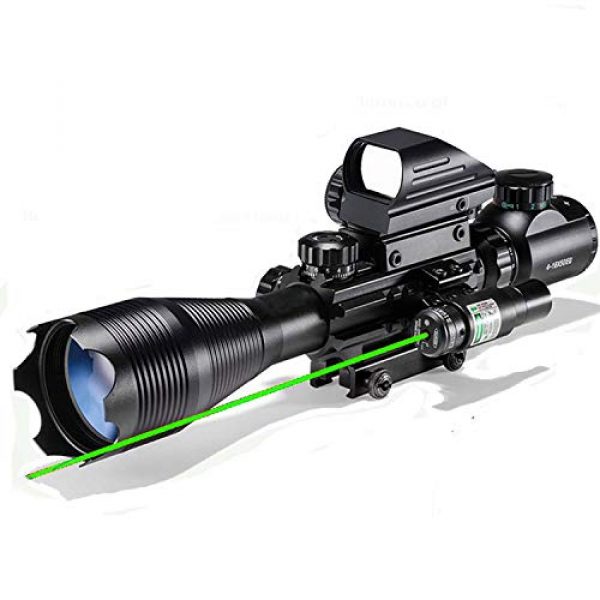

Rifle Scope Hunting Combo 4-16x50EG Dual Illuminated with Laser sight 4 Holographic Reticle Red/Green Dot for Weaver/Rail Mount
This Scope cannot be an assault weapon part or accessory.This scope is well suited for wide range shooting, with high optical clarity magnification and a 50mm objective diameter. The scope andMulti Optical Coated reticles are illuminated in red or green and in multiple brightness intensities, for a suitable sight picture regardless of lighting or environment. The red laser and sight allow for quick acquisition of close quarter and fast moving targets.
Hunting Scope Air Scope Description
Obj. Diameter50mm
Length328mm

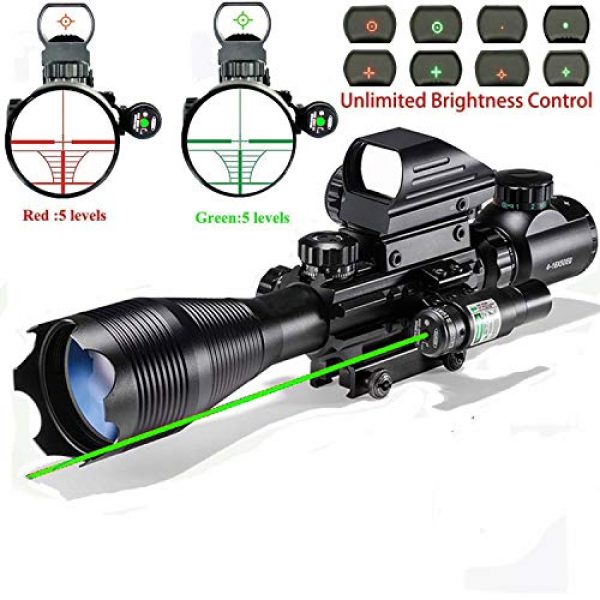

Brightness ControlRed and green with 5 levels
ReticleRangefinder
Field of View10′ ~ 27′ @ 100yards
Eye Relief3″ ~ 3.4″
Windage & Elevation Click Value1/4′ @ 100 yards
Exit Pupil3.3mm ~10mm
Red and Green Dot Sight Specification
Obj. Aperture33 mm
Magnification1X
Field of View(@100yds)15.8m
Brightness Controlunlimited brightness control
Dot ColorRed and Green
Eye ReliefUnlimited
Rail:22
Weight: 290g
Length:82mm
Laser Wavelength: 650nm
Tube Diameter: 1.2”
Laser specification
Laser Class: IIIa
Standard 22 mm mount rail
Length: 29mm Maximum Output Power: 5 mw
Wavelength: 625~660nm
Tube Diameter: 26mm
Aluminum Construction Windage and elevation adjustable
Laser Distance:100m-200m(Green Laser:400m-500m )

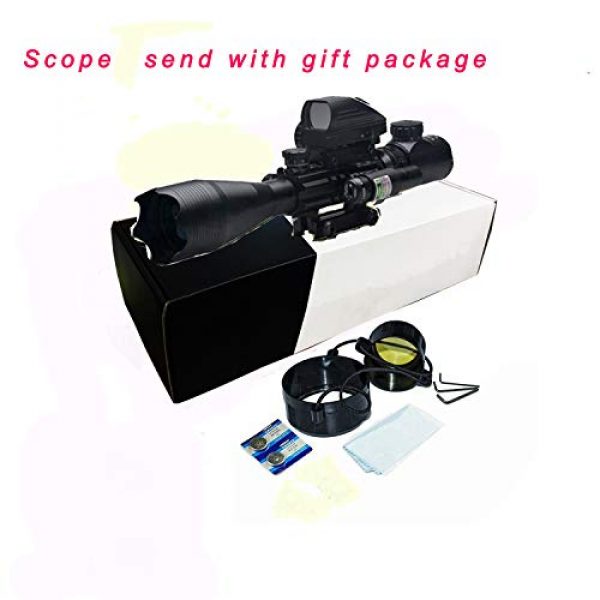

Package Content
1* rifle scope with dual illuminated Rangefinder reticle
1* holographic sight
1*compact laser sight
3* Allen keys for rail mounting and sight adjustment
1*Lens caps
1*Cleaning cloth
Battery included
Notice:Any items not sold by our may be fake item,we will not be responsible for this.
Rifle Scope Product Features
About this item

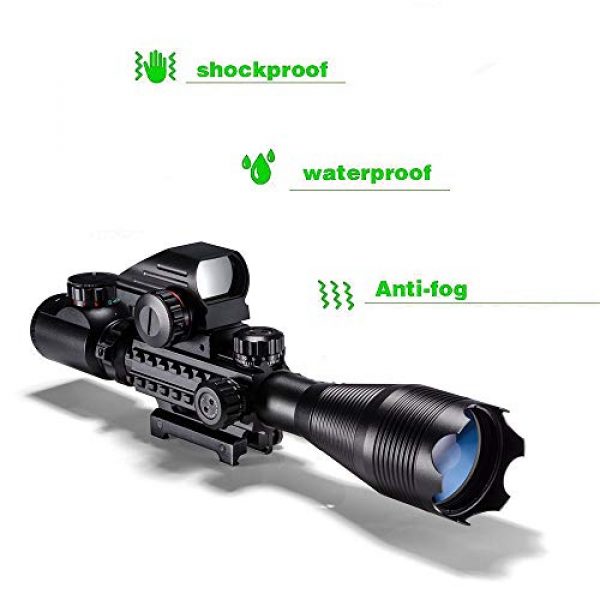

Rifle scope advantageHigh grade fully coated optical lens, Dry nitrogen filled with waterproof,shock proof,fog proof. Magnification4x-16x suit for any W/ 22mm Rail Mount Picatinny Rail,Made of Aluminium with High grade fully coated optical lens,1200G shockproof and 100% waterproof & fogproof test would keeps the scope more solid makes you can shoot more,1/4″ Fingertip Resettable Windage & Elevation adjustments provide a wide range adjustment.
The scope is Red and green Multi-X reticles with 5 levelsExit Pupil3.3mm-10mmField of View10′ ~ 27′ @ 100yardsEye Relief3″ ~ 3.4″Windage & Elevation Click Value1/4′ @ 100 yards;With 50mm Beautiful Flower Object Lens makes your scope become unique in Amazon.High grade fully coated optical lens, High quality matte black finish,Dry nitrogen filled with makes 100% waterproof,shock proof,fog proof.

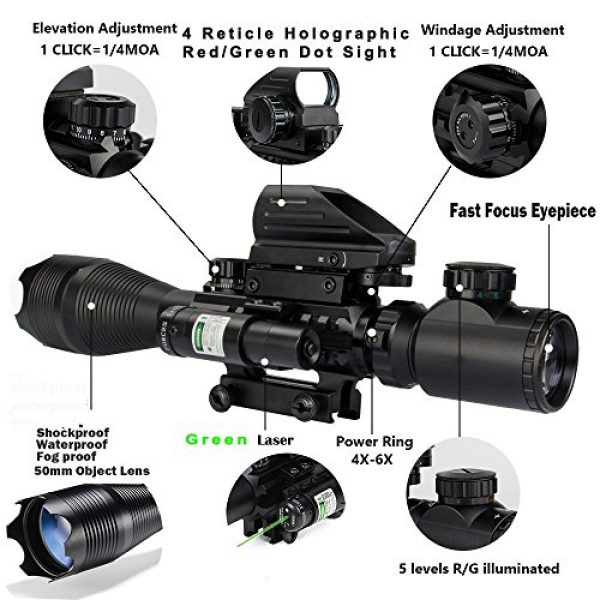

Fast Focus Eyepiece with 1/4″ Fingertip Resettable Windage & Elevation Adjustments.Red laser Reaching Distance about 100-200mDetachable Green laser sight with independent switch,Best Choice for Shooting-With Long Eye Relief:66.8-99.06mmField of View:13.41-40.38 @100yards,Exit Pupil:3.3mm-10mm.Wide Magnification 4X-16X provide you a big view at 200-1000YARDS.5 Levels Red and Green Illuminated adjustment brings a better view in dark environment.
Three Parts with More Functions-Plus With Electric control red dot sight and green laser is good for quick acquisition of close quarter and fast moving targets.The distance is about 200-500m for the laser,When you are aiming at the target at 300m that would save more time.The other side of this scope you can easily install the other equipment such as flashlight,which helps you more in dark hunting environment.
This Scope cannot be an assault weapon part or accessory.Integrated rails offers ample space for accessories.Best Customer Service for Everyone.
About the XOPin Scope Maker
XOPin is a premium maker for weapon scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They design and supply their scopes and related products by making the most of materials which are resilient and long lasting. This includes the Rifle Scope Hunting Combo 4-16x50EG Dual Illuminated with Laser sight 4 Holographic Reticle Red/Green Dot for Weaver/Rail Mount by XOPin. For more shooting products, visit their site.
Optic Facts
Rifle scopes allow you to exactly align a rifle at various targets by lining up your eye with the target at range. They do this through magnifying the target using a set of lenses inside the scope. The scope’s positioning can be adapted for the consideration of various natural aspects like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s function is to understand exactly where the bullet will land based upon the sight picture you are seeing with the optic as you align the scope’s crosshair or reticle with the target. Many modern-day rifle optics have about 11 parts which are found internally and on the exterior of the scope body. These optic pieces consist of the rifle scope’s body, lenses, modification dials, objective focus rings, and other parts. See all eleven parts of a scope.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The style of focal plane a scope has identifies where the reticle or crosshair is located in connection with the scopes zoom. It actually suggests the reticle is behind or before the magnification lens of the scope. Selecting the very best kind of rifle scope depends on what form of shooting you plan on undertaking.
About First Focal Plane Optics
Focal plane scopes (FFP) come with the reticle in front of the zoom lens. This triggers the reticle to increase in size based upon the extent of magnification being used. The result is that the reticle measurements are the same at the amplified distance as they are at the non magnified range. As an example, one tick on a mil-dot reticle at 100 yards without having “zoom” is still the exact same tick at 100 yards using 5x “zoom”. These kinds of scopes work for:
- Quick acquisition, far away types of shooting
- Shooting circumstances where computations are very little
- Experienced shooters who know their target “hold over” plus “lead” equations for their firearm
- Shooters who do not mind the reticle is bigger and occupies more visual sight space than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) come with the reticle to the rear of the magnification lens. This causes the reticle to remain at the very same dimensions in relation to the level of magnification being used. The result is that the reticle dimensions shift based on the magnification applied to shoot over longer ranges since the markings present different increments which vary with the zoom level. In the FFP example with the SFP optic, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick measurement. These varieties of scopes are handy for:
- Far away types of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots occur within shorter distances and ranges
- Shooters who select a clearer optic picture with less room taken up by the enlarged FFP reticle
Rifle Scope Magnification
The amount of scope zoom you need on your glass is based on the type of shooting you desire to do. Practically every type of rifle scope gives some degree of magnification. The amount of magnification a scope supplies is established by the diameter, thickness, and curvatures of the lens glass within the rifle scope. The magnifying level of the scope is the “power” of the scope. This suggests what the shooter is checking out through the scope is magnified times the power factor of what can normally be seen by human eyes.
Info About Fixed Power Lens Glass
A single power rifle optic and scope uses a zoom number designator like 4×32. This implies the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not change since it is fixed.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use enhanced power. The power modification is handled by making use of the power ring part of the scope near the rear of the scope by the eye bell.
Scope Power Level and Ranges
Here are some suggested scope power settings and the ranges where they can be successfully used. Remember that higher magnification optics will not be as efficient as lower magnification level optics and scopes due to the fact that excessive magnification can be a negative thing in certain situations. The very same idea goes for extended distances where the shooter needs to have enough power to see where to properly aim the rifle.
About Lens Coating
All contemporary rifle scope lenses are layered. There are various types and qualities of glass finishings. When shopping for luxury rifle targeting units, Lens covering can be a vital component of defining the rifle’s capability. The lenses are one of the most vital components of the optic since they are what your eye sees through while sighting a rifle in on the target. The covering on the lenses safeguards the lens surface area and even improves anti glare from excess sunlight and color profiles.
ED Versus HD Glass
Some glass makers even use “HD” or high-def lens coatings which take advantage of various procedures, aspects, polarizations, and chemicals to extract numerous color ranges and viewable definition through lenses. This high-definition finish is normally used with more costly high density lens glass which drops light’s potential to refract by means of the lens glass. Some scope producers use “HD” to describe “ED” indicating extra-low dispersion glass. ED handles how certain colors are represented on the chroma spectrum and the chromatic difference or aberration which is also called color distortion or fringing. Chromatic aberration is often noticeable around things with defined shapes as light hits the object from certain angles.
Rifle Glass Lens Single Finish Versus Multi-Coating
Various optic lenses can also have different coverings applied to them. All lenses usually have at least some type of treatment or coating used to them before they are used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is generally a protective and improving multi-purpose treatment. This lens treatment can preserve the lens from scratches while reducing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends on the scope developer and how much you spent paying for it. Both are signs of the lens quality.
Some scope producers similarly make it a point to define if their optic lenses are layered or “multi” coated. Being “much better” depends on the producer’s lens treatment technology and the quality of materials used in building the rifle scope.
Hydrophobic Lens Finishes
Water on an optic’s lens does not help with keeping a clear sight picture through an optic whatsoever. Many top of the line or high-end optic producers will coat their lenses with a hydrophilic or hydrophobic coating. The Steiner Optics Nano-Protection is a good example of this type of treatment. It treats the surface area of the Steiner scope lens so the water molecules can not bind to it or create surface tension. The outcome is that the water beads sheet off of the scope to maintain a clear, water free sight picture.
Glass Installing Alternatives
Installing approaches for scopes come in a couple of choices. There are the basic scope rings which are individually mounted to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also typically can be found in quick release versions which use toss levers which allow rifle shooters to rapidly mount and remove the glass.
Rifle Optic Mounting Solutions with Hex Key Rings
Standard, clamp-on design mounting scope rings use hex head screws to fix to the flattop style Picatinny scope mounting rails on the tops of rifles. These styles of scope mounts use two independent rings to support the scope, and are normally made from 7075 T6 billet aluminum or similar materials which are manufactured for long distance accuracy shooting. This type of scope mount is great for rifles which require a resilient, hard use mount which will not change regardless of just how much the scope is moved or jarring the rifle takes. These are the design of mounts you should get for a faithful scope system on a far away scouting or competitors rifle which will seldom need to be altered or recalibrated. Blue 242 Loctite threadlocker can also be used to keep the hex screw threads from backing out after they are installed tightly in place. An example of these mounting rings are the 30mm style from the Vortex Optics company. The set normally costs around $200 USD
Rifle Optic Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. A wide range of scopes can also be switched out if they all use a similar designed mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect tightly to a flat top design Picatinny rail. This enables the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while retaining the original sighting settings. These kinds of mounts come in convenient for rifles which are transferred a lot, to take off the scope glass from the rifle for protection, or for optics which are used in between numerous rifles. An example of this mount style is the 30mm mount from the Vortex Optics manufacturer. It normally costs around $250 USD
Scope Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day on the range and your costly optic by causing fogging and developing residue within the scope tube. Most optics protect against moisture from entering the scope tube with a series of sealing O-rings which are water resistant. Usually, these water resistant optics can be immersed within 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be plenty of moisture prevention for standard use rifles, unless you plan on taking your rifle on a boat and are concerned about the scope still working if it goes overboard and you can still recover the rifle.
Gas Purged Scope Tubes
Another part of preventing the accumulation of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Given that this space is already taken up by the gas, the scope is less affected by temperature level alterations and pressure distinctions from the external environment which may possibly permit water vapor to permeate in around the seals to fill the void which would otherwise exist. These are good qualities of a good rifle scope to look for.
