Description
Rifle Scope Product Details
QILU Rifle Scope 2.5-10×40 Dual Illuminated Mil-dot Gun Scopes, Rifle Scope Red Dot Holosun Holographic Sight with Red Laser & 20mm Mounts
Specification
Magnification: 2.5x-10x
Objective Diameter: 40mm
Lens Type: Multi-coated Green Lens
Eye Relief: 4” @ 2.5x – 3”@ 10x
Exit Pupil: 0.52” @ 2.5x – 0.17” @ 10x
Field Of View: 100 Yards Of 34.86′ @2.5x – 11.53′ @10
Illuminated Level: 5 Intensity (Red) And 5 Intensity (Green)
Reticle Type: Mil-dot
Click Value: 1/4inch@100 Yds
Laser Class: Class IIIA
Laser Power: 2mW
Laser Wavelength:650 Nm
Dimensions: 8.5″ X 3″x 3″
Net Weight: 20.5oz(approx.)
Tube Diameter: 1.57”
Finsh: Black Matte
Special Design
Bullet Drop Compensator: Allows Quick Adjustments Of The Reticle For Shooting Targets At Specific Distances(100-500 Yds).

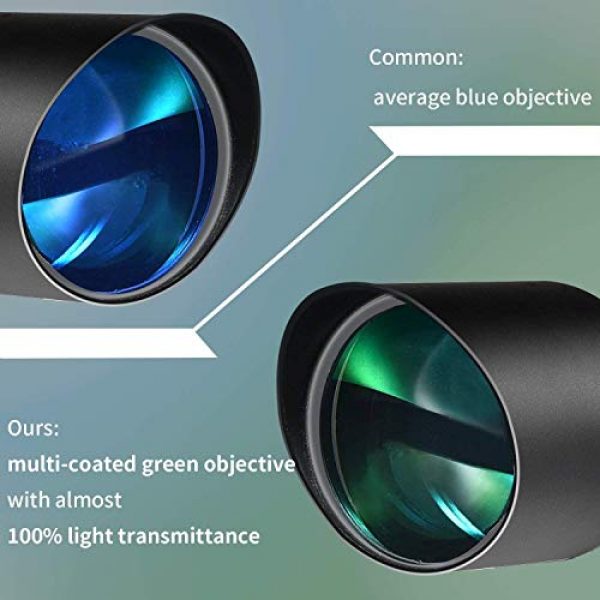

Multi-coated Green Lens: With Much Higher Light Transimittance Compared With Normal Blue Lens, Allows Clearer Image.
Special 2 In 1 Design: Scope And Gun Sight Laser Built Together To Ensure Precise Shooting.
0.79” (20mm) Mounts Included

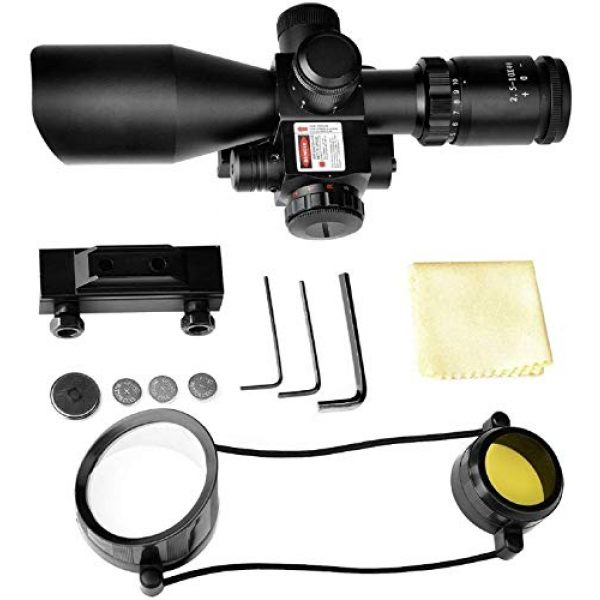

Package Include
1 X 2.5-10x40e Rifle Scope
1 X Lens Cover
Battery: CR 2032 X 1(reticle); LR1130 X3(gun Sight Laser)
1 X Scope Mounts For 20mm Picatinny Or Weaver Rail
1 X Allen Key
1 X Cleaning Cloth
Rifle Scope Product Features
Magnification: 2.5-10X; Objective Diameter: 40mm; AO: NO
Field Of View:100 Yards Of 32.5 @ 2.5x – 8.9 @10x; Laser: 2mW, Class IIIA, Reaching 100 Yards
Clearer Image: Multi-coated Green Lens Boast Much Higher Light Transmittance Compard With Blue Lens
Illumination Modes: Red & Green (5 Intensity)
Durable: Made Of High Strength Aircraft Aluminum
About the QILU Company
QILU is a premium maker for rifle scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They create and build their mounts and related products by choosing materials which are long lasting and durable. This includes the QILU Rifle Scope 2.5-10×40 Dual Illuminated Mil-dot Gun Scopes, Rifle Scope Red Dot Holosun Holographic Sight with Red Laser & 20mm Mounts by QILU. For more shooting items, visit their website.
Rifle Optic Details
Rifle scopes enable you to precisely aim a rifle at various targets by aligning your eye with the target at range. They accomplish this through zoom by utilizing a series of lenses within the scope. The scope’s alignment can be adjusted for the consideration of many environmental considerations like wind speed and elevation to make up for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will land based upon the sight picture you are seeing through the optic as you align the scope’s crosshair or reticle with the intended point of impact. Many contemporary rifle scopes and optics have around 11 parts which are located inside and externally on the optic. These optic pieces consist of the rifle scope’s body, lenses, windage dials, objective focus rings, and other components. See all eleven parts of a scope.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The form of focal plane an optic has decides where the reticle or crosshair lies in relation to the scopes zoom. It simply implies the reticle is located behind or in front of the magnification lens of the scope. Deciding on the most desired sort of rifle glass is based upon what variety of hunting or shooting you anticipate doing.
Info About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These kinds of scopes are beneficial for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where estimations are low
- Experienced shooters who have an idea for their target “hold over” as well as “lead” equations for their firearm
- Shooters who do not mind the reticle is bigger and uses up more visual sight area than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane optics (SFP) feature the reticle to the rear of the magnifying lens. This triggers the reticle to stay at the very same scale in relation to the volume of magnification being used. The end result is that the reticle measurements adapt based on the magnification applied to shoot over longer distances given that the reticle markings present various increments which differ with the zoom level. In the FFP example with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular types of optics are handy for:
- Long distance kinds of shooting where shooters have more time to make ballistic estimations
- Shooting where most shots occur within much shorter ranges and spaces
- Shooters who would like a clearer optic sight picture without room taken up by the larger sized FFP reticle
Magnification for Glass
The quantity of zoom a scope supplies is figured out by the size, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Scope Details
A single power rifle optic and scope will have a magnification number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of optic can not fluctuate because it is fixed.
Info About Variable Power Lens Glass
Variable power rifle scopes have adjustable power. These types of scopes will note the magnification amount in a format like 2-10×32. These numbers indicate the magnification of the scope could be adjusted between 2x and 10x power. This additionally includes the power levels in-between 2 and 10. The power modification is achieved by working with the power ring part of the scope near the rear of the scope by the eye bell piece.
The Power and Range Correlation of Glass
Here are some suggested scope power levels and the ranges where they could be efficiently used. Bear in mind that higher power scopes will not be as practical as lower magnification level scope and optics because increased zoom can be a bad thing. The exact same concept relates to extended distances where the shooter needs to have sufficient power to see precisely where to best aim the rifle at the target.
Scope Lens Finishing
All contemporary rifle scope lenses are coated. Lens finish can be a vital aspect of a shooting platform when buying high end rifle optics and scope systems.
ED Versus HD Rifle Glass
Some scope producers likewise use “HD” or high-definition lens finishes which use different procedures, chemicals, elements, and polarizations to draw out separate colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Rifle Glass Lens Single Coating Versus Multi-Coating
Various optic lenses can also have various finishes applied to them. All lenses usually have at least some type of treatment or finish applied to them before they are used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is normally a protective and enhancing multi-purpose treatment. This lens treatment can preserve the lens from scratches while lowering glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope manufacturer and how much money you spent paying for it. Both are signs of the lens quality.
Some scope producers similarly make it a point to define if their optic lenses are covered or “multi” coated. Being “better” depends on the manufacturer’s lens treatment innovation and the quality of materials used in building the rifle scope.
Anti-water Lens Coverings
Water on a lens doesn’t assist with maintaining a clear sight picture through a scope whatsoever. Many top of the line or premium optic manufacturers will coat their lenses with a hydrophilic or hydrophobic finishing. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It treats the exterior of the Steiner optic lens so the water molecules can not bind to it or create surface tension. The outcome is that the water beads roll off of the scope to preserve a clear, water free sight picture.
Rifle Optic Installation Choices
Installing approaches for scopes can be found in a couple of choices. There are the standard scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also normally are made in quick release variations which use toss levers which allow rifle shooters to rapidly mount and remove the scope.
Glass Mounting Solutions with Hex Key Rings
Basic, clamp style mounting optic rings use hex head screws to fix to the flattop style Picatinny scope mount rails on the tops of rifles. These varieties of scope mounts use a pair of separate rings to support the scope, and are normally made from 7075 T6 billet aluminum which are designed for far away accuracy shooting. This form of scope mount is great for rifle systems which are in need of a resilient, unfailing mount which will not shift no matter just how much the scope is moved about or abuse the rifle takes. These are the design of mounts you should have for a specialized scope system on a reach out and touch someone hunting or tournament firearm which will seldom need to be altered or recalibrated. Blue 242 Loctite threadlocker can also be used to protect against the hex screws from wiggling out after they are installed tightly in position. An example of these mounting rings are the 30mm style from Vortex Optics. The set usually costs around $200 USD
Quick-Release Cantilever Rifle Optic Rings
These types of quick-release rifle scope mounts can be used to quickly connect and take off a scope from a rifle before reattaching it to a different rifle. Multiple scopes can even be swapped out if they all use a similar design mount. These types of mounts come in handy for rifles which are transferred a lot, to remove the optic from the rifle for protecting the scope, or for optics which are used in between several rifles.
Optic Tube Sealing and Gas Purging
Moisture inside your rifle optic can mess up a day of shooting and your costly optic by triggering fogging and developing residue inside of the scope tube. The majority of scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are waterproof.
What to Know About Rifle Glass Tube Gas Purging
Another part of avoiding the buildup of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this area is already taken up by the gas, the glass is less altered by climate alterations and pressure distinctions from the outside environment which may potentially permit water vapor to seep in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
