Rifle Scope Product Details
QILU 2.5-10×40 Rifle Scope – Illuminated Red & Green Mil-dot Reticle, Rifle Scope Red Dot Holosun Holographic Sight with 20mm Mounts
Specification
Magnification: 2.5x-10x
Objective Diameter: 40mm
Lens Type: Multi-coated Green Lens
Eye Relief: 4” @ 2.5x – 3”@ 10x
Exit Pupil: 0.52” @ 2.5x – 0.17” @ 10x
Field Of View: 100 Yards Of 34.86′ @2.5x – 11.53′ @10
Illuminated Level: 5 Intensity (Red) And 5 Intensity (Green)
Reticle Type: Mil-dot
Click Value: 1/4inch@100 Yds
Laser Class: Class IIIA
Laser Power: 2mW
Laser Wavelength:650 Nm
Dimensions: 8.5″ X 3″x 3″
Net Weight: 20.5oz(approx.)
Tube Diameter: 1.57”
Finsh: Black Matte
Special Design
Bullet Drop Compensator: Allows Quick Adjustments Of The Reticle For Shooting Targets At Specific Distances(100-500 Yds).
Multi-coated Green Lens: With Much Higher Light Transimittance Compared With Normal Blue Lens, Allows Clearer Image.
Special 2 In 1 Design: Scope And Gun Sight Laser Built Together To Ensure Precise Shooting.
0.79” (20mm) Mounts Included

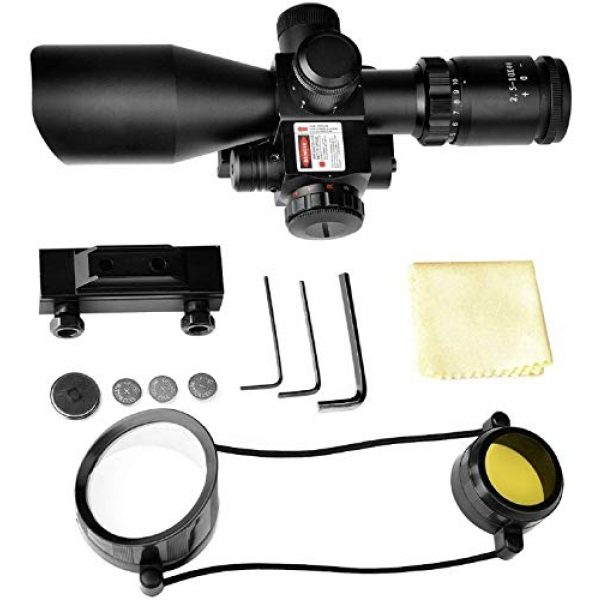

Package Include
1 X 2.5-10x40e Rifle Scope
1 X Lens Cover
Battery: CR 2032 X 1(reticle); LR1130 X3(gun Sight Laser)
1 X Scope Mounts For 20mm Picatinny Or Weaver Rail
1 X Allen Key
1 X Cleaning Cloth
Rifle Scope Product Features
Integrated Red Laser Sight, Fully Adjustable And Independently Controlled.
Tactical 4 Reticle Red/Green Dot Open Reflex Sight With Weaver-Picatinny Rail Mount For 20 Mm Rails.
Tubeless Design With 33mm Reflex Lens Aperture Provides A Wide Field Of View, Suitable For Normal And Rapid-firing Shooting Of Moving Targets.
Multi-protection: Shockproof, Waterproof And Fogproof.
2.5-10 Magnification Rifle Scope With Red/Green Illuminated Mil-dot Reticle And 40mm Object Lens.
About the QILU Brand
QILU is a premium producer for rifle scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They create and supply their products making the most of elements which are long lasting and resilient. This includes the QILU 2.5-10×40 Rifle Scope – Illuminated Red & Green Mil-dot Reticle, Rifle Scope Red Dot Holosun Holographic Sight with 20mm Mounts by QILU. For more shooting products, visit their site.
What You Need to Know About Rifle Glass
Rifle scopes enable you to specifically align a rifle at various targets by lining up your eye with the target over a distance. They accomplish this through magnifying the target by making use of a series of lenses within the scope. The scope’s positioning can be adapted to account for many ecological things like wind and elevation to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will land based upon the sight picture you are seeing using the scope as you line up the scope’s crosshair or reticle with the intended point of impact. Most modern-day rifle optics have about eleven parts which are located internally and on the exterior of the optic. These optic pieces include the rifle scope’s body, lenses, windage and elevation dials or turrets, focus rings, and other parts. See all eleven parts of scopes.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Going for the optimal type of rifle glass is based around what type of shooting you plan on doing.
First Focal Plane Optic Details
Focal plane scopes (FFP) come with the reticle in front of the zoom lens. This triggers the reticle to increase in size based on the amount of zoom being used. The result is that the reticle measurements are the same at the magnified range as they are at the non amplified range. One tick on a mil-dot reticle at one hundred yards with no “zoom” is still the very same tick at 100 yards with 5x “zoom”. These kinds of scopes are useful for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are small
- Experienced shooters who know their aim point “hold over” as well as “lead” equations for their firearms
- Shooters who don’t mind the reticle is bigger and takes up more visual sight space than a SFP reticle
Second Focal Plane Optics
Second focal plane optics (SFP) include the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick.
- Far away types of shooting where shooters have additional time to make ballistic estimations
- Shooting where most shots take place within shorter ranges and proximities
- Shooters who would like a clearer optic picture without room taken up by the larger size FFP reticle
Ins and Outs of Optic Zoom
The quantity of scope magnification you need on your scope is based on the type of shooting you like to do. Just about every type of rifle scope offers some amount of magnification. The amount of zoom a scope delivers is determined by the diameter, thickness, and curves of the lens glass within the rifle optic. The magnifying level of the scope is the “power” of the scope. This implies what the shooter is aiming at through the scope is amplified times the power element of what can usually be seen by human eyes.
About Single Power Lens Rifle Optics
A single power rifle scope comes with a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this kind of optic can not fluctuate because it is a fixed power optic.
About Adjustable Power Lens Optics
Variable power rifle scopes use variable power levels. The power change is achieved using the power ring part of the scope near the back of the scope by the eye bell.
The Power Level and Range Correlation of Optics
Here are some advised scope powers and the distances where they can be efficiently used. Remember that high magnification optics will not be as efficient as lower magnification level optics because too much zoom can be a negative thing in certain situations. The exact same concept relates to extended ranges where the shooter needs adequate power to see precisely where to best aim the rifle at the target.
Details on Lens Coatings
All modern-day rifle optic lenses are covered in special coatings. There are different types and qualities of glass finishings. When considering luxury rifle optical systems, Lens coating can be a critical component of defining the rifle’s capability. The lenses are among the most critical parts of the glass because they are what your eye looks through while sighting a rifle in on the point of impact. The covering on the lenses protects the lens exterior and also improves anti glare from refracted sunrays and color perception.
HD Versus ED Lenses
Some rifle glass producers additionally use “HD” or high-definition lens finishes that use different processes, polarizations, rare earth compounds, and components to draw out numerous colors and viewable definition through lenses. This HD coating is typically used with more costly high density glass which reduces light’s potential to refract by means of the lens glass. Some scope producers use “HD” to refer to “ED” signifying extra-low dispersion glass. ED deals with how certain colors are presented on the chroma spectrum and the chromatic aberration or difference which is similarly called color distortion or fringing. Chromatic aberration can be visible around objects with hard shapes as light hits the item from various angles.
Optic Lens Single Coating Versus Multi-Coating
Different optic lenses can likewise have different finishes applied to them. All lenses generally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope makers also make it a point to specify if their optic lenses are covered or “multi” covered. This means the lens has had numerous treatments applied to the surfaces. If a lens gets several treatments, it can indicate that a maker is taking numerous steps to combat various natural elements like an anti-glare covering, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finishing. This additionally doesn’t necessarily imply the multi-coated lens will perform better than a single layered lens. Being “better” depends upon the producer’s lens treatment innovation and the quality of glass used in constructing the rifle scope.
Info on Anti-water Covering
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Many top of the line and military grade scope makers will coat their lenses with a hydrophobic or hydrophilic finishing.
Choices for Installing Rifle Glass on Long Guns
Installing solutions for scopes come in a couple of options. There are the basic scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These different kinds of mounts also normally are made in quick release versions which use toss levers which enable rifle shooters to quickly install and dismount the glass.
Optic Mounts with Hex Key Rings
Basic, clamp design mounting scope rings use hex head screws to fix to the flattop style Picatinny scope mount rails on rifles. These styles of scope mounts use two independent rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are developed for long distance precision shooting. This type of scope mount is effective for rifles which need a resilient, rock solid mount which will not change no matter how much the scope is moved about or abuse the rifle takes. These are the design of mounts you really want to have for a devoted optics system on a long distance scouting or competitors rifle which will rarely need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used on screws to keep the hex screws from wiggling out after they are installed securely in position. An example of these mounting rings are the 30mm style made by Vortex Optics. The set generally costs around $200 USD
Quick-Release Cantilever Scope Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope and connect it to a different rifle. Numerous scopes can even be swapped out if they all use a similar design mount. These types of mounts are handy for rifles which are carried a lot, to swap out the optic from the rifle for protection, or for optics which are used between several rifles.
Sealing and Gas Purging for Rifle Optic Tubes
Moisture inside your rifle optic can mess up a day of shooting and your pricey optic by causing fogging and producing residue inside of the scope tube. The majority of scopes avoid wetness from entering the scope tube with a system of sealing O-rings which are water resistant.
What to Know About Optic Tube Gas Purging
Another part of preventing the accumulation of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this area is currently taken up by the gas, the glass is less impacted by climate alterations and pressure variations from the external environment which may potentially allow water vapor to leak in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
