Rifle Scope Product Details

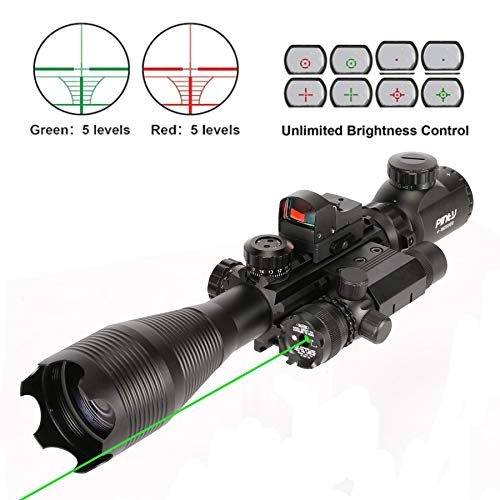

Pinty Rifle Scope 4-16×50, Illuminated Optics, Green Laser, Red-Coating Reflex Mini Sight
Rifle Scope Product Features
4-in-1, comes with a illuminated optics sight, a green laser, a holographic dot sight and a bore sight.
Boasting 4x-16x magnification, this optics is well suited for wide range shooting, perfect for quick acquisition of close quarter & fast moving targets.
Unsurpassed light transmission, uncompromising mechanical performance and clarity.
Come with micro mini reflex red dot sight, the coated lenses of which features unlimited eye relief, 2 MOA red dot while being parallax free.
O-ring sealing and nitrogen filling ensures 100% water and fog-proof.
Specifications:
Fits all standard 20mm picatinny rail
Three-in-one 4-16×50 riflescope combo system provides the best value. Our premium riflescope features unsurpassed light transmission, uncompromising mechanical performance and unbeatable optical clarity. The matching green laser sight helps you to aim better and the red dot sight equips you with better vision even in the darkest environment. Buttons on reflector can help to adjust its brightness. And the reticle will be closed when you press the red & green control button at the same time. Magnification is from 4 times up to 16 times. Green and red illuminations with 5 brightness adjustments for the riflescope and electronic unlimited brightness control for the dot sight. Water proof and fog proof, it also comes with free lens covers. Take our riflescope with you on your next hunting trip!
Package list:
1x 4-16X50 Rifle scope
1x Compact green laser sight
1x Mini reflex sight
3x Allen keys for rail mounting and sight adjustment
1x 5.56 Bore sight
1x Cleaning cloth
1x Mount
8x Battery
Rifle Scope
Magnification: 4x-16x
Obj. Diameter: 50mm
Length: 12.9″
Brightness Control: Red and green with 5 levels
Reticle: Rangefinder
Field of View: 10′ ~ 27′ @ 100yards
Eye Relief: 3″ ~ 3.4″
Windage & Elevation Click Value: 1/4′ @ 100 yards
Exit Pupil: 3.3mm ~10mm
Green Laser Sight
Output Power: 5mW
Laser Class: 3a
Wave Length: 532nm
Reaching Distance: 980 foot/ 300 meter
Dimension: 4.72″ (length) x 1.54″ (Diameter)
Weight 4.5 ounce/ 150 gram
Battery: 1x CR123A Lithium ion battery (included)

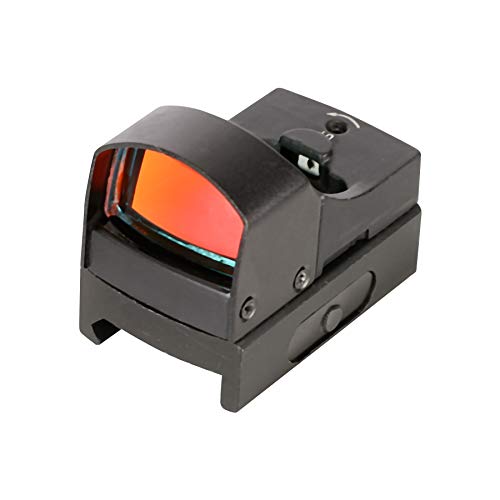

Reflex Sight
Dimensions: 40 mm (length) x 28 mm (width) x 35 mm (height)
Weight: 2.1 oz
Dot Size: 3 MOA
Range: 30-100m
Power: 1 x CR2032 battery
Bore sight
Length: 44.5mm; Tail width: 9.5mm; Head width: 6.3mm
Laser Wave length (nm:) 640 to 660
Output Power: 5mW
Laser Class: 3a
Construction: Brass
Sighting Range: 15 to 100 yards
Dot Size: 2 inches at 100 yards
Battery Type:6 X AG3 (Included)
Pinty 4-16×50 Scope Combo Pinty 3-9×32 Scope Combo Pinty 4-16×50 Scope Combo Pinty 4-12×50 Scope Combo Pinty 3-9×32 Scope Combo
Reticle Rangefinder Rangefinder Rangefinder Rangefinder Rangefinder
Magnification 4-16x 3-9x 4-16x 4-12x 3-9x
Objective Lens Diamete 50mm 32mm 50mm 50mm 32mm
About the Pinty Scope Maker
Pinty is a premium company for firearm scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They innovate and supply their mounts and related products by making the most of building materials which are resilient and long lasting. This includes the Pinty Rifle Scope 4-16×50, Illuminated Optics, Green Laser, Red-Coating Reflex Mini Sight by Pinty. For more shooting products, visit their website.
All About Rifle Scopes
Rifle scopes allow you to specifically aim a rifle at different targets by aligning your eye with the target at range. They accomplish this through magnifying the target by utilizing a set of lenses within the scope. The scope’s alignment can be adjusted to take into account varied environmental aspects like wind and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will hit based on the sight picture you are seeing via the optic as you line up the scope’s crosshair or reticle with the intended point of impact. Many modern-day rifle optics have about eleven parts which are found internally and externally on the scope body. These parts consist of the rifle scope’s body, lenses, windage and elevation dials, focus rings, and other elements. See all eleven parts of scopes.
Rifle Scope Types
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The kind of focal plane an optic has establishes where the reticle or crosshair is located in regard to the optic’s magnification. It literally implies the reticle is located behind or ahead of the magnification lens of the optic. Selecting the best style of rifle optic depends on what sort of shooting you anticipate undertaking.
Info on First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This triggers the reticle to increase in size based upon the amount of zoom being used. The result is that the reticle measurements are the same at the enhanced range as they are at the non magnified distance. One tick on a mil-dot reticle at 100 yards without “zoom” is still the same tick at one hundred yards by using 5x “zoom”. These kinds of scopes work for:
- Quick acquisition, far away kinds of shooting
- Shooting scenarios where calculations are minor
- Experienced shooters who recognize their target “hold over” and also “lead” equations for their long gun
- Shooters who do not mind the reticle is enlarged and occupies more visual eyesight room than a SFP reticle
About Second Focal Plane Scopes
Second focal plane optics (SFP) include the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance types of shooting where shooters have extra time to make ballistic computations
- Shooting where most shots occur within much shorter proximities and ranges
- Shooters who select a clearer optic sight picture without room taken up by the bigger FFP reticle
About Rifle Glass Zoom
The amount of magnification a scope provides is identified by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Rifle Glass
A single power rifle scope or optic will have a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of optic can not adjust considering that it is a fixed power optic.
Variable Power Lens Scopes
Variable power rifle scopes use enhanced power. The power modification is performed by using the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range Correlations
Here are some advised scope powers and the ranges where they could be successfully used. Always remember that high power glass will not be as efficient as lower magnification level scope and optics due to the fact that increased magnification can be a bad thing. The very same idea applies to longer distances where the shooter needs increased power to see exactly where to properly aim the rifle at the target.
Details on Glass Lens Coatings
All modern rifle optic lenses are covered. Lens finishing is an important aspect of a rifle when looking into high end rifle optics and scope systems.
HD Versus ED Lenses
Some optic suppliers will also use “HD” or high-def lense finishes that take advantage of different procedures, components, chemical substances, and polarizations to extract numerous color ranges and viewable target visibility through the lens. This HD covering is often used with more costly, high density lens glass which lowers light’s capability to refract through the lens glass. Some scope manufacturers use “HD” to refer to “ED” indicating extra-low dispersion glass. ED handles how colors are represented on the chromatic spectrum and the chromatic aberration or difference which is also called color distortion or fringing. Chromatic aberration may be visible over objects with well defined outlines as light hits the item from specific angles.
Rifle Scope Lens Single Covering Versus Multi-Coating
Various scope lenses can also have different coatings applied to them. All lenses typically have at least some type of treatment or finish applied to them prior to being used in a rifle scope or optic. Because the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It becomes part of the carefully tuned optic. It requires a coating to be applied to it so that it will be optimally usable in lots of types of environments, degrees of light (full VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is typically a protective and enhancing multi-purpose treatment. This lens treatment can safeguard the lens from scratches while reducing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends upon the scope company and the amount you spent for it. The scope’s maker and cost are signs of the lens quality.
Some scope producers likewise make it a point to define if their optic lenses are coated or “multi” covered. This indicates the lens has multiple treatments applied to the surfaces of the glass. If a lens receives several treatments, it can establish that a maker is taking numerous steps to fight various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finish, followed by a hydrophilic finishing. This additionally does not always imply the multi-coated lens will perform better than a single covered lens. Being “much better” hinges on the maker’s lens treatment technology and the quality of products used in creating the rifle glass.
Hydrophobic Lens Coverings
Water on a lens does not improve keeping a clear sight picture through a scope in any way. Many top of the line and high-end optic producers will coat their lenses with a hydrophilic or hydrophobic covering. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It deals with the exterior of the Steiner glass lens so the H2O molecules can not bind to it or develop surface tension. The outcome is that the water beads roll off of the scope to preserve a clear, water free sight picture.
Choices for Mounting Glass on Firearms
Mounting approaches for scopes come in a few choices. There are the standard scope rings which are separately installed to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also typically are made in quick release versions which use manual levers which enable rifle operators to quickly mount and remove the scopes.
Hex Key Glass Rings
Standard, clamp-on style mounting scope rings use hex head screws to position to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use double separate rings to support the scope, and are made from 7075 T6 billet aluminum which are designed for long distance accuracy shooting. This form of scope mount is good for rifle systems which are in need of a durable, unfailing mount which will not change regardless of just how much the scope is moved or jarring the rifle takes. These are the design of mounts you want for a faithful scope setup on a far away scouting or competitors rifle that will pretty much never need to be changed or adjusted. Blue 242 Loctite threadlocker can also be used on the mount screws to prevent the hex screw threads from backing out after they are installed tightly in position. An example of these mounting rings are the 30mm style from Vortex Optics. The set usually costs around $200 USD
Scope Mounting Solutions with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to rapidly attach and remove a scope from a rifle. Multiple scopes can also be switched out if they all use a similar style mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten nicely to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while preserving accuracy. These kinds of mounts come in convenient for shooting platforms which are moved a lot, to remove the optic from the rifle for protection, or for optics which are chosen for use in between numerous rifles. An example of this mount style is the 30mm mount from Vortex Optics. It usually costs around $250 USD
Sealing and Gas Purging for Scope Tubes
Wetness inside your rifle scope can destroy a day of shooting and your pricey optic by triggering fogging and developing residue inside of the scope tube. Most scopes avoid wetness from getting in the scope tube with a system of sealing O-rings which are waterproof.
Rifle Optic Gas Purging
Another element of avoiding the buildup of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Because this area is already taken up by the gas, the optic is less impacted by temperature shifts and pressure distinctions from the outdoor environment which might possibly enable water vapor to leak in around the seals to fill the void which would otherwise exist. These are good qualities of a good rifle scope to seek out.
