Description
Rifle Scope Product Details

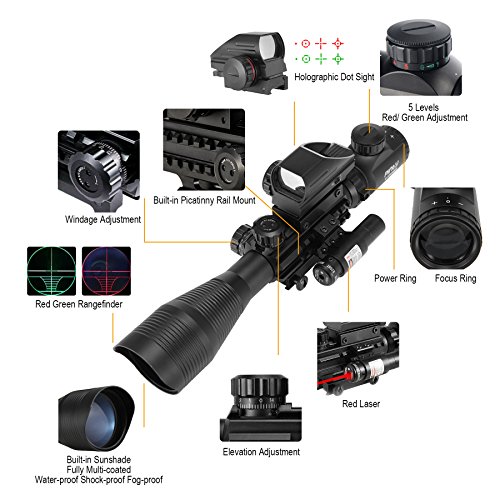

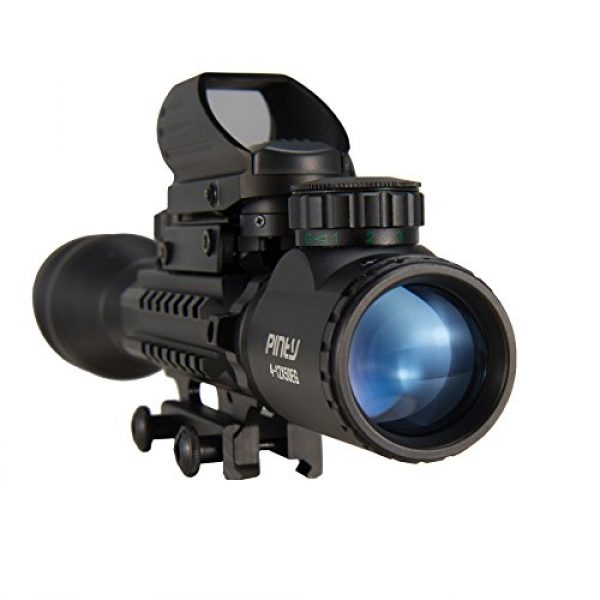

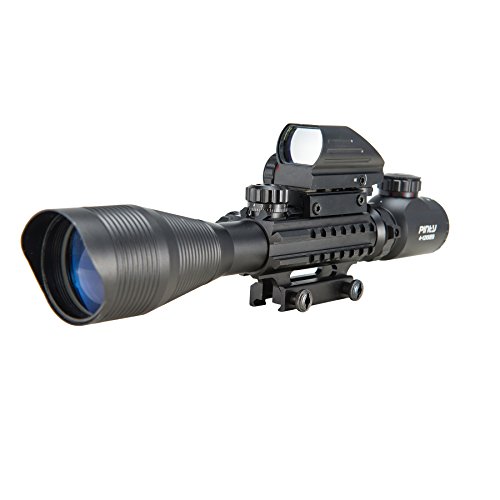

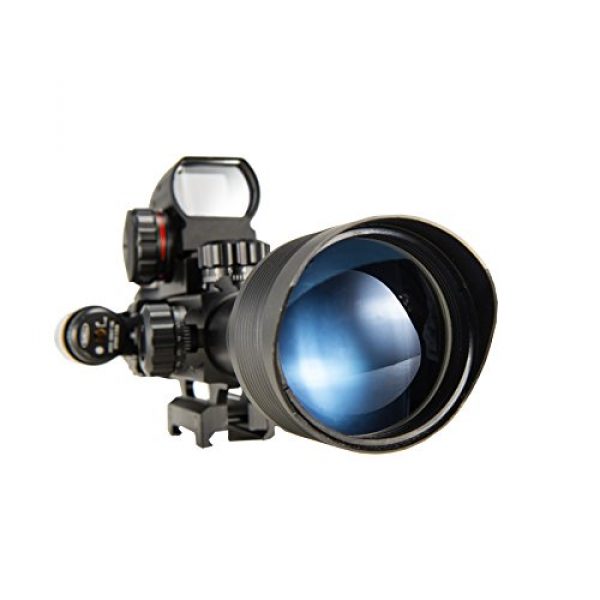

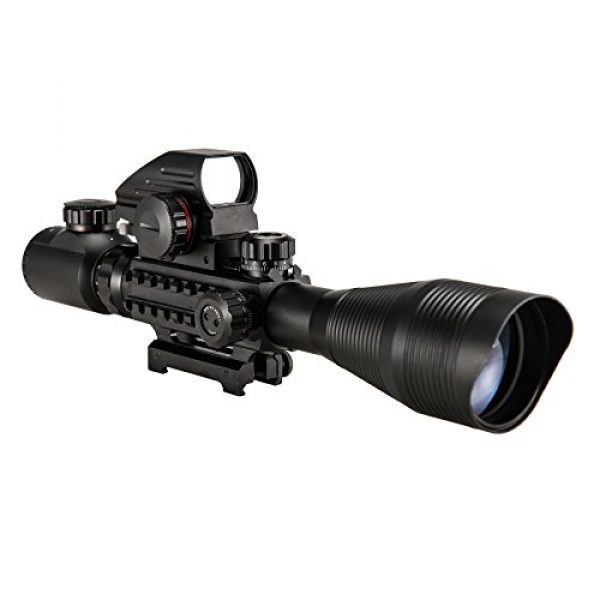

Pinty Rifle Scope 4-12x50EG Rangefinder Mil Dot Tactical Reticle Scope with Laser Sight and Red Dot Sight
Rifle Scope Product Features
About this item
3-in-1, comes with a Mil Dot riflescope, a red laser sight and a red dot sight
Made of aerospace aluminum alloy, durable and versatile
Unsurpassed light transmission, uncompromising mechanical performance and clarity
O-ring sealing and nitrogen filling ensures 100% water and fog-proof
Magnifications from 4X up to 12X, green/red illuminations with brightness adjustments for both the riflescope and red dot sight, 4 reticle patterns available for the red dot sight
Pinty 3 in 1 Scope Combo 4-12x50EG System
Three in one 4-12X50EG riflescope combo system provides precise value. Our riflescope features optimum light transmission and high optical clarity. Magnification is from 4times up to 12times. Green and red illuminations with 5 brightness adjustments for the riflescope as well as the red dot sight provide clear visions, and the red dot sight has 4 different reticle patterns available for you to choose from. Take our riflescope with you on your next hunting trip!

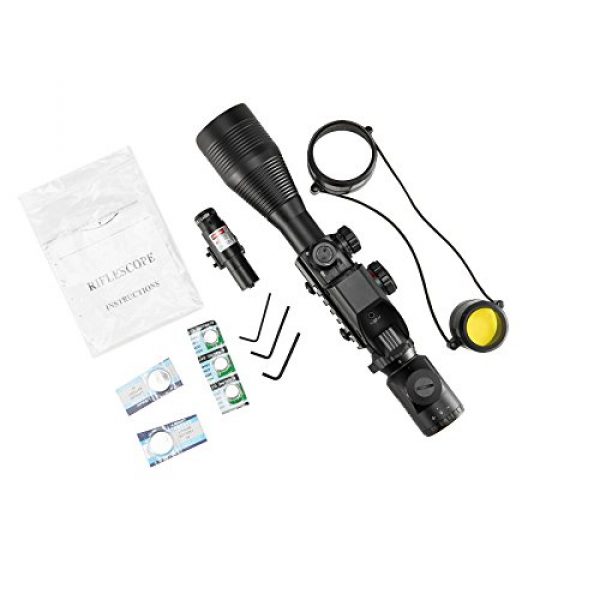

Package includes:
1* 4-12X50EG rifle scope
1* Holographic 4 Reticle Red and Green Dot Refle Sight
1* Compact red laser sight
3* Allen keys for rail mounting and sight adjustment
1* Lens caps
1* Cleaning cloth
2* CR2032 batteries
3* AG13 batteries
4-12x50EG Rilfe Scope
Brightness Control Red and green with 5 levels
Obj. aperture: 32mm x 22mm
Objective diameter (in/mm): 1.97/50
Field of view10′ ~ 27′ @ 100yards
Eye relief: 3″ ~ 3.4″
Windage & elevation click value1/4′ @ 100 yards
Exit pupil3.3mm ~10mm
Max. elevation/ windage adjustment range (m/100 m): 1.2 (ft/100 yd): 3.6
Objective filter thread: M 52 x 0.75
Length: 12.7”
Weight: 1.65lbs
Holographic Dot Sight
Dot Color: Red& Green
Magnification: 1x
Objective Diameter: 0.9in/22mm
Length: 3.2in/82mm
Rail Size: 11 or 22 mm
Brightness Control: unlimited brightness control
Reticle Pattern: 4
Red Laser sight
Laser class: Class IIIA
Standard 22 mm mount rail
Length: 29mm Maximum
Output Power: 5 mw
Wavelength: 625~660nm
Tube Diameter: 26mm
Laser Distance: best at 160ft to 330ft
Focus Parallax Adjustment
The riflescope features a turret-mounted side focus parallax adjustment to enable fine-tuning of the sight image without changing shooter’s position.
Built-in picatinny rail mount
Instead of a general 1 inch scope tube, this scope body was made with built-in picatinny rail mount, so that hunting accessories can be attached easily.
20mm rail mount to rifles
Weaver rail for simple attachment, fits 20mm picatinny rail.
4-12x Magnifications
Magnification@4x-12x; adjustable rangefinder and parallax from 15 Yds. to infinity, providing ultra-clear vision
lluminated Reticles
The reticle and adjustment system in this scope combo variants with illuminated option
Waterproof
Nitrogen-filling ensures 100% waterproof, shockproof, and fogproof
About the Pinty Brand
Pinty is a premium company for firearm scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They innovate and manufacture their scopes, mounts, and related products using building materials which are long lasting and durable. This includes the Pinty Rifle Scope 4-12x50EG Rangefinder Mil Dot Tactical Reticle Scope with Laser Sight and Red Dot Sight by Pinty. For additional shooting products, visit their website.
What You Need to Know About Scopes
Rifle scopes allow you to precisely aim a rifle at various targets by aligning your eye with the target at range. They do this through magnifying the target by using a set of lenses within the scope. The scope’s positioning can be adjusted to account for separate environmental considerations like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to understand exactly where the bullet will hit based upon the sight picture you are seeing via the optic as you line up the scope’s crosshair or reticle with the intended point of impact. A lot of modern rifle scopes and optics have around eleven parts which are located within and externally on the scope body. These scope parts include the rifle scope’s body, lenses, windage and elevation turrets or dials, focus rings, and other components. See all eleven parts of an optic.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Deciding on the perfect type of rifle scope is based around what type of shooting you plan to do.
Info About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These kinds of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where estimations are low
- Experienced shooters who have an idea for their aim point “hold over” plus “lead” ratios for their firearm
- Shooters who don’t mind the reticle is bigger and requires more visual sight space than a SFP reticle
Second Focal Plane Scopes
Second focal plane scopes (SFP) come with the reticle behind the magnifying lens. This triggers the reticle to remain at the same size in connection with the volume of zoom being used. The final result is that the reticle dimensions evolve based on the zoom applied to shoot over lengthier distances considering that the reticle markings present various increments which vary with the magnification. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick. These varieties of scopes work for:
- Long distance types of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots occur within much shorter ranges and spaces
- Shooters who want a clearer optic picture without area taken up by the larger size FFP reticle
Optic Zoom
The quantity of zoom a scope provides is figured out by the size, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Power Lens Rifle Optics
A single power rifle scope and optic uses a magnification number designator like 4×32. This suggests the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not change since it is fixed.
Variable Power Lens Scopes
Variable power rifle scopes can be changed between magnification increments. It will list the zoom level in a format such as 2-10×32. These numbers imply the magnification of the scope can be changed between 2x and 10x power. This additionally utilizes the powers in-between 2 and 10. The power adaptation is accomplished by making use of the power ring part of the scope near the rear of the scope by the eye bell piece.
Rifle Optic Power Level and Range Correlation
Here are some advised scope power settings and the distances where they may be efficiently used. Remember that higher power optics and scopes will not be as efficient as lower powered scopes due to the fact that increased zoom can be a negative thing in certain situations. The same idea relates to longer ranges where the shooter needs increased power to see exactly where to best aim the rifle.
Optic Lens Finishing
All state-of-the-art rifle glass lenses are coated. Lens covering is a vital element of a rifle system when considering high end rifle optics and scope setups.
HD Versus ED Rifle Optic Lens Coatings
Some scope manufacturers will also use “HD” or high-definition lens coatings which employ various procedures, polarizations, rare earth compounds, and elements to extract different color ranges and viewable target definition through lenses. This high-def finishing is often used with more costly high density glass which reduces light’s opportunity to refract by means of the lens glass. Some scope manufacturers use “HD” to describe “ED” implying extra-low dispersion glass. ED deals with how colors are presented on the chroma spectrum and the chromatic aberration which is similarly called color distortion or fringing. Chromatic aberration can be visible over objects with defined shapes as light hits the object from various angles.
What to Know About Single Finishing Versus Multi-Coating
Various scope lenses can also have various coverings applied to them. All lenses normally have at least some type of treatment or covering applied to them before being used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t simply a raw piece of glass. It becomes part of the carefully tuned optic. It must have a finish applied to it so that it will be optimally functional in lots of kinds of environments, degrees of sunlight (full light VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope maker and how much you paid for it.
Some scope makers similarly make it a point to specify if their optic lenses are layered or “multi” covered. Being “much better” depends on the manufacturer’s lens treatment technology and the quality of materials used in developing the rifle scope.
Anti-water Coating for Scopes
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Lots of top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic anti-water covering.
Rifle Optic Mounting Choices
Installing options for scopes come in a couple of options. There are the basic scope rings which are separately mounted to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also generally are made in quick release variations which use manual levers which permit rifle shooters to quickly mount and remove the scope.
Hex Key Glass Rings
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which is developed for long range accuracy shooting. This type of scope install is great for rifles which need a resilient, sound mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Optic Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly take off a scope and connect it to a different rifle. Multiple scopes can even be swapped out if they all use a compatible design mount. These types of mounts are handy for long guns which are carried a lot, to swap out the optic from the rifle for protection, or for scopes which are used in between several rifles.
What to Know About Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can mess up a day of shooting and your pricey optic by triggering fogging and creating residue inside of the scope tube. Most scopes avoid moisture from going into the scope tube with a system of sealing O-rings which are water resistant.
Info on Rifle Scope Tube Gas Purging
Another component of avoiding the buildup of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Given that this area is already occupied by the gas, the optic is less affected by temp shifts and pressure variations from the external environment which may potentially allow water vapor to leak in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
