Description
Rifle Scope Product Details

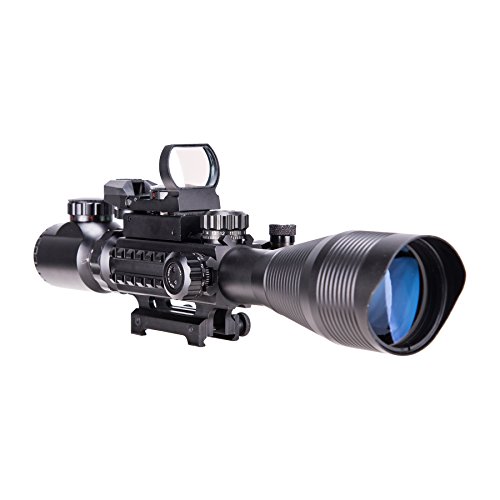

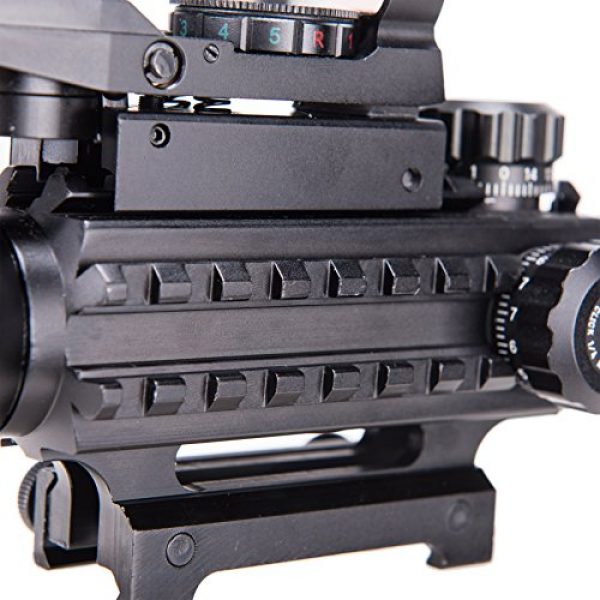

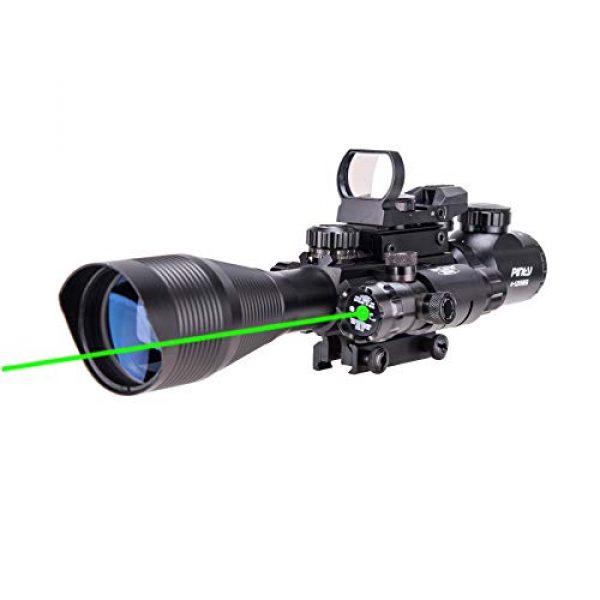

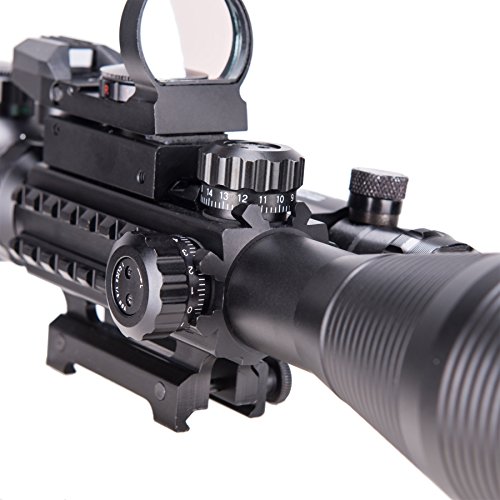

Pinty Rifle Scope 4-12×50 Rangefinder Illuminated Optics with 4 Reticle Red Green Reflex Sight, Green Dot Laser Sight
Rifle Scope Product Features
About this item
3-in-1, comes with a rangefinder riflescope, a green laser sight and a red/green dot sight
Made of aerospace aluminum alloy, durable and versatile
Unsurpassed light transmission, uncompromising mechanical performance and clarity
O-ring sealing and nitrogen filling ensures 100% water and fog-proof
Magnifications from 4X up to 12X, green/red illuminations with 5 brightness adjustments for both the riflescope and dot sight, 4 reticle patterns also available for the red/green dot sight
Laser class:Class IIIA
Fits 20mm picatinny rail
4-12x50EG Rangefinder Illuminated Riflescope:
Magnification: 4x-12x
Brightness Control: red and green with 5 levels
Objective diameter (mm/in): 50/1.97
Reticle type: Rangefinder Lens Color: Blue Field of View10′ ~ 27′ @ 100yards
Eye Relief: 3″ ~ 3.4″
Windage & Elevation Click Value1/4′ @ 100 yards
Exit Pupil3.3mm ~10mm
Max. Elevation/windage adjustment range (m/100 m): 1.2 (ft./100 yd.): 3.6
Objective filter thread: M 52 x 0.75
Length: 12.7”
Weight: 1.65lbs
4 Reticle Red&Green Reflex Sight
Objective diameter: 33mm
Output: 1MW
5 level brightness control: red/green
Reticle Pattern: 4
Wavelength: 650nm
Power:< 5MW
Material: Aircraft grade aluminum alloy
Housing Size: 3.2x2.6inches/82x66mm
Weight: 0.51lb

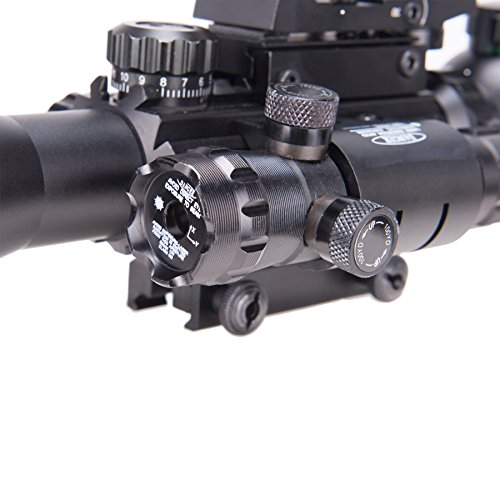

Green Laser sight
Standard 22 mm mount rail
Length: 29mm Maximum Output Power: 5 mw
Wavelength: 625~660nm
Tube Diameter: 26mm
Laser Distance: best at 160ft to 330ft
Compatibility: This part can be only used with bolt-action Rifles

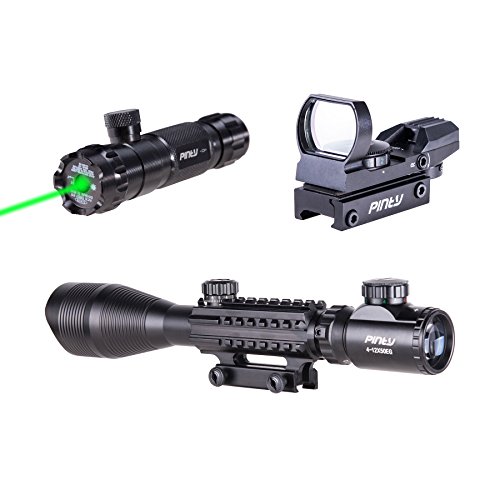

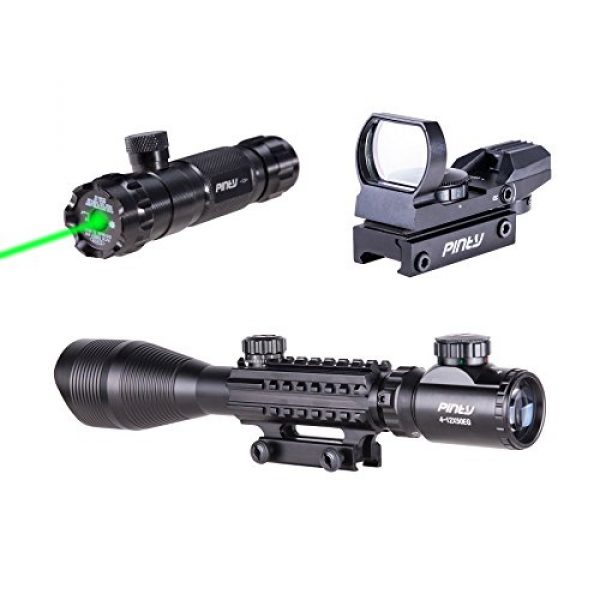

Package includes:
1x 4-12x50EG Rangefinder Illuminated Riflescope
1x 4 Reticle Red & Green reflex sight
1x Green dot laser sight
2x Allen wrench rail mounting and sight adjustment
1x Lens cover
1x Cleaning cloth
2x CR2032 batteries
1x CR123A battery
3x Manual
About the Pinty Company
Pinty is a premium manufacturer for firearm scopes, optics, mounts, and other add-ons used for guns like rifles and long guns. They innovate and make their products making the most of building materials which are resilient and long lasting. This includes the Pinty Rifle Scope 4-12×50 Rangefinder Illuminated Optics with 4 Reticle Red Green Reflex Sight, Green Dot Laser Sight by Pinty. For additional shooting products, visit their website.
Information Rifle Glass
Rifle scopes enable you to specifically aim a rifle at different targets by lining up your eye with the target at range. They do this through magnification by utilizing a set of lenses within the scope. The scope’s alignment can be adapted for the consideration of various ecological aspects like wind and elevation decreases to make up for bullet drop.
The scope’s function is to understand precisely where the bullet will land based upon the sight picture you are seeing through the scope as you line up the scope’s crosshair or reticle with the intended point of impact. The majority of modern-day rifle scopes have around eleven parts which are arranged within and outside of the scope. These scope parts consist of the rifle scope’s body, lenses, windage and elevation dials, objective focus rings, and other parts. Learn about the eleven parts of rifle glass.
Rifle Glass Types
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The sort of focal plane an optic has establishes where the reticle or crosshair lies in connection with the optic’s zoom. It literally means the reticle is located behind or in front of the magnification lens of the scope. Selecting the most beneficial type of rifle optic is dependent on what kind of hunting or shooting you plan on undertaking.
Info About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where estimations are marginal
- Experienced shooters who understand their target “hold over” plus “lead” relationships for their firearms
- Shooters who do not mind the reticle is enlarged and occupies more visual sight room than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane scopes (SFP) include the reticle behind the magnification lens. This causes the reticle to stay at the same overall size relative to the volume of zoom being used. The final result is that the reticle dimensions adjust based on the magnification employed to shoot over longer distances due to the fact that the markings represent various increments which differ with the magnification level. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick measurement. These particular styles of optics work for:
- Long distance styles of shooting where shooters have additional time to make ballistic calculations
- Shooting where most shots take place within much shorter distances and ranges
- Shooters who choose a clearer optic sight picture without room taken up by the larger size FFP reticle
Optic Zoom
The quantity of zoom a scope supplies is determined by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Power Lens Scope Info
A single power rifle optic will have a zoom number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of optic can not change since it is a set power scope.
Variable Power Lens Optics
Variable power rifle scopes use variable power levels. The power modification is performed using the power ring part of the scope near the rear of the scope by the eye bell.
Glass Power and Ranges
Here are some recommended scope power levels and the ranges where they could be successfully used. Keep in mind that higher power glass will not be as effective as lower powered scope and optics since increased magnification can be a bad thing. The same concept relates to longer ranges where the shooter needs adequate power to see where to best aim the rifle at the target.
Optic Lens Finishing
All state-of-the-art rifle optic lenses are covered. Lens covering can be a significant element of a shooting system when considering high end rifle optics and scope equipment.
HD Versus ED Lens Coatings
Some rifle glass suppliers also use “HD” or high-def lense finishes that employ various procedures, aspects, polarizations, and chemicals to draw out numerous color ranges and viewable definition through lenses. This high-definition covering is frequently used with higher density lens glass which lowers light’s opportunity to refract by means of the lens glass. Some scope suppliers use “HD” to refer to “ED” implying extra-low dispersion glass. ED deals with how colors are presented on the chroma spectrum and the chromatic deviance or aberration which is similarly called color distortion or fringing. Chromatic aberration can be noticeable over items with hard outlines as light hits the item from specific angles.
Single Finishing Versus Multi-Coating for Optics
Different optic lenses can also have different finishings applied to them. All lenses usually have at least some kind of treatment or coating applied to them prior to being used in a rifle scope or optic. This is because the lens isn’t just a raw piece of glass. It is part of the finely tuned optic. It requires a coating to be applied to it so that the lens will be optimally usable in lots of kinds of environments, degrees of light (full light VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is typically a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends upon the scope company and the amount you spent on it. Both the make and cost are indicators of the lens quality.
Some scope makers similarly make it a point to define if their optic lenses are layered or “multi” covered. Being “better” depends on the manufacturer’s lens treatment innovation and the quality of materials used in building the rifle scope.
Info on Anti-water Covering
Water on a lens doesn’t assist with maintaining a clear sight picture through a scope at all. Many top of the line and military grade optic makers will coat their lenses with a hydrophilic or hydrophobic anti-water finish.
Glass Installation Choices
Mounting solutions for scopes can be found in a few choices. There are the standard scope rings which are individually installed to the scope and one-piece mounts which cradle the scope. These different types of mounts also usually can be found in quick release versions which use throw levers which permit rifle shooters to quickly mount and remove the optics.
Hex Key Rifle Scope Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which are designed for long range accuracy shooting. This type of scope install is great for rifles which require a resilient, rock solid mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Glass Rings
These types of quick-release rifle scope mounts can be used to quickly connect and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be switched out if they all use a similar design mount. These types of mounts are convenient for rifle platforms which are transferred a lot, to remove the optic from the rifle for protecting the scope, or for optics which are used between multiple rifles.
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle optic can destroy a day of shooting and your costly optic by causing fogging and developing residue inside of the scope tube. The majority of scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Glass Tubes
Another component of preventing the buildup of moisture inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Considering that this space is currently occupied by the gas, the scope is less impacted by condition changes and pressure variations from the outdoor environment which might possibly enable water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
