Rifle Scope Product Details

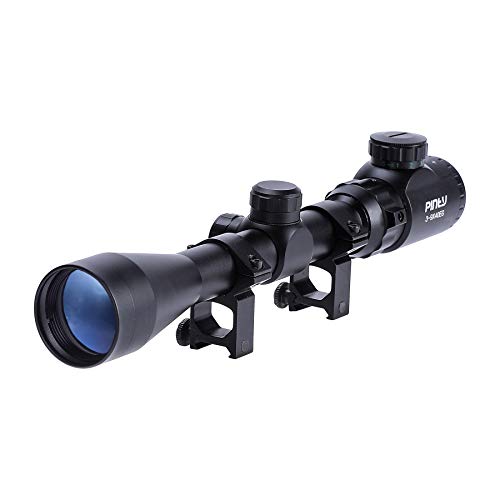

Pinty 3-9X40 Red Green Rangefinder Illuminated Optical Rifle Scope
Rifle Scope Product Features
About this item
Green and red illuminations, 5-level brightness available, magnifications from 3X up to 9X, ultimate clarity and superior eyepiece guaranteed.
Field of view: 14′-25′ @ 100yards; windage & elevation click value: 1/4 MOA 1/4″ @ 100yards, 2.7″-3.3″ eye relief.
Rangefinder reticle provides fast, simple aiming points for various shot distances.
Two 1” complementary scope rings to be easily mounted onto any 20mm Picatinny or Weaver mount rails.
O-ring sealing and nitrogen filled reticle ensures outstanding water and fog-proof performance.
Specifications:
Fits all standard 20mm picatinny rail
Magnification: 3x-9x
Obj. diameter: 40mm
Reticle type: Rangefinder
Brightness control: Red 5 levels / Green 5 levels
Lens color: Blue
Field of view: 25′-14’@100yards
Eye relief: 3.3-2.7″
Windage & elevation click value: 1/4 MOA 1/4″@ 100yards
Exit pupil: 13.3mm-4.4mm
Tube diameter: 25.4

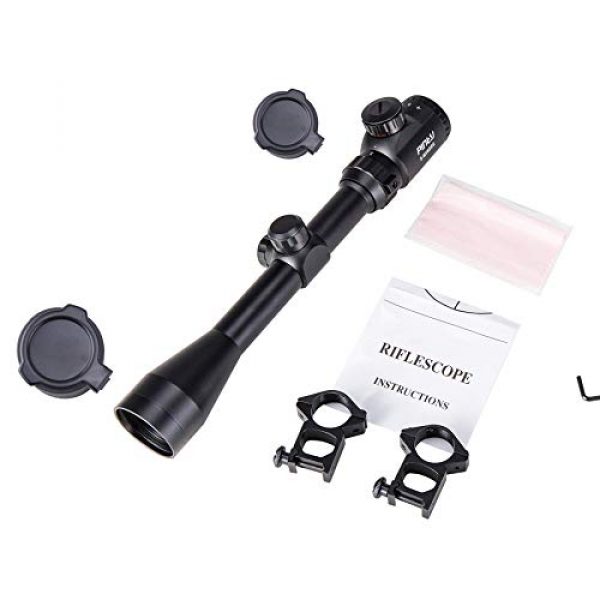

Package Includes:
1x 3-9×40 Rifle Scope
2x 1 inch high mount
1x CR2032 battery
1x Cleaning Cloth
1x Manual
3 to 9 times magnification with 40mm object lens
Eyepiece lens with 3.3-2.7 inches eye relief

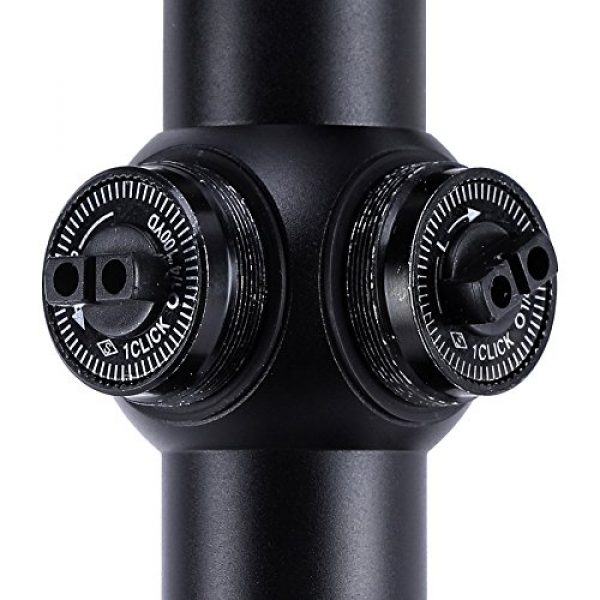

Adjustable elevation and windage for improved shooting accuracy
5 brightness adjustments to achieve ultimate reticle clarity, regardless of day or night
Pinty 3-9×40 Scope Pinty Pro 3-9×40 Scope Pinty Pro 3-9×42 Scope Pinty 4-16×40 AO Scope
Reticle Rangefinder Mil dot Glass Etched German 4 Mil Dot
Magnification 3-9x 3-9x 3-9x 4-16x
Adjustable Objective x x x
Objective Lens Diameter 40mm 40mm 42mm 40mm
Illuminated Reticle x
Reticle Color Red & Green Red & Green Red & Green & Blue
About the Pinty Manufacturer
Pinty is a premium producer for weapon scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They design and manufacture their products making the most of elements which are long lasting and resilient. This includes the Pinty 3-9X40 Red Green Rangefinder Illuminated Optical Rifle Scope by Pinty. For more shooting goods, visit their site.
What You Need to Know About Glass
Rifle scopes enable you to precisely aim a rifle at different targets by aligning your eye with the target over a range. They accomplish this through zoom using a series of lenses inside the scope. The scope’s positioning can be adapted for consideration of various natural things like wind and elevation increases to account for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are seeing with the optic as you align the scope’s crosshair or reticle with the intended target. Most contemporary rifle scopes have about 11 parts which are located internally and outside of the optic. These optic pieces include the rifle scope’s body, lenses, adjustment turrets or dials, focus rings, and other elements. Learn about the eleven parts of scopes.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Choosing the perfect type of rifle optic is based on what type of shooting you plan on doing.
Info About First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are useful for:
- Quick acquisition, far away types of shooting
- Shooting circumstances where estimations are minimal
- Experienced shooters who understand their target “hold over” as well as “lead” ratios for their rifles
- Shooters who do not mind the reticle is enlarged and takes up more visual sight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane glass (SFP) feature the reticle to the rear of the magnifying lens. This causes the reticle to remain at the same size in relation to the level of zoom being used. The result is that the reticle measurements adapt based upon the zoom chosen to shoot over longer distances given that the reticle measurements represent distinct increments which change with the zoom level. In the FFP illustration with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular sorts of scopes work for:
- Far away forms of shooting where shooters have more time to make ballistic estimations
- Shooting where most of the shots take place within much shorter ranges and proximities
- Shooters who select a clearer optic sight picture with less area used up by the bigger FFP reticle
Magnification for Scopes
The quantity of scope magnification you need on your glass depends upon the style of shooting you desire to do. Practically every style of rifle scope offers some amount of magnification. The level of magnification a scope supplies is identified by the dimension, density, and curves of the lenses within the rifle scope. The magnification of the scope is the “power” of the glass. This indicates what the shooter is aiming at through the scope is magnified times the power factor of what can normally be seen by human eyes.
Fixed Single Power Lens Rifle Glass
A single power rifle scope or optic comes with a zoom number designator like 4×32. This suggests the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this kind of scope can not change since it is set from the factory.
Variable Power Lens Optics
Variable power rifle scopes can be tweaked between magnified levels. The power change is handled by using the power ring part of the scope near the back of the scope by the eye bell.
Power Levels and Range Correlations
Here are some suggested scope power settings and the ranges where they may be effectively used. Keep in mind that high magnification scopes and optics will not be as effective as lower magnification level optics due to the fact that excessive magnification can be a bad thing. The same concept relates to longer ranges where the shooter needs to have adequate power to see where to properly aim the rifle at the target.
About Rifle Optic Lens Coatings
All current rifle glass lenses are layered. Lens finish can be a vital element of a rifle system when looking into high end rifle optics and scope equipment.
ED Versus HD Glass
Some scope brands likewise use “HD” or high-definition lens finishes which use different techniques, elements, chemicals, and polarizations to draw out separate colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Single Scope Lens Coating Versus Multi-Coating
Various optic lenses can also have different finishings applied to them. All lenses usually have at least some type of treatment or coating applied to them before being used in a rifle scope or optic. This is because the lens isn’t just a raw piece of glass. It becomes part of the finely tuned optic. It must have a finish placed on it so that the lens will be efficiently functional in lots of kinds of environments, degrees of light (full light VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope producer and how much you paid for it.
Some scope makers likewise make it a point to define if their optic lenses are covered or “multi” coated. This means the lens has had several treatments applied to the surfaces of the glass. If a lens receives numerous treatments, it can establish that a company is taking multiple actions to combat different natural aspects like an anti-glare finishing, a scratch resistant anti-abrasion coating, followed by a hydrophilic finish. This also does not always mean the multi-coated lens will perform much better than a single coated lens. Being “better” depends on the maker’s lens treatment techniques and the quality of materials used in constructing the rifle scope.
Hydrophobic Rifle Glass Lens Coating
Water on a scope’s lens doesn’t improve maintaining a clear sight picture through a scope at all. Numerous top of the line or premium optic makers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a fine example of this kind of treatment. It treats the surface area of the Steiner glass lens so the water molecules can not bind to it or create surface tension. The result is that the water beads move off of the scope to maintain a clear, water free sight picture.
Options for Mounting Rifle Optics on Firearms
Mounting solutions for scopes come in a few options. There are the standard scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also normally are made in quick release variations which use toss levers which allow rifle operators to rapidly install and dismount the scopes.
Optic Mounting Solutions with Hex Key Rings
Basic, clamp style mounting scope rings use hex head screws to install to the flattop design Picatinny scope mount rails on the tops of rifles. These styles of scope mounts use double separate rings to support the scope, and are normally constructed from 7075 T6 billet aluminum or similar materials which are created for long distance precision shooting. This kind of scope mount is effective for rifles which require a long lasting, hard use mount which will not shift despite how much the scope is moved or abuse the rifle takes. These are the design of mounts you want for a dedicated scope system on a long distance scouting or hard target interdiction firearm which will seldom need to be altered or adjusted. Blue 242 Loctite threadlocker can also be used on the mount’s screws to stop the hex screw threads from backing out after they are installed firmly in place. An example of these mounting rings are the 30mm style made by Vortex Optics. The set generally costs around $200 USD
Quick-Release Cantilever Rifle Glass Ring Mounts
These kinds of quick-release rifle scope mounts can be used to quickly connect and take off a scope from a rifle. If they all use a similar design mount, a number of scopes can also be switched on the range. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect firmly to a flat top type Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while keeping precision. These kinds of mounts come in handy for shooting platforms which are transferred between vehicles a lot, to take off the glass from the rifle for protection, or for aiming systems which are utilized in between several rifles. An example of this mount style is the 30mm mount from the Vortex Optics brand. It normally costs around $250 USD
Scope Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day of shooting and your expensive optic by triggering fogging and developing residue inside of the scope tube. Most scopes prevent moisture from going into the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Rifle Optic Tubes
Another component of avoiding the buildup of wetness inside of the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this space is already occupied by the gas, the scope is less influenced by condition alterations and pressure differences from the external environment which might possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
