Rifle Scope Product Details

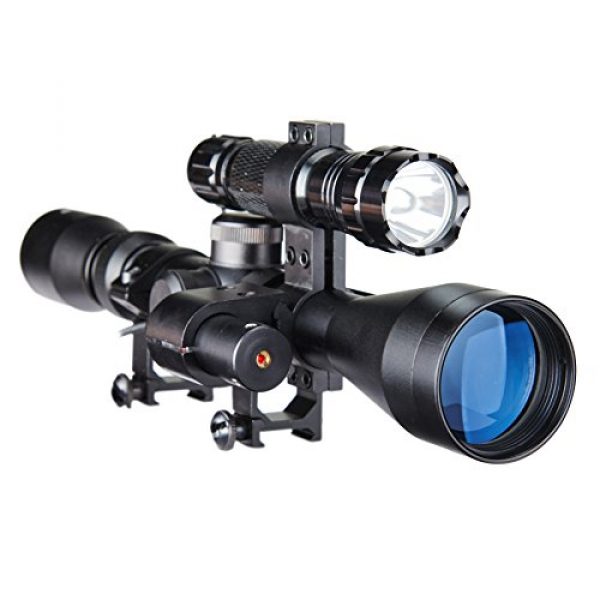

Pinty 3-9X40 Duplex Optical Hunting Rifle Scope Combo with Red Laser and Torch
Rifle Scope Product Features
About this item

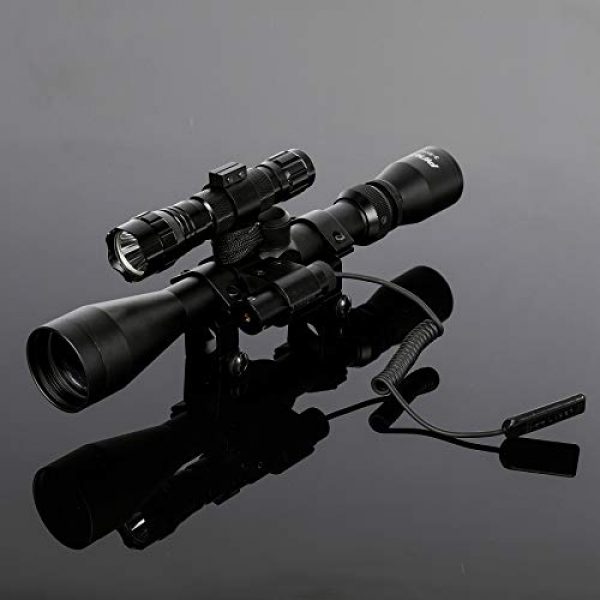

3 IN 1 TACTICAL COMBO: Includes a long range riflescope, a red dot laser sight, and torch flashlight – everything you need to take every tactical advantage. Quality light transmission, reliable mechanical performance and clarity.

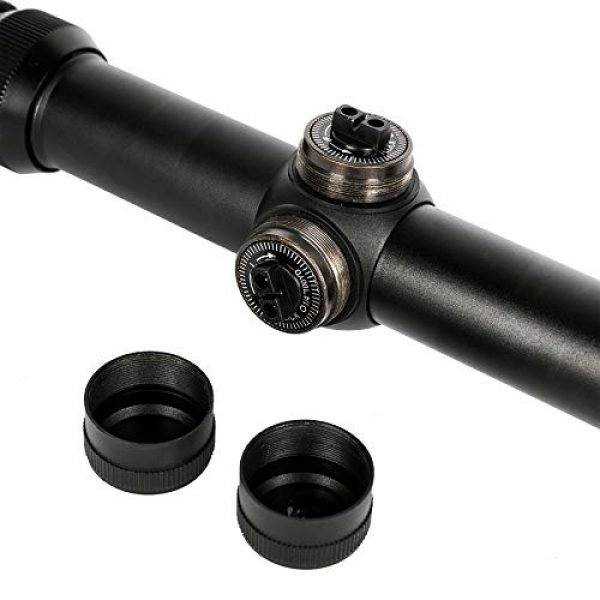

SNIPER SCOPE: With a 3 – 9 x 40 magnifier offers enhanced clarity in adverse environments. Keep your settings locked in with the ” 100-yard windage and elevation adjustment protective caps.
TACTICAL TORCH: The top-mounted 501B flashlight illuminates dark environments with an output of 120 lumens and comes with 8″ figured flexible mount (diameter 25.4mm).
20MM MOUNT: Easily attaches to 20mm rails. Also mounts to airsoft, paintball, pellet guns and air rifles with applicable mounting systems.
RED LASER POINTER: Side-mounted high power laser pointer for short-to-mid range targets and close-quarters combat situations, so you can be prepared for any obstacles your hunting grounds may bring.
Specifications:
Scope:
3-9x magnification without illumination
Field of view: 14′-25′ @ 100yards; windage & elevation click value: 1/4 MOA 1/4″ @ 100yards, 2.7″-3.3″ eye relief
Duplex Reticles ” Best with all types of hunting out to around 250 yards
Two 1” complementary scope rings to be easily mounted onto any 20mm Picatinny or Weaver mount rails
O-ring sealing and nitrogen filled reticle ensures outstanding water and fog-proof performance
Torch:
Lumen: 120 lumens
Power Supply: 1x 18650 lithium ion battery (Not included)
Mount Size: Diameter 8″
Light: White
Lamp: Bulb
Operation: Momentary on pressure switch and On/Off push button switch
3 Modes: High/Low/Strobe
Laser:
Wavelength: 625-660nm
Laser Power: < 5mw
Fits: 20mm rail mount
Power Supply: 3x LR44 batteries (included)

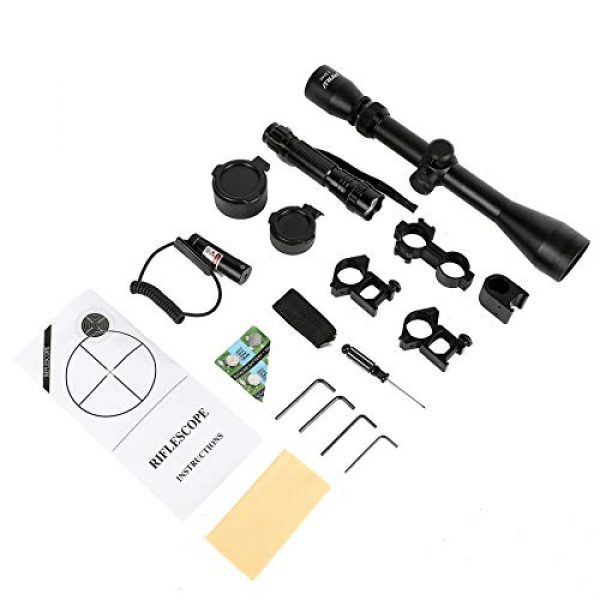

Package Includes:
1x Rifle Scope
1x Red Laser
1x 501B Torch
4x Mounts
4x Hex Wrench
2x Lens Caps
1x Remote Control Switch

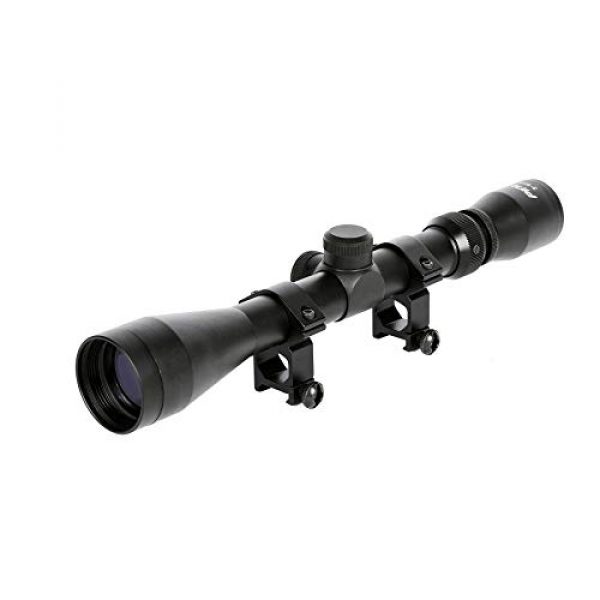

3 to 9 times magnification with 40mm object lens.
Eyepiece lens with 3.3-2.7 inches eye relief.
Adjustable elevation and windage for improved shooting accuracy.
A virtually indestructible, recoil-proof LED generates 120 lumens of blinding white light and continues producing tactical-level light for 4 hours 200-meter beam.
Pinty 3-9x40 Scope Combo Pinty 4-16x50 Scope Combo Pinty 3-9x32 Scope Combo Pinty 4-12x50 Scope Combo Pinty 3-9x32 New Scope Combo
Magnification 3-9x 4-16x 3-9x 4-12x 3-9x
Objective Lens Diamete 40mm 50mm 32mm 50mm 32mm
Reticle Duplex Rangefinder Rangefinder Rangefinder Rangefinder
Illuminations Red & Green Red & Green Red & Green Red & Green
Laser Color Red Green Green Green Green
About the Pinty Scope Maker
Pinty is a premium supplier for weapon scopes, optics, mounts, and other components used for firearms like rifles and long guns. They innovate and build their mounts, scopes, and related products using materials which are resilient and long lasting. This includes the Pinty 3-9X40 Duplex Optical Hunting Rifle Scope Combo with Red Laser and Torch by Pinty. For more shooting items, visit their site.
Info About Glass
Rifle scopes allow you to exactly align a rifle at various targets by aligning your eye with the target over a range. They do this through zoom by making use of a series of lenses within the scope. The scope’s positioning can be adjusted for the consideration of numerous natural factors like wind and elevation increases to make up for bullet drop.
The scope’s function is to understand exactly where the bullet will land based upon the sight picture you are viewing with the scope as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern-day rifle optics have about 11 parts which are found within and externally on the scope body. These optic pieces consist of the rifle scope’s body, lenses, elevation turrets, objective focus rings, and other elements. See all eleven parts of a rifle optical system.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The style of focal plane an optic has determines where the reticle or crosshair is located in connection with the optic’s zoom. It actually indicates the reticle is behind or ahead of the magnifying lens of the optic. Selecting the most beneficial form of rifle glass is based upon what variety of shooting you intend on doing.
Info About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These styles of scopes are beneficial for:
- Quick acquisition, far away types of shooting
- Shooting situations where calculations are minor
- Experienced shooters who recognize their target “hold over” and “lead” relationships for their rifles
- Shooters who don’t mind the reticle is enlarged and requires more visual sight space than a SFP reticle
Second Focal Plane Scope Facts
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick measurement.
- Long distance styles of shooting where shooters have more time to make ballistic computations
- Shooting where most of the shots occur within shorter ranges and spaces
- Shooters who select a clearer optic picture with less room used up by the larger sized FFP reticle
About Glass Zoom
The extent of scope magnification you need on your optic depends upon the style of shooting you desire to do. Practically every style of rifle glass gives some level of zoom. The level of magnification a scope supplies is determined by the dimension, thickness, and curves of the lens glass inside of the rifle scope. The magnification of the scope is the “power” of the glass. This denotes what the shooter is checking out through the scope is magnified times the power aspect of what can usually be seen by human eyes.
Fixed Single Power Lens Optics
A single power rifle optic comes with a magnification number designator like 4×32. This suggests the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of optic can not change since it is fixed.
Variable Power Lens Rifle Optic Details
Variable power rifle scopes can be changed between magnification increments. It will list the magnification degree in a format such as 2-10×32. These numbers indicate the zoom of the scope could be adjusted between 2x and 10x power. This always involves the powers in-between 2 and 10. The power adaptation is achieved using the power ring part of the scope near the back of the scope by the eye bell piece.
Power Levels and Range
Here are some advised scope power settings and the distances where they could be successfully used. High power glass will not be as beneficial as lower powered rifle scope glass because too much magnification can be a negative aspect depending on your shooting distance. The same concept goes for extended distances where the shooter needs enough power to see where to best aim the rifle at the target.
Rifle Scope Lens Finishing
All present day rifle scope and optic lenses are covered. Lens coating is a significant aspect of a rifle’s setup when thinking about high end rifle optics and scope setups.
About Scope Lens Coatings – HD Versus ED
Some scope producers also use “HD” or high-definition lens coverings which use various processes, components, polarizations, and chemicals to draw out various colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Scope Lens Single Coating Versus Multi-Coating
Various optic lenses can likewise have various coverings used to them. All lenses normally have at least some type of treatment or coating used to them before being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can protect the lens from scratches while lowering glare and other less advantageous things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends upon the scope company and how much you spent for it. Both the manufacturer and amount are indications of the lens quality.
Some scope makers also make it a point to define if their optic lenses are covered or “multi” coated. Being “much better” depends on the producer’s lens treatment technology and the quality of materials used in constructing the rifle scope.
Anti-water Lens Finishes
Water on a scope’s lens does not help with maintaining a clear sight picture through an optic whatsoever. Lots of top of the line or high-end scope makers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a fine example of this type of treatment. It deals with the surface area of the Steiner scope lens so the water molecules can not bind to it or produce surface tension. The outcome is that the water beads roll off of the scope to preserve a clear, water free sight picture.
Alternatives for Installing Rifle Glass on Long Guns
Mounting options for scopes are available in a couple of options. There are the standard scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These various kinds of mounts also generally are made in quick release versions which use toss levers which permit rifle shooters to rapidly install and remove the scopes.
Hex Key Glass Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use a couple of separate rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long range precision shooting. This type of scope install is perfect for rifles which require a durable, sound mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Optic Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly detach a scope and attach it to a different rifle. Several scopes can also be swapped out if they all use a compatible design mount. These types of mounts are convenient for rifle platforms which are transported a lot, to remove the optic from the rifle for protection, or for optics which are used in between multiple rifles or are situationally focused.
Sealing and Gas Purging for Scope Tubes
Wetness inside your rifle scope can mess up a day on the range and your expensive optic by inducing fogging and generating residue within the scope tube. Most scopes prevent humidity from going into the optical tube with a series of sealing O-rings which are water resistant. Generally, these optics can be immersed underneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be ample moisture content prevention for common use rifles, unless you plan on taking your rifle aboard a watercraft and are concerned about the scope still working if it is submerged in water and you can still rescue the firearm.
Rifle Glass Gas Purging
Another element of avoiding the buildup of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Because this area is currently taken up by the gas, the optic is less influenced by temperature shifts and pressure differences from the outside environment which might potentially enable water vapor to seep in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
