Description
Rifle Scope Product Details

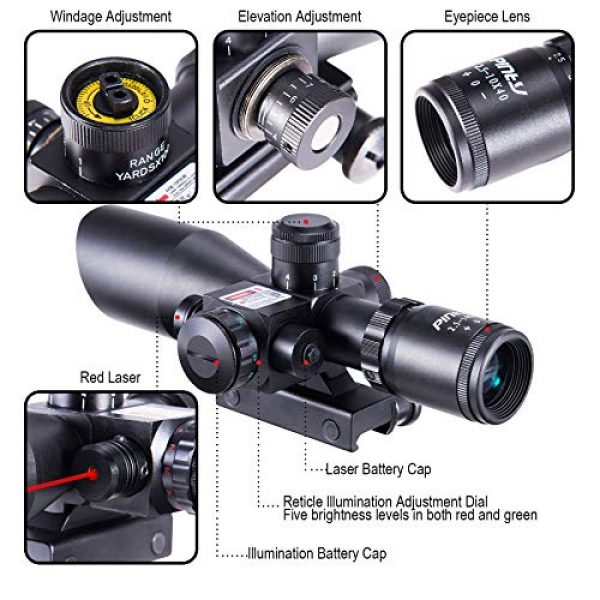

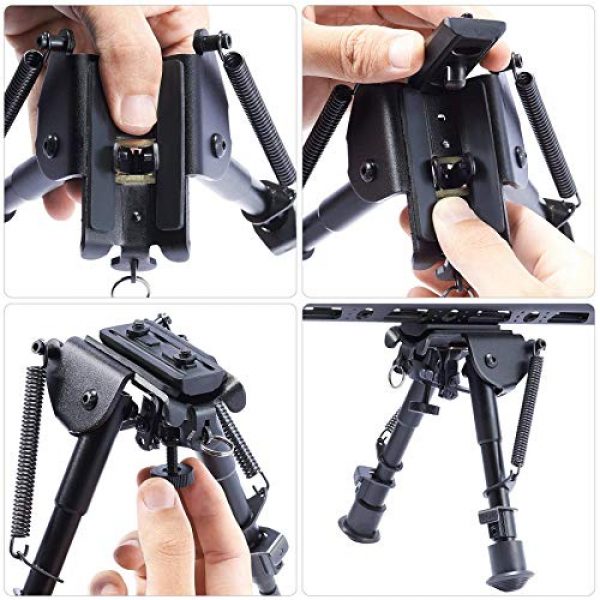

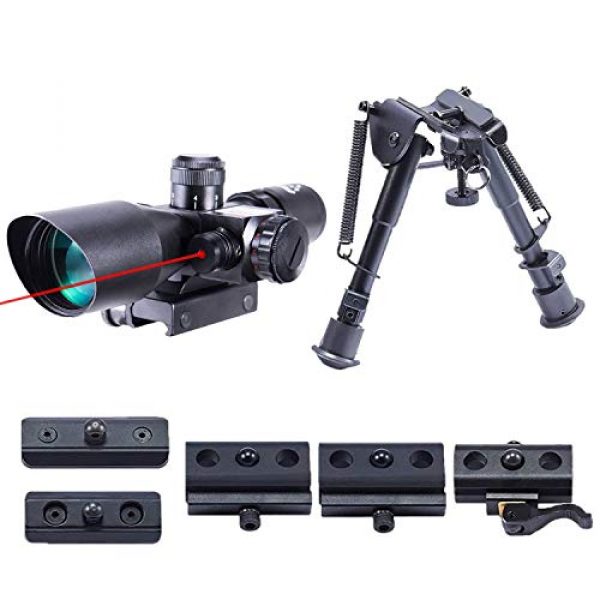

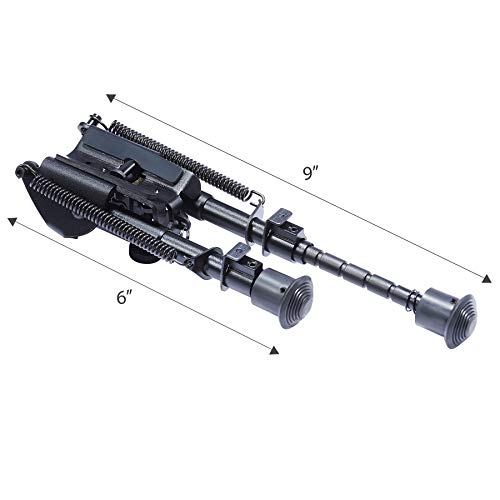

Pinty 2.5-10×40 Red Green Illuminated Mil-dot Tactical Rifle Scope with Red Laser Combo & Rifle Bipod with 6 inch to 9 inch Adjustable Legs, Works with Rifle Slings and Picatinny MLOK KeyMod and QD Mo
Specifications:
Dimensions: 8.5x3x3inches
Weight: 20.5oz
Magnification: 2.5x-10x
Objective Diameter: 40mm
Lens Color: Green
Brightness Control: Red: 5 levels/Green: 5 levels
Reticle Type: Mil-dot
Exit Pupil: 16mm- 4mm
Field of View: 100 yards of 32.5′-8.9′
Eye Relief: 101.6mm-76.2mm
Click Value: 1/4inch@100 yards
Laser Power: 2mW
Laser Frequency: 532nm
Laser Reaching Distance: 100yards
Laser class:Class IIIA
Fits 20-22mm all standard weaver and picatinny rails
Rifle Scope Product Features
About this item
Magnification 2.5-10X with 40mm objective, field Of View: 100 yards of 32.5″ @ 2.5x ” 8.9″ @10x, laser range up to 100 yards.

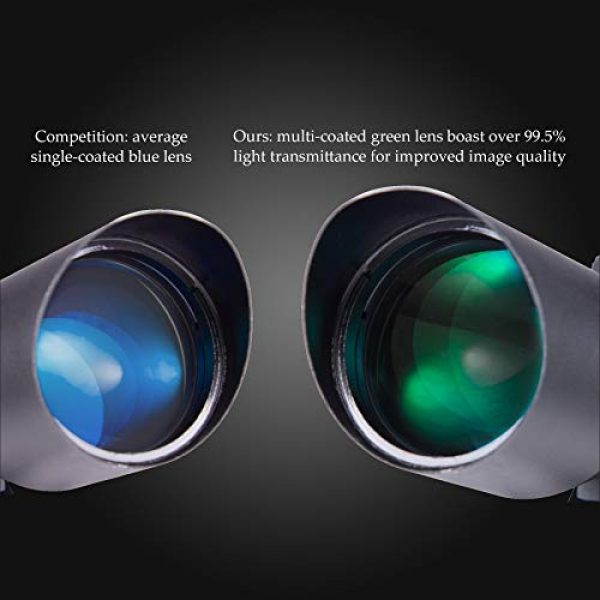

The multi-coated green objective lens boast higher light transmittance for better clarity performance compared to blue objective lens.
Red and green illuminated reticle, 5 brightness levels for all environments.
Solid aluminum alloy construction, quick and secure attachment to all Picatinny or Weaver rails.
Nitrogen filled and O-ring sealed for waterproof, fog proof performance.
About the Pinty Scope Maker
Pinty is a premium company for weapon scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They create and make their products using elements which are long lasting and durable. This includes the Pinty 2.5-10×40 Red Green Illuminated Mil-dot Tactical Rifle Scope with Red Laser Combo & Rifle Bipod with 6 inch to 9 inch Adjustable Legs, Works with Rifle Slings and Picatinny MLOK KeyMod and QD Mo by Pinty. For more shooting items, visit their site.
What You Need to Know About Optics
Rifle scopes enable you to exactly align a rifle at various targets by aligning your eye with the target over a range. They accomplish this through zoom by using a set of lenses within the scope. The scope’s positioning can be adapted for consideration of varied ecological aspects like wind and elevation to make up for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are viewing with the scope as you align the scope’s crosshair or reticle with the target. Most modern rifle scopes and optics have around eleven parts which are arranged inside and externally on the scope. These optic pieces consist of the rifle scope’s body, lenses, adjustment dials, focus rings, and other parts. See all eleven parts of a rifle scope.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Picking the perfect type of rifle glass is based on what type of shooting you plan on doing.
Info on First Focal Plane Optics
First focal plane optics (FFP) come with the reticle ahead of the magnification lens. This triggers the reticle to increase in size based upon the amount of zoom being used. The outcome is that the reticle measurements are the same at the enhanced distance as they are at the non magnified range. One tick on a mil-dot reticle at one hundred yards without “zoom” is still the same tick at one hundred yards with 5x “zoom”. These types of scopes work for:
- Quick acquisition, long distance types of shooting
- Shooting circumstances where estimations are very little
- Experienced shooters who recognize their target “hold over” as well as “lead” equations for their long gun
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight area than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) come with the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement.
- Far away kinds of shooting where shooters have additional time to make ballistic computations
- Shooting where most of the shots happen within much shorter proximities and ranges
- Shooters who select a clearer optic sight picture with less space used up by the enlarged FFP reticle
Magnification for Rifle Glass
The amount of magnification a scope offers is determined by the diameter, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Optic Details
A single power rifle scope comes with a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not change since it is a set power scope.
Variable Power Lens Rifle Glass

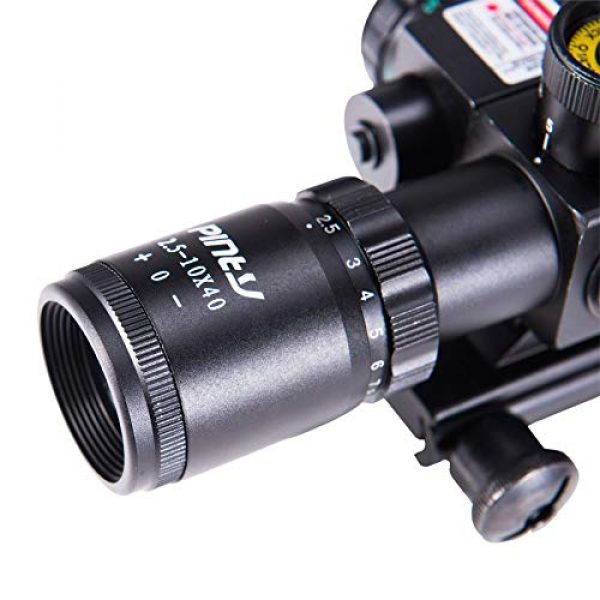

Variable power rifle scopes can be modified between magnified settings. The power adjustment is achieved using the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range
Here are some recommended scope powers and the distances where they could be effectively used. Bear in mind that high power glass will not be as effective as lower powered optics and scopes since increased magnification can be a bad thing. The very same idea goes for extended ranges where the shooter needs to have enough power to see exactly where to best aim the rifle.
Details on Lens Coating
All modern rifle optic and scope lenses are coated. There are various types and qualities of lens finishes. Lens finishing can be an important element of a rifle when looking at high-end rifle optics and scope systems. The lenses are among the most essential parts of the scope since they are what your eye sees through while sighting a rifle in on the target. The covering on the lenses safeguards the lens surface area as well as helps with anti glare capabilities from refracted sunlight and color visibility.
HD Versus ED Rifle Glass Lens Coatings
Some glass producers additionally use “HD” or high-definition lense finishes which employ different procedures, polarizations, elements, and chemicals to extract numerous color ranges and viewable target definition through the lens. This high-def coating is frequently used with more costly, high density glass which lowers light’s potential to refract through the lens glass. Some scope producers use “HD” to refer to “ED” suggesting extra-low dispersion glass. ED handles how colors are represented on the chromatic spectrum and the chromatic aberration or difference which is similarly called color distortion or fringing. Chromatic aberration can be noticeable over items with hard edges and outlines as light hits the object from certain angles.
Single Finishing Versus Multi-Coating
Different scope lenses can also have various coatings applied to them. All lenses generally have at least some type of treatment or finishing applied to them before they are used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t just a raw piece of glass. It is part of the finely tuned optic. It must have a covering placed on it so that it will be optimally functional in many kinds of environments, degrees of sunshine (full light VS shaded), and other shooting conditions.
This lens treatment can protect the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope maker and how much you paid for it.
Some scope producers also make it a point to define if their optic lenses are covered or “multi” covered. This means the lens has numerous treatments applied to the surfaces of the glass. If a lens gets multiple treatments, it can establish that a maker is taking multiple steps to combat different environmental factors like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic coating. This additionally doesn’t necessarily indicate the multi-coated lens will perform much better than a single covered lens. Being “better” hinges on the manufacturer’s lens treatment technology and the quality of components used in creating the rifle glass.
Details on Anti-water Coating
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Numerous top of the line and military grade optic makers will coat their lenses with a hydrophobic or hydrophilic finish.
Choices for Installing Rifle Optics on Long Guns
Mounting approaches for scopes are available in a few options. There are the basic scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also usually are made in quick release variations which use throw levers which enable rifle shooters to rapidly mount and remove the scopes.
Hex Key Optic Ring Mounts
Basic, clamp-on design mounting optic rings use hex head screws to install to the flattop style Picatinny scope mount rails on the tops of rifles. These types of scope mounts use a pair of independent rings to support the optic, and are normally constructed from 7075 T6 billet aluminum which are manufactured for far away precision shooting. This form of scope mount is exceptional for rifle systems which need a resilient, hard use mount which will not move no matter just how much the scope is moved or jarring the rifle takes. These are the design of mounts you should get for a dedicated optics system on a long distance scouting or tournament rifle which will hardly ever need to be modified or adjusted. Blue 242 Loctite threadlocker can additionally be used to protect against the hex screws from wiggling out after they are mounted securely in place. An example of these rings are the 30mm style from the Vortex Optics company. The set usually costs around $200 USD
Quick-Release Cantilever Scope Ring Mounts
These types of quick-release rifle scope mounts can be used to quickly connect and remove a scope from a rifle. If they all use a similar design mount, multiple scopes can also be swapped out in the field. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers fasten tightly to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while maintaining precision. These types of mounts come in handy for shooting platforms which are shipped a lot, to remove the scope glass from the rifle for protection, or for optics which are employed in between multiple rifles. An example of this mount type is the 30mm mount designed by Vortex Optics. It normally costs around $250 USD
Details on Optic Tube Sealing and Gas Purging
Wetness inside your rifle glass can mess up a day on the range and your pricey optic by inducing fogging and making residue inside of the scope tube. The majority of optics protect against moisture from going into the optical tube with a system of sealing O-rings which are waterproof. Normally, these scopes can be submerged under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be plenty of moisture content prevention for basic use rifles, unless you anticipate taking your rifle on a boat and are worried about the scope still performing if it is submerged in water and you can still rescue the firearm.
Gas Purged Rifle Scope Tubes
Another part of preventing the accumulation of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Given that this area is currently occupied by the gas, the scope is less impacted by climate alterations and pressure differences from the outdoor environment which may possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to look for.
