Description
Rifle Scope Product Details

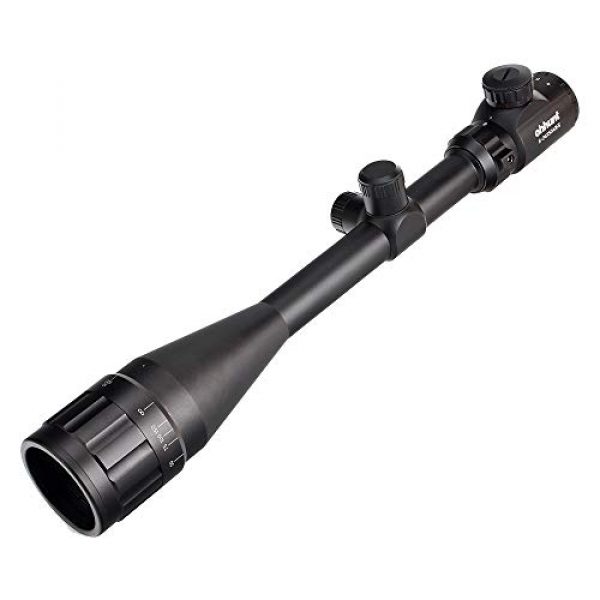

ohhunt 6-24×50 AOEG Rangefinder Reticle Hunting Rifle Scopes Scope Protector Cover 25.4mm Picatinny Rings
Rifle Scope Product Features
About this item
6-24×50 AOEG Rifle scopes,Click Value:1/8 MOA

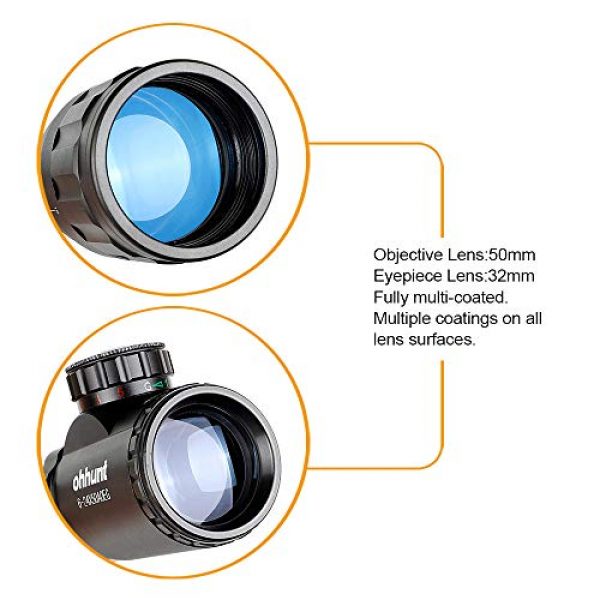

Parallax Adjustment: Adjustable Objective Optical Coating: Fully multi-coated optics
Focal Plane: Second Focal Plane Reticle Construction: Wire Reticle
Shockproof: Yes Illuminated Reticle: Red / Green Windage/Elevation Lock: No
Includeohhunt 6-24×50 AOEG Rifle scopesX1, box X1,cleaning cloth X1,cover X1,scope protector cover X1,lnstruction X1,20mm picatinny scope rings
ohhunt 6-24×50 AO Riflescope with 25.4mm Scope Rings and Scope Protector Cover
Magnification:6X-24X
Objective Lens (mm):50
Net Weight(g):640

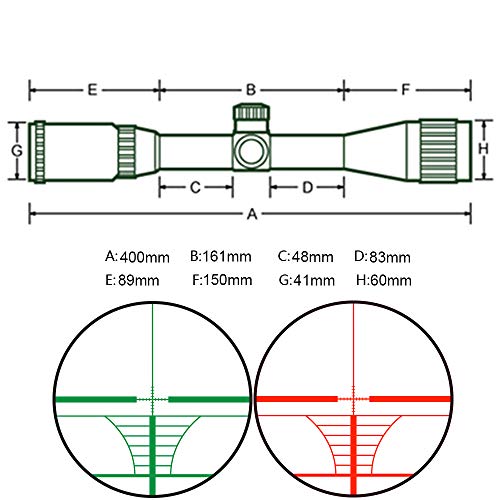

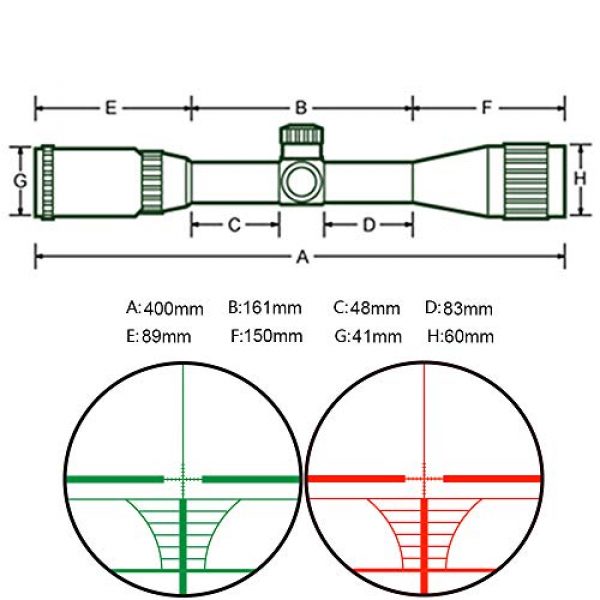

Length(mm):400
One”piece Tube: No
Eye Relief(inch): 3.15
Tube Diameter(mm):25.4

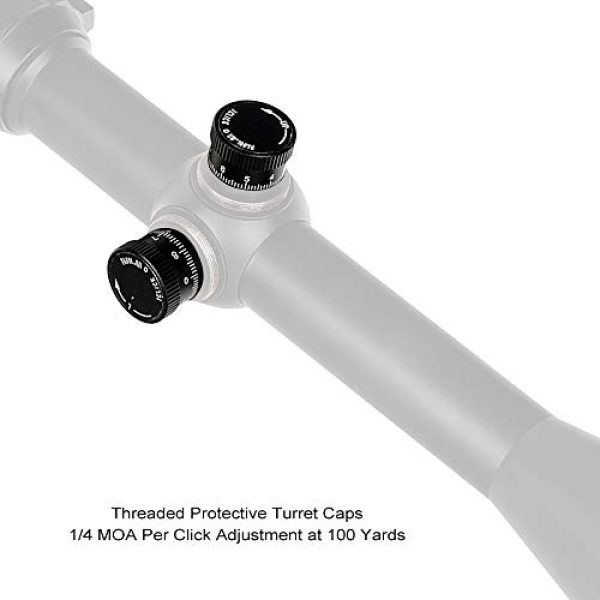

Click Value:1/8
Max.Elevation/Windage(moa): 60 (Example: 50 MOA is roughly 25 MOA from center.)
Parallax Setting:10 to 150 to Inf

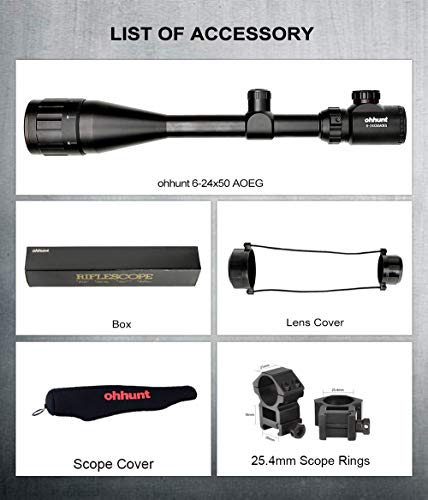

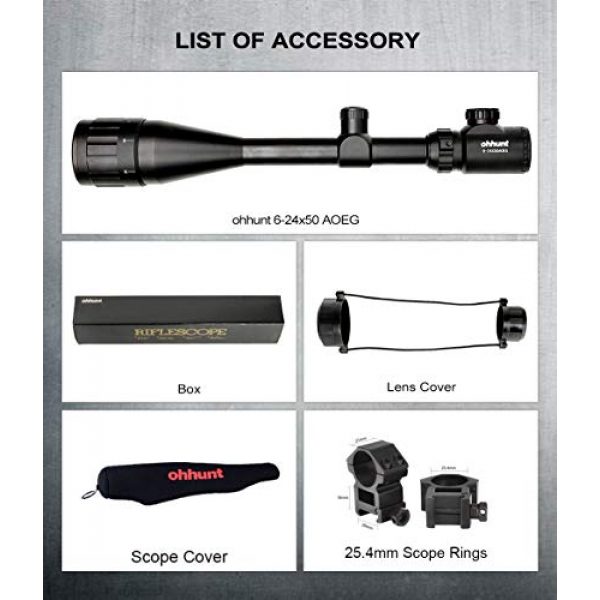

Package includes
Package includes
ohhunt 6-24×50 AO Rilfescope
Package includes

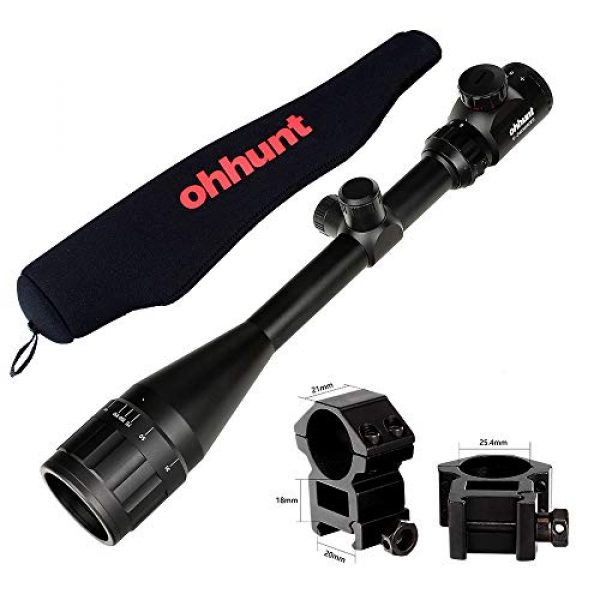

25.4mm Scope Rings
Package includes
Scope Protector Cover
Rangefinder Reticle
Reticle Construction: Wire Reticle
ohhunt 3-9×40 AO Mil dot Reticle Rifle Scopes ohhunt 4-16×40 AOEG Mil dot Reticle Rifle Scopes ohhunt 6-24×50 AOEG Rangefinder Reticle Rifle Scopes ohhunt Guardian 3-12X44 Rifle Scopes Side Parallax Mil Dot Reticle Optics
Magnification 3X-9X 4X-16X 6X-24X 3X-12X
Tube Diameter 25.4mm/1 inch 25.4mm/1 inch 25.4mm/1 inch 30mm/1.18 inch
Eye Relief 3.1 inch 3.1 inch 3.15 inch 3.78 inch
Click Value 1/4 1/4 1/8 1/10MIL
Parallax Setting 10 to Inf 10 to Inf 10 to 150 to Inf 15 to Inf
Net Weight 474g 540g 640g 522g
Length 327mm 358mm 400mm 321mm
Illuminated Reticle No Red / Green Red / Green No
Reticle Style Mil Dot Reticle Mil Dot Reticle Rangefinder Reticle Mil Dot Reticle
Parallax Adjustment Adjustable Objective Adjustable Objective Adjustable Objective Side Parallax Adjustment
About the ohhunt Brand
ohhunt is a premium company for firearm scopes, optics, mounting solutions, and other components used for guns like rifles and long guns. They design and supply their scopes, mounts, and related products by applying elements which are long lasting and resilient. This includes the ohhunt 6-24×50 AOEG Rangefinder Reticle Hunting Rifle Scopes Scope Protector Cover 25.4mm Picatinny Rings by ohhunt. For more shooting items, visit their site.
What You Need to Know About Rifle Scopes
Rifle scopes permit you to exactly aim a rifle at various targets by lining up your eye with the target at range. They accomplish this through zoom by utilizing a set of lenses inside the scope. The scope’s positioning can be adjusted to take into account various ecological factors like wind speed and elevation increases to account for bullet drop.
The scope’s purpose is to understand exactly where the bullet will land based on the sight picture you are viewing through the optic as you align the scope’s crosshair or reticle with the intended target. Many modern rifle scopes have around eleven parts which are found within and outside of the scope body. These scope parts include the rifle scope’s body, lenses, modification dials or turrets, focus rings, and other parts. Learn about the eleven parts of scopes.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Opting for the perfect type of rifle glass is based on what type of shooting you plan on doing.
About First Focal Plane Optics
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These types of scopes are useful for:
- Quick acquisition, long distance types of shooting
- Shooting scenarios where computations are minor
- Experienced shooters who understand their aim point “hold over” plus “lead” relationships for their long guns
- Shooters who don’t mind the reticle is enlarged and uses up more visual sight room than a SFP reticle
Second Focal Plane Optic Facts
Second focal plane optics (SFP) come with the reticle behind the magnification lens. This causes the reticle to stay at the same dimensions in connection with the volume of magnification being used. The final result is that the reticle dimensions adjust based upon the magnification chosen to shoot over longer ranges because the reticle measurements present various increments which differ with the magnification. In the FFP illustration with the SFP scope, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular sorts of scopes are handy for:
- Long distance forms of shooting where shooters have additional time to make ballistic estimations
- Shooting where most shots occur within much shorter ranges and distances
- Shooters who choose a clearer optic sight picture with less area taken up by the bigger FFP reticle
Rifle Glass Zoom
The quantity of zoom a scope supplies is determined by the size, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Rifle Glass
A single power rifle optic uses a magnification number designator like 4×32. This indicates the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not adjust given that it is a set power scope.
Adjustable Power Lens Optic Facts
Variable power rifle scopes have adjustable power. It will list the magnification level in a format such as 2-10×32. These numbers imply the magnification of the scope can be changed between 2x and 10x power. This always utilizes the powers in-between 2 and 10. The power manipulation is accomplished by making use of the power ring part of the scope near the back of the scope by the eye bell piece.
Rifle Optic Power and Ranges
Here are some recommended scope power settings and the ranges where they may be effectively used. Highly magnified scopes will not be as useful as lower powered glass since too much magnification can be a bad thing. The exact same idea goes for longer ranges where the shooter needs sufficient power to see where to best aim the rifle.
Lens Covering for Optics
All cutting-edge rifle scope and optic lenses are layered. Lens covering can be a significant aspect of a shooting platform when looking at high end rifle optics and scope equipment.
About Lens Coatings – HD Versus ED
Some scope makers also use “HD” or high-definition lens coverings which use different methods, aspects, polarizations, and chemicals to draw out a wide range of colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Single Finish Versus Multi-Coating
Various optic lenses can also have various coatings applied to them. All lenses normally have at least some type of treatment or finishing applied to them before they are used in a rifle scope or optic. This is since the lens isn’t just a raw piece of glass. It becomes part of the carefully tuned optic. It needs to have a finishing applied to it so that the lens will be efficiently usable in many types of environments, degrees of light (full VS shaded), and other shooting conditions.
Single covered lenses have a treatment applied to them which is usually a protective and improving multi-purpose treatment. This lens treatment can shield the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope designer and how much you paid for it. The scope’s maker and cost are signs of the lens quality.
Some scope makers also make it a point to specify if their optic lenses are covered or “multi” covered. This means the lens has several treatments applied to the surfaces of the glass. If a lens receives several treatments, it can indicate that a manufacturer is taking numerous actions to combat various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finishing, followed by a hydrophilic covering. This additionally doesn’t necessarily mean the multi-coated lens is much better than a single coated lens. Being “better” depends upon the producer’s lens treatment technology and the quality of glass used in building the rifle scope.
Hydrophobic Lens Finishing
Water on a lens does not help with maintaining a clear sight picture through a scope at all. Many top of the line and high-end optic makers will coat their lenses with a hydrophilic or hydrophobic coating.
Rifle Scope Installation Options
Mounting approaches for scopes are available in a few options. There are the standard scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These various kinds of mounts also normally come in quick release variations which use throw levers which enable rifle operators to quickly mount and remove the scope.
Hex Key Rifle Optic Ring Mounts
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These styles of scope mounts use two individual rings to support the optic, and are made from 7075 T6 billet aluminum or similar materials which are designed for long distance accuracy shooting. This form of scope mount is exceptional for rifle systems which need a durable, rock solid mount which will not move regardless of how much the scope is moved about or jarring the rifle takes. These are the style of mounts you should get for a dedicated optics setup on a far away scouting or hard target interdiction long gun that will pretty much never need to be modified or recalibrated. Blue 242 Loctite threadlocker can also be used on the scope mount screws to prevent the hex screw threads from wiggling out after they are mounted safely in place. An example of these mounting rings are the 30mm style made by the Vortex Optics company. The set typically costs around $200 USD
Glass Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly remove a scope and attach it to a different rifle. Several scopes can also be switched out if they all use a compatible style mount. These types of mounts are convenient for rifle platforms which are transferred a lot, to remove the optic from the rifle for protection, or for optics which are used between multiple rifles or are situationally focused.
About Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle glass can spoil a day of shooting and your expensive optic by inducing fogging and developing residue within the scope tube. Many optics protect against wetness from entering the optical tube with a series of sealing O-rings which are water resistant. Generally, these scopes can be immersed beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be ample humidity prevention for standard use rifles, unless you plan on taking your rifle on your motorboat and are worried about the optic still functioning if it goes over the side and you can still rescue the gun.
Details on Rifle Glass Tube Gas Purging
Another component of avoiding the buildup of wetness inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this space is currently occupied by the gas, the scope is less affected by condition alterations and pressure variations from the outside environment which could possibly permit water vapor to seep in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
