Description
Rifle Scope Product Details

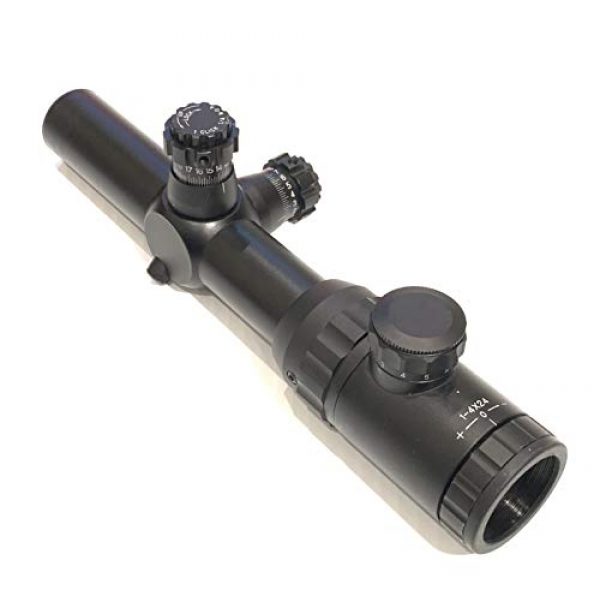

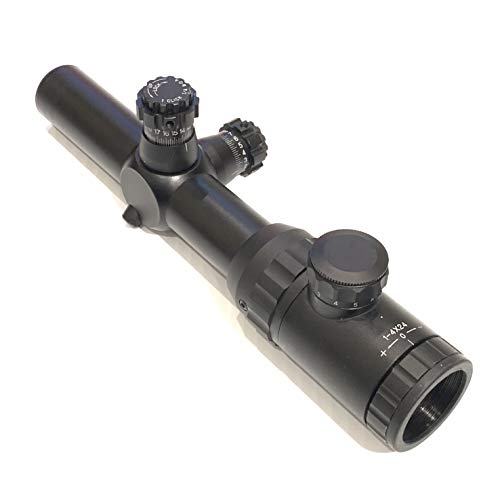

NightStar 1-4x24IR RFP Riflescope
Magnification:1-4x Objective lens:24mm Ocular lens:34mm Ocular length: 56mm Exit pupil: 6.0-16.5mm Length: 256mm Weight: 625g Eye relief:89-125mm FOV:95-24 Num of Lens: 11 Optics Coating: Fully-Multi Coated to eliminate glare and maximize light transmission Parallax: 0.125 Elevation Range: 30 MOA Windage Range: 30 MOA
Rifle Scope Product Features
About the NightStar Brand
NightStar is a premium maker for firearm scopes, optics, mounting solutions, and other add-ons used for guns like rifles and long guns. They innovate and supply their scopes and related products working with building materials which are long lasting and resilient. This includes the NightStar 1-4x24IR RFP Riflescope by NightStar. For more shooting products, visit their website.
Info Glass
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target over a range. They accomplish this through magnifying the target by making use of a set of lenses inside the scope. The scope’s alignment can be adapted for consideration of different ecological aspects like wind and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to understand precisely where the bullet will land based upon the sight picture you are seeing through the optic as you align the scope’s crosshair or reticle with the intended target. The majority of contemporary rifle scopes and optics have about eleven parts which are arranged inside and externally on the scope body. These optic pieces consist of the rifle scope’s body, lenses, elevation dials, focus rings, and other components. Learn about the eleven parts of rifle optics.
Rifle Scope Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Considering the finest type of rifle scope is based around what type of shooting you plan to do.
First Focal Plane Optics
Focal plane scopes (FFP) come with the reticle in front of the zoom lens. This causes the reticle to increase in size based upon the extent of zoom being used. The result is that the reticle measurements are the same at the amplified range as they are at the non magnified range. For instance, one tick on a mil-dot reticle at 100 yards without having “zoom” is still the very same tick at 100 yards with 5x “zoom”. These types of scopes work for:
- Quick acquisition, far away kinds of shooting
- Shooting scenarios where calculations are small
- Experienced shooters who know their aim point “hold over” and also “lead” correlations for their firearm
- Shooters who do not mind the reticle is enlarged and occupies more visual eyesight area than a SFP reticle
Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle to the rear of the magnification lens. This induces the reticle to stay at the very same overall size relative to the level of magnification being used. The final result is that the reticle measurements adapt based upon the zoom chosen to shoot over lengthier distances due to the fact that the reticle measurements represent various increments which vary with the magnification. In the FFP example with the SFP optic, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick. These sorts of scopes work for:
- Far away kinds of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots happen within much shorter distances and ranges
- Shooters who want a clearer optic sight picture with less area taken up by the larger size FFP reticle
Scope Zoom
The amount of magnification a scope provides is figured out by the size, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
About Fixed Single Power Lens Optics
A single power rifle optic comes with a zoom number designator like 4×32. This suggests the zoom power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not change because it is set from the factory.
Info on Variable Power Lens Rifle Optics
Variable power rifle scopes can be changed between magnification increments. It will list the magnification degree in a configuration such as 2-10×32. These numbers indicate the magnification of the scope could be adjusted between 2x and 10x power. This also involves the powers in-between 2 and 10. The power adjustment is achieved using the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range
Here are some suggested scope powers and the distances where they may be effectively used. High power optics will not be as effective as lower powered optics considering that too much zoom can be a negative aspect depending on your shooting distance. The very same idea applies to extended ranges where the shooter needs to have sufficient power to see precisely where to properly aim the rifle.
Lens Coating for Optics
All modern rifle scope and optic lenses are covered in special coatings. There are different types and qualities of glass coatings. When researching luxury rifle scope devices, Lens finishing can be a very important aspect of defining the capability of the rifle. The glass lenses are one of the most vital parts of the optic considering that they are what your eye looks through while sighting a rifle in on the target. The finishing on the lenses safeguards the lens surface area and also assists with anti glare from refracted light and color profiles.
HD Versus ED Rifle Scope Lens Coatings
Some optic makers even use “HD” or high-definition glass finishings that make the most of different procedures, chemicals, polarizations, and aspects to draw out various colors and viewable definition through lenses. This high-def finishing is normally used with increased density glass which brings down light’s ability to refract by means of the lens glass. Some scope corporations use “HD” to describe “ED” signifying extra-low dispersion glass. ED handles how colors are represented on the chromatic spectrum and the chromatic deviance or aberration which is similarly called color distortion or fringing. Chromatic aberration may be visible around objects with well defined shapes as light hits the object from various angles.
Glass Lens Single Covering Versus Multi-Coating
Different scope lenses can also have different coatings applied to them. All lenses normally have at least some kind of treatment or finish applied to them prior to being used in a rifle scope or optic. This is since the lens isn’t just a raw piece of glass. It becomes part of the finely tuned optic. It requires a coating to be applied to it so that it will be optimally usable in many kinds of environments, degrees of sunshine (full VS shaded), and other shooting conditions.
Single covered lenses have a treatment applied to them which is typically a protective and improving multi-purpose treatment. This lens treatment can preserve the lens from scratches while lowering glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends upon the scope maker and just how much you spent paying for it. The scope’s maker and cost are indications of the lens quality.
Some scope makers likewise make it a point to define if their optic lenses are layered or “multi” covered. This suggests the lens has several treatments applied to the surfaces. If a lens gets numerous treatments, it can establish that a maker is taking numerous actions to combat various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finishing, followed by a hydrophilic covering. This additionally does not always imply the multi-coated lens will perform better than a single covered lens. Being “much better” depends on the maker’s lens treatment innovation and the quality of glass used in constructing the rifle optic.
Anti-water Finish for Rifle Glass
Water on a lens doesn’t assist with keeping a clear sight picture through a scope at all. Many top of the line and military grade scope makers will coat their lenses with a hydrophobic or hydrophilic finish.
Choices for Mounting Rifle Scopes on Firearms
Mounting approaches for scopes are available in a couple of options. There are the standard scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also typically are made in quick release variations which use manual levers which allow rifle shooters to rapidly mount and remove the scopes.
Hex Key Rifle Optic Ring Mounts
Standard, clamp-on design mounting optic rings use hex head screws to position to the flattop style Picatinny scope mount rails on the tops of rifles. These varieties of scope mounts use a pair of independent rings to support the optic, and are made from 7075 T6 billet aluminum or similar materials which are designed for long distance precision shooting. This form of scope mount is effective for rifle systems which need a resilient, hard use mount which will not move despite just how much the scope is moved or jarring the rifle takes. These are the design of mounts you want for a devoted scope setup on a long distance scouting or tournament firearm that will seldom need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used to keep the hex screws from wiggling out after they are installed firmly in place. An example of these rings are the 30mm style made by Vortex Optics. The set usually costs around $200 USD
Scope Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly detach a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be swapped out if they all use a complementary style mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten tightly to a flat top design Picatinny rail. This lets the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while maintaining accuracy. These kinds of mounts come in handy for shooting platforms which are hauled around a lot, to take off the scope from the rifle for protection, or for scopes which are chosen for use in between a number of rifles. An example of this mount style is the 30mm mount designed by the Vortex Optics manufacturer. It typically costs around $250 USD
Sealing and Gas Purging for Rifle Scope Tubes
Wetness inside your rifle glass can wreck a day of shooting and your expensive optic by inducing fogging and developing residue inside of the scope tube. A lot of scopes protect against humidity from getting in the optical tube with a series of sealing O-rings which are water resistant. Normally, these optics can be submerged beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be sufficient wetness prevention for basic use rifles for hunting and sporting purposes, unless you plan on taking your rifle on boats and are concerned about the scope still performing if it is submerged in water and you can still recover the gun.
Gas Purged Rifle Scope Tubes
Another part of preventing the accumulation of wetness within the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this area is already occupied by the gas, the optic is less influenced by temperature shifts and pressure variations from the external environment which may possibly enable water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
