Rifle Scope Product Details
MidTen 4-16×50 Tactical Rifle Scope Dual Illuminated Optics & Rangefinder Illuminated Reflex Sight 4 Holographic Reticle Red/Green Dot Sight & IIIA/2MW Laser Sight(Red)
Rifle Scope Product Features
About this item
RifleScope Feature: Magnification: 4x-16x; Obj. Diameter: 50mm; Eye Relief3″ ~ 3.4″; Field of View: 10′ ~ 27′ @ 100yards; Exit Pupil: 3.3mm ~10mm; Windage & Elevation Click Value: 1/4′ @ 100 yards; Field of view: 10′ ~ 27′ @ 100yards; Shockproof, fogproof and waterproof since filled with nitrogen; Multi-coated lens offers super high light transmission.
Two color illuminated reticles of the scope: Red and Green, each of which has 5 brightness level Range Finding reticle, 4 different sizes of red/green dot sight, all of which helps to promote accuracy.
Red laser sight with independent switch, Class IIIA laser, less than 2mW. Detachable RED laser sight reaching over 300m, make sure you can target your focus on the highest accuracy and with great results every time, The laser sight integrated with optics and electronics provides a wide field of view.
Three Parts with More Functions-Plus With holographic dot sight and red laser is good for quick acquisition of close quarter and fast moving targets with about 200-500m for the distance.
Hassle Free Mounting: Thanks to its built-in rail(22mm), this scope easily mountable Mount( for 22mm Picatinny or Weaver rail). Windage and elevation adjustments with 1/4 MOA audible-click stops and fingertip turrerts.
MidTen is always striving to makethe sharpest, clearest and brightest optics. We’ve packed almost 10 years of innovation into our scopes. Midten has scopes that can perform in any condition and environment for your outdoors activity. We make Fully-Multi coated lenses for the scopes to deliver an amazing 95 percent light transmission across 300 percent more of the visual light spectrum and a high-contrast and color accurate picture. With MidTen, you will have fun in outdoor activities and never miss a moment.
SPECIFICATION – SCOPES
* Scope Lens: High grade fully muti-coated optical lens
*O-ring Sealing & Nitrogen Filling: 100% Fogproof, rainproff, and shockproof
* Easily mountable Mount( for 20mm Picatinny or Weaver rail)
*Scope Dimensions :13″(length) x 2.5″(width) x 3″(height)
*Scope Weight:25 oz
* Scope Magnification:4x-16x
*Scope Objective Diameter:50mm

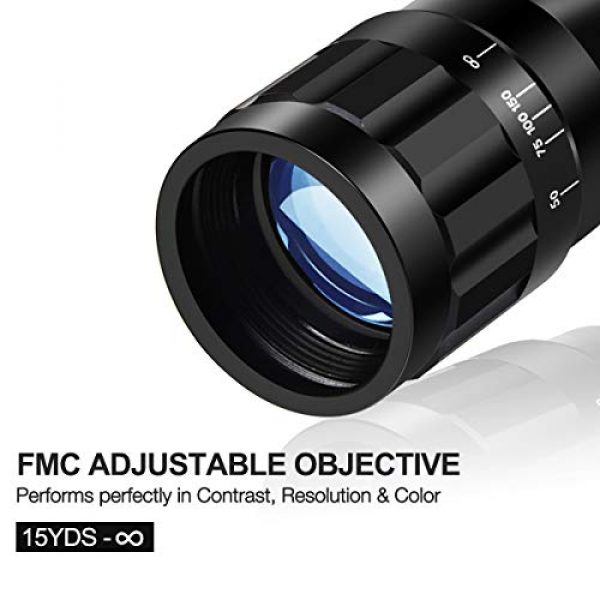

* Scope Parallax Adjustment range: 15YDS –
*Scope Brightness Control: Red : 5 levels
* Field of View:9.84′ ~ 22.97′ @ 100yards – Eye Relief:3″ ~ 3.4″
* Windage & Elevation Click Value:1/4′ @ 100 yards
* Battery:1 x CR2032 (included)
SPECIFICATIONS-HOLOGRAPHIC DOT SIGHT
* Dot Sight Dimensions:3.35″ (length) x 2.25″ (width) x 2″ (height)
* Dot Sight Weight:165g (6 oz)
* Dot Sight Obj. Aperture:33 mm
* Dot Sight Magnification:1X
* Field of View:15.5m
* Eye Relief: Unlimited
* Reticle Type: Circle dot, cross, 10 MOA, and 3 MOA
* Brightness Control: Red : 5 levels / Green : 5 levels
* Battery:1 x CR2032 (included)
SPECIFICATIONS- LASER SIGHT
* Laser Sight Dimensions:3″ (length) x 1″ (width)
* Laser Sight Height: 1.4″ with 11mm mount
* Laser Sight Weight: 3.0 OZ
* Laser Power: 2mw
* Laser Class: IIIA
* Laser Wavelength: 650 nm
* Battery: 3 x AG13 (included)
* 1 X 4-16X50AOEG scope with dual illuminated Rangefinder reticle
* 1 X BOB-HDR33 holographic sight
* 1 X JG8 compact laser sight (IIIA, 2MW)
* 3 X Allen keys
* 1 X Lens cap
* 1 X Cleaning cloth
4-12×50 rifle scope(Red Laser) 4-12×50 rifle scope(Green Laser) 4-16x50AO rifle scope(Red Laser) 4-16x50AO rifle scope(Green Laser) 3-9×32 rifle scope(Red Laser) 3-9×32 rifle scope(Green Laser)
Magnification: 4x-12x 4x-12x 4x-16x 4x-16x 3x-9x 3x-9x
Objective Diameter: 50mm 50mm 50mm 50mm 32mm 32mm
5 levels Red and Green illuminations
HOLOGRAPHIC DOT SIGHT
Laser color: Red Green Red Green Red Green
AO Adjustment NO NO NO NO
About the MidTen Scope Maker
MidTen is a premium manufacturer for firearm scopes, optics, mounts, and other components used for guns like rifles and long guns. They innovate and manufacture their products by making the most of building materials which are durable and long lasting. This includes the MidTen 4-16×50 Tactical Rifle Scope Dual Illuminated Optics & Rangefinder Illuminated Reflex Sight 4 Holographic Reticle Red/Green Dot Sight & IIIA/2MW Laser Sight(Red) by MidTen. For more shooting products, visit their site.
What You Need to Know About Rifle Scopes
Rifle scopes enable you to exactly align a rifle at different targets by lining up your eye with the target over a range. They do this through magnification by using a set of lenses inside the scope. The scope’s alignment can be dialed in for consideration of different ecological considerations like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are viewing through the optic as you align the scope’s crosshair or reticle with the intended target. The majority of contemporary rifle scopes have about eleven parts which are arranged inside and on the exterior of the optic. These parts include the rifle scope’s body, lenses, adjustment dials or turrets, focus rings, and other elements. Learn about the eleven parts of optics.
Rifle Glass Types
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The sort of focal plane an optic has decides where the reticle or crosshair is located relative to the scopes magnification. It simply suggests the reticle is located behind or in front of the magnifying lens of the scope. Selecting the most reliable kind of rifle scope is dependent on what kind of hunting or shooting you anticipate doing.
Info About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These styles of scopes are helpful for:
- Quick acquisition, long distance types of shooting
- Shooting situations where computations are minor
- Experienced shooters who understand their aim point “hold over” as well as “lead” correlations for their firearms
- Shooters who don’t mind the reticle is bigger and occupies more visual sight space than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) feature the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance forms of shooting where shooters have increased time to make ballistic estimations
- Shooting where most shots happen within shorter spaces and ranges
- Shooters who like a clearer optic picture with less area taken up by the larger sized FFP reticle
About Glass Zoom
The measure of scope zoom you need on your glass depends on the style of shooting you wish to do. Just about every type of rifle scope delivers some amount of magnification. The volume of zoom a scope provides is identified by the size, density, and curvatures of the lenses within the rifle scope. The magnification of the optic is the “power” of the scope. This indicates what the shooter is observing through the scope is amplified times the power aspect of what can typically be seen by human eyes.
Fixed Single Power Lens Rifle Optic Info
A single power rifle optic comes with a zoom number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of scope can not change since it is a set power scope.
Variable Power Lens Optics
Variable power rifle scopes use variable power levels. The power modification is performed by using the power ring part of the scope near the back of the scope by the eye bell.
Rifle Optic Power and Range Correlation
Here are some suggested scope power levels and the distances where they could be effectively used. High power scopes will not be as effective as lower powered glass due to the fact that too much zoom can be a negative aspect depending on your shooting distance. The exact same concept goes for extended distances where the shooter needs to have enough power to see where to best aim the rifle.
Rifle Scope Lens Covering
All contemporary rifle optic lenses are layered. There are different types and qualities of glass finishes. Lens finishing can be a crucial aspect of a rifle when looking into high-end rifle optics and targeting systems. The lenses are one of the most critical parts of the optic considering they are what your eye sees through while sighting a rifle in on the target. The finish on the lenses offers protection to the lens surface and also improves anti glare from refracted sunshine and color presence.
Details on Rifle Optic Lens Coatings – HD Versus ED
Some optic companies also use “HD” or high-def lense coverings which make the most of different processes, rare earth compounds, aspects, and polarizations to draw out different colors and viewable target definition through lenses. This HD coating is typically used with greater density lens glass which lowers light’s chance to refract by means of the lens glass. Some scope brands use “HD” to describe “ED” meaning extra-low dispersion glass. ED deals with how colors are represented on the chromatic spectrum and the chromatic aberration or deviance which is similarly called color distortion or fringing. Chromatic aberration is often obvious over objects with well defined shapes as light hits the object from certain angles.
Glass Lens Single Coating Versus Multi-Coating
Different optic lenses can likewise have various finishes applied to them. All lenses typically have at least some type of treatment or coating used to them before they are used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope producer and how much you paid for it.
Some scope producers similarly make it a point to specify if their optic lenses are layered or “multi” coated. Being “better” depends on the manufacturer’s lens treatment innovation and the quality of products used in developing the rifle scope.
Hydrophobic Optic Lens Coating
Water on a lens doesn’t help with preserving a clear sight picture through a scope at all. Lots of top of the line and military grade scope companies will coat their lenses with a hydrophobic or hydrophilic covering.
Options for Mounting Rifle Scopes on Firearms
Installing solutions for scopes can be found in a few choices. There are the standard scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also typically can be found in quick release versions which use manual levers which permit rifle shooters to rapidly install and remove the glass.
Hex Key Glass Rings
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which is designed for long distance accuracy shooting. This type of scope mount is perfect for rifles which require a long lasting, rock solid mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Scope Rings
These types of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be swapped out if they all use a compatible style mount. These types of mounts are convenient for rifle platforms which are carried a lot, to remove the optic from the rifle for protecting the scope, or for optics which are used between numerous rifles or are situationally focused.
Info Around Rifle Glass Tube Sealing and Gas Purging
Wetness inside your rifle scope can ruin a day of shooting and your expensive optic by causing fogging and producing residue inside of the scope tube. The majority of scopes prevent wetness from going into the scope tube with a system of sealing O-rings which are water resistant.
Glass Gas Purging
Another part of preventing the accumulation of moisture inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Considering that this area is currently occupied by the gas, the scope is less impacted by condition shifts and pressure variations from the external environment which might potentially enable water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
