Rifle Scope Product Details

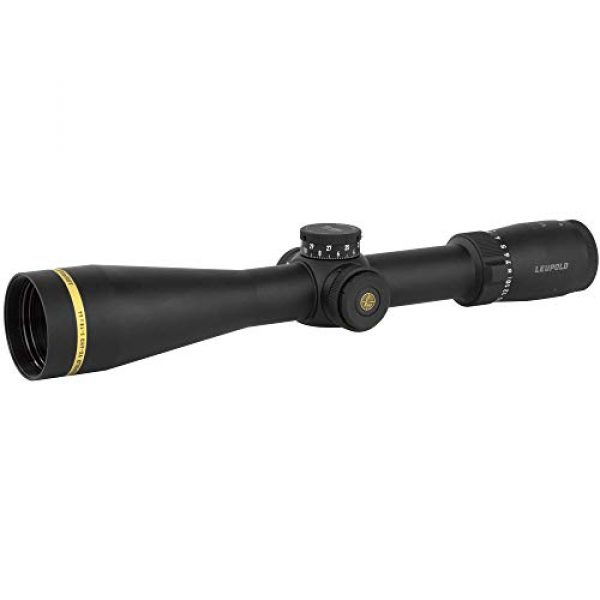

Leupold VX-6HD 3-18x44mm Rifle Scope
With a slightly smaller objective lens than its 50mm counterpart, the VX-6HD 3-18x44mm can do it all while packing a little less weight. At 3x magnification, there’s enough field-of-view to navigate brush and timber situations, but crank the power selector all the way up to 18x, and you’ve got enough magnification to dominate any backcountry landscape.
The 3-18’s edge-to-edge clarity gives you outstanding brightness, color consistency, and resolution. This means dominating the first and last 15 minutes of the day. The wide zoom range and our latest technology, which includes an in-scope electronic reticle level, CDS-ZL2 Zero Lock elevation dial, and removable throw lever, make your VX-6HD the most versatile Leupold riflescope ever made.
Details
– Weight: 19.0 oz/539g
– Linear FOV (ft/100 yd): 38.0-7.0
– Linear FOV (m/1000 m): 12.6-2.3
– Eye Relief: 3.7-3.8 mm
– Elevation Adjustment Range: 75.0 MOA/21.8 MIL
– Windage Adjustment Range: 75.0 MOA/21.8 MIL

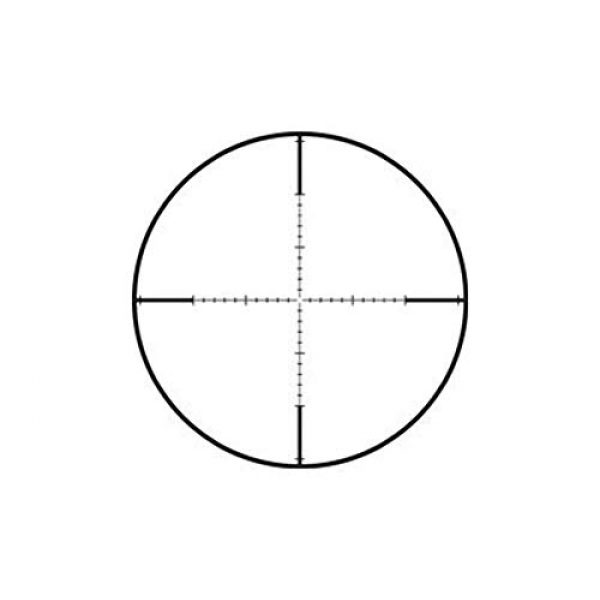

Boone and Crockett (Illuminated) Reticle
– Designed in conjunction with the Boone & Crockett Club
– Centerpoint can be a 200 or 300 yard zero depending on the users ammunition
– The power selector ring is utilized to adjust the reticle spacing for a vast number or cartridges
– Provides aiming points out to 500 or 600 yards (ammunition dependent)
– Longer horizontal marks provide 10mph wind holds
– Ideal for large game applications
– Red illuminated center area for low-light contrast
– Non-caliber specific
Rifle Scope Product Features
Model #171568 – VX-6HD 3-18x44mm with Illuminated T-MOA CDS reticle and Matte finish
100% Waterproof, fogproof, and shockproof.
ZeroLock CDS (Custom Dial System) – Simplifies longer shots by eliminating the need for holdovers or ballistic calculations by using a dial that is customized to your rifle and ammo.
Twilight Max HD Light Management system – Adds up to 30 minutes of shooting light, best in class glare reduction, and edge to edge HD lens clarity.
Illuminated Reticle, ideal for lowlight conditions, and in-scope electronic level simplifies mounting and improves long-range accuracy.
Included components: Rifle Scope, Neoprene Scope Cover
Sport type: Hunting
VX-6HD 3-18x44mm
Magnification Range: 3x-18x
Weight: 19.00 oz.
Length: 13.50 in.
Maintube Diameter: 30mm
Eye Relief (in) – Low: 3.70
Eye Relief (in) – High: 3.80
Linear FOV (ft/100 yd) – Low: 38.00
Linear FOV (ft/100 yd) – High: 7.00
Leupold VX-6HD
Relentless Performance
With a slightly smaller objective lens than its 50mm counterpart, the VX-6HD 3-18x44mm can do it all while packing a little less weight. At 3x magnification, there’s enough field-of-view to navigate brush and timber situations, but crank the power selector all the way up to 18x, and you’ve got enough magnification to dominate any backcountry landscape.
Lightweight, rugged performance
Unparalleled low light performance
Designed, machined, & assembled in the USA
Twilight Max HD Light Management System
Representing the pinnacle of our in-house lens design, the Twilight Max HD systemis built to deliver unbelieveable image quality in the harshest of lighting conditions.
Twilight Max HD Light Management System
Free CDS Elevation Dial
Designed, Machined, & Assembled in the USA
Rugged Reliability
Proprietary gas blend and seals are tested by us to a 33-foot depth and a multitude of pressure changes.
Every Leupold riflescope is designed to survive a minimum of 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle.
All Leupold riflescopes are tested by us to perform from -40F to 160F.
VX-Freedom VX-R VX-3i VX-5HD VX-6HD
Light Management System Twilight Twilight Twilight Max Twilight Max HD Twilight Max HD
Maintube Size 1 inch 30mm 1 inch, 30mm 30mm, 34mm 30mm, 34mm
Zoom Ratio 3:1 3:1 3:1 5:1 6:1
HD Glass No No No Yes Yes
About the Leupold Company
Leupold is a premium supplier for firearm scopes, optics, mounts, and other components used for firearms like rifles and long guns. They style and supply their mounts, scopes, and related products using elements which are long lasting and resilient. This includes the Leupold VX-6HD 3-18x44mm Rifle Scope by Leupold. For more shooting goods, visit their website.
Glass Facts
Rifle scopes permit you to specifically align a rifle at different targets by aligning your eye with the target over a range. They accomplish this through magnifying the target by making use of a series of lenses inside the scope. The scope’s alignment can be adjusted for the consideration of different natural things like wind speed and elevation increases to make up for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will hit based upon the sight picture you are viewing using the scope as you line up the scope’s crosshair or reticle with the target. Most modern-day rifle optics have about eleven parts which are located internally and on the exterior of the optic. These scope parts consist of the rifle scope’s body, lenses, elevation dials, focus rings, and other elements. Learn about the eleven parts of scopes.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The style of focal plane an optic has establishes where the reticle or crosshair lies in regard to the optic’s magnification. It literally implies the reticle is located behind or in front of the magnifying lens of the scope. Looking for the most reliable kind of rifle optic depends upon what type of shooting you intend on undertaking.
Info on First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These styles of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where estimations are minimal
- Experienced shooters who recognize their target “hold over” and also “lead” ratios for their firearms
- Shooters who do not mind the reticle is bigger and takes up more visual sight area than a SFP reticle
About Second Focal Plane Glass
Second focal plane glass (SFP) include the reticle behind the magnification lens. This triggers the reticle to remain at the very same dimensions in connection with the volume of magnification being used. The outcome is that the reticle dimensions change based on the magnification chosen to shoot over greater ranges considering the markings present distinct increments which differ with the zoom. In the FFP example with the SFP optic, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick. These types of glass work for:
- Far away types of shooting where shooters have increased time to make ballistic estimations
- Shooting where most of the shots occur within shorter ranges and distances
- Shooters who prefer a clearer optic picture with less room used up by the bigger FFP reticle
Ins and Outs of Optic Magnification
The amount of zoom a scope provides is determined by the size, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Single Power Lens Rifle Scope Facts
A single power rifle scope comes with a zoom number designator like 4×32. This implies the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of optic can not adjust considering that it is set from the factory.
About Adjustable Power Lens Scopes
Variable power rifle scopes use enhanced power. The power modification is performed using the power ring part of the scope near the back of the scope by the eye bell.
Power and Range
Here are some recommended scope power settings and the ranges where they could be effectively used. High power optics will not be as useful as lower magnification glass given that too much zoom can be a negative aspect depending on your shooting distance. The same relates to extended ranges where the shooter needs to have adequate power to see where to properly aim the rifle.
Lens Coating for Rifle Scopes
All current rifle scope lenses are covered. Lens covering can be a vital element of a rifle system when looking into high end rifle optics and scope setups.
HD Versus ED Lens Coatings
Some scope makers likewise use “HD” or high-definition lens finishes which use different procedures, chemicals, elements, and polarizations to draw out a wide range of colors and viewable definition through the lens. Some scope makers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Coating Versus Multi-Coating
Different optic lenses can likewise have different finishes applied to them. All lenses usually have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is usually a protective and boosting multi-purpose treatment. This lens treatment can protect the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends upon the scope developer and just how much you spent paying for it. Both the manufacturer and amount are signs of the lens quality.
Some scope manufacturers also make it a point to specify if their optic lenses are coated or “multi” covered. Being “better” depends on the maker’s lens treatment technology and the quality of materials used in constructing the rifle scope.
Anti-water Lens Coatings
Water on a lens does not help with keeping a clear sight picture through a scope at all. Many top of the line and high-end scope makers will coat their lenses with a hydrophilic or hydrophobic finishing.
Rifle Optic Installation Alternatives
Installing options for scopes are available in a couple of choices. There are the basic scope rings which are individually installed to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also generally can be found in quick release versions which use throw levers which allow rifle shooters to rapidly mount and dismount the scope.
Hex Key Glass Rings
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which are developed for long range precision shooting. This type of scope install is wonderful for rifles which need a durable, sound mounting solution which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Rifle Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle. If they all use a similar style mount, multiple scopes can also be switched out in the field. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten securely to a flat top type Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while retaining precision. These kinds of mounts are useful and practical for rifles which are moved a lot, to take off the scope from the rifle for protection, or for sight systems which are used between several rifles. An example of this mount type is the 30mm mount designed by the Vortex Optics manufacturer. It normally costs around $250 USD
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle optic can mess up a day of shooting and your expensive optic by triggering fogging and producing residue inside of the scope tube. Most scopes avoid wetness from going into the scope tube with a system of sealing O-rings which are water resistant.
About Rifle Scope Tube Gas Purging
Another part of avoiding the accumulation of moisture within the rifle scope tube is filling the tube with a gas like nitrogen. Considering that this space is currently occupied by the gas, the optic is less affected by temp changes and pressure distinctions from the outside environment which could possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
