Description
Last update on June 28, 2022 // Source: Amazon API
Rifle Scope Product Details

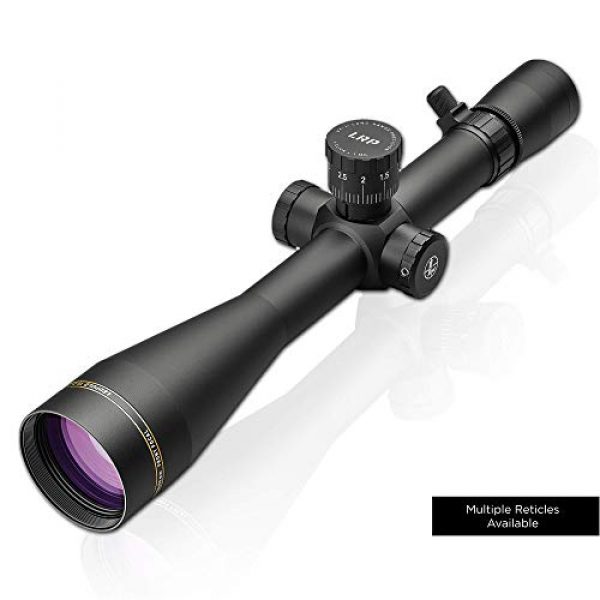

Leupold VX-3i LRP 6.5-20x50mm Side Focus Riflescope
Rifle Scope Product Features
About this item
Model #172343 – VX-3i LRP 6.5-20x50mm Side Focus with Front Focal TMR reticle and Matte finish
100% Waterproof, fogproof, and shockproof.
Long Range Precision (LRP) Target Adjustments – An easy-to-grab dial with three revolutions of travel, a zero-stop, and a revolution indicator
Front Focal Plane (FFP) – The reticle magnifies along with the image, so you can estimate range at all magnification settings
Ultra Lightweight Design – Disperses recoil energy for unrivaled durability and performance with ultra-lightweight construction
Sport type: Hunting
VX-3i LRP 6.5-20x50mm Side Focus
Magnification Range: 6.5x-20x
Weight: 21.7 oz.
Length: 14.38 in.
Maintube Diameter: 30mm
Eye Relief (in) – Low: 4.41
Eye Relief (in) – High: 3.62
Linear FOV (ft/100 yd) – Low: 14.7
Linear FOV (ft/100 yd) – High: 6.1
Leupold VX-3i
Relentless Performance

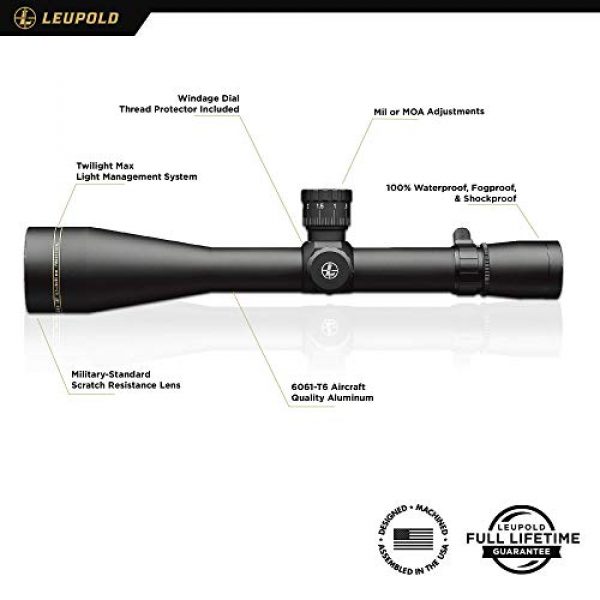

The VX-3i LRP 6.5-20×50 has the right magnification and elite optical performance to get you on target quicker and more accurately. The aptly Long Range Precision (LRP) is purpose built with match-grade accuracy and repeatability. With easy-to-read adjustment dials, an integrated, quick-turn throw lever, and Leupold’s Twilight Max Light Management System, the VX-3i LRP will help you push your limits.
Lightweight, rugged performance
Unparalleled low light performance
Designed, machined, & assembled in the USA
Twilight Max Light Management System
See a more vivid, bright, and clear target image in a wider variation of low and bright lighting conditions. The combination premium edge-to-edge lens clarity, full visible-spectrum lens coatings and glare management provides an extra 20 minutes of shooting light.
Twilight Max Light Management System
Designed, Machined, & Assembled in the USA
Rugged Reliability
Proprietary gas blend and seals are tested by us to a 33-foot depth and a multitude of pressure changes.
Every Leupold riflescope is designed to survive a minimum of 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle.
All Leupold riflescopes are tested by us to perform from -40F to 160F.
VX-Freedom VX-R VX-3i VX-5HD VX-6HD
Light Management System Twilight Twilight Twilight Max Twilight Max HD Twilight Max HD
Maintube Size 1 inch 30mm 1 inch, 30mm 30mm, 34mm 30mm, 34mm
Zoom Ratio 3:1 3:1 3:1 5:1 6:1
HD Glass No No No Yes Yes
About the Leupold Manufacturer
Leupold is a premium supplier for rifle scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They create and supply their mounts and related products working with materials which are long lasting and durable. This includes the Leupold VX-3i LRP 6.5-20x50mm Side Focus Riflescope by Leupold. For more shooting items, visit their website.
All About Scopes
Rifle scopes enable you to precisely align a rifle at different targets by lining up your eye with the target at range. They do this through magnification by employing a series of lenses within the scope. The scope’s alignment can be adapted for consideration of varied ecological factors like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s function is to understand precisely where the bullet will hit based upon the sight picture you are seeing with the scope as you line up the scope’s crosshair or reticle with the target. The majority of contemporary rifle scopes have about 11 parts which are located internally and outside of the optic. These scope parts consist of the rifle scope’s body, lenses, elevation dials or turrets, objective focus rings, and other parts. Learn about the eleven parts of rifle scopes.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Opting for the finest type of rifle glass is based on what type of shooting you plan to do.
Info About First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These styles of scopes are helpful for:
- Quick acquisition, long distance types of shooting
- Shooting situations where computations are minor
- Experienced shooters who have an idea for their target “hold over” and “lead” equations for their weapon
- Shooters who do not mind the reticle is enlarged and occupies more visual sight room than a SFP reticle
About Second Focal Plane Optics
Second focal plane scopes (SFP) come with the reticle behind the magnifying lens. This induces the reticle to remain at the exact same overall size in relation to the volume of magnification being used. The end result is that the reticle dimensions evolve based upon the zoom chosen to shoot over longer ranges since the markings represent distinct increments which vary with the magnification. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These sorts of scopes are useful for:
- Long distance forms of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within shorter spaces and ranges
- Shooters who would like a clearer optic sight picture with less area taken up by the larger sized FFP reticle
Ins and Outs of Glass Zoom
The measure of scope magnification you need on your glass is based on the sort of shooting you intend to do. Nearly every style of rifle scope provides some level of zoom. The quantity of zoom a scope delivers is established by the diameter, thickness, and curvatures of the lenses within the rifle optic. The magnification of the scope is the “power” of the scope. This signifies what the shooter is checking out through the scope is amplified times the power element of what can usually be seen by human eyes.
Fixed Single Power Lens Optic Facts
A single power rifle scope comes with a magnification number designator like 4×32. This means the zoom power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of scope can not fluctuate considering that it is a set power scope.
Variable Power Lens Rifle Scope Details
Variable power rifle scopes have adjustable power. These types of scopes will note the magnification degree in a configuration such as 2-10×32. These numbers suggest the zoom of the scope could be set in between 2x and 10x power. This additionally includes the power levels in-between 2 and 10. The power adaptation is accomplished by operating the power ring part of the scope near the back of the scope by the eye bell piece.
Power Levels and Range Correlations
Here are some advised scope powers and the distances where they can be successfully used. Bear in mind that higher magnification optics and scopes will not be as efficient as lower powered glass since too much zoom can be a bad thing. The very same idea relates to longer distances where the shooter needs to have increased power to see exactly where to properly aim the rifle.
About Lens Finishing
All modern rifle optic and scope lenses are layered. There are different types and qualities of lens finishings. When researching high end rifle optical setups, Lens finishing can be a significant aspect of defining the capability of the rifle. The lenses are among the most significant parts of the glass considering they are what your eye looks through while sighting a rifle in on the target. The finishing on the lenses offers protection to the lens exterior and helps with anti glare capabilities from refracted sunrays and color discernibility.
HD Versus ED Rifle Scope Lens Coatings
Some scope manufacturers likewise use “HD” or high-definition lens finishings which use different techniques, chemicals, components, and polarizations to draw out separate colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Details on Single Coating Versus Multi-Coating
Various optic lenses can also have various coatings used to them. All lenses generally have at least some type of treatment or coating used to them prior to being used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope producers likewise make it a point to define if their optic lenses are covered or “multi” covered. This implies the lens has had multiple treatments applied to the surfaces of the glass. If a lens gets several treatments, it can prove that a manufacturer is taking several actions to fight different environmental elements like an anti-glare coating, a scratch resistant anti-abrasion coating, followed by a hydrophilic covering. This additionally does not necessarily imply the multi-coated lens is better than a single covered lens. Being “much better” is dependent on the manufacturer’s lens treatment technology and the quality of products used in creating the rifle scope.
Anti-water Lens Finish
Water on a lens doesn’t help with maintaining a clear sight picture through a scope at all. Many top of the line and military grade scope makers will coat their lenses with a hydrophilic or hydrophobic coating.
Choices for Mounting Rifle Glass on Firearms
Installing options for scopes can be found in a couple of choices. There are the standard scope rings which are separately installed to the scope and one-piece mounts which cradle the scope. These various types of mounts also generally can be found in quick release variations which use throw levers which enable rifle operators to rapidly mount and remove the glass.
Hex Key Scope Ring Mounts
Basic, clamp design mounting scope rings use hex head screws to position to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two detached rings to support the scope, and are made from 7075 T6 billet aluminum which are manufactured for far away precision shooting. This form of scope mount is exceptional for rifle systems which need to have a long lasting, rock solid mount which will not move no matter just how much the scope is moved about or jarring the rifle takes. These are the style of mounts you want for a devoted scope system on a long distance hunting or competition rifle which will hardly ever need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used on screws to keep the hex screws from backing out after they are mounted tightly in position. An example of these rings are the 30mm style from Vortex Optics. The set typically costs around $200 USD
Rifle Scope Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope and connect it to a different rifle. Numerous scopes can also be switched out if they all use a compatible style mount. These types of mounts are convenient for long guns which are carried a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used in between several rifles.
Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can spoil a day on the range and your costly optic by inducing fogging and making residue inside of the scope tube. A lot of scopes protect against humidity from entering the optical tube with a series of sealing O-rings which are water resistant. Generally, these water-resistant optics can be immersed underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be more than enough wetness prevention for conventional use rifles for hunting and sporting purposes, unless you intend on taking your rifle aboard a watercraft and are concerned about the scope still functioning if it is submerged in water and you can still recover the gun.
About Optic Tube Gas Purging
Another component of avoiding the buildup of moisture within the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this area is already occupied by the gas, the optic is less altered by temp changes and pressure variations from the outside environment which could possibly enable water vapor to seep in around the seals to fill the void which would otherwise exist. These are good qualities of a good rifle scope to seek out.
