Rifle Scope Product Details

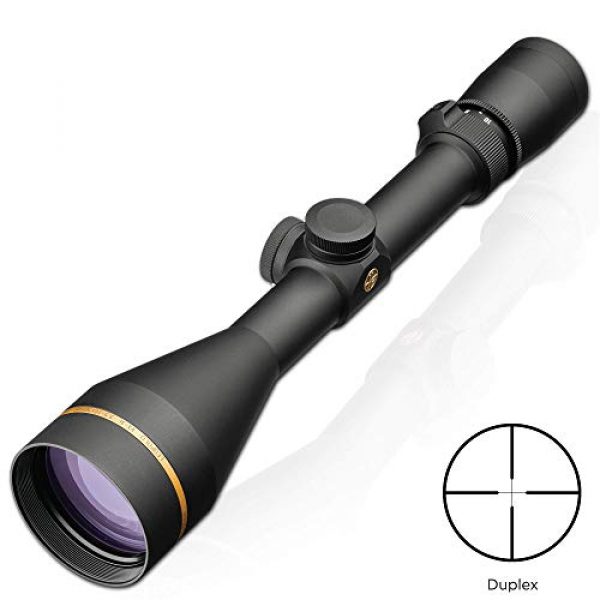

Leupold VX-3i 3.5-10x50mm Riflescope
There’s a reason the 3.5-10×50 has been one of the most popular models for decades; it just plain works in almost any hunting environment. Tight brush and long-range shots are no problem with this extremely versatile magnification range. What do hunters want most in a scope Plain and simple; outstanding performance in low-light conditions and an incredibly tough, lightweight design. The VX-3i delivers this and more. Our Twilight Max Light Management System lets you see details others can’t in those crucial low-light situations at the beginning and the end of the day. Everything we put into the VX-3i is there to help you tag out.
Rifle Scope Product Features
About this item
Model #170684 – VX-3i 3.5-10x50mm with Duplex reticle and Matte finish
100% Waterproof, fogproof, and shockproof.
DiamondCoat 2 – Ion-assist lens coating for higher light transmission and the greatest level of abrasion resistance
Precision 1/4 MOA finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of extreme use
Made with 6061-T6 aircraft quality aluminum and punisher tested to guarantee a lifetime of performance even under harshest recoil
VX-3i 3.5-10x50mm
Magnification Range: 3.5x-10x
Weight: 14.7 oz.
Length: 12.3 in.
Maintube Diameter: 1 inch
Eye Relief (in) – Low: 4.5
Eye Relief (in) – High: 3.6
Linear FOV (ft/100 yd) – Low: 29.8
Linear FOV (ft/100 yd) – High: 11
Leupold VX-3i
Relentless Performance
The 3.5-10×50 has been one of the most popular models for decades; it just plain works in almost any hunting environment. Tight brush and long-range shots are no problem with this extremely versatile magnification range. The VX-3i delivers outstanding performance in low-light conditions in an incredibly tough, lightweight design. Our Twilight Max Light Management System lets you see details others can’t in those crucial low-light situations at the beginning and the end of the day.
Lightweight, rugged performance
Unparalleled low light performance
Designed, machined, & assembled in the USA
Twilight Max Light Management System
See a more vivid, bright, and clear target image in a wider variation of low and bright lighting conditions. The combination premium edge-to-edge lens clarity, full visible-spectrum lens coatings and glare management provides an extra 20 minutes of shooting light.
Twilight Max Light Management System
Designed, Machined, & Assembled in the USA
Rugged Reliability
Proprietary gas blend and seals are tested to a 33-foot depth and a multitude of pressure changes.
Every Leupold riflescope is designed to survive a minimum of 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle.
All Leupold riflescopes are tested to perform from -40F to 160F.
VX-Freedom VX-R VX-3i VX-5HD VX-6HD
Light Management System Twilight Twilight Twilight Max Twilight Max HD Twilight Max HD
Maintube Size 1 inch 30mm 1 inch, 30mm 30mm, 34mm 30mm, 34mm
Zoom Ratio 3:1 3:1 3:1 5:1 6:1
HD Glass No No No Yes Yes
About the Leupold Brand
Leupold is a premium supplier for weapon scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They style and build their mounts and related products making the most of elements which are resilient and long lasting. This includes the Leupold VX-3i 3.5-10x50mm Riflescope by Leupold. For more shooting items, visit their website.
About Glass
Rifle scopes permit you to specifically align a rifle at different targets by aligning your eye with the target at range. They do this through zoom by employing a series of lenses within the scope. The scope’s positioning can be dialed in to account for various ecological considerations like wind and elevation to account for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will land based on the sight picture you are viewing through the scope as you align the scope’s crosshair or reticle with the intended point of impact. Many modern rifle optics have around eleven parts which are arranged within and outside of the optic. These optic pieces include the rifle scope’s body, lenses, windage turrets, objective focus rings, and other elements. Learn about the eleven parts of rifle optics.
About Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The type of focal plane a scope has establishes where the reticle or crosshair lies in connection with the optic’s magnifying adjustments. It actually suggests the reticle is situated behind or in front of the magnification lens of the scope. Picking the most desired type of rifle optic is based on what type of hunting or shooting you anticipate undertaking.
About First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These styles of scopes are helpful for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where computations are small
- Experienced shooters who have an idea for their aim point “hold over” and also “lead” relationships for their firearm
- Shooters who do not mind the reticle is enlarged and occupies more visual eyesight area than a SFP reticle
Second Focal Plane Glass Details
Second focal plane optics (SFP) feature the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Far away types of shooting where shooters have additional time to make ballistic calculations
- Shooting where most shots happen within shorter ranges and spaces
- Shooters who want a clearer optic picture with less area taken up by the larger sized FFP reticle
Rifle Scope Zoom
The level of scope zoom you require is based on the form of shooting you want to do. Pretty much every kind of rifle glass provides some amount of magnification. The volume of magnification a scope supplies is established by the dimension, thickness, and curves of the lens glass inside of the rifle optic. The zoom of the optic is the “power” of the scope. This indicates what the shooter is looking at through the scope is amplified times the power factor of what can typically be seen by human eyes.
Fixed Power Lens Optics
A single power rifle optic or scope uses a zoom number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not fluctuate because it is a set power scope.
Adjustable Power Lens Scope Details
Variable power rifle scopes can be modified between magnified levels. The power change is achieved by using the power ring part of the scope near the back of the scope by the eye bell.
Power Levels and Range
Here are some advised scope power settings and the ranges where they may be successfully used. Highly magnified glass will not be as useful as lower magnification level rifle scope glass due to the fact that too much zoom can be a bad thing. The same concept goes for extended distances where the shooter needs increased power to see where to best aim the rifle.
Lens Finishing for Rifle Scopes
All state-of-the-art rifle scope lenses are covered. Lens finishing is an important element of a rifle when looking into high end rifle optics and scope equipment.
ED Versus HD Scopes
Some rifle scope manufacturers even use “HD” or high-def lens coverings that apply various procedures, chemicals, components, and polarizations to enhance various color ranges and viewable target visibility through the lens. This high-def finishing is commonly used with more costly, high density glass which decreases light’s opportunity to refract by means of the lens glass. Some scope vendors use “HD” to describe “ED” indicating extra-low dispersion glass. ED deals with how certain colors are represented on the chromatic spectrum and the chromatic aberration or difference which is also called color distortion or fringing. Chromatic aberration may be obvious around objects with well defined outlines as light hits the item from certain angles.
Scope Lens Single Finishing Versus Multi-Coating
Different optic lenses can also have various coverings applied to them. All lenses usually have at least some type of treatment or covering applied to them before they are used in a rifle scope or optic assembly. Because the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It is part of the carefully tuned optic. It requires a coating to be applied to it so that the lens will be efficiently usable in many types of environments, degrees of light (full light VS shaded), and other shooting conditions.
This lens treatment can protect the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope producer and how much you paid for it.
Some scope producers also make it a point to define if their optic lenses are covered or “multi” covered. This implies the lens has had multiple treatments applied to them. If a lens receives several treatments, it can indicate that a manufacturer is taking numerous actions to fight different natural factors like an anti-glare finishing, a scratch resistant anti-abrasion covering, followed by a hydrophilic finish. This also does not necessarily indicate the multi-coated lens will perform better than a single covered lens. Being “better” depends on the maker’s lens treatment solutions and the quality of components used in constructing the rifle optic.
Details on Anti-water Coating
Water on a lens does not assist with keeping a clear sight picture through a scope at all. Many top of the line and high-end scope companies will coat their lenses with a hydrophilic or hydrophobic covering.
Rifle Scope Installing Choices
Installing solutions for scopes are available in a few choices. There are the standard scope rings which are individually mounted to the optic and one-piece scope mounts which cradle the scope. These different kinds of mounts also usually are made in quick release versions which use manual levers which allow rifle shooters to rapidly install and dismount the glass.
Hex Key Glass Ring Mounting Solutions
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use a couple of separate rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long distance precision shooting. This type of scope install is fine for rifles which require a durable, rock solid mount which will not move no matter how much the scope is moved or abused.
Optic Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly detach a scope and attach it to a different rifle. Multiple scopes can also be swapped out if they all use a similar style mount. These types of mounts come in handy for long guns which are transferred a lot, to remove the optic from the rifle for protection, or for optics which are used between several rifles.
About Scope Tube Sealing and Gas Purging
Wetness inside your rifle scope can mess up a day of shooting and your pricey optic by triggering fogging and developing residue inside of the scope tube. The majority of scopes avoid moisture from going into the scope tube with a system of sealing O-rings which are waterproof.
Rifle Glass Gas Purging
Another part of avoiding the buildup of wetness within the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this space is currently occupied by the gas, the scope is less affected by condition alterations and pressure distinctions from the outside environment which may potentially enable water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
